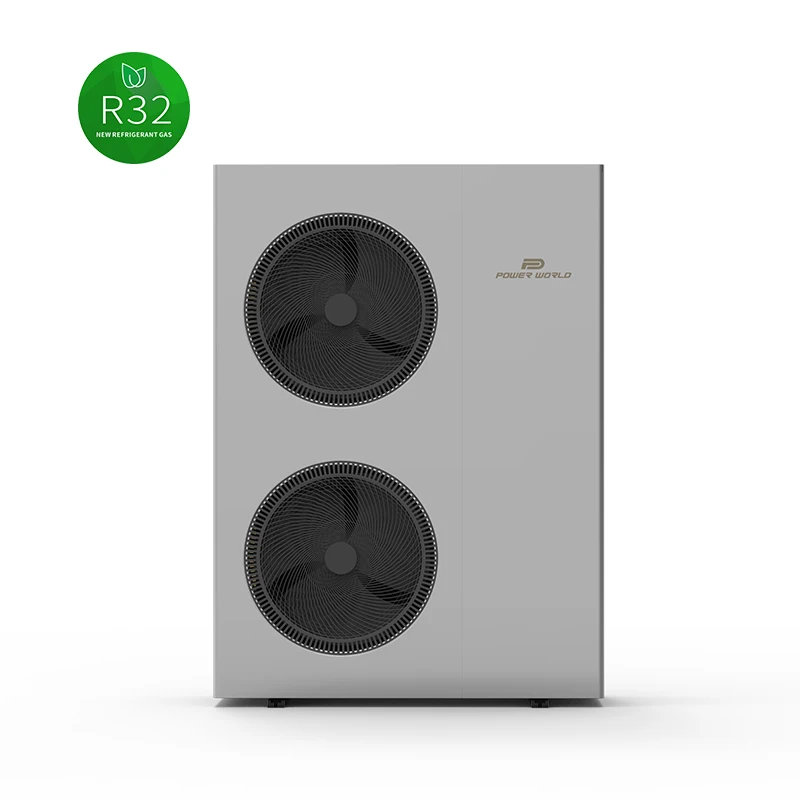

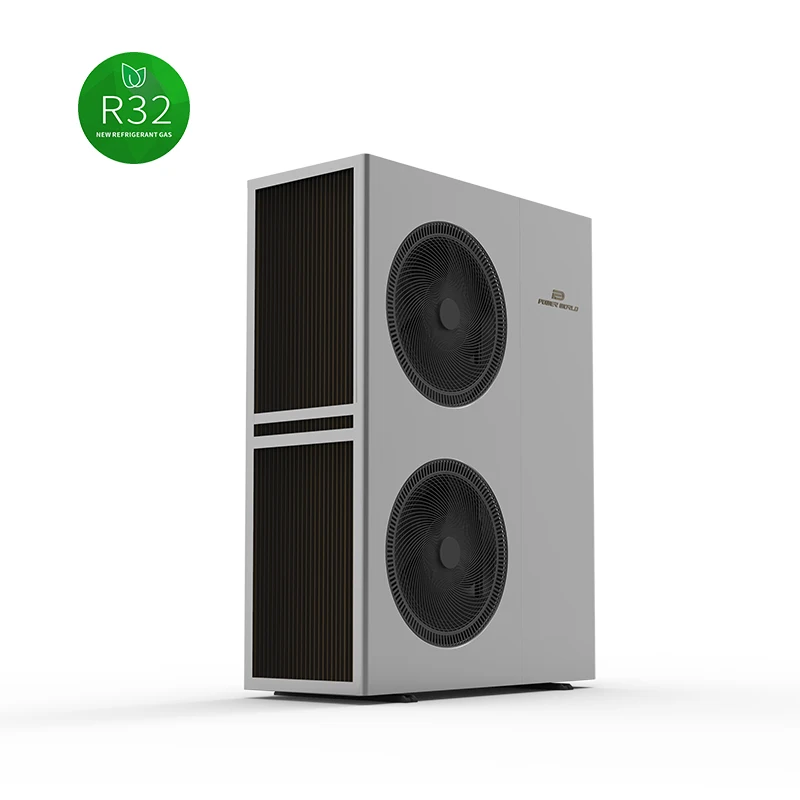

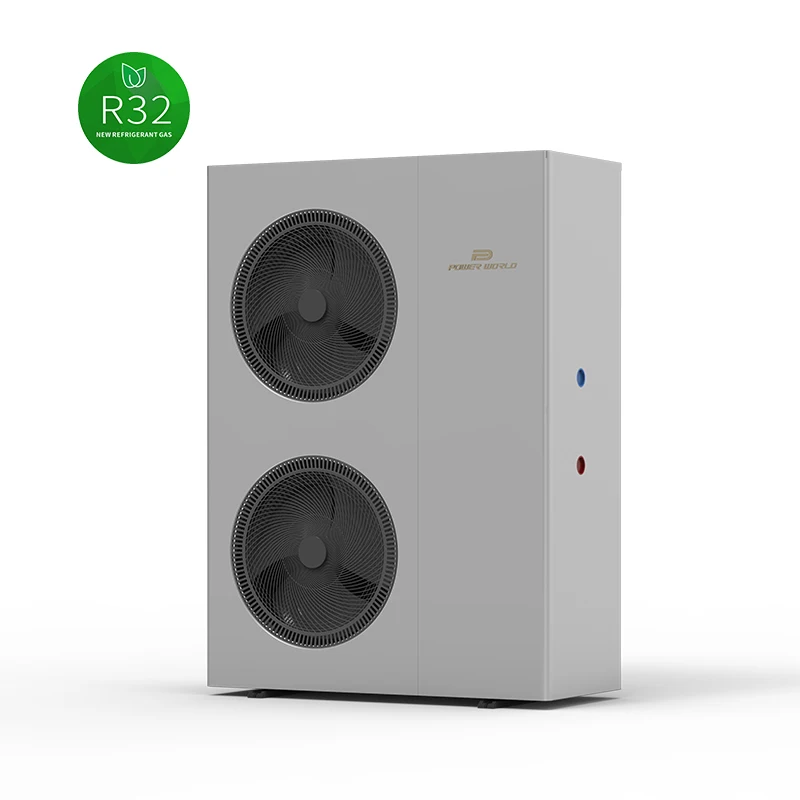

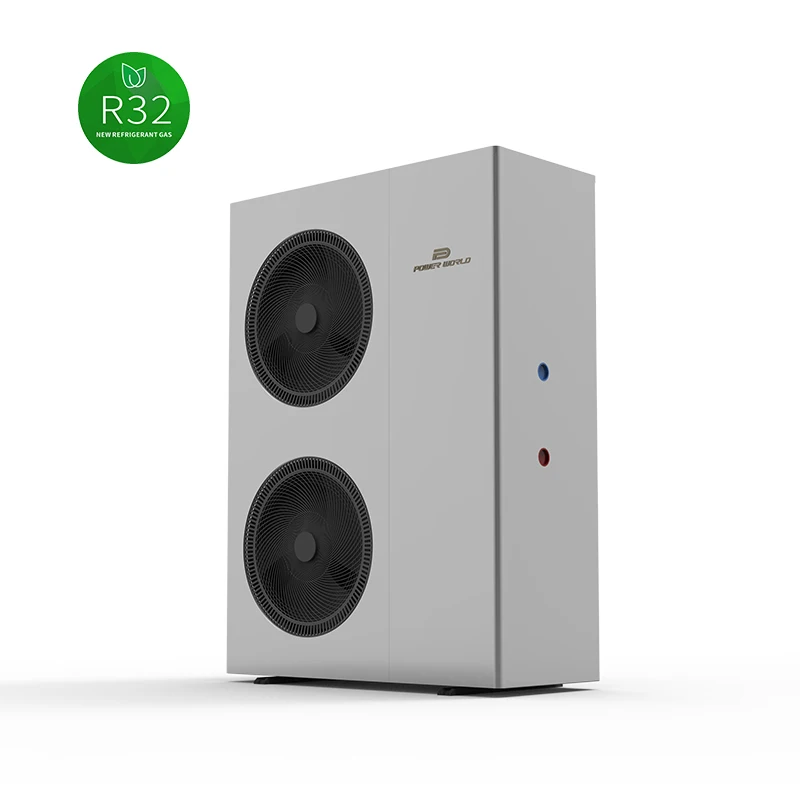

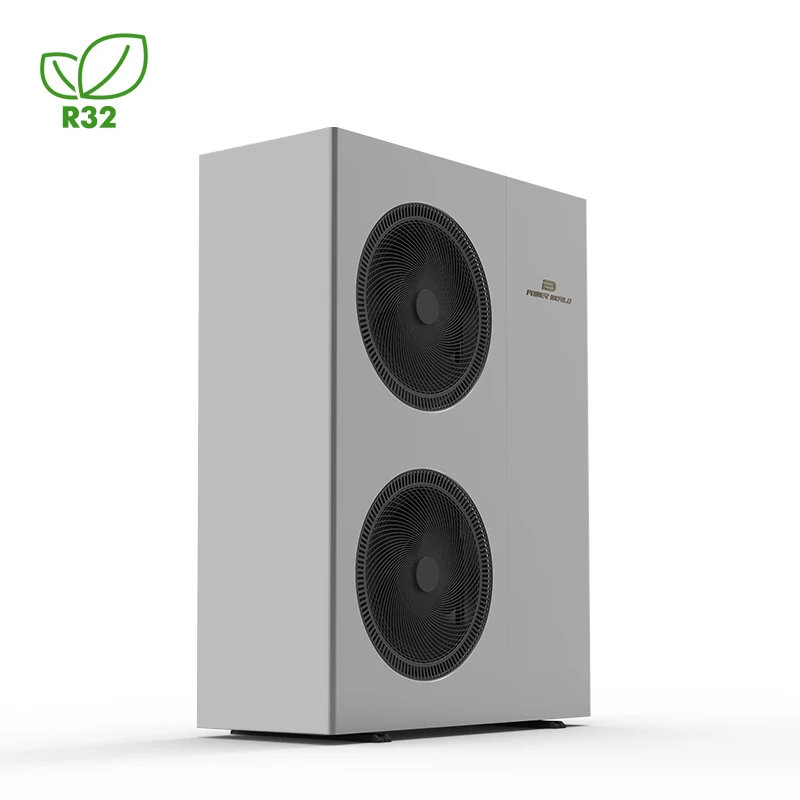

Erp A +++ R32 16 кВт mono evi полный инвертор воздушный тепловой насос нагреватель для домашнего отопления и

Product model

PW030-DKZLRS-A

PW040-DKZLRS-A

PW050-DKZLRS-A

PW060-DKZLRS-A

Heating

Heating Capacity Range (kW)

1.57~8.40

4.40~13.00

5.9~18.2

7.5~23.0

Heating input Range (kW)

0.32~1.87

0.90~3.02

1.20~4.11

1.53~5.23

current Range (A)

1.42~8.30

1.39~4.68

1.86~6.37

2.37~8.11

COP Range

4.49~4.91

4.30~4.90

4.43~4.92

4.40~4.90

Cooling

Cooling capacity Range (kW)

0.99~6.22

2.80~8.20

3.81~11.53

4.73~14.6

Cooling input power(kW)

0.29~2.18

0.85~3.31

1.11~4.05

1.39~5.14

current Range (A)

1.28~9.67

1.32~5.13

1.72~6.28

2.16~7.97

EER Range

2.85~3.41

2.48~3.29

2.85~3.43

2.84~3.40

DHW

Heating capacity Range (kW)

1.28~6.81

3.52~10.50

4.80~14.72

6.1~18.5

Heating input Range (kW)

0.31~2.13

0.88~3.39

1.17~4.60

1.53~5.97

current Range (A)

1.38~9.45

1.36~5.26

1.82~7.15

2.37~9.26

COP Range

3.2~4.1

3.1~4.0

3.2~4.1

3.1~4.0

Refrigerant

Power supply

Working area

Water circulation （m³/H）

1.4

2.2

3.1

4.0

Water pressure drop （kPa）

31

25

35

45

IP Grade (Level of protection)

IPX4

IPX4

IPX4

IPX4

Anti-electric shock Rate

I

I

I

I

Noise (dB(A))

≤53

≤55

≤57

≤58

Net weight/Gross weight(kg)

110/120

140/150

170/180

180/190

Diameter of pipe (mm)

DN25

DN25

DN25

DN25

Body size(W*D*H) (mm)

970×475×835

1100×475×985

1050×480×1330

1050×480×1330

Packing size(W*D*H)（carton）

1028×520×974

1120×515×1108

1100×530×1470

1100×530×1470

Packing size(W*D*H)（Polywood）

1048×520×974

1140×515×1110

1120×530×1470

1120×530×1470

Loading quantity (20GP/40GP/40HQ)

44/88/88

44/88/88

22/42/42

22/42/42

ErP Level (35°C)

A+++

A++

A++

A++

ErP Level (55°C)

A++

A++

A++

A++

Compressor Brand

Four-way valve

Expansion valve

Operating water temp. (℃) DHW

Operating water temp. (℃) heating

Operating water temp. (℃) cooling

Testing condition:
Heating: Inlet water temp. 30℃, Outlet water temp. 35℃, Dry bulb temp. 7℃, Wet bulb temp.6℃.
Cooling:Inlet water temp. 12℃, Outlet water temp. 7℃, Dry bulb temp. 35℃, Wet bulb temp. 24℃.
DHW: Inlet water temp. 15℃, Outlet water temp. 55℃, Dry bulb temp. 7℃, Wet bulb temp. 6℃.
