Характеристики

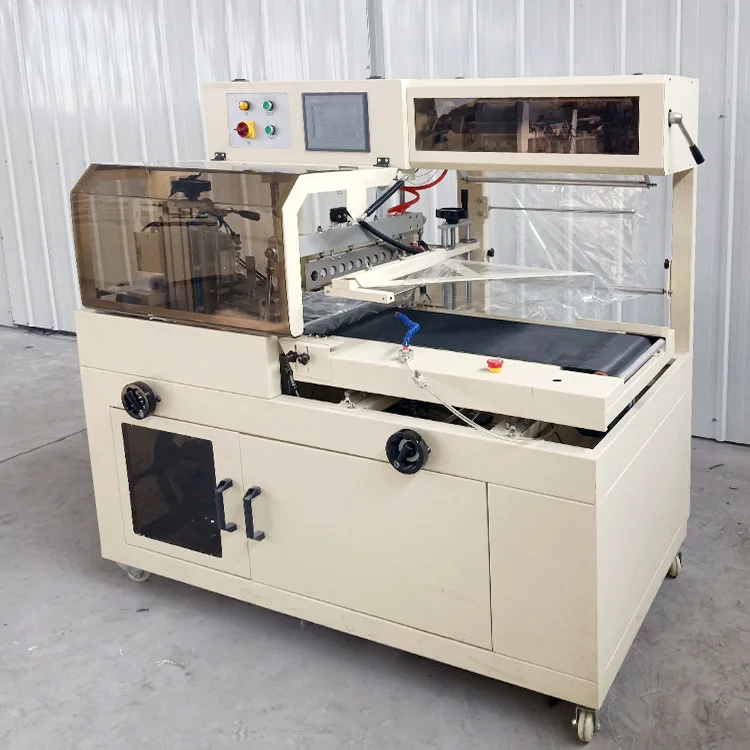

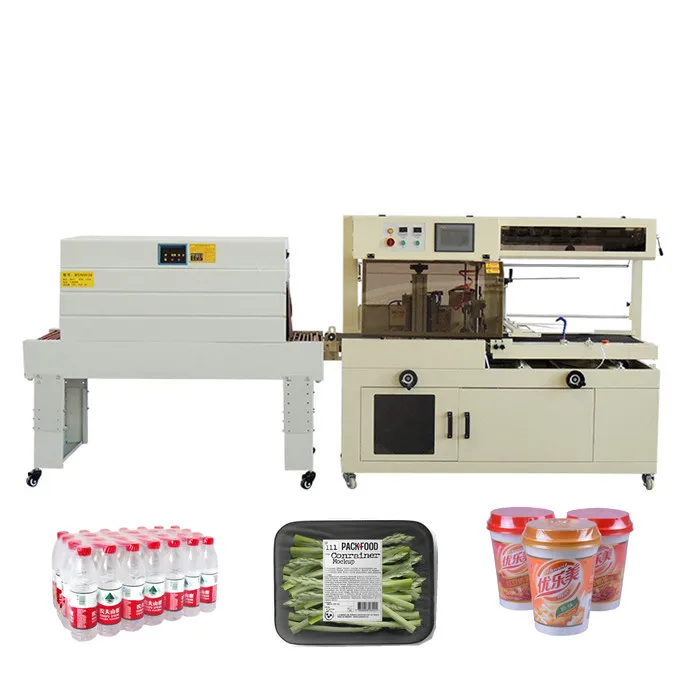

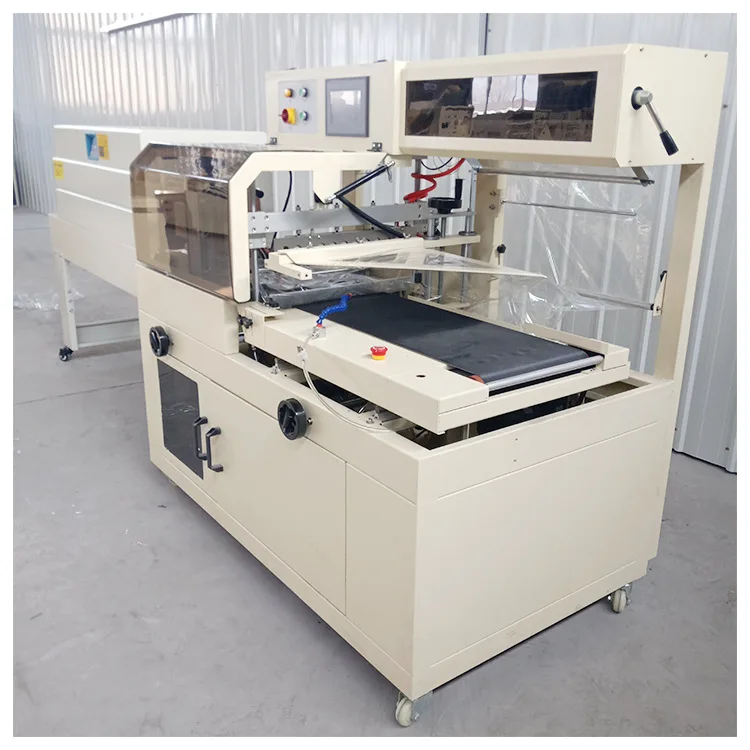

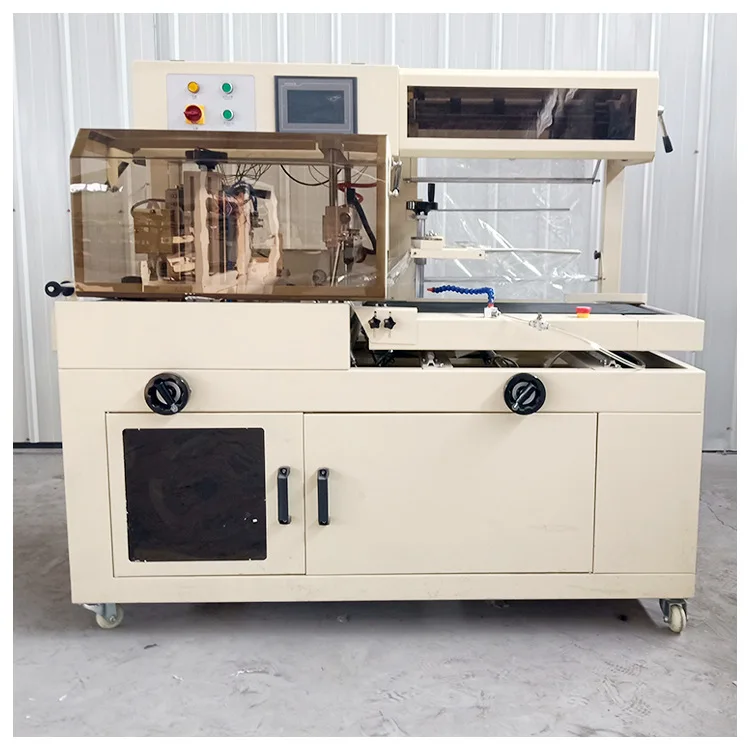

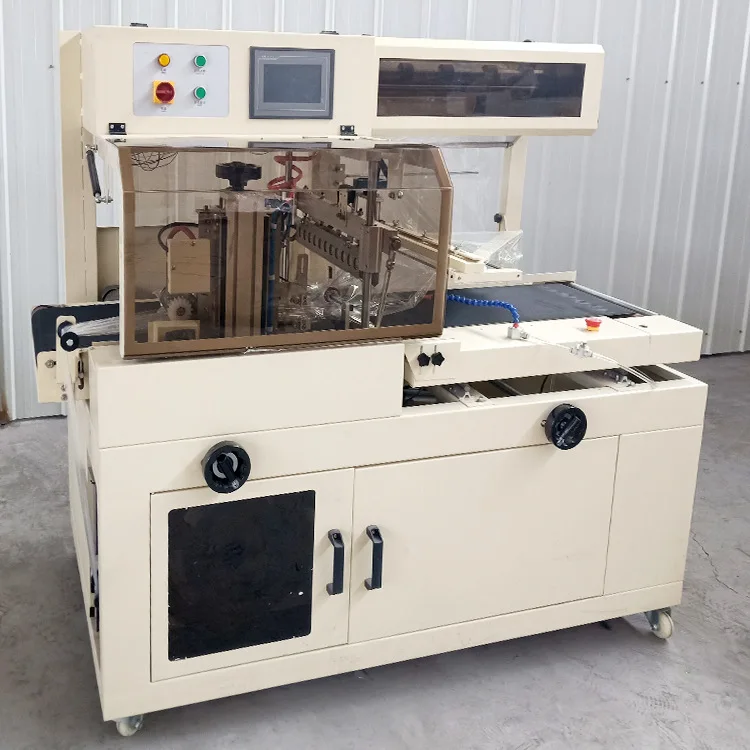

Fully automatic shrink wrapping machine for bottle plastic shrink wrap machine


Product Description






Products Description

'L' type automatic sealing and cutting machine is suitable for large-scale shrink packaging of software, food,cosmetics, printing, pharmaceutical and flooring, ceramics, beverage, hardware and other industries.




Voltage
220v, 50Hz
Max wrapping size
450*350*125mm
Air pressure
0.5Mpa
Max sealing wrapping size
560*440mm
Power
1.35kw
Machine dimension
1450*730*1360mm
Wrapping speed
15-30 boxs/min
Weight
300kg




Voltage
380v, 50-60Hz
Conveyor belt load
30kg
Power
12kw
Shrinking furnace size
1200*450*220mm
Machine dimension
1700*720*1300mm
Weight
160kg


Main Features

1.Adopt with PLC automatic program circulation control with stable and reliable performance.
2.The original imported guide bar cylinder guarantee correct operation and durable.
3.The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss.
4.All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
5.Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.
6.three layers of heat insulation treatment with good insulating property,quick temperature rise and energy saving.
7.The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported.
8.It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.


Specification

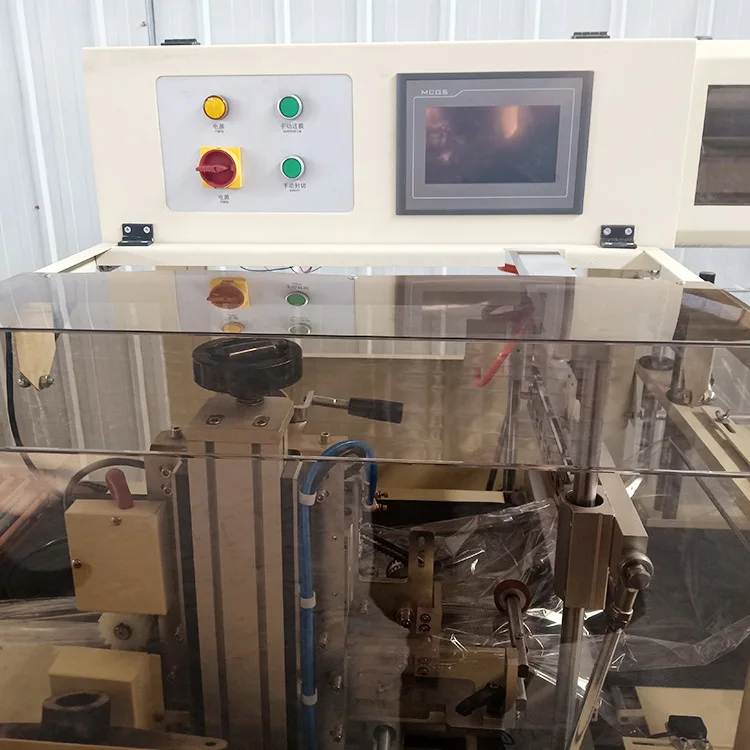

Height adjustment handle
According to the actual height of the product, shake the triangle to a height of about 10 mm above the product.






Waste film recycling wheel
lt is used to recover the waste side
after cutting the film. After the wastewheel is full, unscrew the handle andtake out the waste film, which is convenient and simple.







Blowing mouth
The thin product is properly blown into the air to make the shrinking effect more beautiful,and the corners are not easily shrunk.







Working desk
Put the product separately, do notsquat or stick it in, avoid cutting theproduct.








Emergency stop switch
ln any emergency,the emergency stop switch must be pressed immediately. Hold the red cover and turn it clockwise






Film handle
Send the film handle, when the film isworn,the handle is topped up. After the film is finished, immediately pull the handle to the position shown in the figure.








safety cover
The working part of the cutter of the sealing and cutting machine is protected by a safety shield to ensure the safety of the user.


Packaging product display
