Характеристики
Product Description

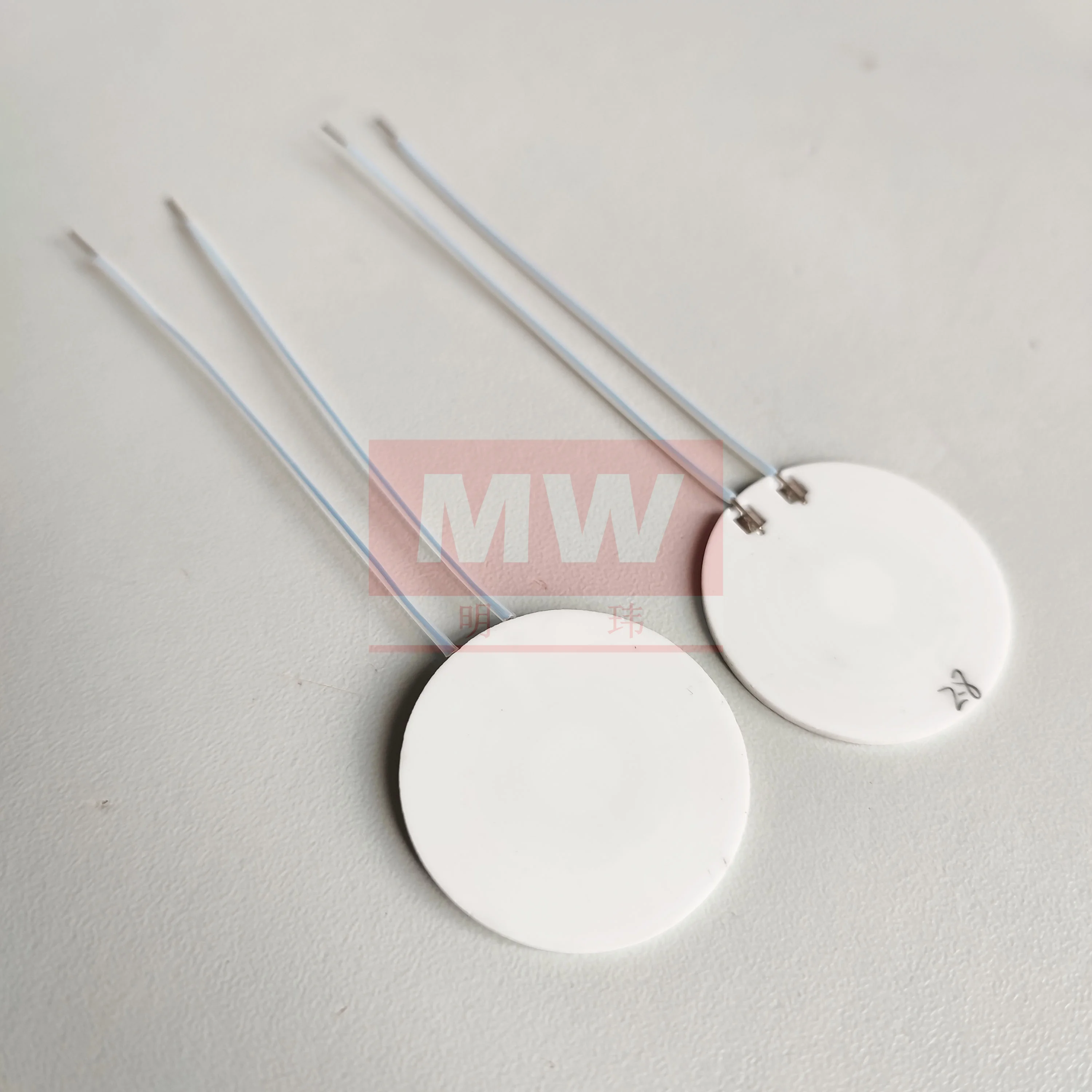

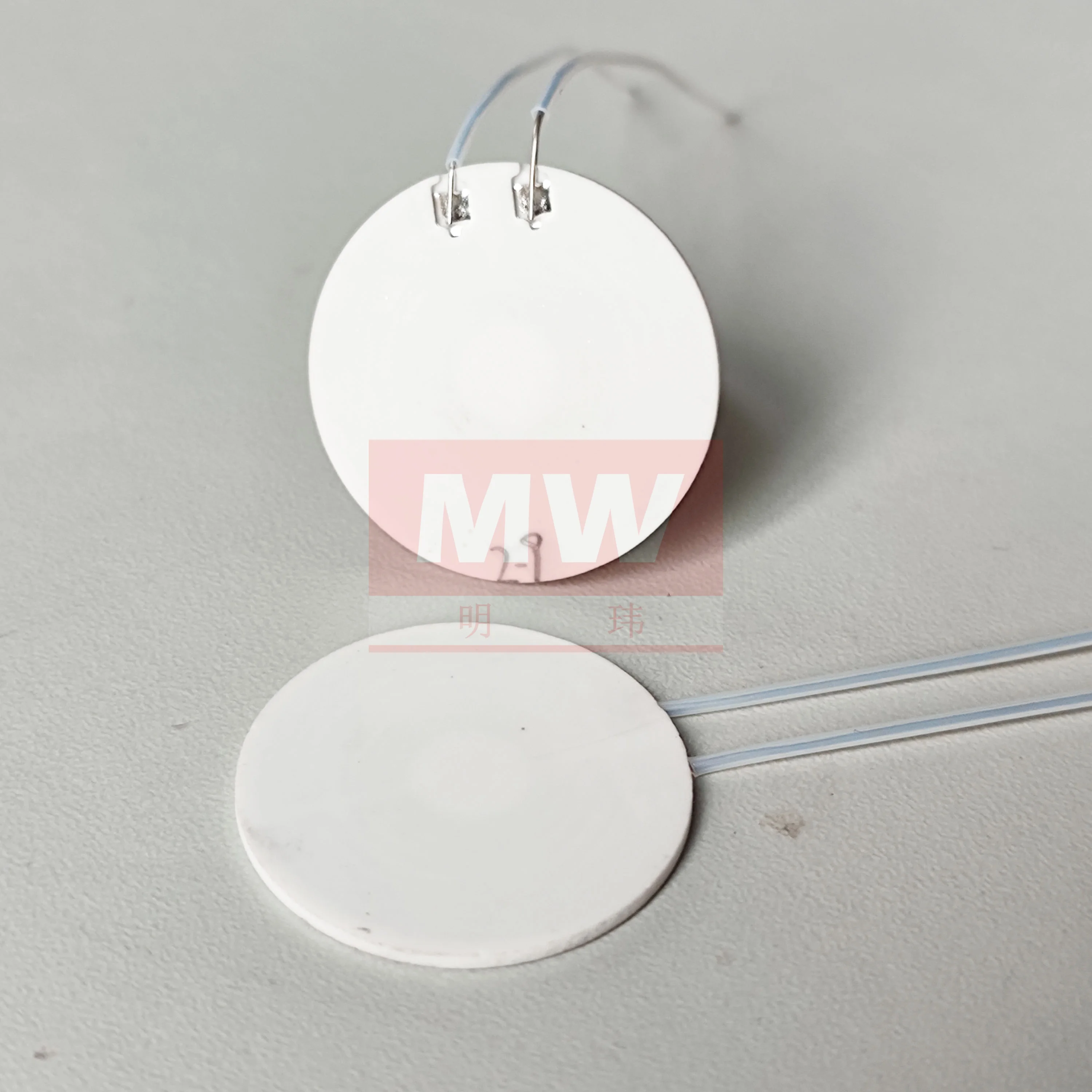

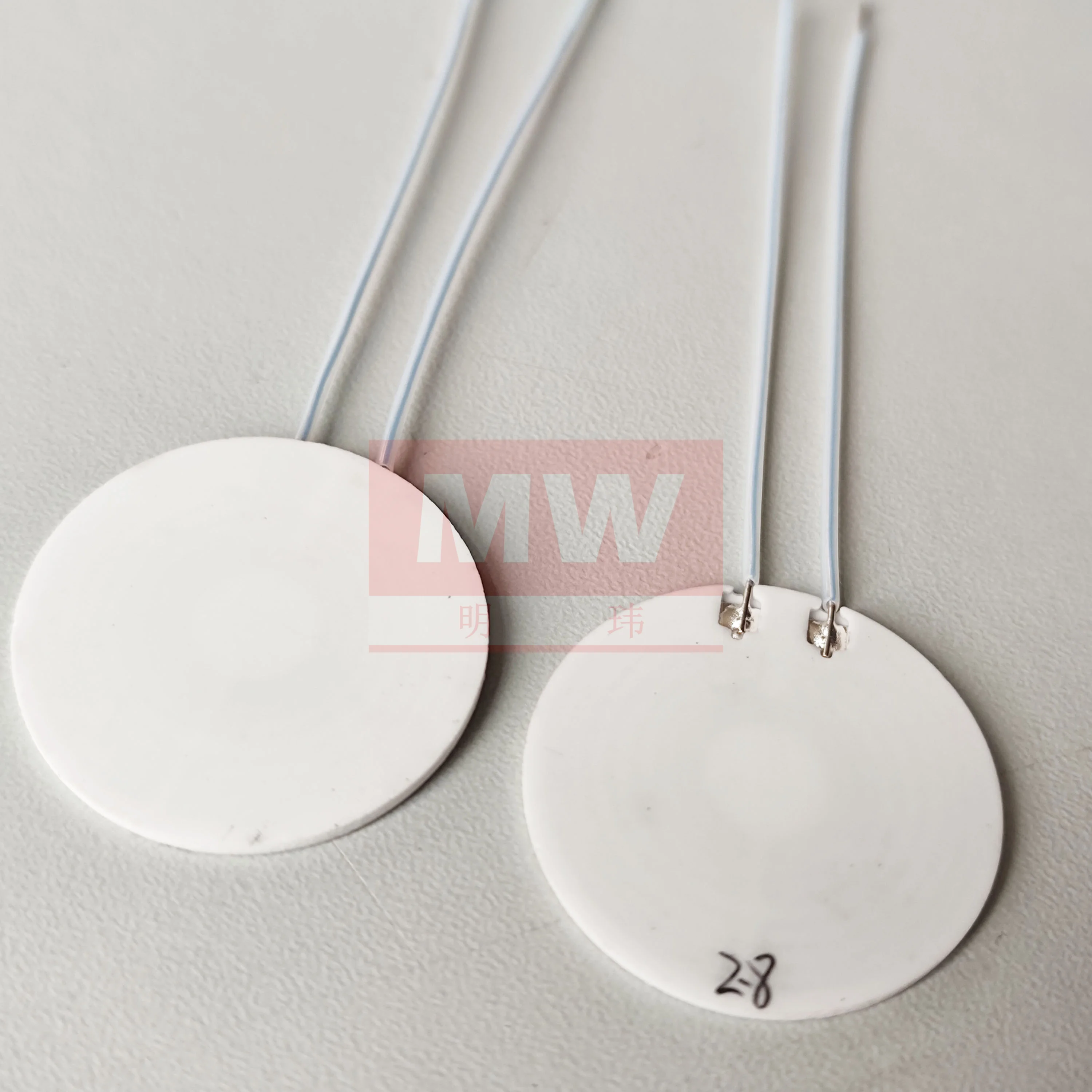

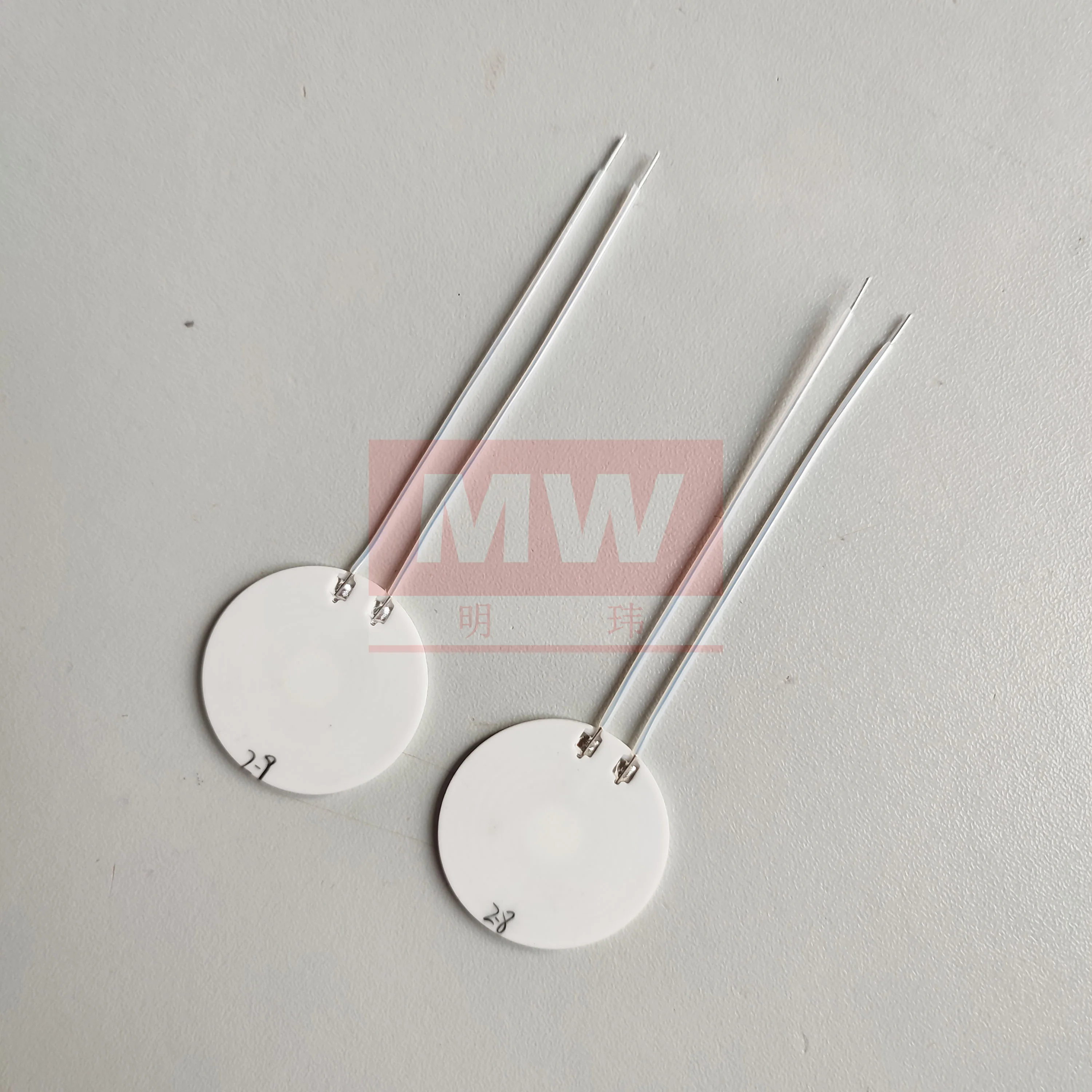

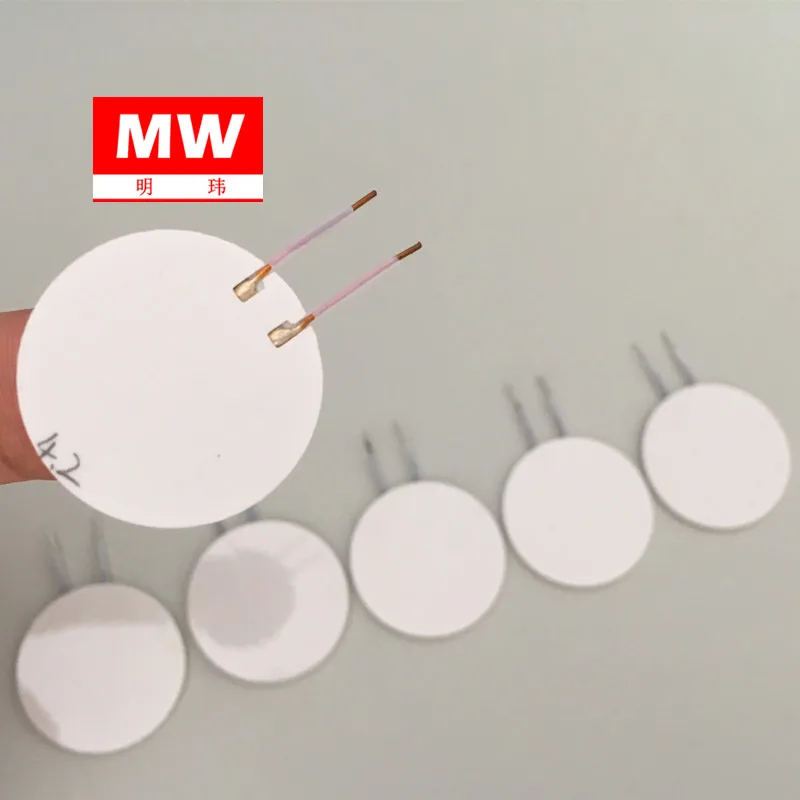

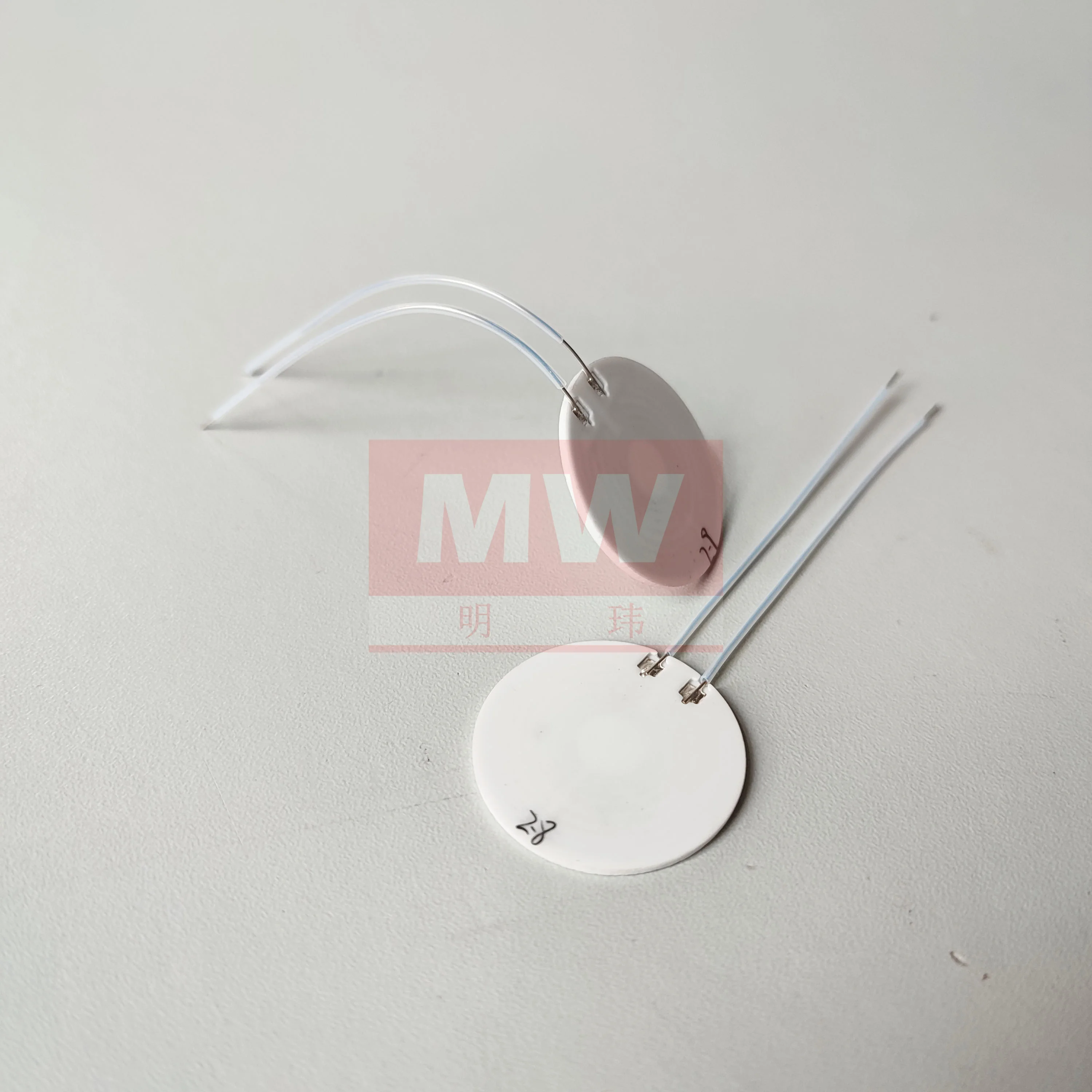

Product Name | High Efficiency MCH Insulator Ceramic Heating Element |
Model | Y3013 |
Main Material | Alumina |
Shape | Round |
Size | D30mm*T1.3mm |
Energy power | Electricity |
Voltage | 3.7V / 5V / 12V / 24V / 36V / Customized |
Resistance | 0.8~12Ω / 15~18Ω / Customized |
Thermal conductivity | (20℃) 18W / (m·K) |
Specific heat | (20℃) 0.78×103 J /(kg·K) |
Vickers hardness | (load 500g) 12.3 GPa |
Three-point flexural strength | 340 MPa |
Function | Heating, warming |
Operating temp | ＜700°C, suggest ＜400°C for long term use |
Application | machinery, medical, semiconductor, electronic and electrical industries,etc. |
Certification | RoHS, ISO9001 |
Advantages | Environmental, energy saving, small size, high efficiency |
Samples | Available |
Customized | Available |
Product Introduction:
High Efficiency MCH Insulator Ceramic Heating Element is produced by implementing unique ceramic lamination processes. MCH prints resistors on
alumina sheet, and it's laminated and sintered for one piece.Our ceramic heaters can operate in atmospheric and vacuum environment. MCH technology offers significant advantages over metal basic sheath heaters,while the latter has limitations in thermal performance and material compatibility.Compared with PTC, MCH is more energy saving, safer and higher efficient. Currently, MCH is widely used as innovative heater in machinery, medical, semiconductor, electronic & electrical industries,etc.
alumina sheet, and it's laminated and sintered for one piece.Our ceramic heaters can operate in atmospheric and vacuum environment. MCH technology offers significant advantages over metal basic sheath heaters,while the latter has limitations in thermal performance and material compatibility.Compared with PTC, MCH is more energy saving, safer and higher efficient. Currently, MCH is widely used as innovative heater in machinery, medical, semiconductor, electronic & electrical industries,etc.
Features:
1. Compact, light weight and energy-saving:High power watt density;
Good thermal efficiency.
2. Superior thermal properties:
Rapid heat increase;
Uniform temp distribution available;
High levels of insulation contact with water.
3. High reliability:
Superior dielectric strength and electrical insulation properties;
Superior antioxidant design;
Superior chemical resistance.
4. No electric noise
5. Environmental
Technical Info
High Efficiency MCH Insulator Ceramic Heating Element, being built into the base ceramic of alumina and laminated and sintering into one piece, is protected and insulated from the outside air.
Company Profile
Zhuhai MW Technology Co., Ltd. was founded in 2017. As an innovative developer and manufacturer of MCH ceramic heating elements and printed circuits using IC technology, MW owns its R&D department, clean room, advanced printing equipment, furnace and patent-protected inventions.
MW adheres to technological innovation and has been focusing on the development and manufacturing of electronic ceramics and related ceramic components. The current production of MCH electric ceramic heating elements with plate-shaped, special-shaped, rod-shaped and other shapes are widely used as the important heating components in large and small household appliances such as air conditioners, fan heaters, and hair straighteners, etc.
At present, we have 5 kiln production lines and the monthly production capacity is about 500,000pcs. Through the sincere cooperation of our team, the benefits have increased significantly in the past two years, and the product quality has been well received by the majority of customers.
Looking to the future, we’ll continue to adhere to the management philosophy of "people-oriented, innovative development" , the service purpose of "customer first, reputation first" , and the development goal of "achievements of enterprises, talent training, service society" . We’ll take the market as the guide, take the science and technology development as the theme, take the excellence to be the first as the opportunity, and commit to the development and introduction of domestic advanced manufacturing technology to serve the domestic and foreign markets, to ensure the product quality, technical level, service level in the domestic industry to maintain a leading position.
MW adheres to technological innovation and has been focusing on the development and manufacturing of electronic ceramics and related ceramic components. The current production of MCH electric ceramic heating elements with plate-shaped, special-shaped, rod-shaped and other shapes are widely used as the important heating components in large and small household appliances such as air conditioners, fan heaters, and hair straighteners, etc.
At present, we have 5 kiln production lines and the monthly production capacity is about 500,000pcs. Through the sincere cooperation of our team, the benefits have increased significantly in the past two years, and the product quality has been well received by the majority of customers.
Looking to the future, we’ll continue to adhere to the management philosophy of "people-oriented, innovative development" , the service purpose of "customer first, reputation first" , and the development goal of "achievements of enterprises, talent training, service society" . We’ll take the market as the guide, take the science and technology development as the theme, take the excellence to be the first as the opportunity, and commit to the development and introduction of domestic advanced manufacturing technology to serve the domestic and foreign markets, to ensure the product quality, technical level, service level in the domestic industry to maintain a leading position.
Package & Shipment
High Efficiency MCH Insulator Ceramic Heating Element will be packed well before shipment to prevent damage.
We usually ship our MCH ceramic heating components by DHL. But we could change the shipment according to your need.
Tips
1. Should pay attention to the surface of ceramic heater to avoid stained with oil, dirty such as the waterproof when installation, which to avoid ceramic heater damage because of its poor heat dissipation.
2. The working environment of ceramic heater is prohibited excessive heat and cold, which to prevent cold and hot shock damage.
3. The working voltage of ceramic heater should be controlled within the range of the rated voltage in order to prevent the ceramic heater from load and affect the service life.
4. Ceramic heater when heating in the water or liquid. It should be forbidden to add water after dry suddenly, all the heating pats in the container must be completely submerged in the water, the water level should over the heat element, otherwise it’ll cause heating element fracture and damage.
5. Ceramic heater should be perpendicular to the cavity when installation, otherwise the surface temp will not uniformity and make the bubbles which will make the part heat and make the heater broke
6. When ceramic heater is working, power on after watering to prevent dry heat.
2. The working environment of ceramic heater is prohibited excessive heat and cold, which to prevent cold and hot shock damage.
3. The working voltage of ceramic heater should be controlled within the range of the rated voltage in order to prevent the ceramic heater from load and affect the service life.
4. Ceramic heater when heating in the water or liquid. It should be forbidden to add water after dry suddenly, all the heating pats in the container must be completely submerged in the water, the water level should over the heat element, otherwise it’ll cause heating element fracture and damage.
5. Ceramic heater should be perpendicular to the cavity when installation, otherwise the surface temp will not uniformity and make the bubbles which will make the part heat and make the heater broke
6. When ceramic heater is working, power on after watering to prevent dry heat.
