MSS-18Y полностью автоматическая многофункциональная машина для изготовления подарочных
- Категория: Packaging Forming Machines >>>
- Поставщик: Ruian,Mosun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 143990.11 $* | 151190.86 $* |
| Aug-18-2025 | 142780.20 $* | 149919.30 $* |
| Jul-18-2025 | 119790.16 $* | 125780.9 $* |
| Jun-18-2025 | 140360.8 $* | 147378.58 $* |
| May-18-2025 | 122210.0 $* | 128321.16 $* |
| Apr-18-2025 | 137940.81 $* | 144837.57 $* |
| Mar-18-2025 | 136730.93 $* | 143567.58 $* |
| Feb-18-2025 | 135520.39 $* | 142296.35 $* |
| Jan-18-2025 | 134310.75 $* | 141026.11 $* |
Характеристики
MSS-18Y Fully Automatic Multifunction Gift Box Making Machine

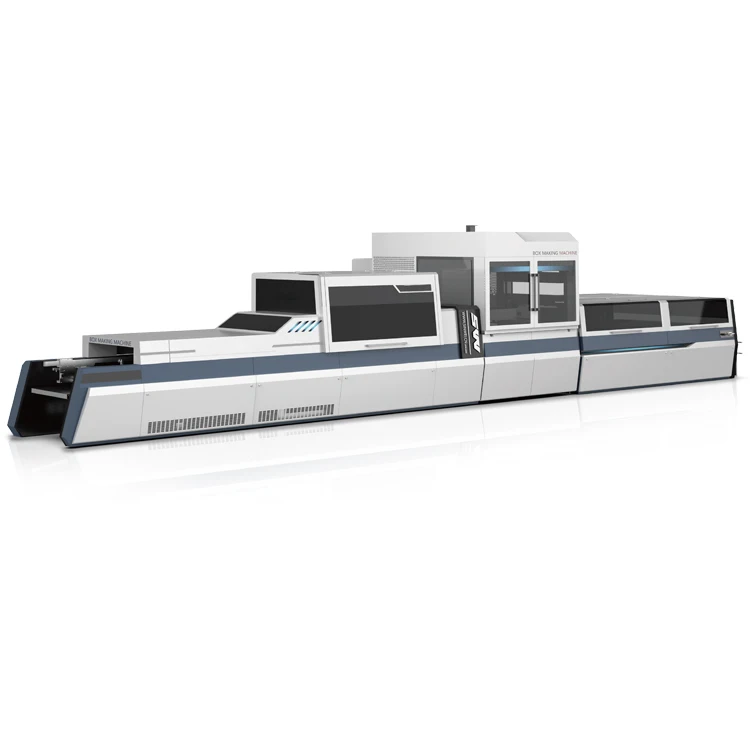

Product Appearance
Product Description
Usage:
The machine adopts intelligent touch screen display and operation to ensure more convenient and direct man-machine dialogue. Adopt PLC intelligent software control system, automatic detection, make debugging more convenient and fast, reduce the waste of raw materials.
Facturers:
1. Full automation
2. Reduce the waste of raw materials
3. More convenient
Process Flow
Product Sample Drawing
Specification
Specification for MSS-18Y Fully Automatic Multifunction Gift Box Making Machine
| Model | MSS-18Y CASE MAKER UNIT |
| Cover length | 180-1000mm |
| Cover width | 80-600mm |
| Cardboard thickness | 1-3mm |
| Min width of spine | 8mm |
| Speed | 0-30pcs/min |
| Model | MSS-18Y BOX WRAPPER UNIT |
| Box size | Max:450mm/350mm/150mm Min:100mm/60mm/15mm |
| Cardboard thickness | 0.8-3mm |
| Edge folding depth | Rmin:10mm Rmax:150mm |
| Fold ear deepth | 10-125mm(optional 150mm) |
| Production speed | ≤18sheets/min |
| Model | MSS-18Y COMMON PART |
| Length of paper | 190-1030mm |
| Width of paper | 110-630mm |
| Thickness of paper | 80-200g/m² |
| Position precision | ≤±0.1mm |
| Power | 20kw |
| Weight | 7000kg |
| Dimension | 11000*5000*2800mm |

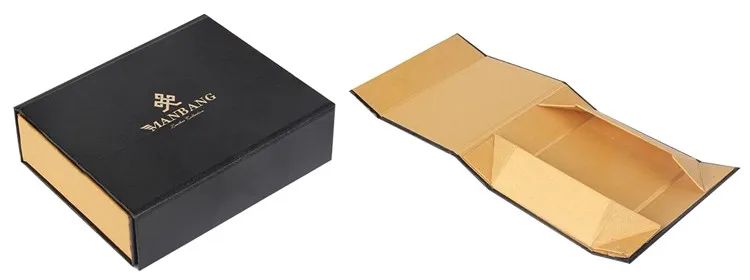

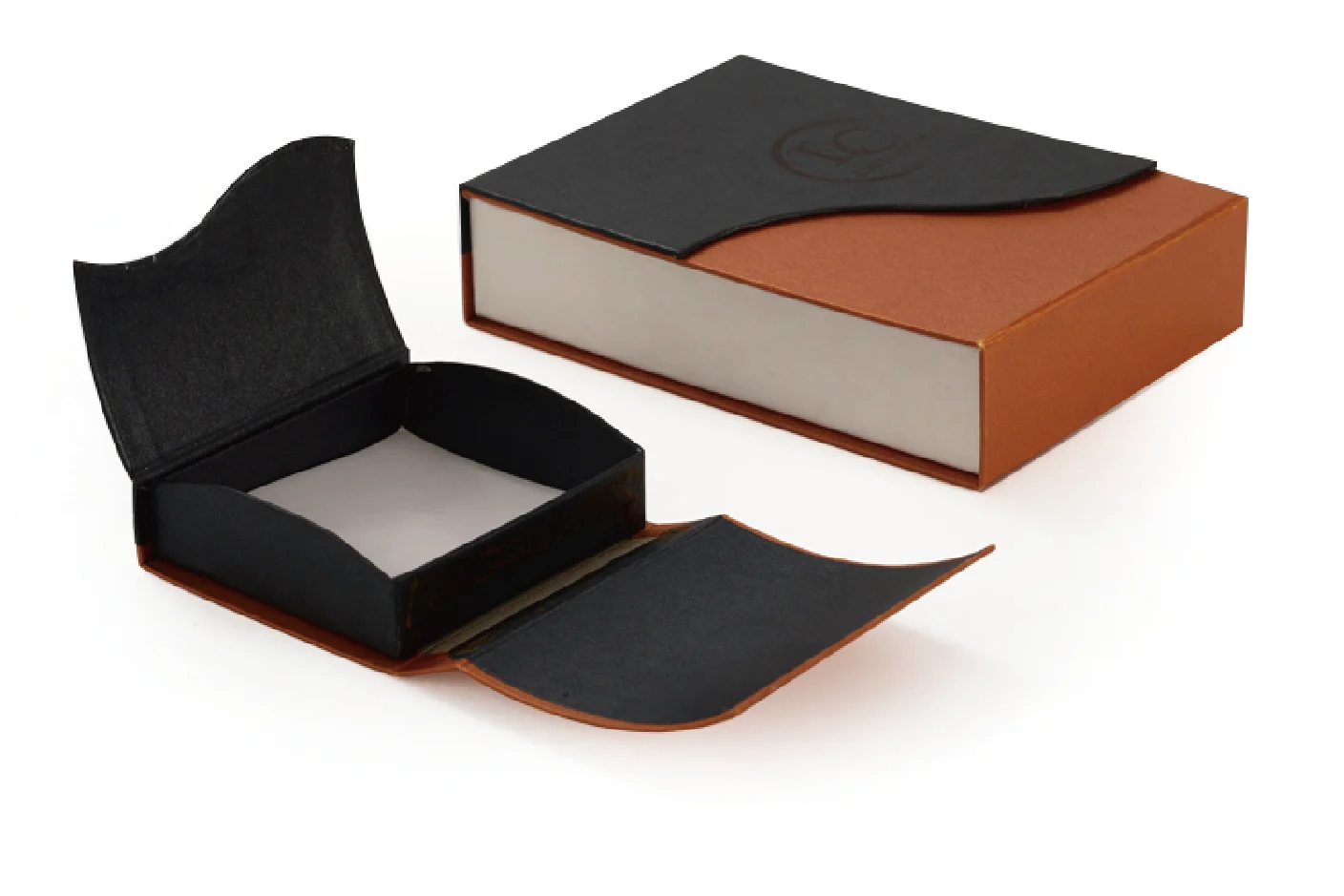

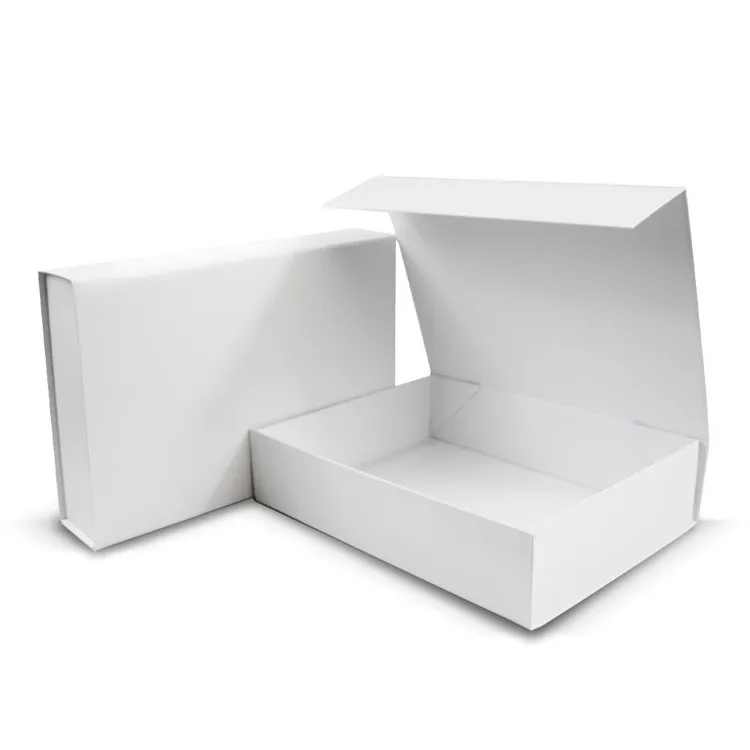

Sample
Packaging & Shipping
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Warranty
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
