Двойной положительный максимальный ток независимый и отрицательный 6 блок

[Product name] : double positive maximum current independent positive and negative six way fuse box

[Product model] : ZH-1222A1

[Net weight] : 271g

[gross weight] : 325g

[Product packing size] : 15.1*10.1*8.2cm

[Material] : PBT body, PC waterproof and dustproof cover, nickel-copper connection terminal, PPX40 sticker

[Input rated voltage] : 12-60V

[Input rated current] : 300A

[Maximum output current] : 45A for each circuit

[Indicator Light Color] : Red

[mainline terminal] : M5 thread stud

[main conductor] : # 4-6

[single terminal] : M4 thread stud

[Single wire lead] : #12-16

[Indicator function] : When the red LED light is lit, it means that the fuse has been disconnected and the fuse needs to be replaced in time to continue to operate

[product installation range] : can be installed in cars, villas, saloon cars, buses, yachts, boats and other above the use

[Product use range] : can be directly connected to the car/ship any electrical lines [such as: roof lights, car headlights, visual width lights, fog lights, warning lights, car refrigerator, car charger, car fans, car TV, etc.]

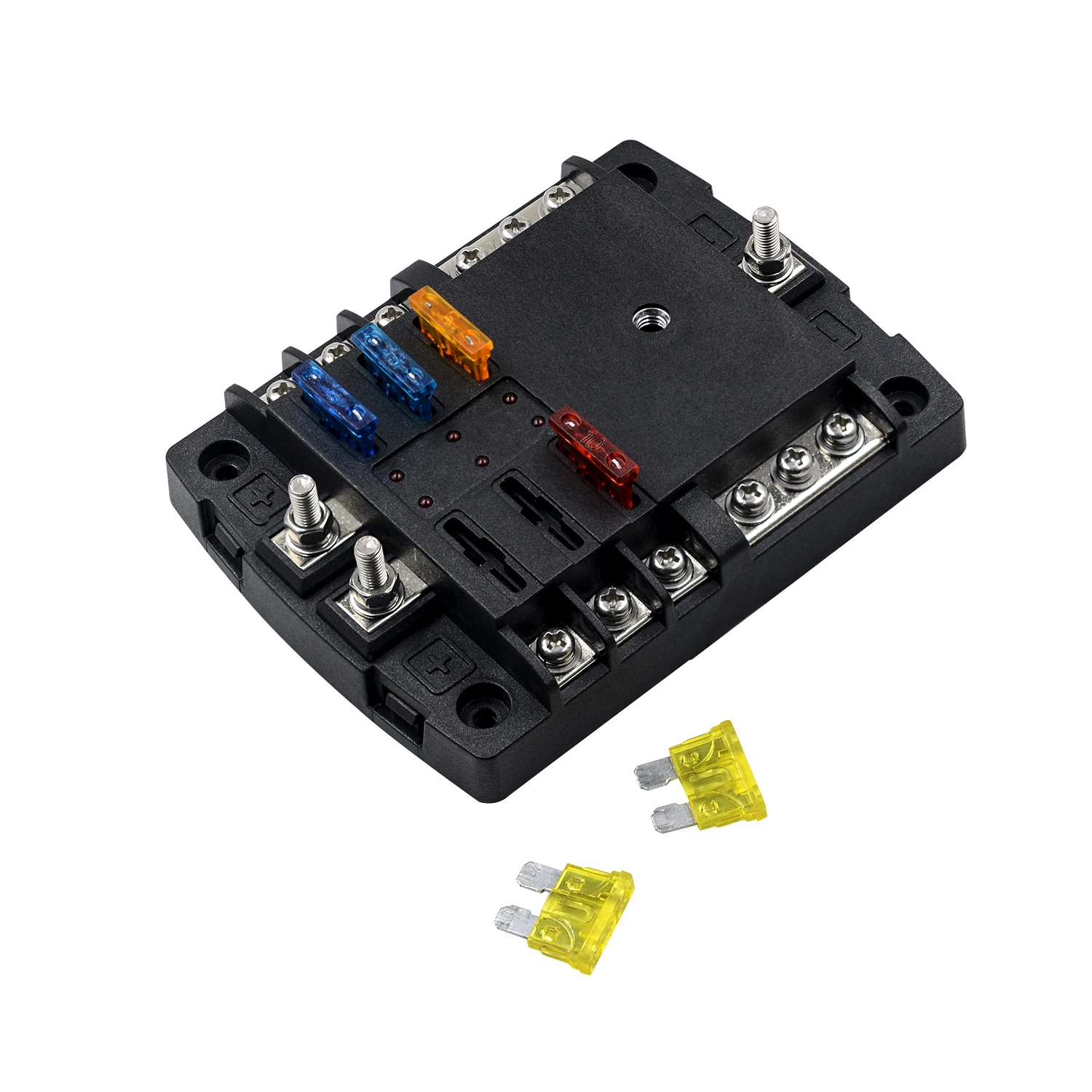

[Product accessories] : sticker X2;Self-tapping screw X4;20A fuses X4;15A Fuses X4;10A fuse X2;5A fuse X2

[Fuse function] : When the circuit is faulty or abnormal, the current is constantly rising, and the rising current may damage some important devices or valuable devices in the circuit, and it may also burn the circuit or even cause fire.

The fuse protects the electronic equipment from being damaged by the current and also prevents the electronic equipment from being seriously damaged due to internal faults.Therefore, each fuse has a rated size and will blow if the current exceeds the rated size.

If the fuse is placed correctly in the circuit, then the fuse will fuse itself to cut off the current when the current rises abnormally to a certain height and a certain temperature, thus playing the role of protecting the safe operation of the circuit.

[Product Advantages] :

[1] The product adopts PBT flame retardant and high and low temperature environmental protection material, which fully meets the conditions of [the fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy, and should not produce fracture, deformation, combustion and short circuit in use]

[2] All busbars and fuse clamps are nickel-copper plated for corrosion resistance and optimal electrical conductivity

[3] All the fasteners are stainless steel. The input and output ends of the fuse box are fixed by tightening screws, which can be installed more quickly. Moreover, the self-tapping screws are adopted for the fixation of the fuse box, making the installation simpler and safer.

[4] The product is designed with red LED indicator light, corresponding to the electrical appliances connected with each fuse piece. When the fuse is disconnected, the red light will be on, so that you can immediately know which fuse is broken, so as to facilitate timely processing

[5] The products are presented with stickers, which can be pasted on the electrical appliances we connect according to the name on the stickers. When the fuse is broken and the red light is on, we can identify which electrical appliances have the problem in the first time, saving time and effort

[6] Double fuses are distributed in the product. When the fuses are burned in the application, they can be immediately replaced from the spare fuses. And the fuses are sent to multiple Abe's, which can be selected according to the current electrical appliances

[7] Bilateral forward current, color with 1.0 thick high phosphorus copper, conductive performance is more stable, voltage and current can pass through a wider range, the current up to 300A, DC60V voltage, can be applied to high-voltage demand equipment, anti-car, large equipment
