Контроллер солнечного зарядного устройства MPPT 40
- Категория: Solar Energy Products >>>
- Поставщик: Wuhan,Hanfei,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.93 $* | 0.84 $* |
| Aug-16-2025 | 0.29 $* | 0.40 $* |
| Jul-16-2025 | 0.54 $* | 0.73 $* |
| Jun-16-2025 | 0.22 $* | 0.35 $* |
| May-16-2025 | 0.22 $* | 0.10 $* |
| Apr-16-2025 | 0.49 $* | 0.15 $* |
| Mar-16-2025 | 0.32 $* | 0.24 $* |
| Feb-16-2025 | 0.66 $* | 0.60 $* |
| Jan-16-2025 | 0.42 $* | 0.63 $* |
Характеристики
Product Description
MPPT 40A Solar charger controller RS485 Wifi or Bluetooth Optional
used LiFePO4,ternary lithium battery
Rated charge current | 10A | 20A | 30A | 40A | ||||||
System rated voltage | 12/24V Auto recognized | |||||||||
Voltage range of battery | 8V-32V | |||||||||
Max open voltage of solar panel | 100V/150V(Optional) | |||||||||
Battery type | User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2. | |||||||||
Equalized charging voltage | Maintenance-free lead-acid battery:14.6V,GEL:No;Lead-acid Flooded battery: 14.8V | |||||||||
Absorption charging voltage | Maintenance-free lead-acid battery :14.4V,GEL:14.2V ;Lead-acid Flooded battery: 14.6V | |||||||||
Float charging voltage | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :13.8V | |||||||||
LVR | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :12.6V | |||||||||
LVD | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :10.8V | |||||||||
Static loss | ≤45mA/12V, ≤37mA/24V | |||||||||
HVD | 16V | |||||||||
Duration of absorption charging | 2hs | |||||||||
Duration of equalized charging | 2hs | |||||||||
Light control voltage | 5V | |||||||||
Temperature compensation coefficient | -4mV/°C/2V(25°C) | |||||||||
Discharge loop voltage drop | ≤0.2V | |||||||||
LCD temperature | -20°C ~ +70 °C | |||||||||
Operating temperature | -20°C ~ +55 °C | |||||||||
Storage temperature | -30 ~ +80 °C | |||||||||
Working humidity | ≤90%, No condensation | |||||||||
Protection class | IP30 | |||||||||
Grounded type | Positive grounded | |||||||||
Dimension | 155.5*127*42.5mm | 174.5*145*50mm | 195* 160* 60mm | 215.5*174*65mm | ||||||
Hole size for installation | 117*100mm | 135* 110mm | 150*120mm | 164*160mm | ||||||
Aperture for installation | Φ5mm | |||||||||
Terminal wiring | 10mm2 /7AWG | 16mm2 /5AWG | ||||||||
Net weight | 0.360kg | 0.525kg | 0.835kg | 1.125kg | ||||||
Optional function | RS485,RS232,BT,wifi | |||||||||
Above the Parameters are in 12V system at 25℃,twice in 24V system. | ||||||||||
| Item | Currenty | Description | Dimension | Net weight |
| MPPT110D | 10A 12/24V AUTO | It can be used LiFePO4,ternary lithium battery. Optional function: RS485,Bluetooth,Wifi | 155.5x127x42.5mm 117*100mm ∅5 | 360g |
| MPPT120D | 20A 12/24V AUTO | 174.5x145x50mm 135*1100mm ∅5 | 525g | |
| MPPT130D | 30A 12/24V AUTO | 195x160x60mm 150*120mm ∅5 | 835g | |

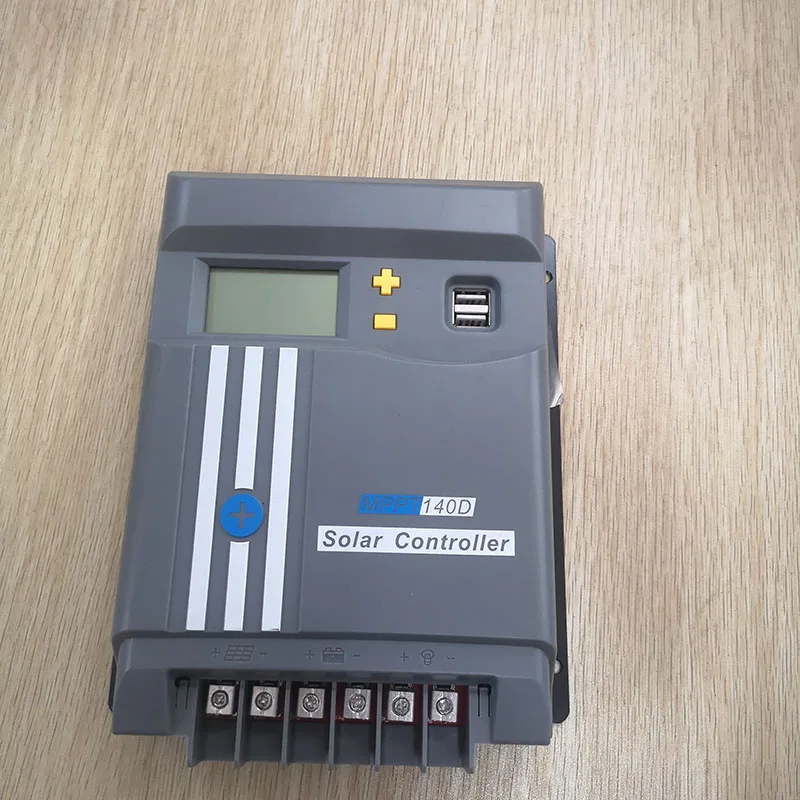

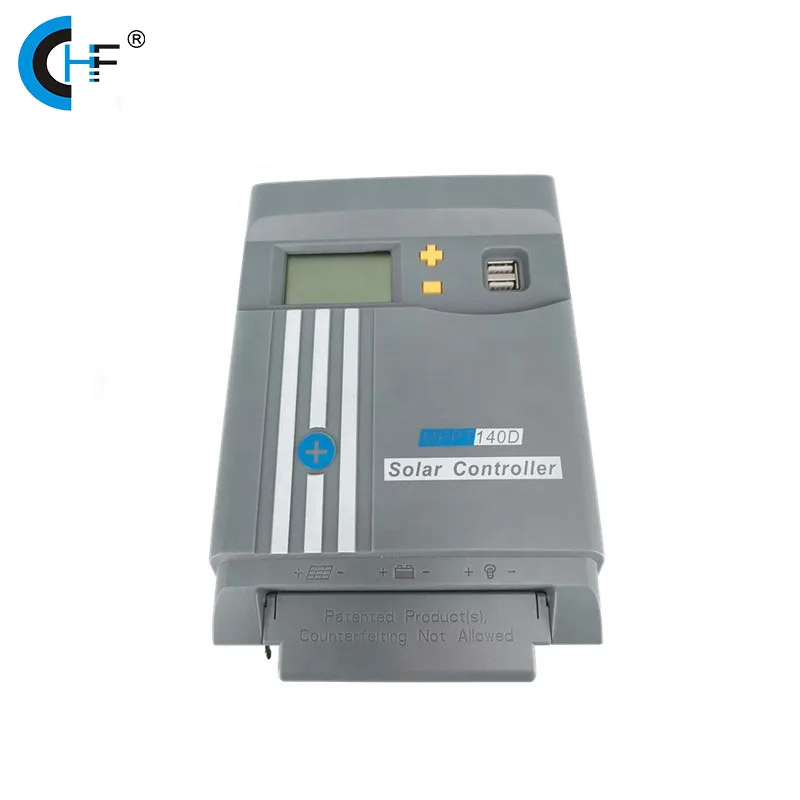

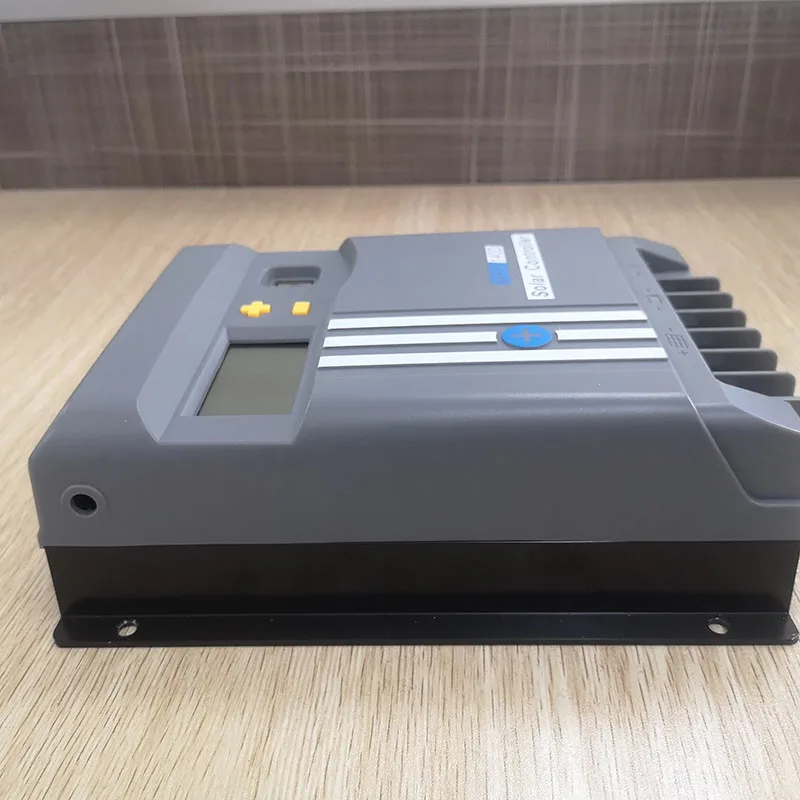

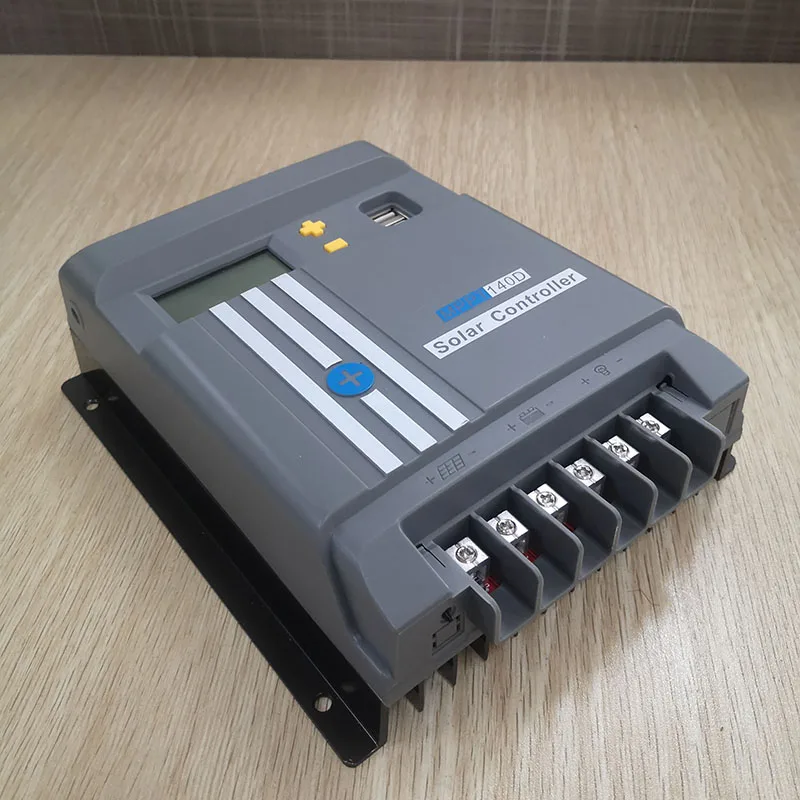

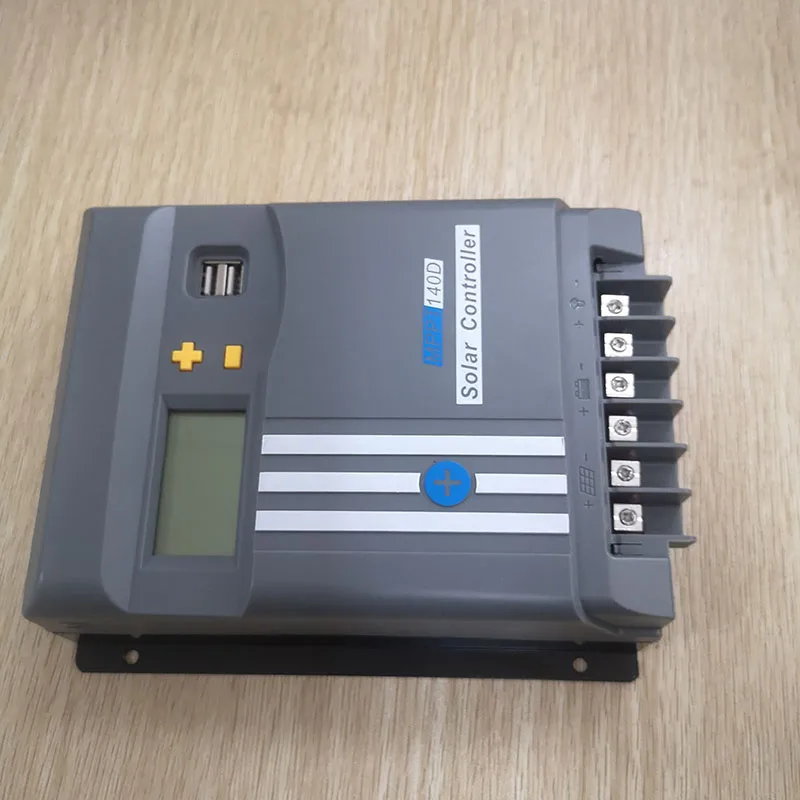

| MPPT140D | 40A 12/24V AUTO | 215.5x174x65mm 164*160mm ∅5 | 1125g |
FAQ
1 Q:Do you have your own factory? Can we visit?
1 A:Absolutely.You are always welcomed to visit our factory.
2 Q:How do you control the quality of the products?
2 A:Our factory has obtained ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.
3 Q:What certificate do you have?
3 A:We have CE,ROHS.
4 Q:What kind of controller you mainly manufacturer?
4 A:We mainly produce PWM and MPPT solar charge controller.
5 Q:Can we print our company logo on product and package?
5 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.
6 Q:How long is the warranty period?
6 A:1 year warranty. free replacement if any quality issue,
