1200 Мбит/с двухдиапазонный гигабитный openwrt маршрутизатор vpn модем сторожевой оборудования со слотом для SIM карты EP06-A EM12-G EM160R EM500Q

3G 4G LTE Modem wireless router With SIM Card Slot Wi-Fi Repeater English firmware
router/repeater/AP mode and MT7621 512MB RAM

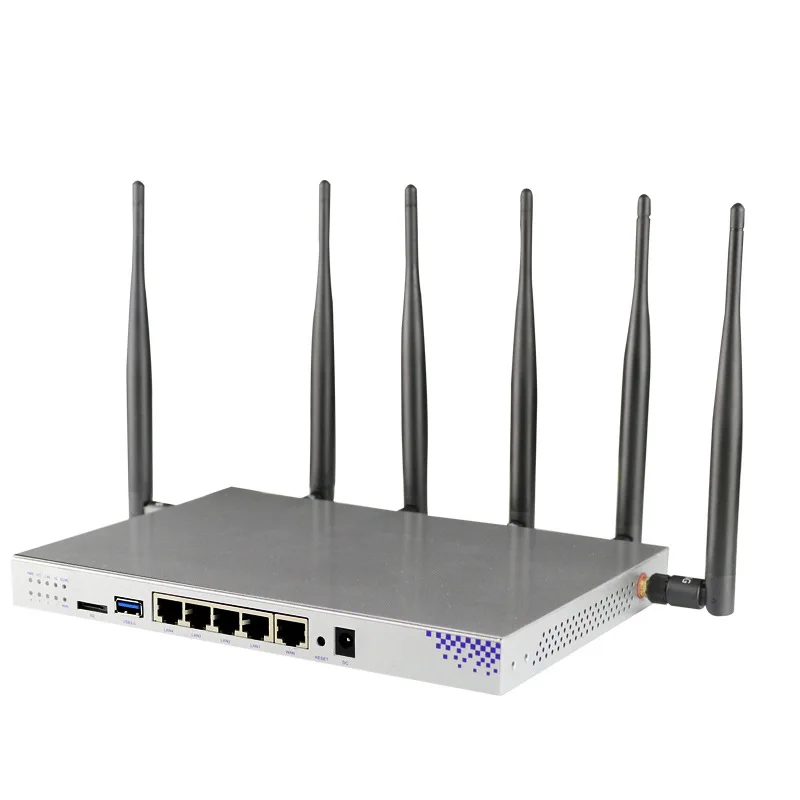

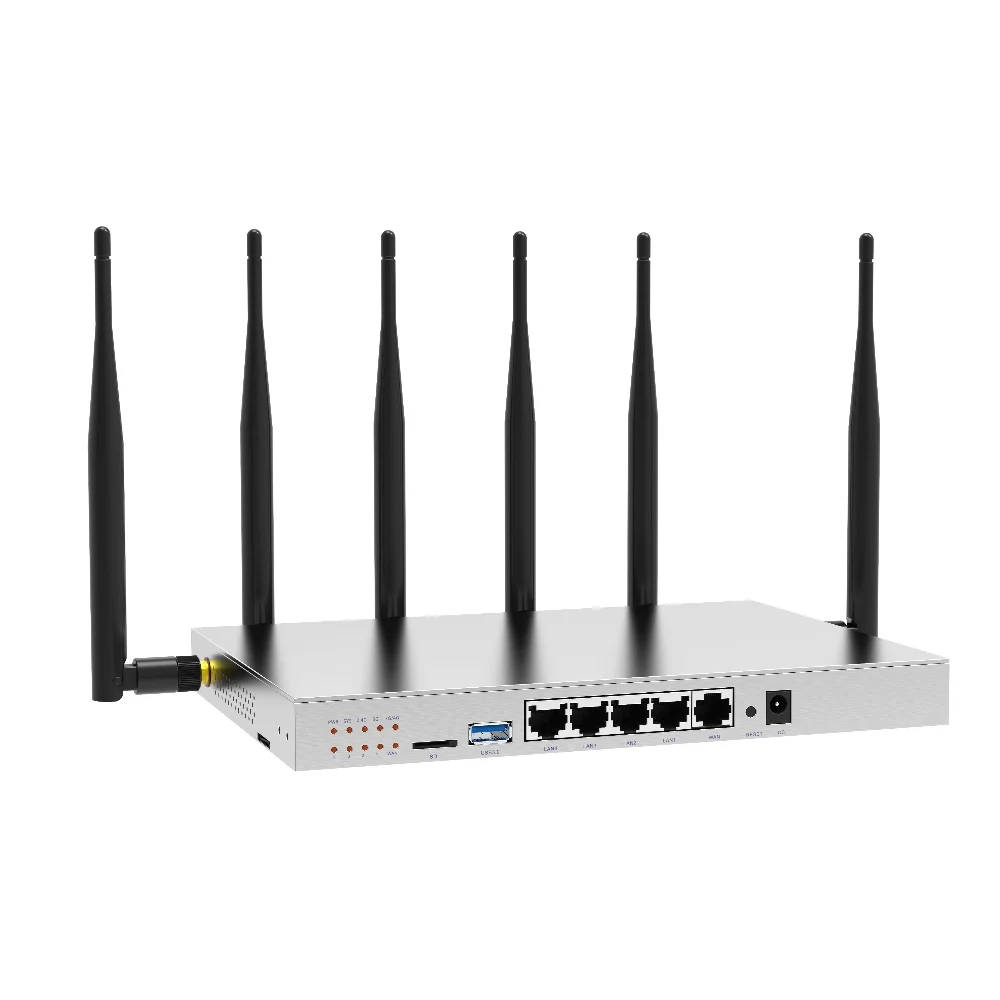

Hardware:
WG3526-4G is using MTK7621 solution, up to 880MHz. It supports 5*10/100/1000M RJ45 port, 1*USB 3.0, 1* internal PCI-E interface, 1*Micro SD Card, and so on.
Wireless:
It is compatible with IEEE802.11AC/N/G/B/A wireless network protocol. The max wireless transfer rate up to 1200Mbps. The external 4 pcs 5dBi antennas can make good wireless performance and broader coverage
Software:
The original OpenWrt based on Linux is including 802.11ac, IPV6 and Win8 certification, which provides drivers to support VPN upper layer software, audio and touch screen. L7 QoS can work with on-chip hardware accelerators HNAT/HQoS smoothly, it also provides Auto QoS function for Internet and SMB routers.
Spec:
New dual-core network chipset MT7621, up to 880MHz
Provides 5* 10/100/1000Mbps RJ45 ports
Provides 1* external USB 3.0
Provides 1* PCI-E interface to supports 3G/4G
Provides 1* Micro SD Card
Compatiable with IEEE IEEE802.11AC/N/G/B/A wireless standard
Wireless transmission rates is up to 1200Mbps

Warm Reminder
bands Situation For 3G or 4G modules, different carriers in different countries have different bands and frequencies. Please tell me the bands or frequencies. Then we can choose the right 3G or 4G modules

WG3526-EP06-E version:
4G LTE FDD : B1/B3/B5/B7/B8/B20/B28/B32 4G LTE TDD:B38/B40/B41 trabajando en EMEA/APAC1/Brasil(Europe: Deutsche Telekom * Australia: Telstra)

WG3526-EP06-A version
4G LTE FDD : B2/B4/B5/B7/B12/B13/B25/B26/B292/B30/B66 Trabajando en América del Norte/México(North America: Verizon / at & T / sprint Canada: Rogers)

WG3526-EM12-GCAT12:
BAND:B1/B3/B5/B7/B8/B20/B28/B32 @FDD B38/B40/B41@TDD B1+B1/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B32+B20; B38+B38; B40+B40; B41+B41 @DL 2*CA B1+B1; B3+B3; B7+B7; B40+B40; B41+B41@ UL 2*CA B1/B3/B5/B8@WCDMA

Sierra EM7455 Cat-6 Frequency bands:
LTE FDD: Band B1-B5, B7, B12, B13, B17, B20, B25, B26, B29, B30, B41
UMTS / HSPA +: B1, B2, B3, B4, B5, B8

If you don't know the 4G band used in your country, please open the following website:
https://en.wikipedia.org/wiki/List_of_LTE_networks

AQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
