Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Высокое качество ПЭТ Полуавтоматическая выдувная машина
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Tehnoindustriya,LLC
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 7616.68 $* | 7768.65 $* |
| Jul-20-2025 | 6177.4 $* | 6301.15 $* |
| Jun-20-2025 | 7496.65 $* | 7646.16 $* |
| May-20-2025 | 7436.11 $* | 7585.55 $* |
| Apr-20-2025 | 5937.53 $* | 6056.71 $* |
| Mar-20-2025 | 7316.33 $* | 7462.62 $* |
| Feb-20-2025 | 7256.61 $* | 7401.28 $* |
| Jan-20-2025 | 7196.4 $* | 7340.38 $* |
Характеристики
Product Description

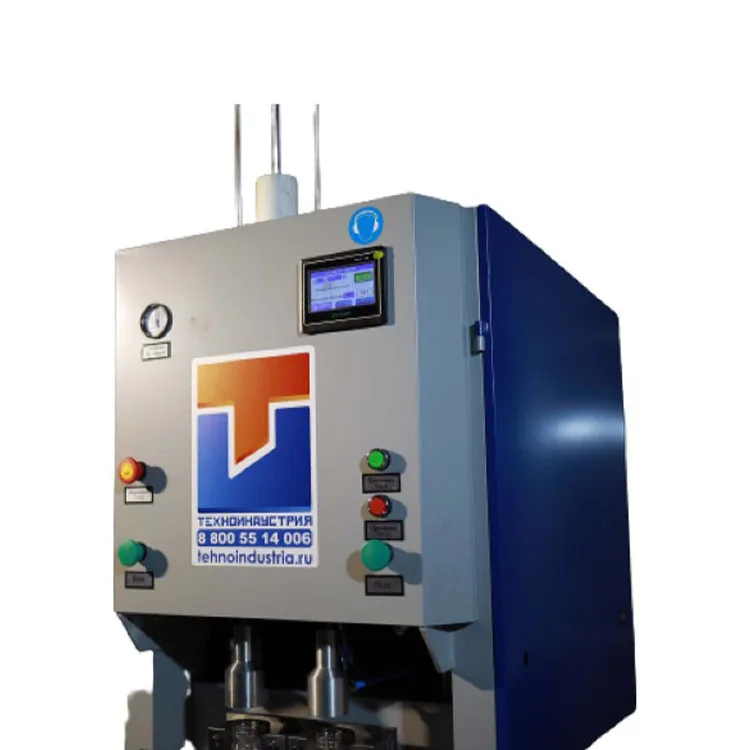

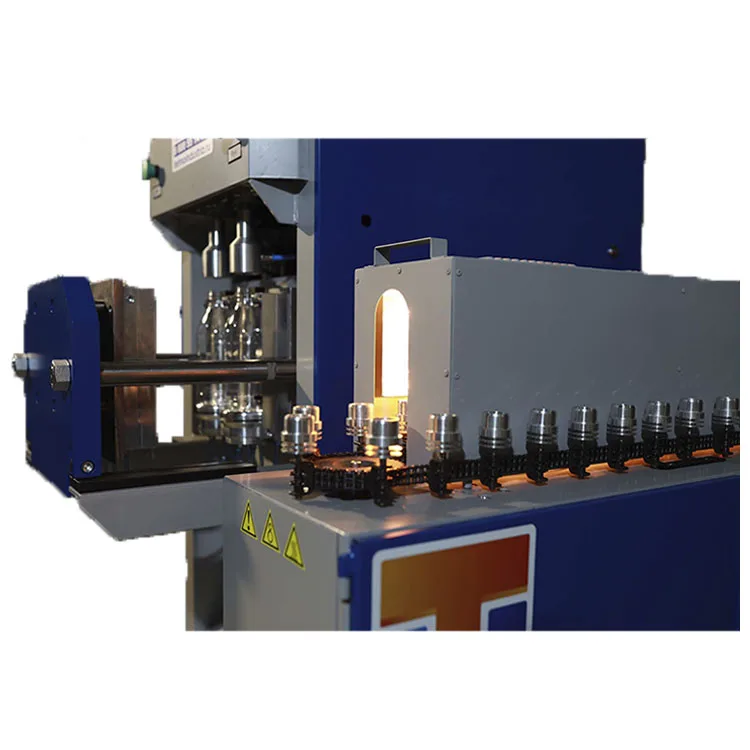

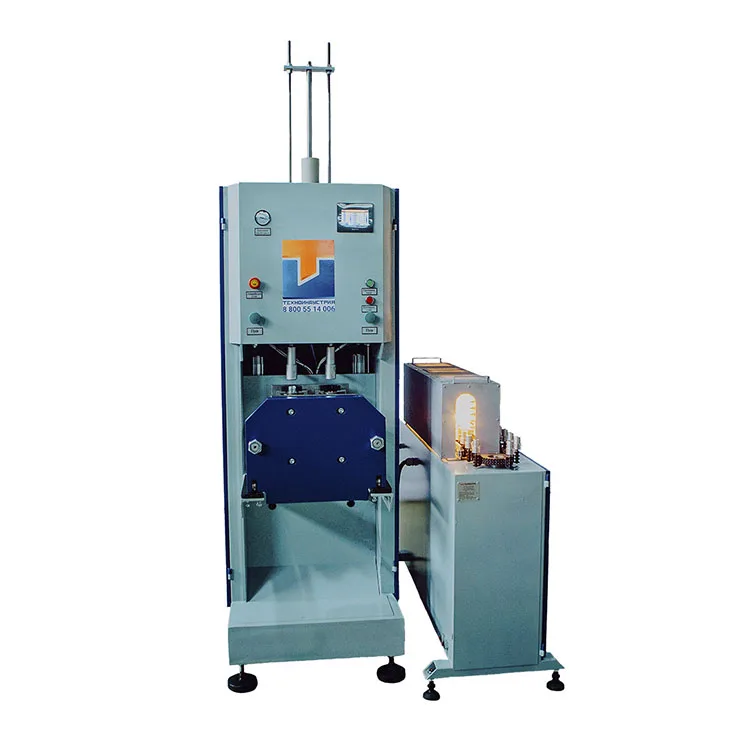

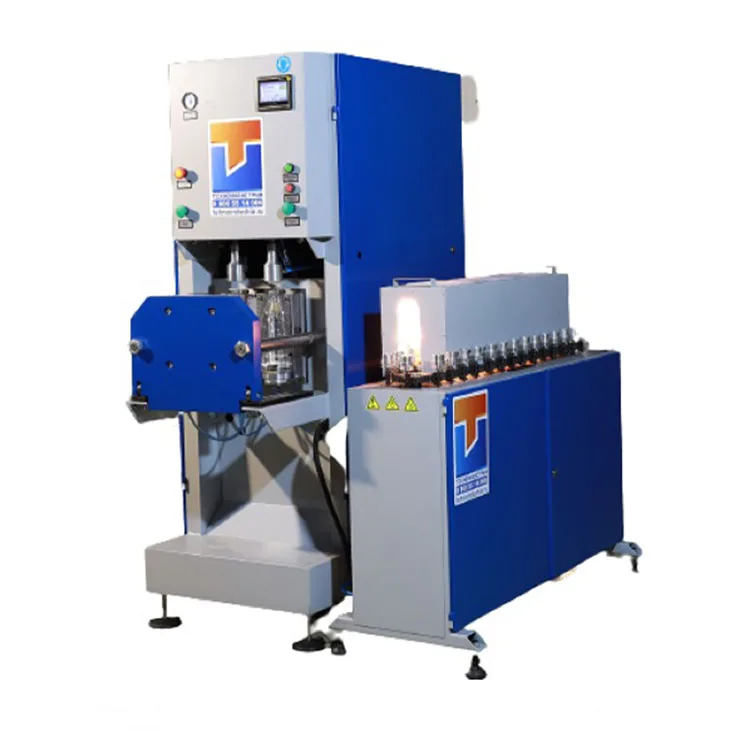

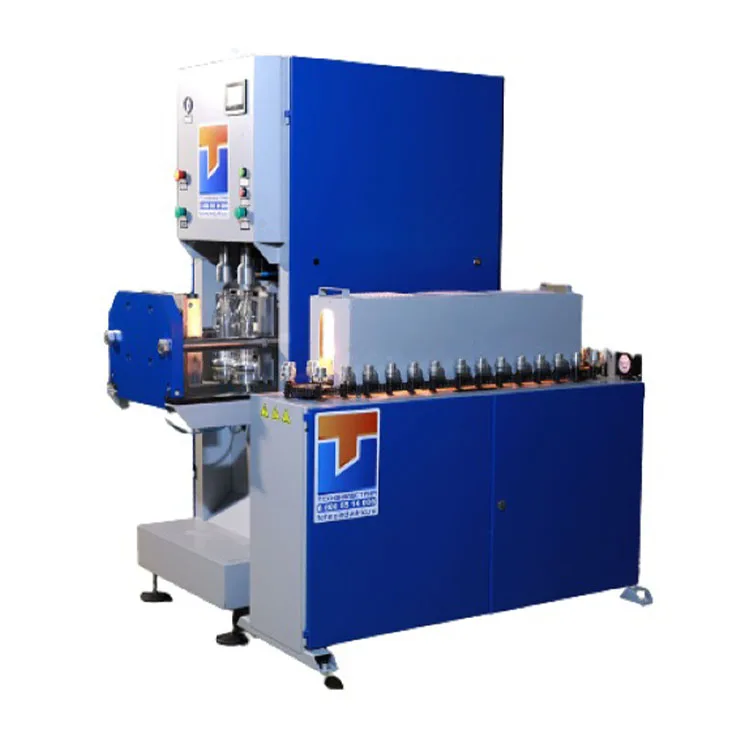

High quality PET semiautomatic blowing machine PV-800 wholesale
Semiautomatic pet container blowing machine PV-800 is designed for the production of bottles up to 2.5 liters of PET preform, by preheating and blowing. Semi-automatic PET container blowing machine from preheated preforms PV-800 is the most popular model in our line of machines!
This is an effective solution for small and medium-sized businesses that will allow you to organize the production of your own PET containers with minimal investment.
TECHNICAL PARAMETERS
1. Performance (for 1.5 liter) 800-1000 bottles / hour
2. Number of inflatable nozzles 2 pc.
3. Air flow 0.4 - 0.6 cubic meters / min
4. The working pressure of the bulge 1.6 MPа
5. Operating pressure control 0.5-0.8 MPa
6. Power supply 220/380 V 50 HZ
7. Installed capacity 12.65 kW
8. Power consumption 4-6 kW
9. Number of independent adjustable heating zones 6 zones
10. Cooling of seats-chips for molds air/water
11. The cooling of the mold water
12. The consumption of cold water at t C 0-14 0.3 m3 / h
13. Number of service personnel 1 person
14. Length x Width x Height (heating unit) 1200 х 320 х 1080 mm
15. Length x Width x Height (blow-up unit) 1000 х 58 х 1800 mm
Packing & Delivery
Port | Novorossiysk |
MOQ | 1 |
Unit Type | Pieces |
Packaging | Wood crate, stretch film |
Company Profile
Since 2004, "Tehnoindustria" Ltd. has been manufacturing equipment for the manufacture of PET containers, automatic and semi-automatic systems for filling food and industrial liquids, automatic round labelling machines, conveyor systems.
The enterprise disassembled and mass-produced semiautomatic moulding blow machines of an original design with a patented method of locking the mould. Simple installation, unpretentiousness in service, a wide range of operating conditions allows the use of equipment to a wide range of consumers. The combination of high efficiency and low prices gave an opportunity to position the products in the segment for small and medium enterprises.
"Tehnoindustria" Ltd. has its own production facilities, equipped with high-tech technologies. The company have carried out technological re-equipment at manufacturing facilities with CNC systems manufactured by DMG German Company. Highly qualified specialists work in their own engineering centre. Regarding the above achievements, the company has an opportunity to expand the range of manufactured equipment.
The manufactured products have all the necessary certificates, including the regulations of the Customs Union.
In particular, our company is one of the leaders in the production of moulds for blowing PET containers. We present a complete production cycle: from the sketch of the desired packaging to the release of the finished mould, without outsourcing and placing orders with subcontractors! In-house production allowed us to achieve the shortest lead times in order to comply with all the requirements of our customers.
Specialists of "Tehnoindustria" Ltd. constantly monitor and analyse market needs in order to offer the best solutions in the field of packaging systems for food and technical liquids.
FAQ
1. Who are we?
We are based in Krasnodar Krai, Russian Federation, start from 2004,sell to Domestic Market(95.00%), Eastern Asia(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always final Inspection before shipment.
3. What can you buy from us?
PET semiautomatic blowing machine PV-800,Labelling machines EP-4000, PET Press moulds, PET semiautomatic blowing machine PV-400.
4. Why should you buy from us not from other suppliers?
Own production base, own design office, post-warranty support system, components from world-famous manufacturers, warranty for all equipment.
