The working principle of steam generator :

Electric steam generator is mainly composed of water supply system, control system, furnace and heating system and safety protection system, etc.



Electric steam generator is to boil water in the container by electric heating tube,thus cause steam and convey steam into cabinet.





Steam generator feature:



1, Electric steam generator adopts advanced electric heating tube, its surface load is low, service life long.



2. Electric steam generator power electric furnace and control cabinet to separate way, to avoid the influence to use electrical components if over heat.



3. The electric heating steam generator components can also be manually input or stop, convenient user flexible adjustment of boiler heat.



4. The electric boiler steam generator adopts advanced computer controller, with reliable performance, high degree of automation, convenient to use.





why choose us?



1. According to the nation's highest technical standards, to meet customer demand.



2.The heating tube design according to the 10 years of service life concept.

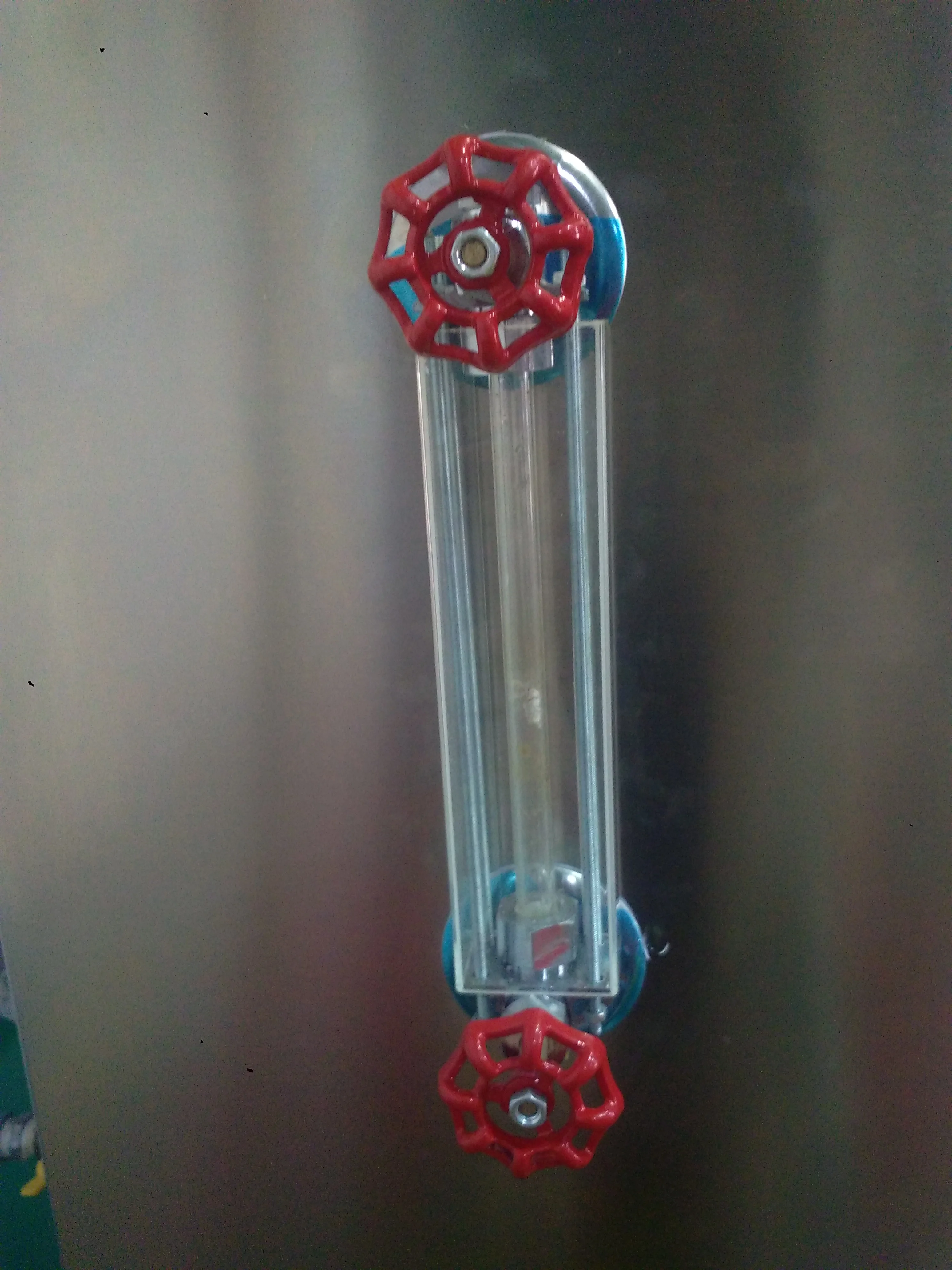

3. Using natural magnets full copper ball float liquid level controller, antioxidant, 2 times to extend the service life.



4. Using the soften water, pure water, boiler life extension four to five years, saving energy by more than 50%.





Technical parameter:



Power	Rated steam capacity	Rated steam pressure	Voltage	Dimension
9kw	12kg/h	0.4-0.7MPa	220/380V	55x35x80cm
12kw	16kg/h	0.4-0.7Mpa	380V	55x38x80cm
18kw	24kg/h	0.4-0.7Mpa	380V	58x45x110cm
24KW	32Kg/h	0.4-0.7Mpa	380V	58x45x110cm
36kw	50kg/h	0.4-0.7Mpa	380V	70x50x130cm
48kw	65kg/h	0.4-0.7Mpa	380V	70x50x130cm
60kw	85kg/h	0.4-0.7Mpa	380V	80x60x145cm
