Характеристики

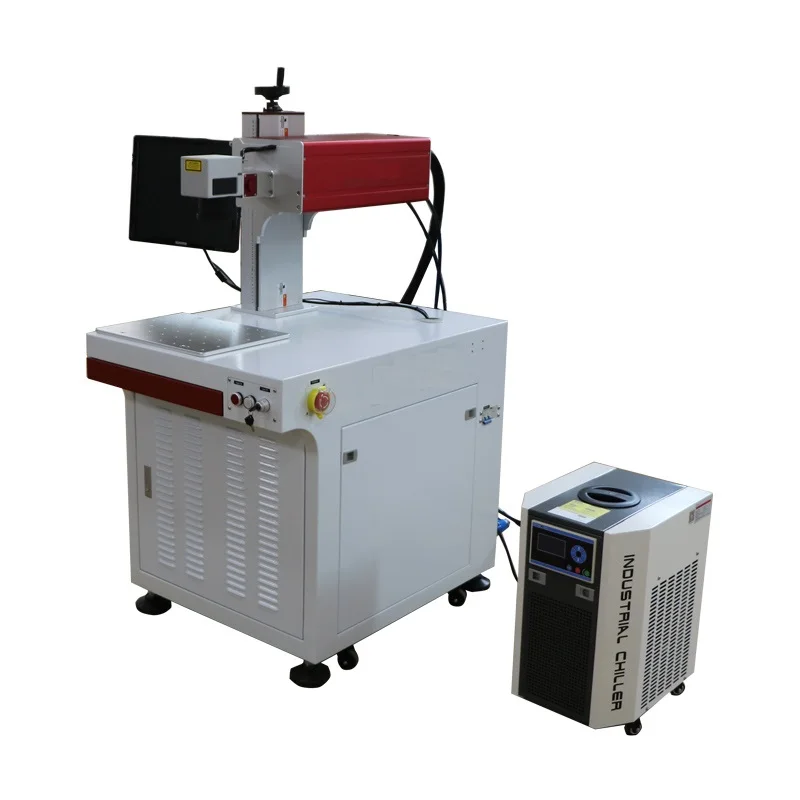

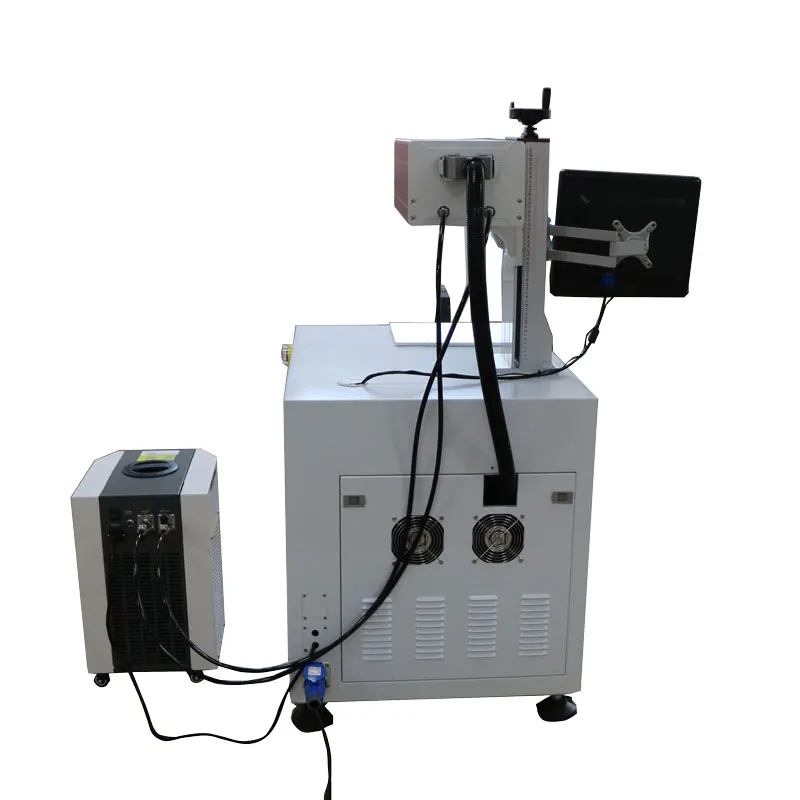

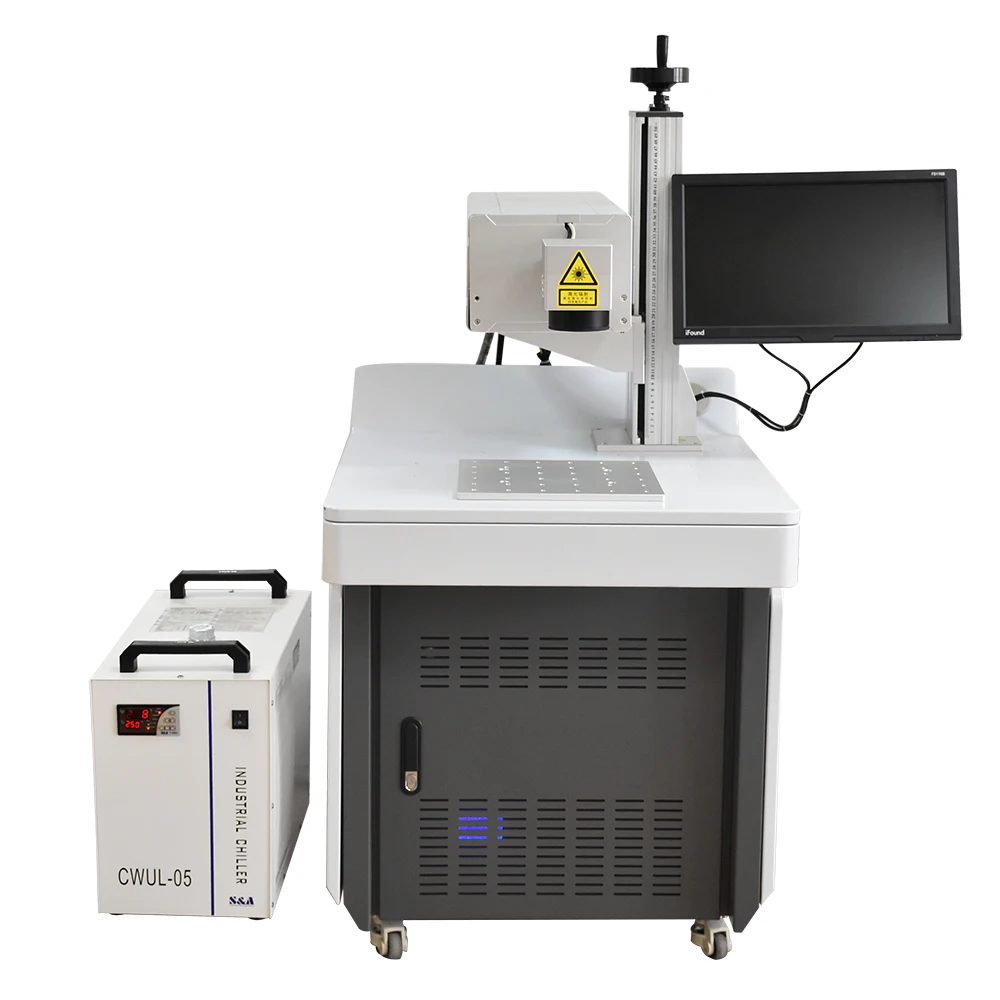

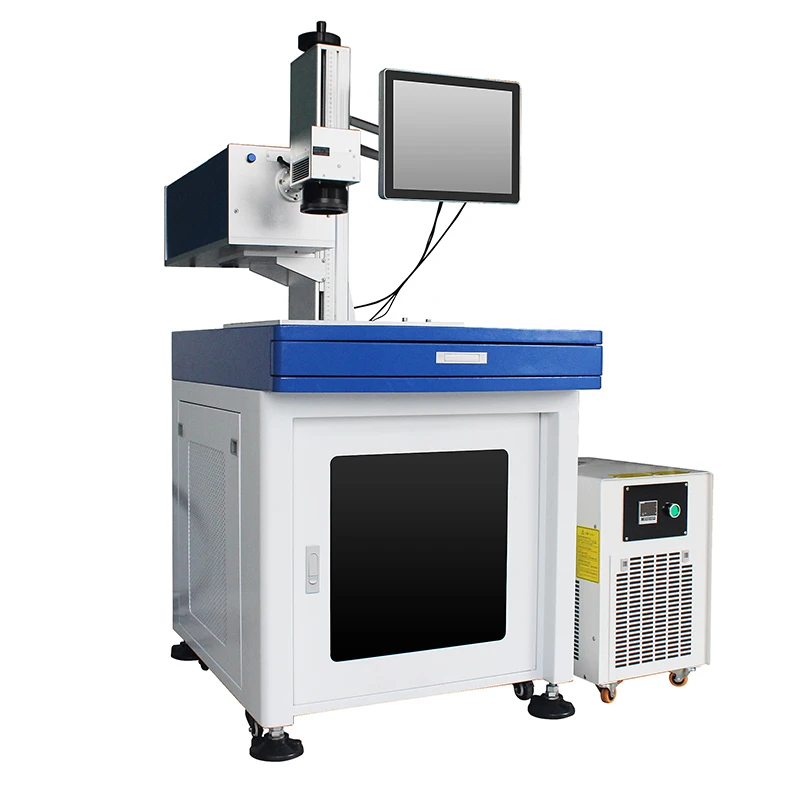

365nm UV Laser Diode Fast Marking Machine UV Laser Marking Machine with 3w 5w 7w
Model | ZC-DBJ-UV | Laser Source | JPT |
Laser Type | UV | Positioning Way | Red Light |
Laser Power | 3W/5W/7W | Laser Module Life | 100000h |
Weave Length | 355nm | Cooling Style | Water cooling |
Marking Area | ≤300*300mm | Total Power | Customerized |
Marking Speed | ≤7000mm/s | Operating Voltage | Customerized |
Marking Depth | ≤1mm | Supported Windows | Windows XP,7,8,10 |
Repetition Precision | 0.001mm | Certificate | CE,ISO,CCC |
Control Software | EZCAD | Supported Format | BMP/GIF/JPG/PCX/TGA/TIFF/PLT |
Product Description
JPT Source
The machine can be equipped with raycus source UV laser according to customers demandsHigh quality laser beam and long lifespan 100,000hours.
Galvanometer Mirror
Scanning galvanometer, full digital signal, super anti-interference ability.High precision, short delay, fast speed, small
temperature drift, especially suitable for all kinds of high precision, high speed marking requirements.The UV wavelength is 355nm.
temperature drift, especially suitable for all kinds of high precision, high speed marking requirements.The UV wavelength is 355nm.
The power consumption of the whole machine is the 1/10 of the light pump laser marking machine, largely save the process cost.The Scan range is 110*110mm; 200*200mm; 300*300mm.
The Control Software
Control software, beautiful interface, powerful function, detailed parameters, simple operation, can describe any pattern, text,
bar code, two dimensional code processing.
bar code, two dimensional code processing.
Chiller:
The laser tube working at high temperature can be cooled quickly to ensure that the laser tube has stable power and efficient and fast operation.Exclusive no water warming and automatic protection system, if there's no water or the water flows in opposite direction there’ll be no laser,can protect the working life of laser tube effectively.
Material | Fiber | CO2 | UV |
Wooden Product | √ | √ | |
Acrylic | √ | √ | |
Plastic Products | √ | √ | |
Leather Fabric | √ | √ | |
Glass Ceramic | √ | √ | |
Resin Plastic | √ | √ | |
Paper Packaging | √ | √ | |
Electronic Components | √ | √ | |
Hardwaretool Products | √ | √ | |
3C Electronics | √ | √ | |
Precision Equipment | √ | √ | |
High & Low Voltage Electrical Appliances | √ | √ | |
Gem | √ | ||
Precious Metals | √ |
UV LASER APPLICATION
Applicable Industry:
Mainly applied on shiny material marking, such ad mobile phone screen,LCD,optical device,auto glass etc.Also it applied for processing coating film on the most metal and non-metallic materials.Such as hardware,ceramic,glasses and clocks,PC,electronic components etc.
Features:
1.No thermal effect and scorch problem UV laser source is cold laser source.It outputs shorter wavelength,smaller focus spot.The marking effect is precise and refined due to the good quality laser beam without thermal effect and scorch
2.Wide Application:UV laser can be absorbed by most of material due to its shorter wavelength
3.Eco-friendly and high-productivity:no toxicity,high marking speed as well low power consumption
Mainly applied on shiny material marking, such ad mobile phone screen,LCD,optical device,auto glass etc.Also it applied for processing coating film on the most metal and non-metallic materials.Such as hardware,ceramic,glasses and clocks,PC,electronic components etc.
Features:
1.No thermal effect and scorch problem UV laser source is cold laser source.It outputs shorter wavelength,smaller focus spot.The marking effect is precise and refined due to the good quality laser beam without thermal effect and scorch
2.Wide Application:UV laser can be absorbed by most of material due to its shorter wavelength
3.Eco-friendly and high-productivity:no toxicity,high marking speed as well low power consumption
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. Let it more strong to avoid damage during the transport and for long distance transportation.
Zhongcan Technology Co., LTD. is a world leading manufacturer of industrial laser machinery.located in --- Jinan
Shandong.Ourcompany mainly production and sales of the products included Laser Cutting Machine Series, Laser Marking Machine Series, Laser Engraving Machine Series and Laser Cleaning Machine Series .Widely used in textiles, leather, clothing, industrial fabrics,advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.
Shandong.Ourcompany mainly production and sales of the products included Laser Cutting Machine Series, Laser Marking Machine Series, Laser Engraving Machine Series and Laser Cleaning Machine Series .Widely used in textiles, leather, clothing, industrial fabrics,advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.
Customer Distribution
Collaborative Customer Distribution
Zhongcan Technology Co., Ltd.
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine andshare you the solution; you can share us what material will you marking engraving and the depth of marking / engraving.
Q2: WhenI got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, you can send the operator to our factory for training.
Q3: If some problems happen tothis machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A:It does not have consumable. It’s very economical and cost effective.
Q5: How’s the effect of the laser marking?
If you want to know the effect, you can send the sample or drawing to us, we will do the free sample for you and show you in video how to operate it.
Q6: What’s delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
