Автоматическая Подарочный кейс для телефона жесткие машина по производству коробок картонная коробка делая машину
- Категория: Упаковочные формовочные машины >>>
- Поставщик: Guangdong,Hongming,Intelligent,Joint,Stock,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.69 $* | 0.52 $* |
| Aug-18-2025 | 0.21 $* | 0.25 $* |
| Jul-18-2025 | 0.44 $* | 0.74 $* |
| Jun-18-2025 | 0.36 $* | 0.66 $* |
| May-18-2025 | 0.26 $* | 0.30 $* |
| Apr-18-2025 | 0.12 $* | 0.1 $* |
| Mar-18-2025 | 0.0 $* | 0.13 $* |
| Feb-18-2025 | 0.28 $* | 0.0 $* |
| Jan-18-2025 | 0.72 $* | 0.25 $* |
Характеристики
Product Description
Description

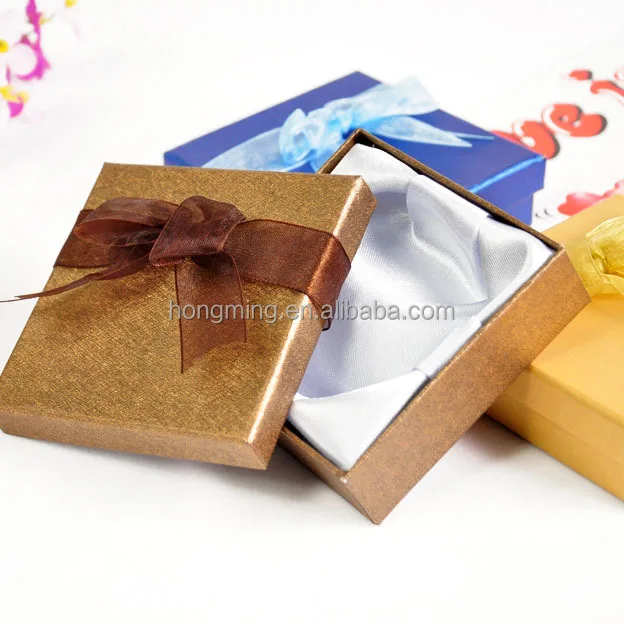

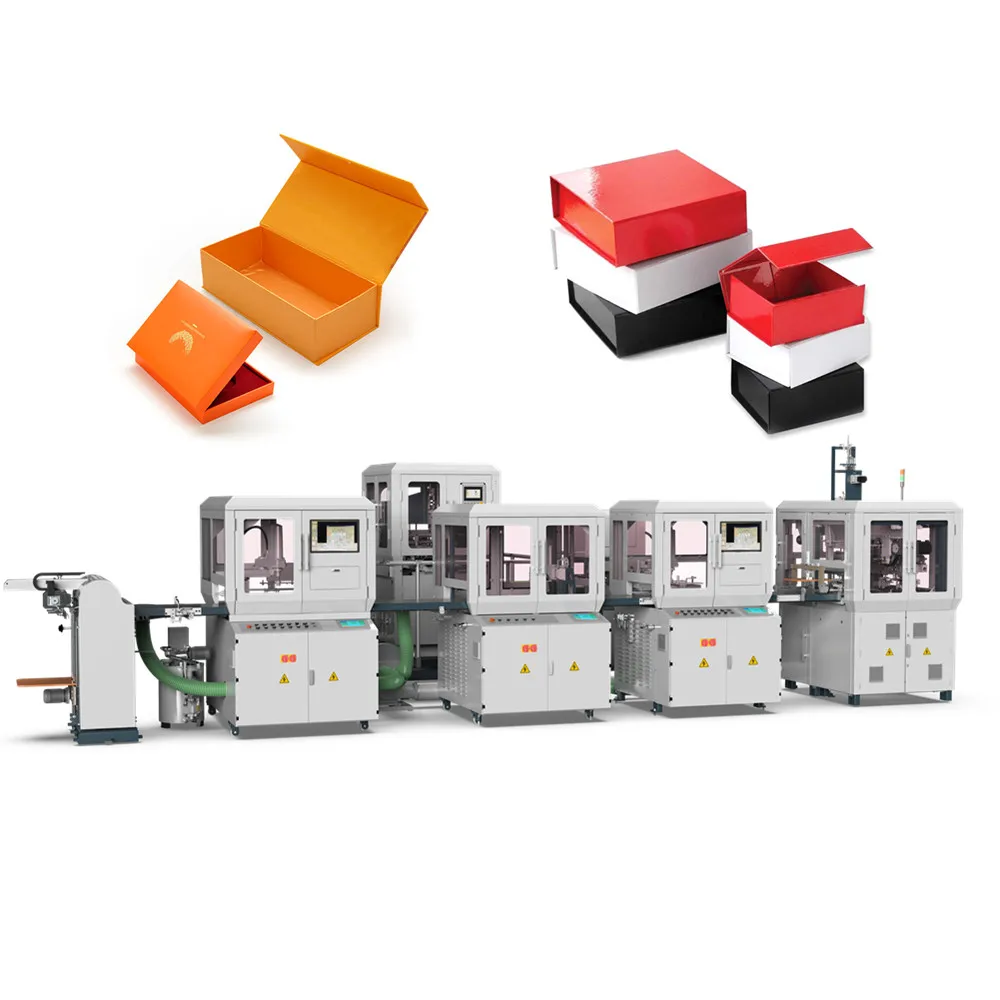

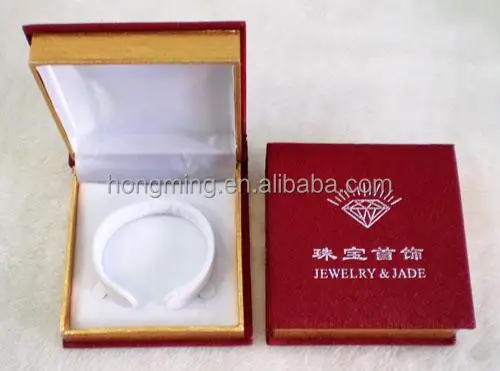

HM-ZD350K-B Automatic rigid box machine with multi-function is specially designed for boxes with (thin）tray and regular rigid boxes'production , allows to add the optional function of sticking magnets. It is suitable for mass production of various box types, such as boxeswith tray, premiumjewelry boxes, mobile phone boxes, gift boxes, cosmetic boxes, watch boxes etc. The range of boxes is larger and can meet the needs of the modern packaging market. The appearance of the whole machine has been completely redesigned to be safer and more beautiful.

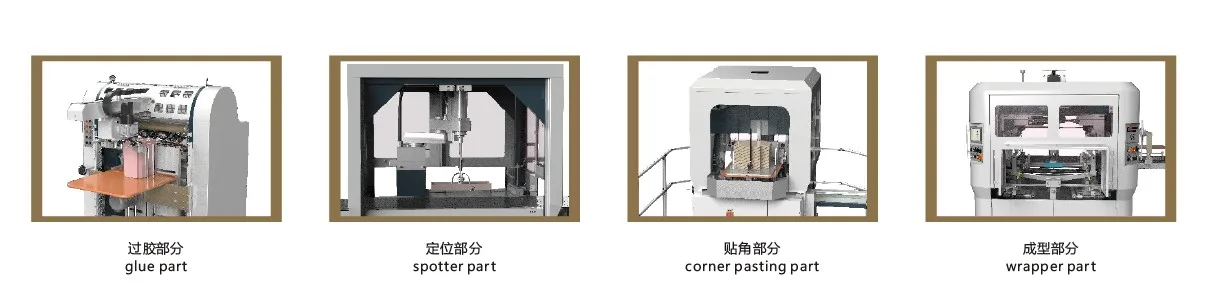

The machine adopts PLC and man-machine control system ,camera tracing system, and can automatically feed paper, glue paper, baseboard positioning, baseboard glue spraying, box shell positioning, lift box, fold corner edges and wrap box.
The feeder, the gluer and the conveyor are driven by servos which have continuously variable transmission and enjoy high accuracy, easy adjusting, and efficiency; Double colors conveyor can avoid changing to other color belt, which is Hongming's patent. This machine adopts the well-known brand gluing machine for the baseboard spray gluing and insertmagnet , and the effect is good; The baseboard and box shell spotting unit adopt camera tracing system and robot arm to pick and spot the greyboard, enhancing the spotter accuracy to ±0.05mm, the speed is faster; The wrapping unit adopts Japan THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.

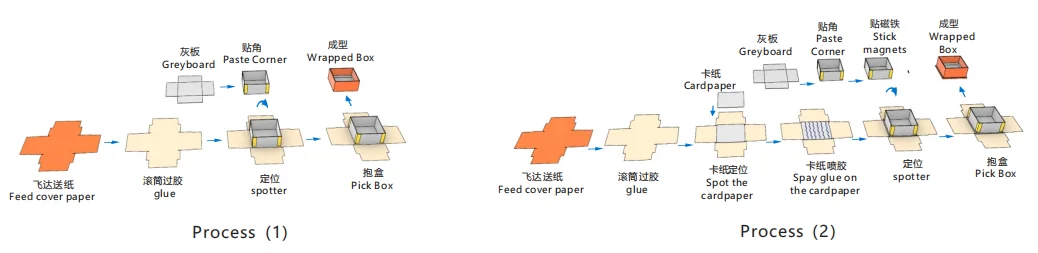

Production Process
Specification
Model | HM-ZD350K-B | ||
Paper Size (D=Length, C=Width) | D(Max) | 600mm | |
D(Min.) | 110mm | ||
C(Max.) | 455mm | ||
C(Min,) | 70mm | ||
Finished Box Size(Without magnet installing function) (L=Length, W=Width, H=Height) | L(Max.) | 350mm | |
L(Min.) | 40mm | ||
W(Max.) | 250mm | ||
W(Min.) | 40mm | ||
H(Max.) | 90mm | ||
H(Max.) | 12mm | ||
Baseboard Size (L=Length, W=Width) | L(Max.) | 580mm | |
L(Min.) | 50mm | ||
W(Max.) | 300mm | ||
W(Min.) | 40mm | ||
Glue Spray Size (L=Length, W=Width) | L(Max.) | 300mm | |
W(Max.) | 300mm | ||
Finished Box Size(With installing magnet function) (L=Length W=Width H=Height) | L(Max.) | 100mm | |
L(Min.) | 40mm | ||
W(Max.) | 100mm | ||
W(Min.) | 40mm | ||
H(Max.) | 50mm | ||
H(Min.) | 12mm | ||
Paper Corner Edge(E) | E | 10-80mm | |
Folding-in Depth(R) | R | 8-80mm | |
Greyboard Thickness | 0.5-3mm | ||
Paper Thickness | 80-160gsm | ||
Paper Pile Height Max. | 600mm | ||
Air Supply | 480L/min, 0.8MPa | ||
Speed | ≤25pcs/min | ||
Total Power/Voltage | 43kW/AC380V | ||
Power Consumption | 11kW/h | ||
Net Weight | 4000kg | ||
Machine Dimension | 9500x4500x3000mm | ||
Features function
1. Suit to all kinds of rigid boxes in mass production.
2. Auto error stop and display;.
3. Automatic feed paper.
4. Baseboard spray gluing function;
5. Magnet insert system(optional)
6. 24-hours control for glue pre-heating.
7. Adopt YASKAWA servo control system;
8. Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm) (spotting accuracy ±0.05mm);
9. Wrapper can automatic lift and wrap box.
Materials&Outputs
Packing & Delivery
Vacuum Packing+Wooden Case
Company Profile
Guangdong Hongming Intelligent Joint Stock Co., Ltd (Formerly Dongguan Hongming Machinery Co., Ltd) is the leading professional manufacturer who makes automatic rigid box making machines and hardcover books making machines in china. It was established in 1999.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
