Ручной гравировальный станок DIY Мини PCB фрезерный деревообрабатывающий Лазерный Гравировальный пистолет с автономным

Name

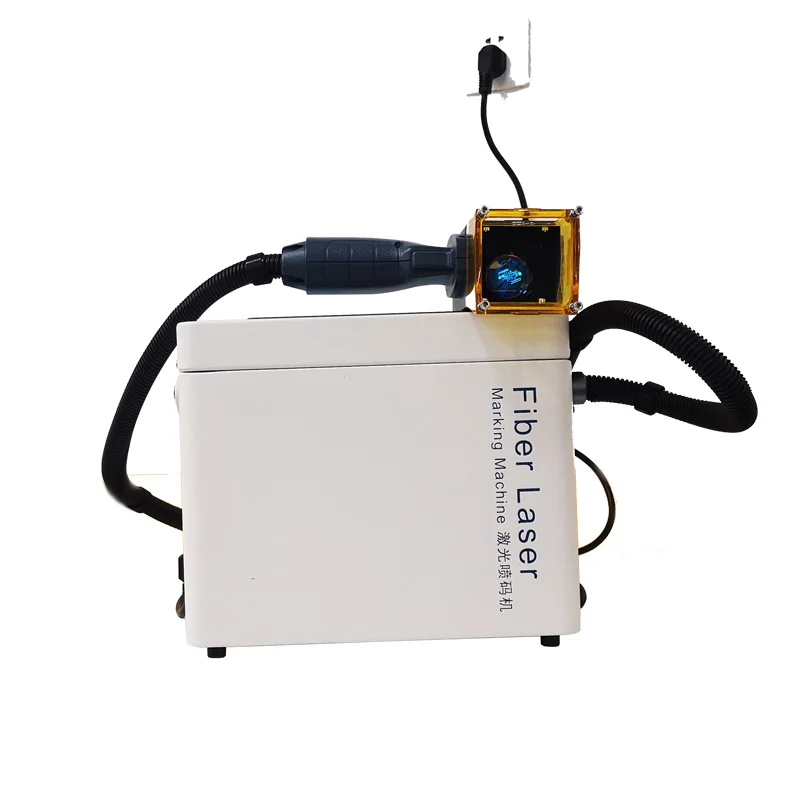

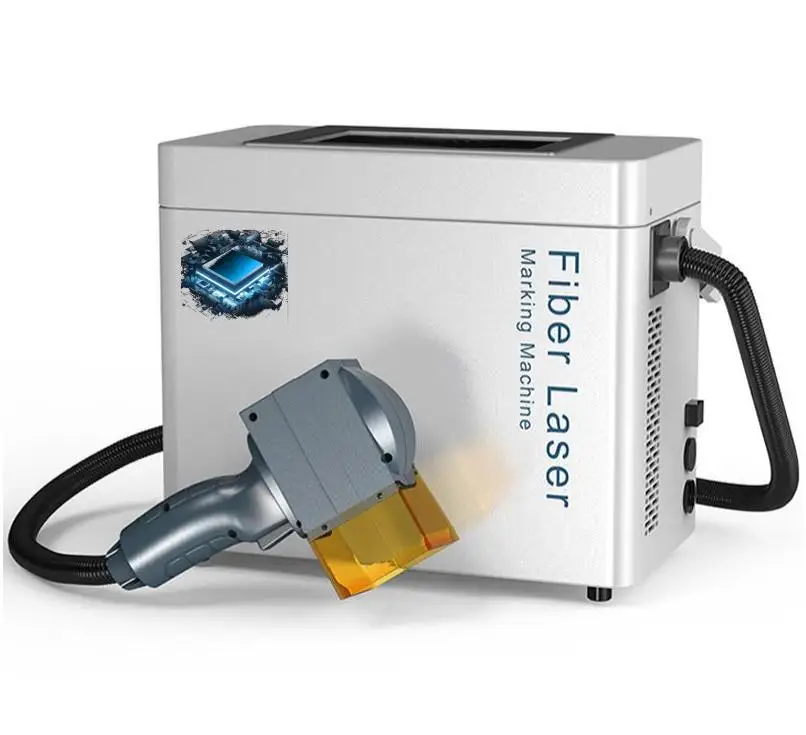

20W 30W fiber laser source Desktop metal and nonmetal Fiber laser marking machine price for logo/QR code/bar code

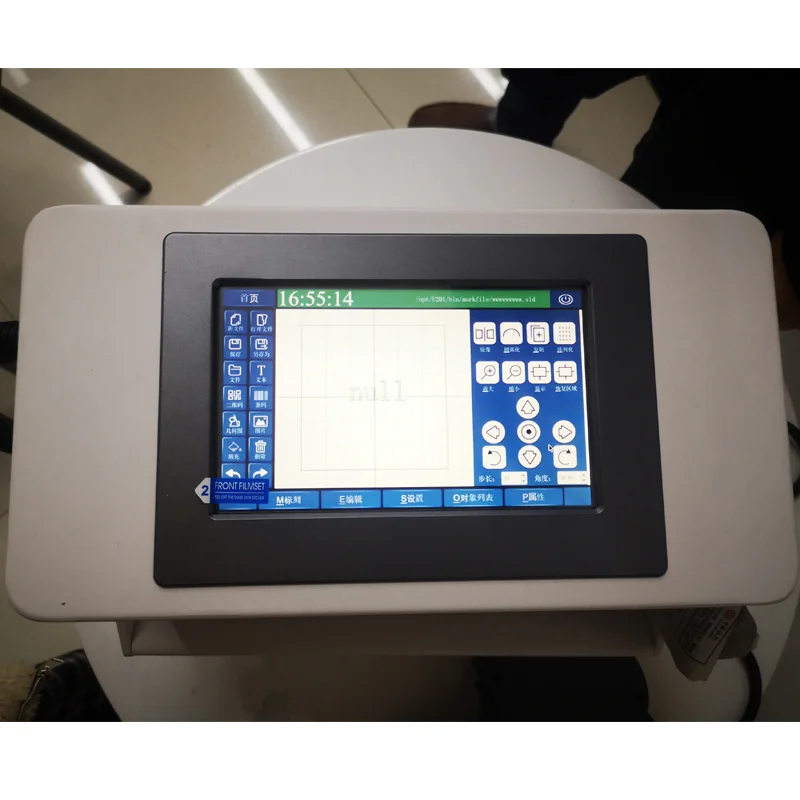

Operation System

WIN CE

Marking Area

55mm*55mm

Machine weight

12kgs

Material

Anodized aluminum

Laser Type

Fiber laser source

Laser Wavelength

1064nm

Marking Methold

High-precision 2D scanning

Positioning Methold

Red light positioning

Lines of Marking

Any number of lines within the marking field

 Marking Speed

 650 characters/sec (the specific speed is related to product material and printing content)

Font

 Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard font libraries

 File Format

BMP/DXF/HPGL/JPEG/PLT

Bar Code / QR Code

CODE39,CODE128,CODE126,QR,Z-code,DM, visual code, etc.

Voltage

110V-220V

Max. Power

 ≤300W

 N.W.

12KGS

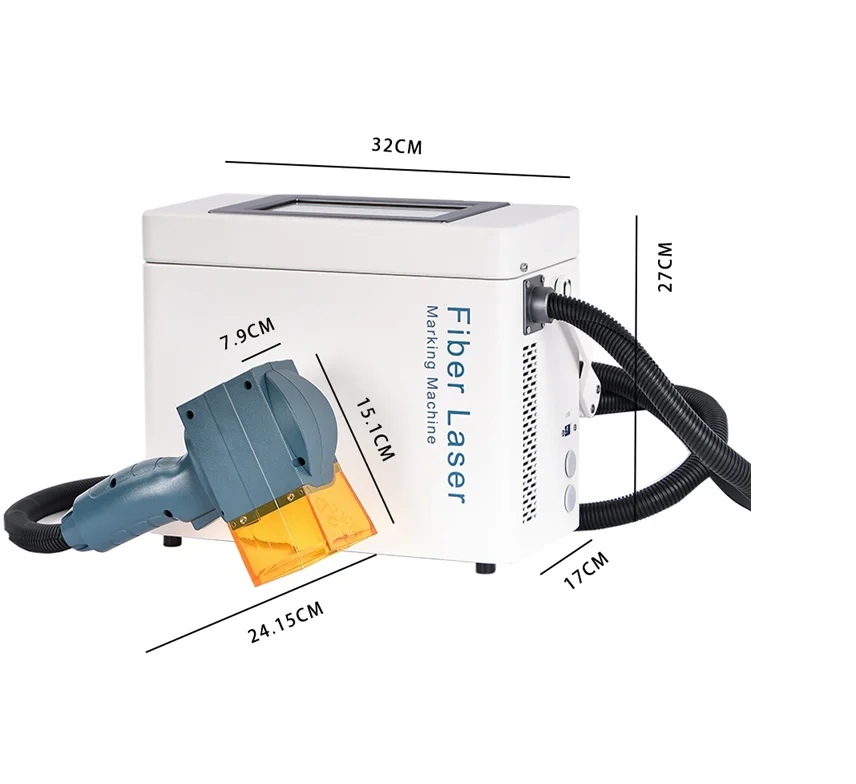

 Handle Dimension

 241.5mm*79mm*151mm

Control Box Dimension

320mm*170mm*270mm

Pollution Level

2

Overvoltage Category

 Ⅱ

 Working Temperature

0-40℃

Working Humidity

30%-85 % RH (non-condensing)

Marking Material

Both metal and some non-metal.
Metal: carbon steel/ mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel ( gold, silver,
titanium, etc. ) specail surface treatment ( aluminum anodized, plating surface, surface oxygen breaking of alumimum and magnesium
alloy)

Non-metal: plastics such as ABS, PVC, HDPE , PP, PC, PE, rubber, resin , etc.

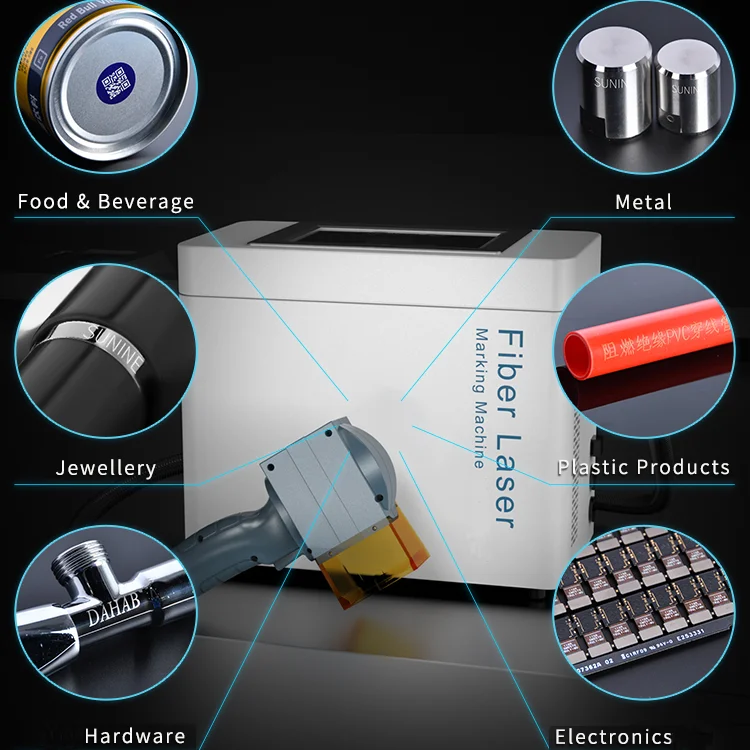

Applied Industries

3C, food, medicines, gifts, trademark signs, the phone keypad, plastic translucent keys, electronic components, integrated
circuits (IC), electrical appliances, communication products, sanitary ware, tool accessories, knives, watches, jewelry, cars
accessories, luggage buckle, cooking utensils, stainless steel products and other industries.

Marking Content

Identification text, serial numbers, corporate logos, 2-D data matrix, bar coding, graphic and digital images, or any individual
process data can be produced with laser engraving.
