Контроллер двигателя Ethernet и CANBus поддерживает шаговый двигатель

Контроллер двигателя Ethernet и CANBus поддерживает шаговый двигатель

Категория: Motor Drivers >>>
Поставщик: Jugetek,(Shanghai),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.23 $*	0.74 $*
Aug-19-2025	0.83 $*	0.83 $*
Jul-19-2025	0.9 $*	0.86 $*
Jun-19-2025	0.72 $*	0.24 $*
May-19-2025	0.33 $*	0.80 $*
Apr-19-2025	0.91 $*	0.58 $*
Mar-19-2025	0.10 $*	0.91 $*
Feb-19-2025	0.44 $*	0.4 $*
Jan-19-2025	0.82 $*	0.22 $*

Характеристики

Product Description

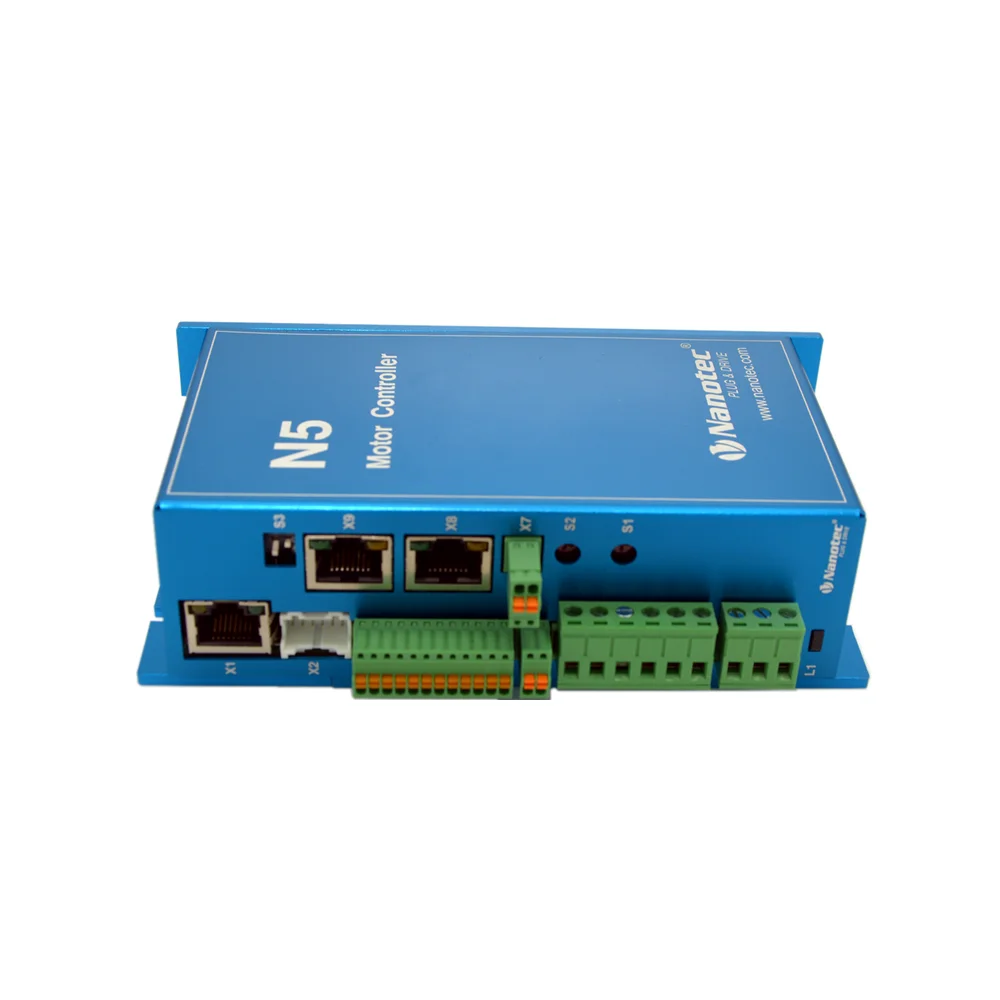

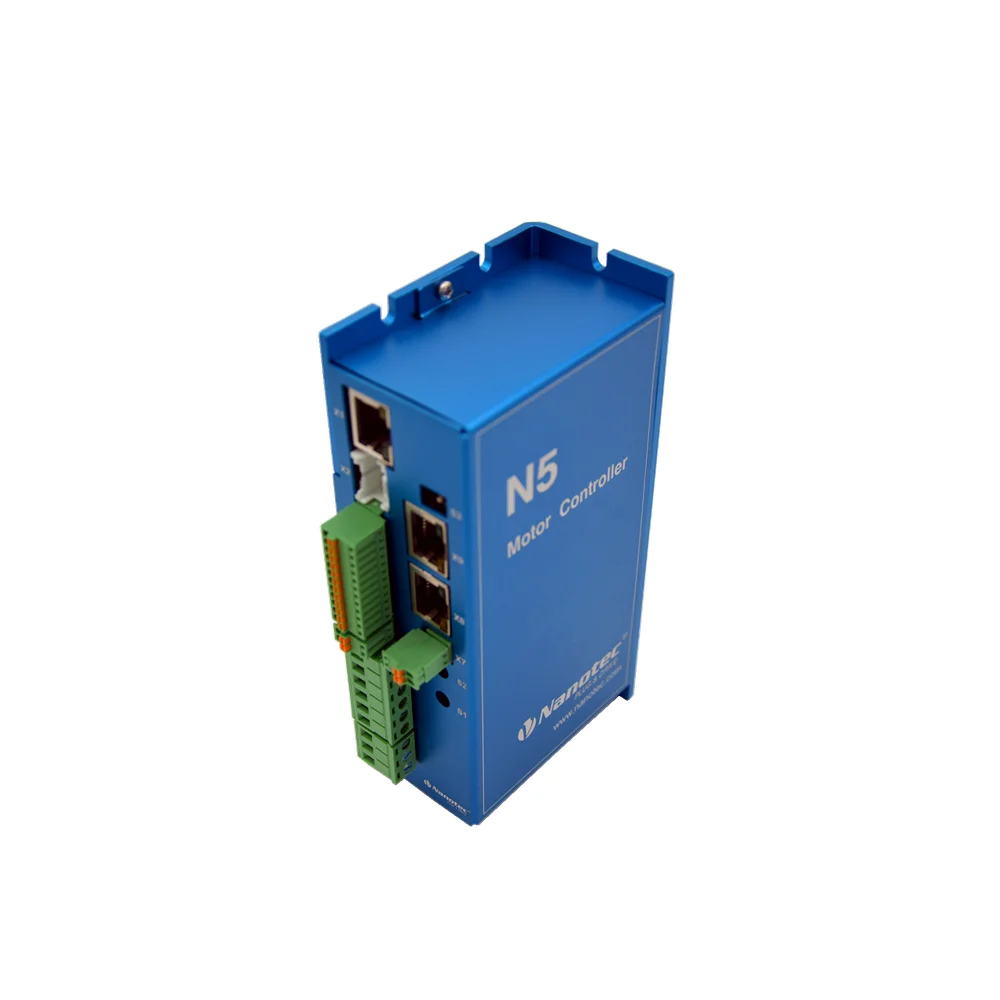

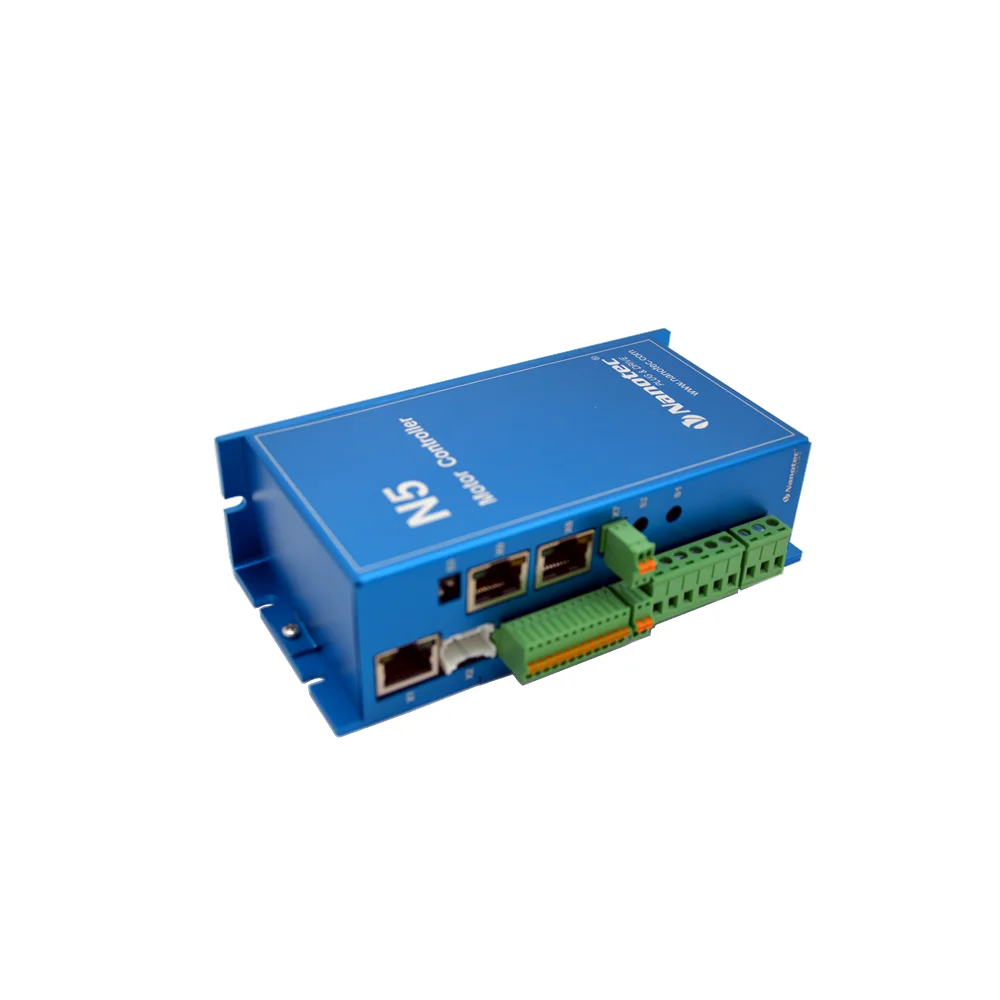

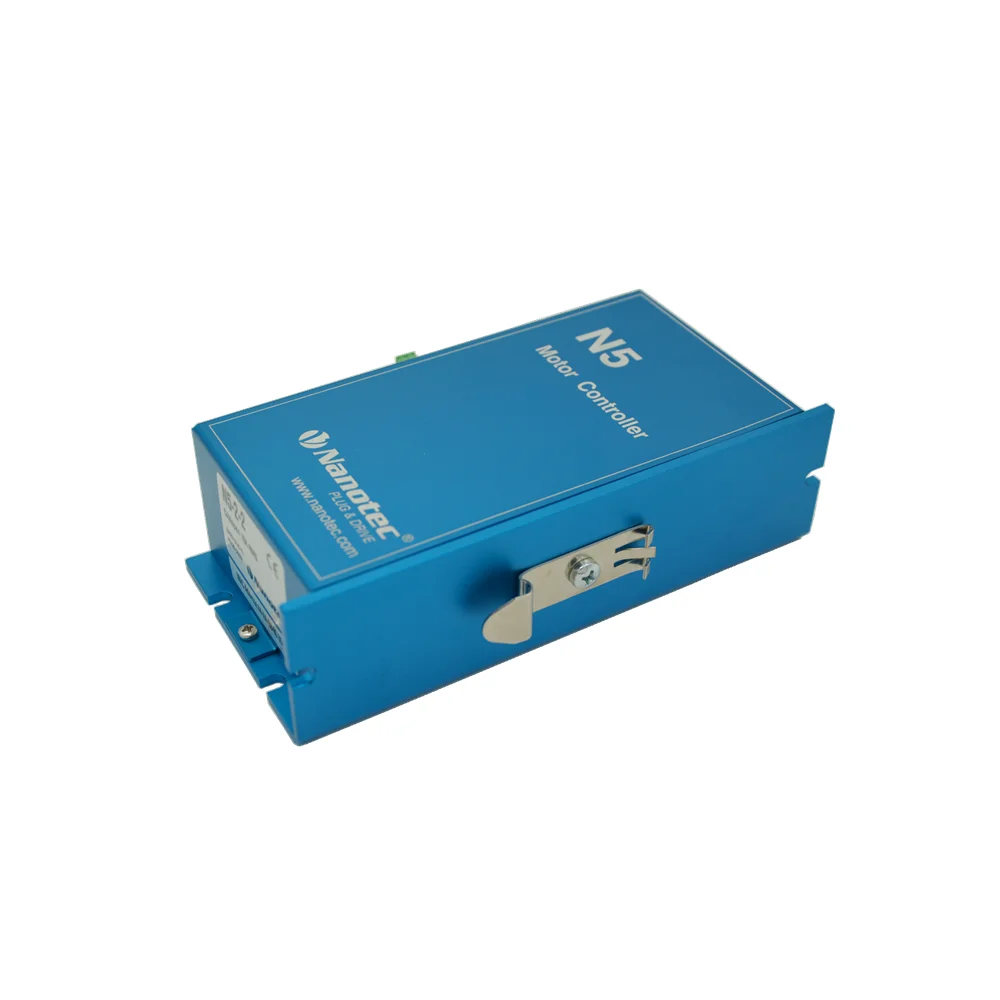

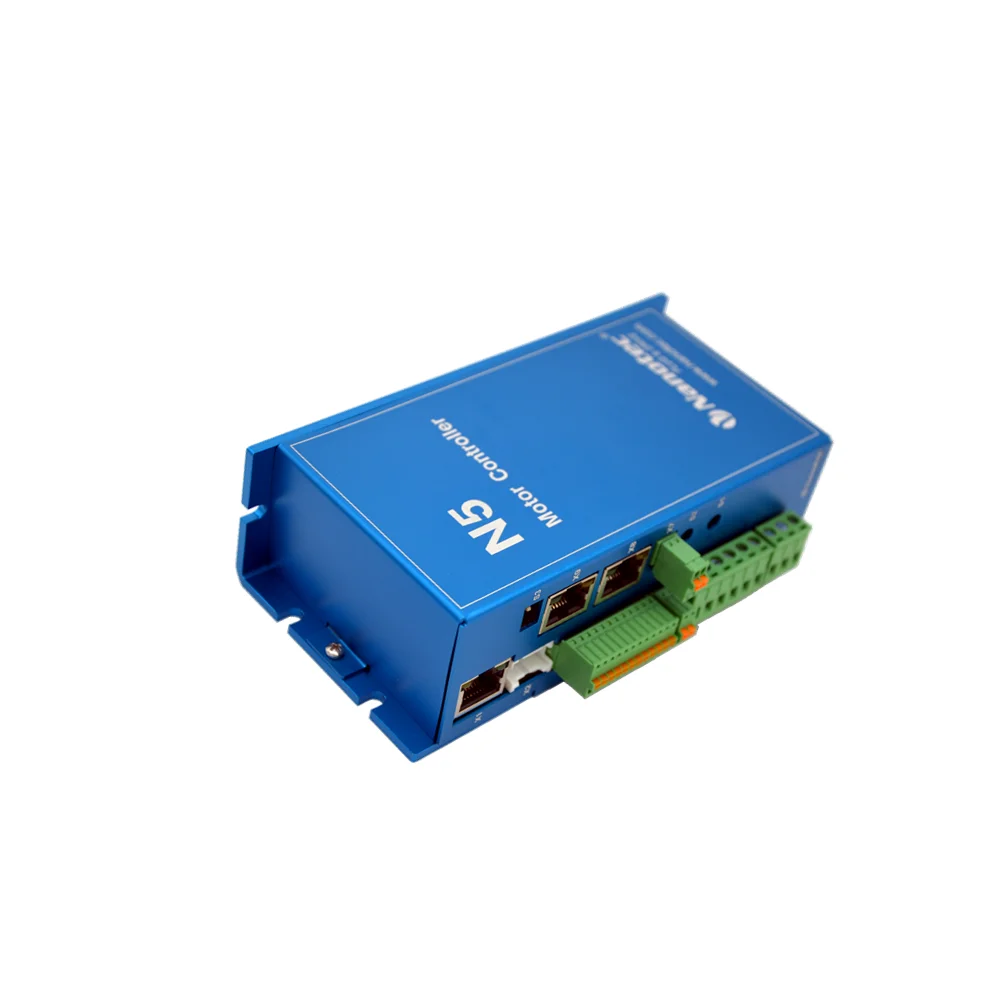

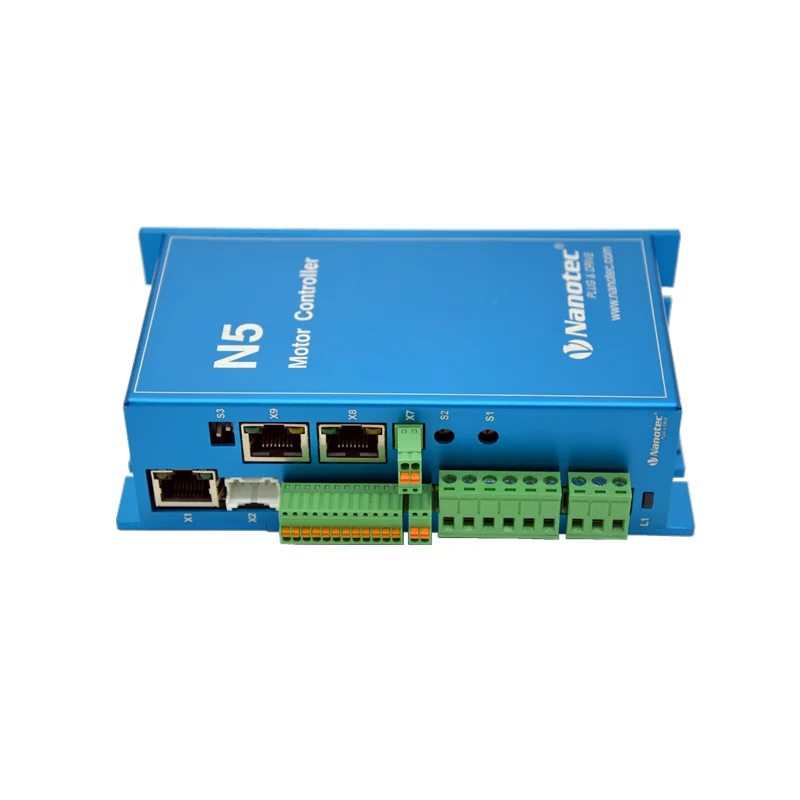

800W DC Servo Driver-N5-2-2 CANopen Servo/BLDC Controller

Suitable for DC servo motors with any number of poles between 0-864W. The rated output current is up to 18A and the peak current is up to 40A. It is extremely compact and requires no additional heat sink. A variety of bus interfaces are available, such as CANopen and EtherCAT, Ethernet / IP, Modbus, etc.Widely used in various mobile robots and automation equipment.

Features

Suitable for 750W motor,Any brand of DC servo motor(Incremental encoder)

Easy to parameterize via CANopen, EtherCAT, Ethernet, EtherNet/IP or Modbus (RTU and TCP)

Brake output

12-58V DC

Rated current 18A, peak current 40A

Specifications

Rated Current (RMS) A:	18 A
Operating Voltage V:	12-58 V
Interface:	Canopen
Inputs & Outputs:	5 Digital inputs (5/24 V switchable ) 2 Analog input -10 - +10 V/0-20 mA switchable 3 Digital outputs
OEM Programmable:	Yes
Customization:	OEM logic program
Corresponding Motors:	stepper and DC servo motor
