9 м 3/ч воздушно-приводная сухая огнестойкая машина для цементного

Описание и отзывы

Трекер стоимости

Характеристики

Product Description

dry shotcrete machine price shotcrete machine price price for concrete spray with top quality on sale is characterized by its compact size. It’s easy to operate and maintain, and it has long service time.

Technical Parameters

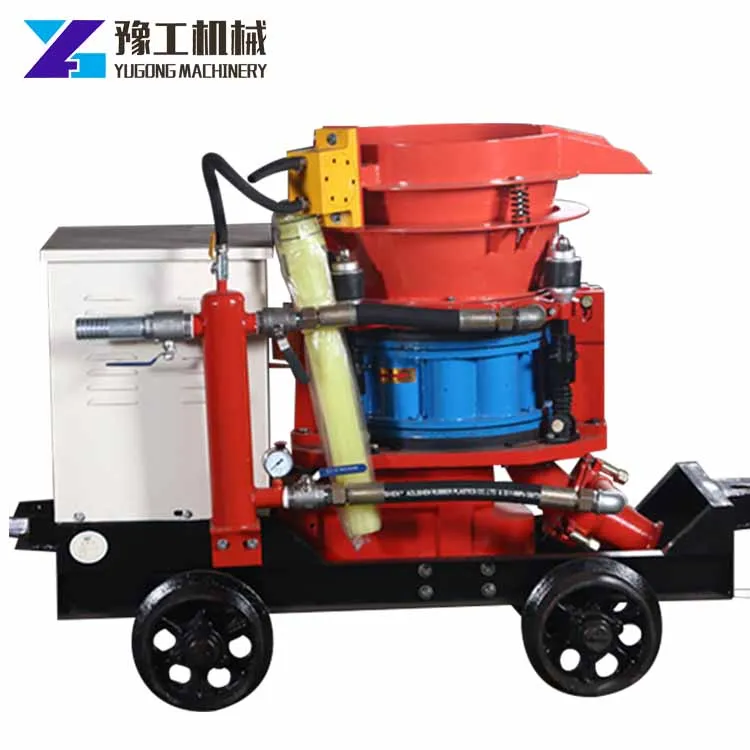

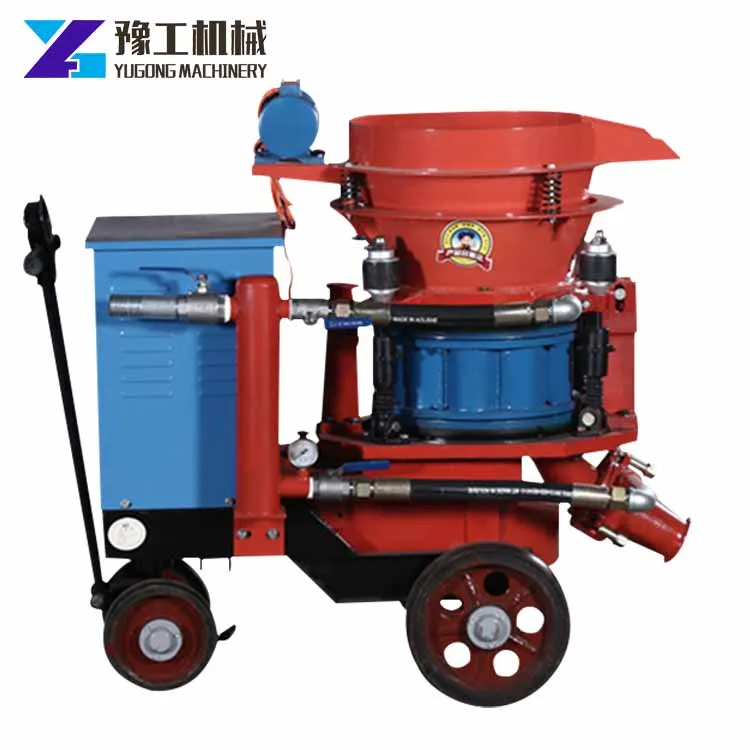

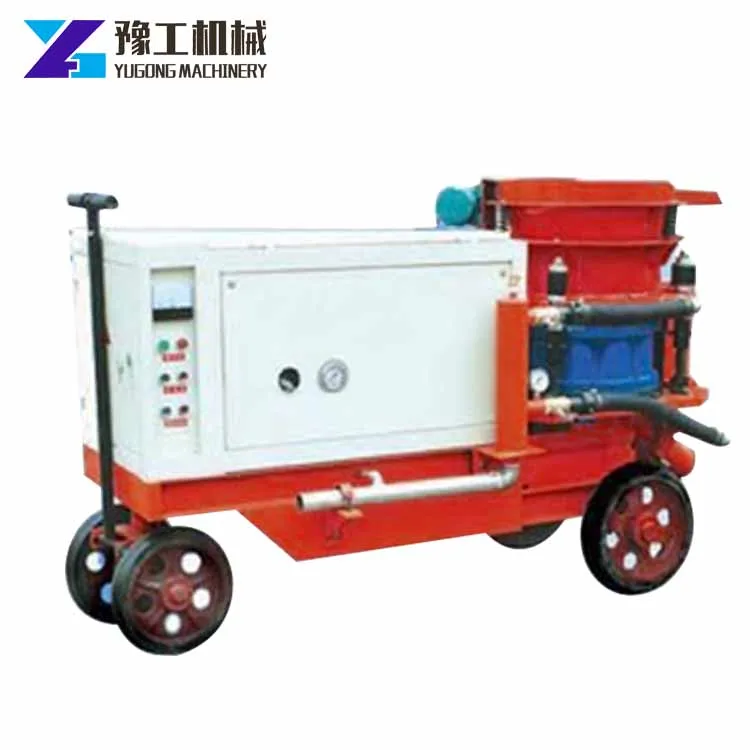

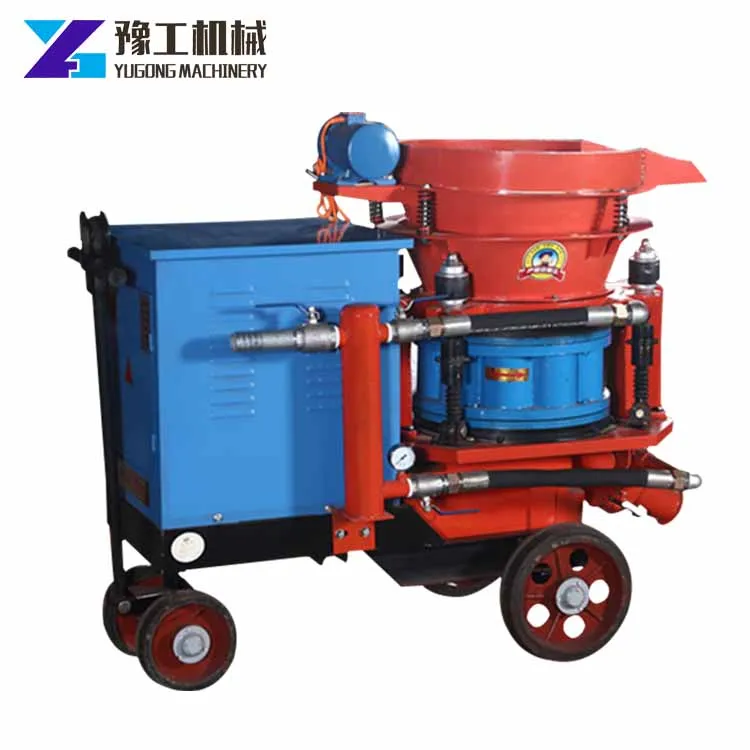

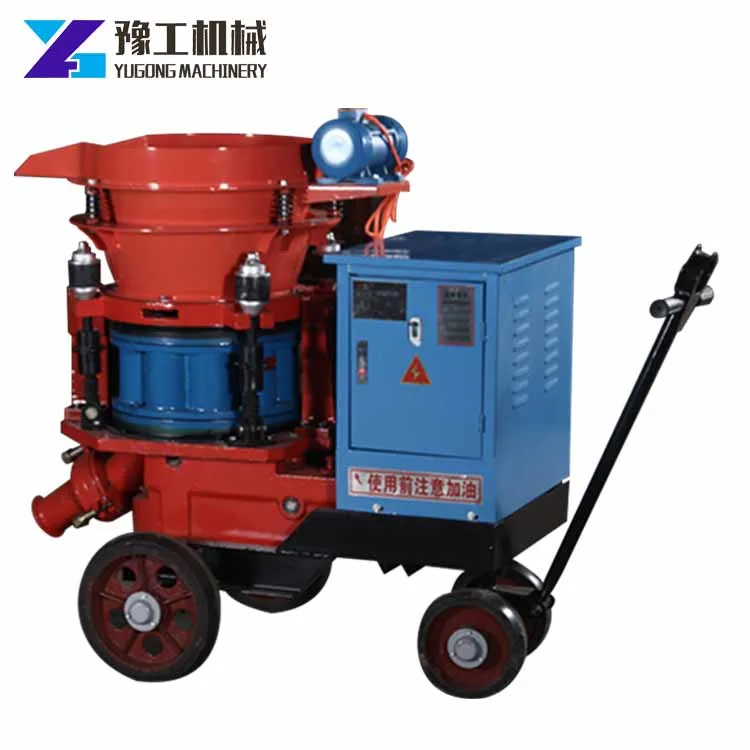

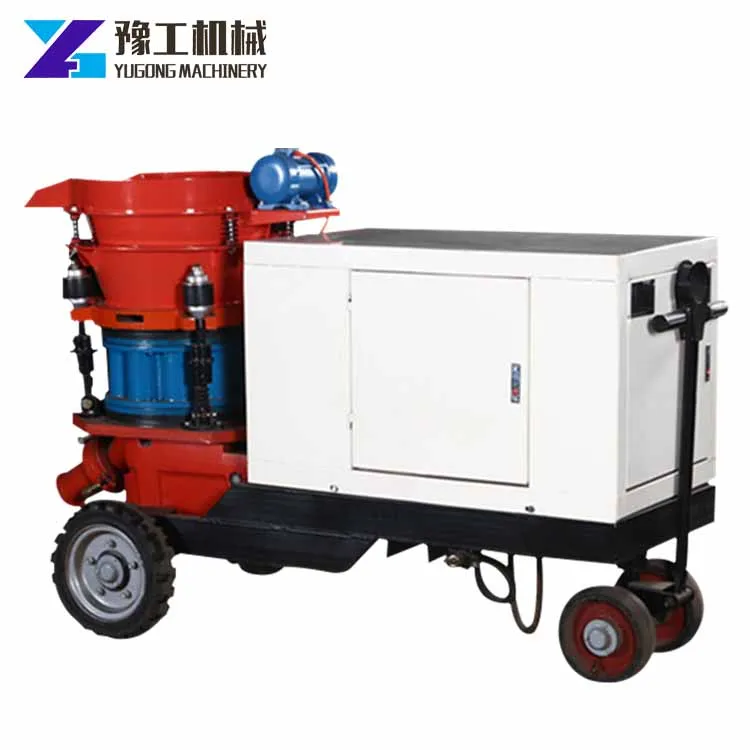

Dry Shotcrete Machine

Model		PZ-3	PZ-5	PZ-7
Spray Capacity		3m³/h	5m³/h	7m³/h
Max.  Convey Distance	Horizontal	200m	200m	200m
	Vertical	20m	20m	20m
Water Cement Ratio		<0.4	<0.4	<0.4
Max. Aggregate Size		Ø20mm	Ø20mm	Ø20mm
Rotor Diameter		350mm	440mm	480mm
Operating Air Pressure		0.4-0.6mpa	0.4-0.6mpa	0.6-0.8mpa
Air Consumption		3-4m³/h	6-8m³/h	7-8m³/h
Power		3kw	5.5kw	7.5kw
Size		1040*550*950mm	1300*705*1300mm	1600*750*1200mm
Weight		260kg	600kg	700kg



Product Features and Details
