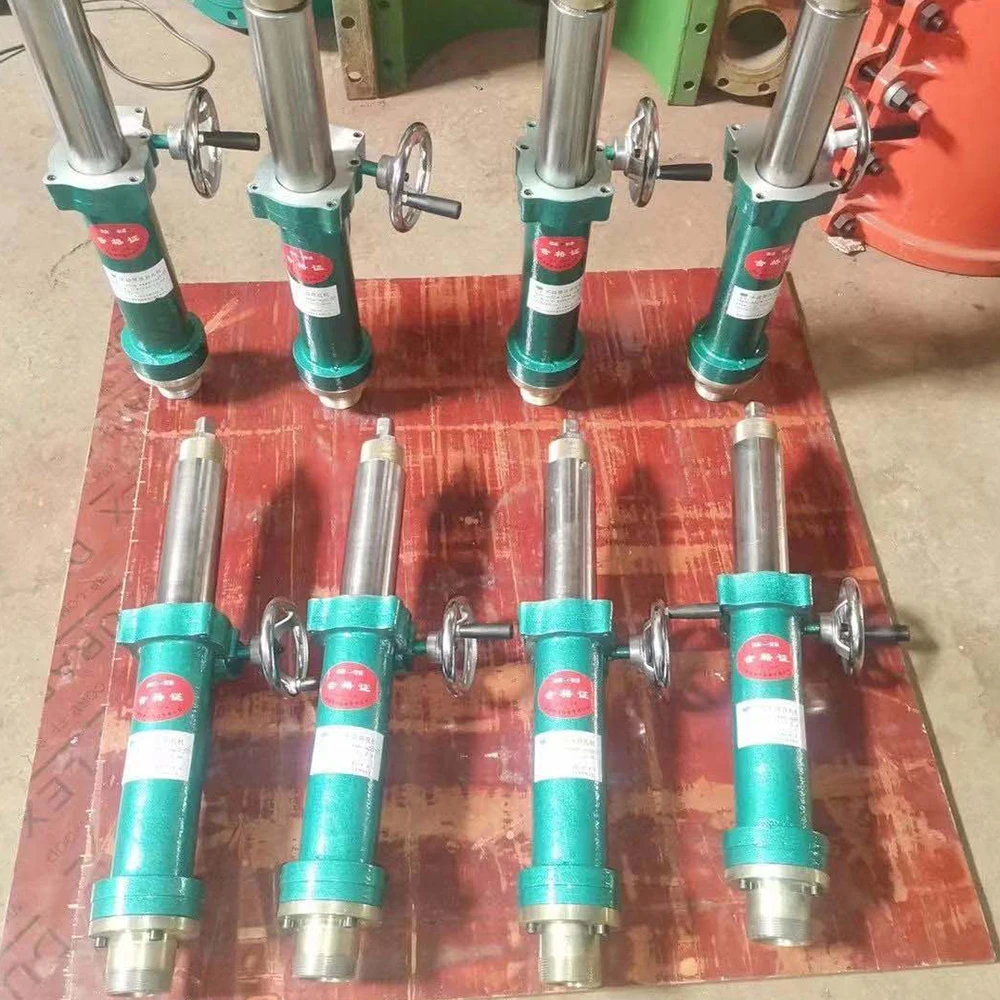

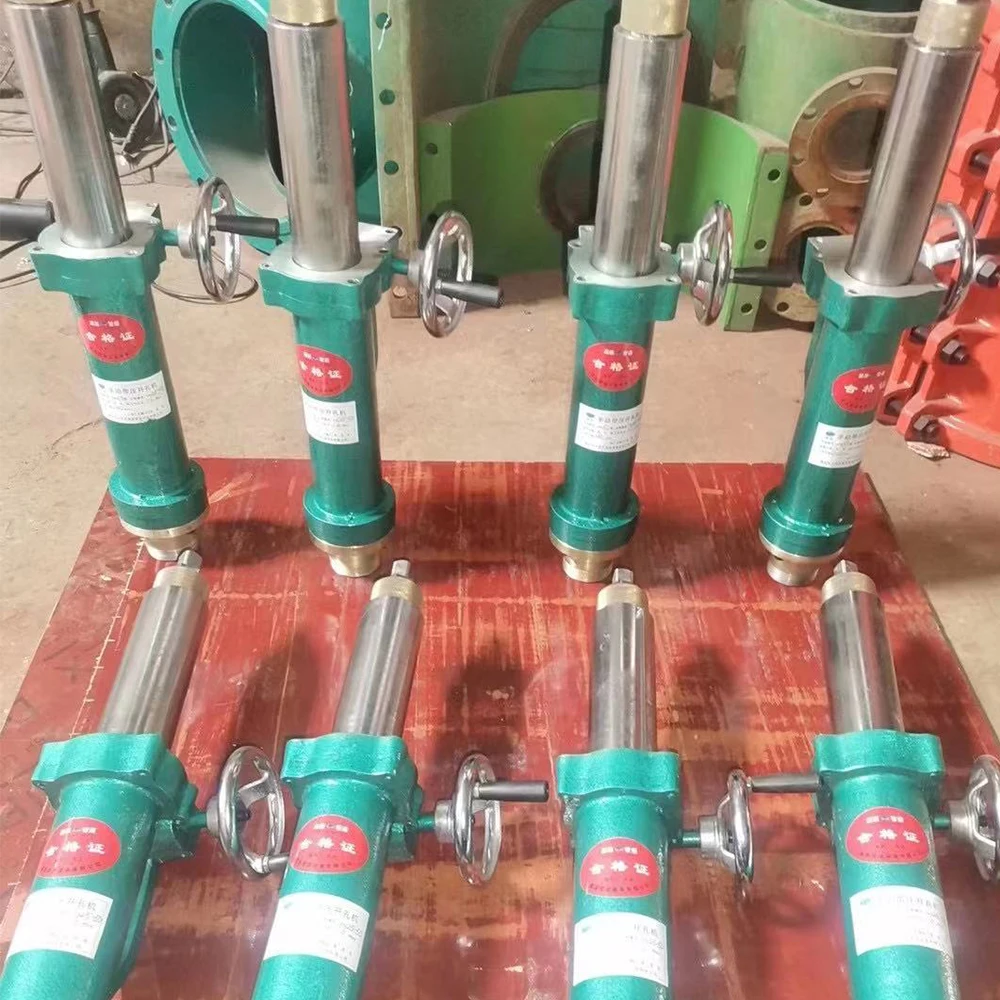

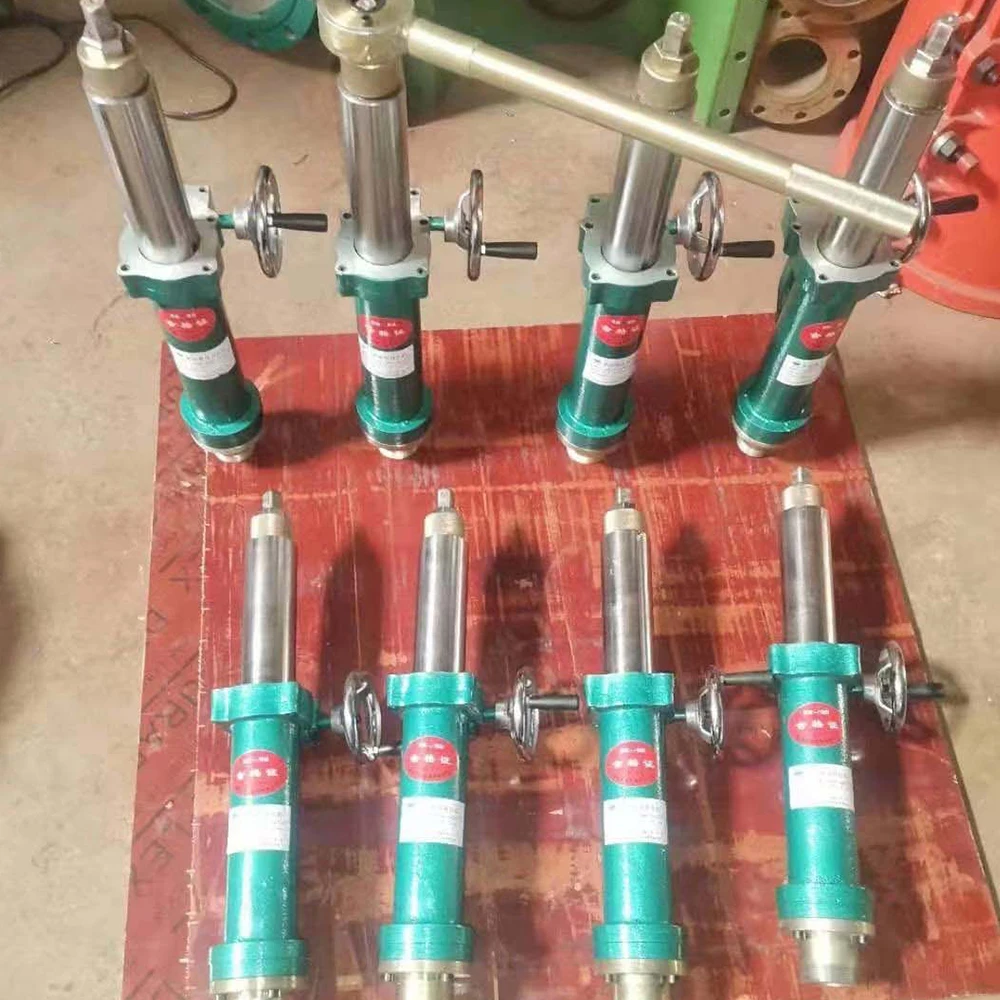

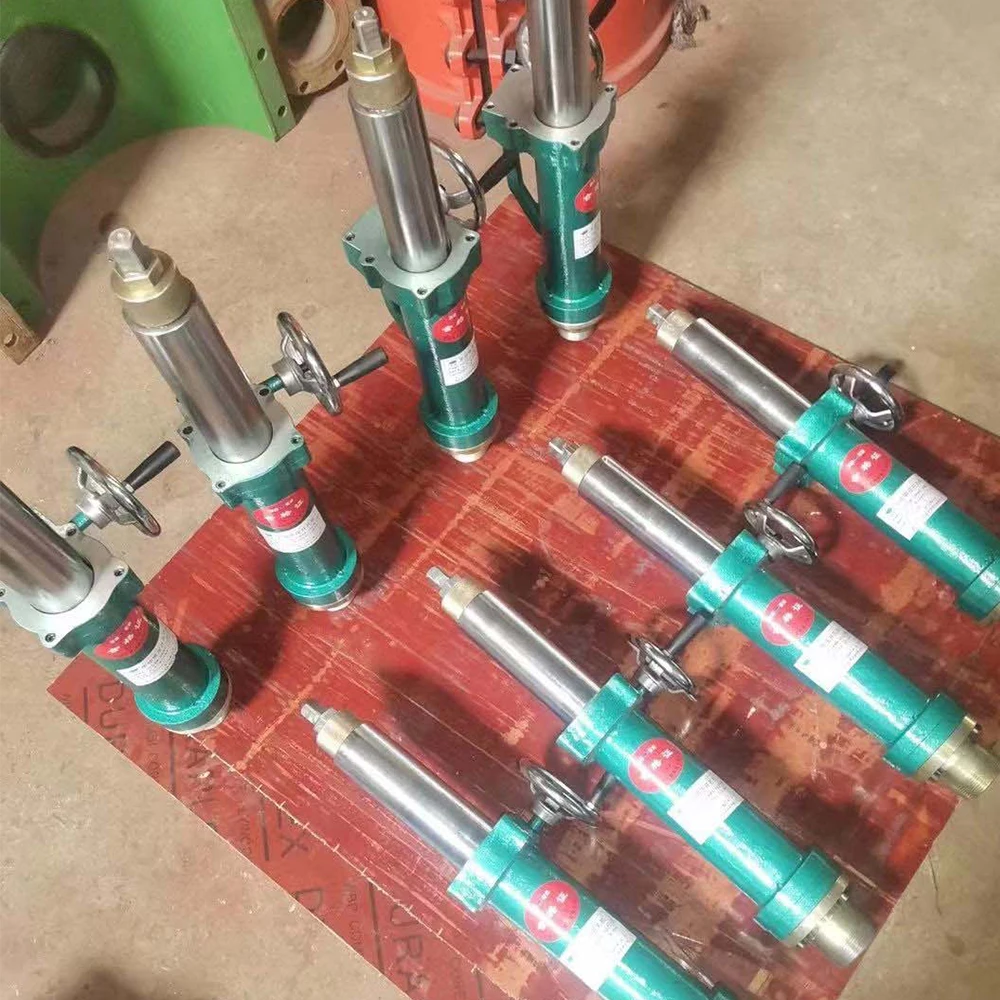

Ручная машина HT50 для сверления
- Категория: Drilling Machines >>>
- Поставщик: Anqing,Great,Wall,Pipeline,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 1012.43 $* | 1063.78 $* |
| Aug-20-2025 | 1003.71 $* | 1053.73 $* |
| Jul-20-2025 | 842.4 $* | 884.41 $* |
| Jun-20-2025 | 986.50 $* | 1035.81 $* |
| May-20-2025 | 859.35 $* | 902.43 $* |
| Apr-20-2025 | 969.72 $* | 1017.49 $* |
| Mar-20-2025 | 961.88 $* | 1009.64 $* |
| Feb-20-2025 | 952.94 $* | 1000.18 $* |
| Jan-20-2025 | 944.50 $* | 991.56 $* |
Характеристики
Product Overview

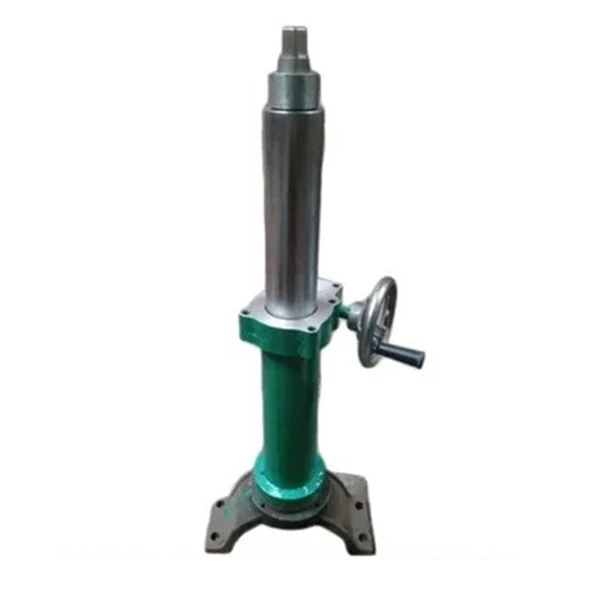

Manual Tapping Tool -HT50
Model | HT50 |
Application | branch connection |
Pipeline Material | Carbon Steel, Ductile Iron, Cast Iron, PE, PVC, HDPE |
Pipeline Medium | Water, Oil, Gas, Steam |
Tapping Size Range | 1/2'', 3/4'', 1'', 2'' |
Working Pressure | 10bar, 16bar |
Transmission mode | Manual |
Stroke | 170/240 mm |
Spindle Speed | 53 r/min |
Feeding Mode | Manual |
Feeding Volume | 1.5 mm/r |
Tapping Time | 10-20 min |
Machine Weight | 10 Kgs |
Dimension | 470×170×160mm/ 540×170×160mm |

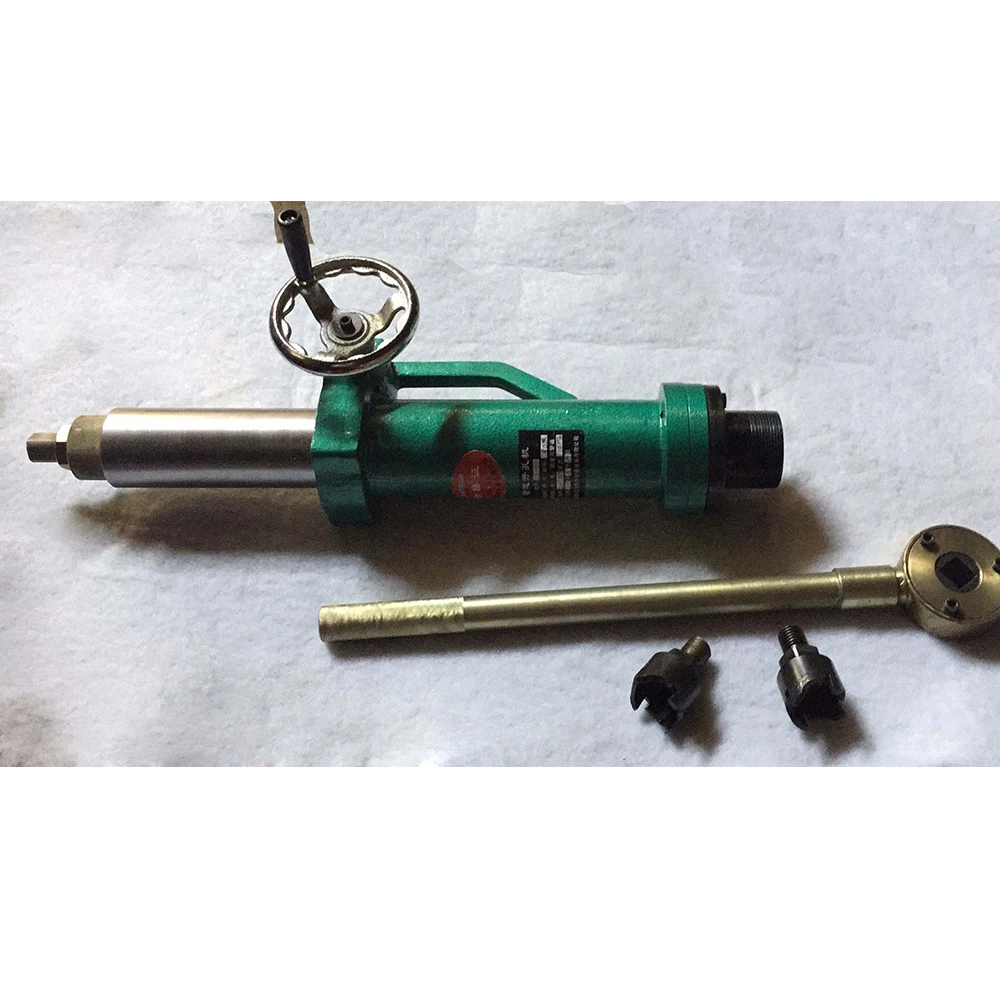

Accessories | Ratchet wrench, diameter adaptor, cutter |
Packing | Plywooden Case |
Machine Accessories
Tapping Adaptor ( Diameter Adaptor).
Hot Tapping Cutter
Successful Project
Hot Tapping Procedure
List of Models of Hot Tapping Machine
Model | Hot Tapping Size Range | Operation Pressure | Stroke | Spindle Speed | Motor Power | Motor Power | ||
HT50 | 25-50mm | 1-2'' | ≤25 bar | 170/240mm | 53r/min | / | / | |
HT100 | 50-100mm | 2-4'' | ≤25 bar | 300mm | 53r/min | 0.75Kw | 220V | |
HT200 | 50-200mm | 2-8'' | ≤25 bar | 400mm | 40r/min | 1.5Kw | 220V | |
HT300 | 100-300mm | 4-12'' | ≤25 bar | 540mm | 40r/min | 1.5Kw | 220/380V | |
HT400 | 250-400mm | 10-16'' | ≤25 bar | 600mm | 30r/min | 1.5Kw | 380V | |
HT600 | 500-600mm | 20-24'' | ≤25 bar | 800mm | 25r/min | 4Kw | 380V | |
HT800 | 700-800mm | 28-32'' | ≤25 bar | 1000mm | 20r/min | 4Kw | 380V | |
HT1400 | 500-1400mm | 20-56'' | ≤16 bar | 1600mm | 7.5/11Kw | 380V | ||
Company Profile
Anqing Great Wall Pipeline Company have over 10 years experience of the production and development of Electric and Manual Hot Tapping machine for water, oil and gas lines with the operation pressure rating of PN10, PN16 and PN25 and the range of hot tapping sizes from 1/2'' up to 64''.
Our hot tapping machines are exported to the countries and regions including Singapore, Malaysia, Indonesia, Taiwan, UAE, Chile, Argentina and etc .
Recommend Products
HT50 Manual Hot Tapping Machine
HT500 Electrical Hot Tapping Machine
HT1400 Electrical Hot Tapping Machine
FAQ
Q1: Can you send your engineer to our project site for the operation of Hot Tapping Machine ?
We usually can't send engineer to your project site for the machine operation for the reason of the high expense .
But you are welcome to send your staff to our factory for the free training of operation of Hot Tapping Machine .
Also we will provide the video technical support or technical support by telephone or Email .
Q2. Do you have the stock of hot tapping machine and accessories ?
Yes, we have the stock of the regular models of Hot Tapping Machine and accessories .
We usually can't send engineer to your project site for the machine operation for the reason of the high expense .
But you are welcome to send your staff to our factory for the free training of operation of Hot Tapping Machine .
Also we will provide the video technical support or technical support by telephone or Email .
Q2. Do you have the stock of hot tapping machine and accessories ?
Yes, we have the stock of the regular models of Hot Tapping Machine and accessories .
Also we can produce hot tapping machine as per your specific tapping range within only 5-6 days .
Q2. Do you have the stock of spare parts of hot tapping machine ?
Yes, we have the stock of spare parts of hot tapping machine and you can get spare parts from us .
