Солнечные инверторы INVT ongrid pv system grid tie 1 кВт 2 3 инвертор постоянного тока переключатель mppt с
- Категория: Solar Inverter >>>
- Поставщик: INVT,Solar,Technology,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.37 $* | 0.0 $* |
| Aug-16-2025 | 0.42 $* | 0.15 $* |
| Jul-16-2025 | 0.63 $* | 0.90 $* |
| Jun-16-2025 | 0.92 $* | 0.53 $* |
| May-16-2025 | 0.39 $* | 0.35 $* |
| Apr-16-2025 | 0.24 $* | 0.25 $* |
| Mar-16-2025 | 0.29 $* | 0.39 $* |
| Feb-16-2025 | 0.81 $* | 0.5 $* |
| Jan-16-2025 | 0.34 $* | 0.43 $* |
Характеристики

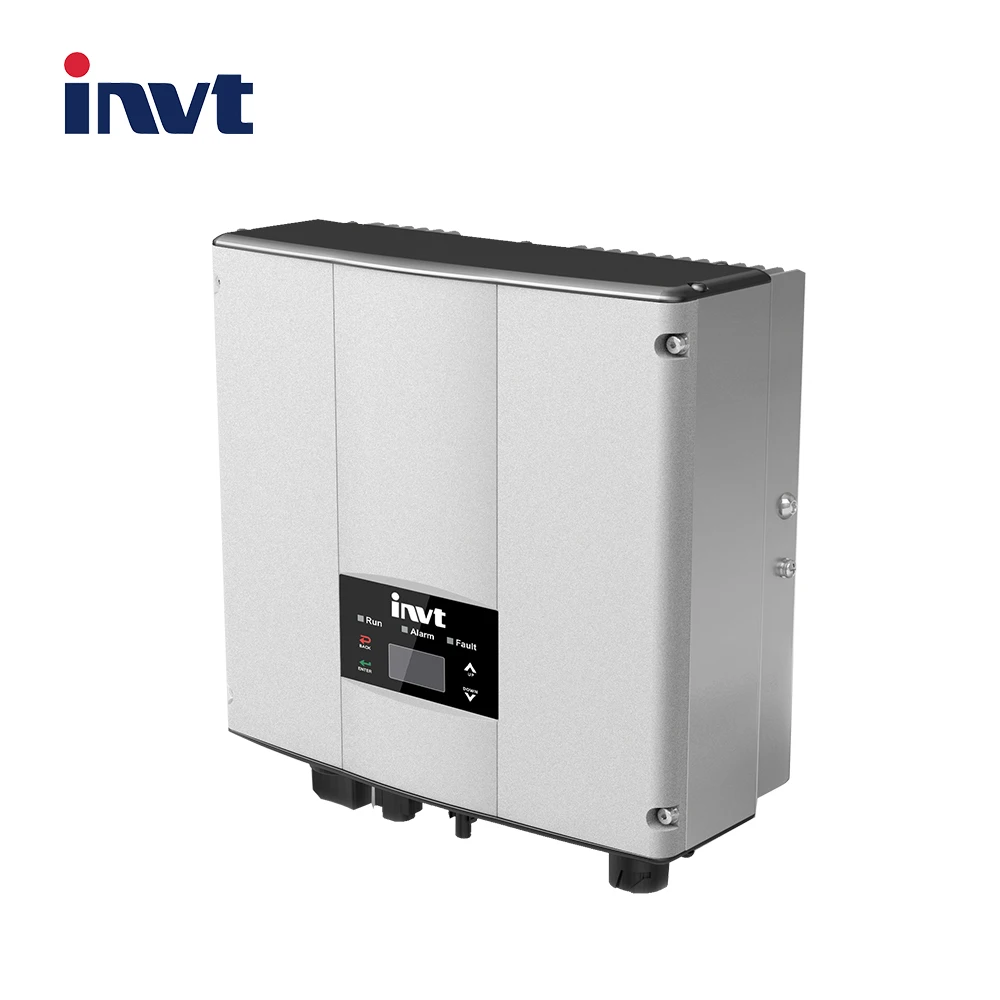

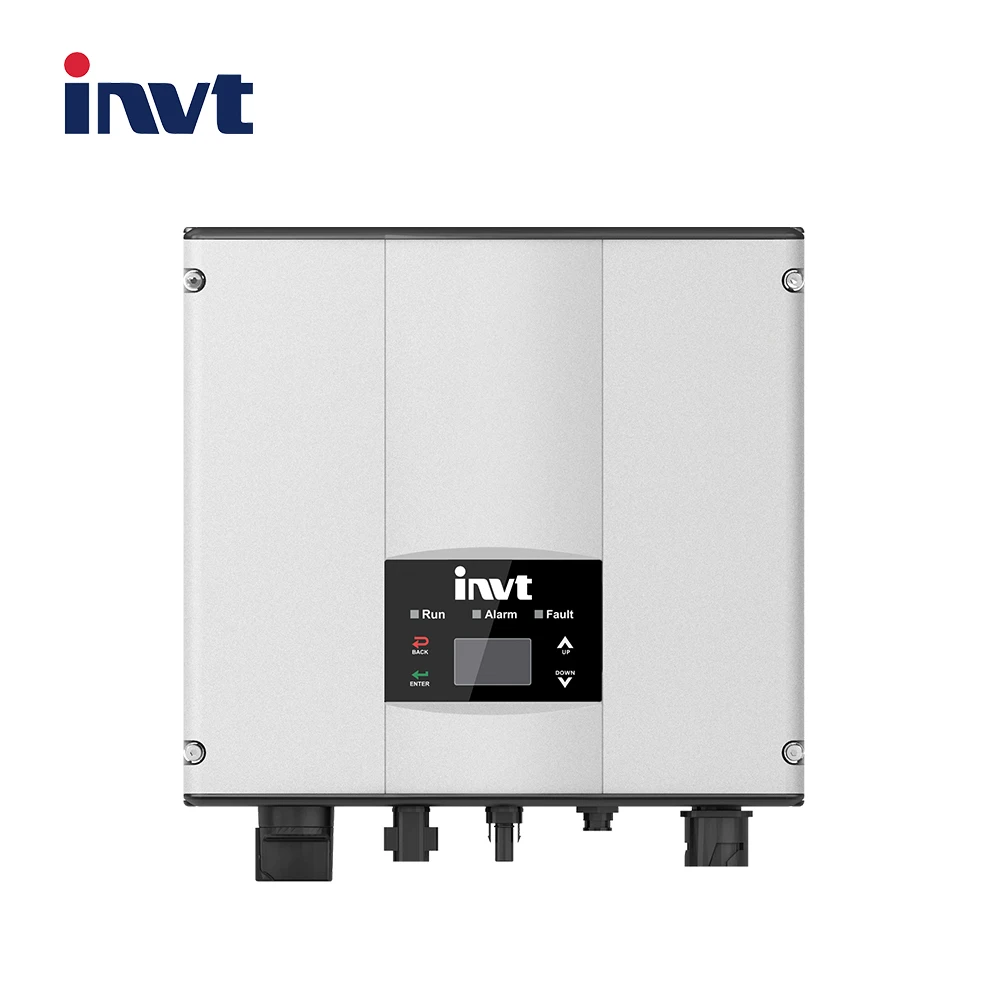

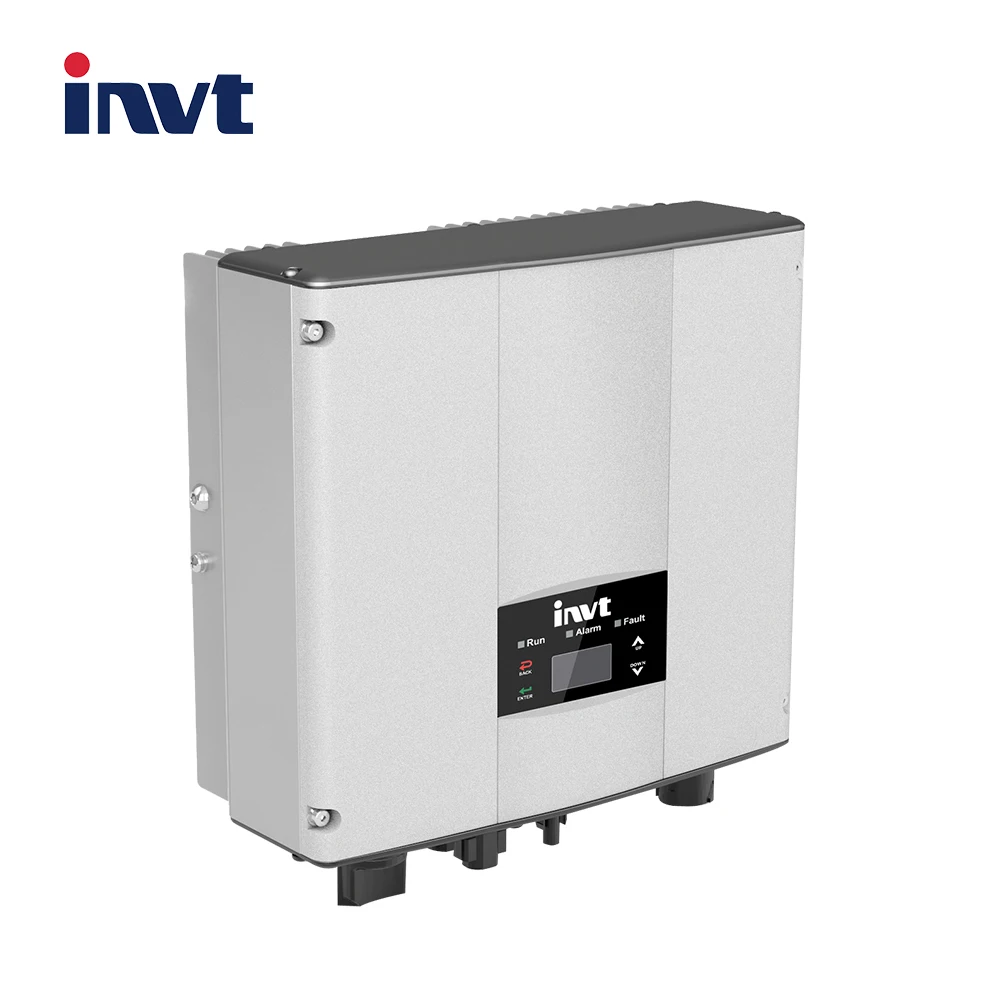

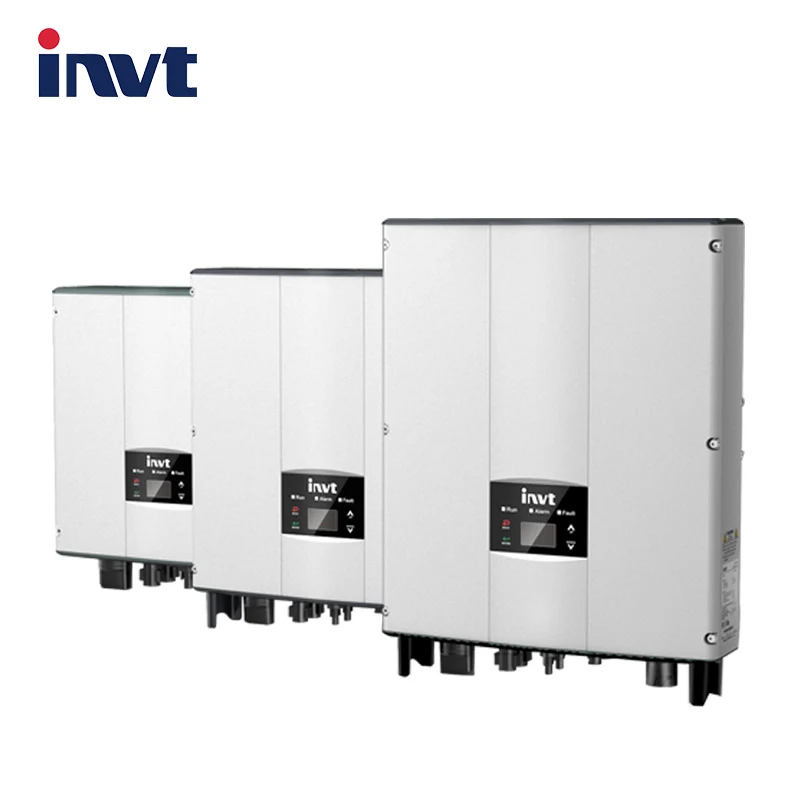

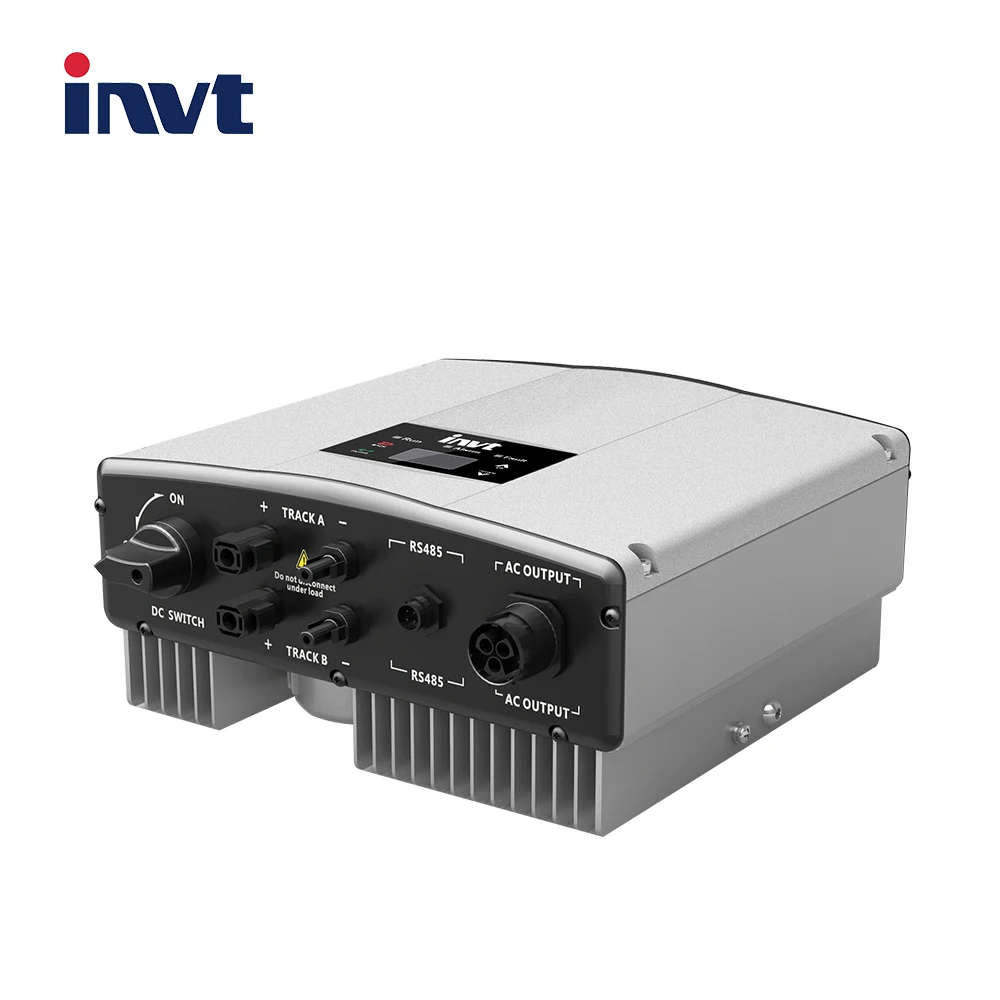

Product Description
- Higher conversion efficiency.
- External inductor, low temperature inside.
- Grid self-adaptation.
- Monitor management with APP one-button registration.
- Aluminum casing, natural cooling, IP65 protection level.
- Home appliance style.
- Small in size, light in weight, easy to install.
- External inductor, low temperature inside.
- Grid self-adaptation.
- Monitor management with APP one-button registration.
- Aluminum casing, natural cooling, IP65 protection level.
- Home appliance style.
- Small in size, light in weight, easy to install.
Specification
MG1KTL | MG1K5TL | MG2KTL | MG3KTL | |||||
Input (DC) | ||||||||
Max. DC input power (W) | 1200 | 1700 | 2200 | 3300 | ||||
Max. DC input voltage (V) | 450 | 500 | ||||||
MPPT range (V) | 60-400 | 80-410 | 100-410 | 120-450 | ||||
Max. DC current (A) per MPPT x Quantity of MPPT | 9x1 | 10x1 | 12x1 | 15x1 | ||||
Output (AC) | ||||||||
Rated output power (W) | 1000 | 1500 | 2000 | 3000 | ||||
Max. AC output current (A) | 4.5 | 6.5 | 9 | 13 | ||||
Nominal output voltage (V) / frequency (Hz) | 230, L+N+PE, 50/60 | |||||||
Efficiency | ||||||||
MPPT efficiency | 99.90% | |||||||
General data | ||||||||
Communication interface | RS485(standard); WiFi、Ethernet(optional) | |||||||
Cooling method | Natural cooling | |||||||
Protection degree | IP65 | |||||||
Night self consumption (W) | <1 | |||||||
Operating temperature range | -25℃~+60℃(derate after 45℃) | |||||||
Dimension (H x W x D mm) | 280x300x138 | |||||||
Weight (kg) | ≤9.5 | |||||||
Safe certificates / EMC certificates | IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 | |||||||
Factory warranty (years) | 5(standard)/10(optional) | |||||||
Packing & Delivery
Company Profile
INVT Solar Technology (Shenzhen) Co., Ltd. is a subsidiary of INVT Electric Co., Ltd. ("INVT"). INVT has been concentrating on industry automation and energy power since its foundation in 2002 and is committed to “Providing the best product and service to
allow customers more competitiveness”.
-Founded in 2002, listed in stock in 2010
-More than 19 years mature experience of manufacture processes
-12 R&D centers, more than 1300 patents
- 16 subsidiaries, 2 manufacturing bases
- Over 30 domestic offices and warranty centers
- 9 overseas Subsidiaries
- Sales network covering more than 90 overseas countries and regions
allow customers more competitiveness”.
-Founded in 2002, listed in stock in 2010
-More than 19 years mature experience of manufacture processes
-12 R&D centers, more than 1300 patents
- 16 subsidiaries, 2 manufacturing bases
- Over 30 domestic offices and warranty centers
- 9 overseas Subsidiaries
- Sales network covering more than 90 overseas countries and regions
Certifications
Exhibition
Applications
