Вакуумная сушильная машина для сушки Красного перца

Описание и отзывы

Трекер стоимости

Характеристики



Standard model	HC-10	HC-20	HC-30	HC-40	HC-50
Dry capacity (kg/ times)	60	120	240	360	480
Heating power (kw)	9	15	30	45	60
Fan power (kw)	0.45	0.45	0.9	1.35	1.8
Air flow (m3/h)	4510	4510	9020	13530	18040
Consumed steam (kg/h)	15	20	40	60	80
Temperature difference in the tank (℃)	±2	±2	±2	±2	±2
Tray Quantity	24	48	96	144	192
Overall size (L*W*H)mm	1380*1200*2000	2260*1200*2000	2260*2200*2000	2260*3200*2000	4280*2200*2270
Weight(kg)	820	1580	1800	2100	2800

Applications:

It is suitable for heating and solidification, drying and dehydration of raw materials in pharmaceutical, chemical, foodstuff, and agricultural industry. The raw materials can be medicines of raw materials, Chinese traditional medicines, tablet of drink, immersed electuary, powder, granule, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements and drying varnish.

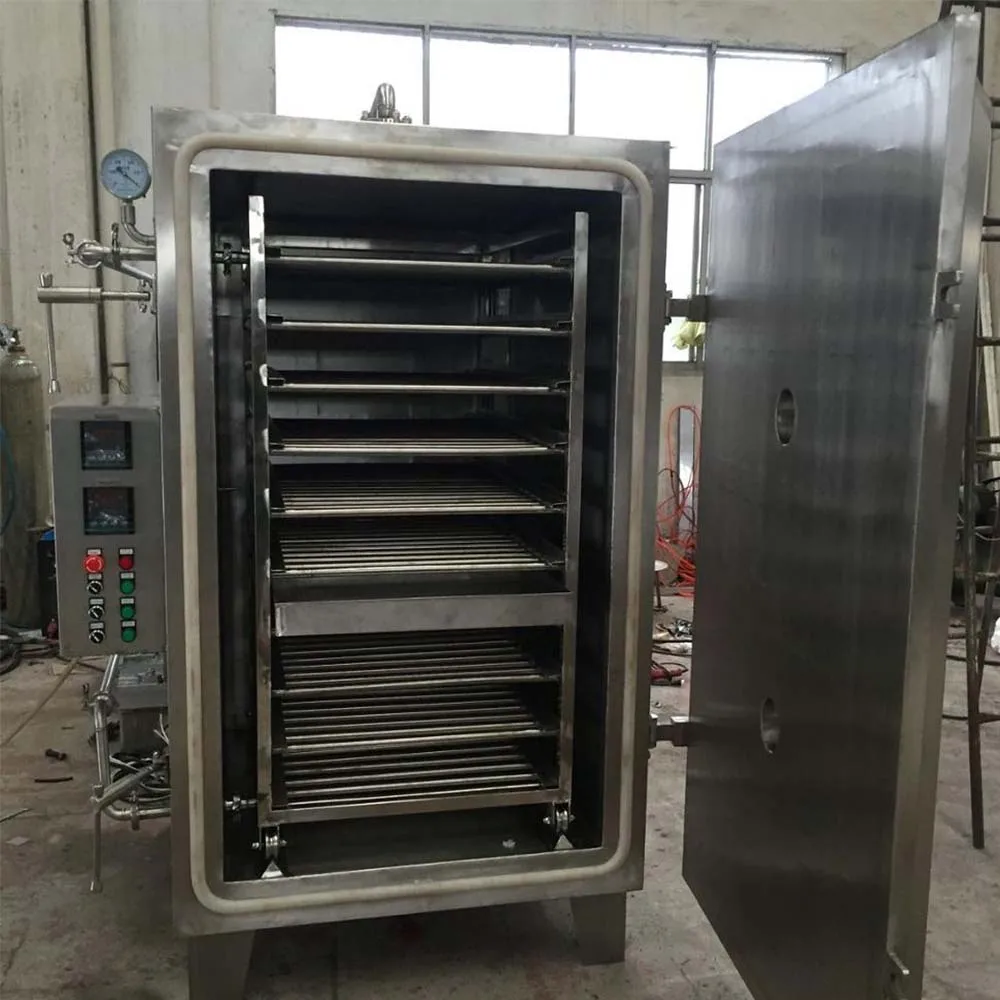

HC series hot-air circle drying machine uses steam or electric heating air, then made a cycling dry with heated air. There is even dry and lower discrepancy of temperature difference in the each side of even. In the dry course of supplying continuously flesh air and discharging hot air so that the even might be in good condition and kept proper temperature and humidity.

HC series hot-air circle drying machine is equipped with low noise flow fan and automatic temperature control system, The cycle system is fully sealed.



Features:

Most hot air is circled inside the oven. The heat efficiency is high. The energy source can be saved.

Uses enhanced ventilation and equipped with adjustable air divider plate inside the oven. Raw materials can be dried evenly. The hot sources can be steam, hot water, electricity of far infrared.

Has low noise and stable operation. The temperature can be controlled automatically. The installation and maintenance are very convenient.

Applied fields are wide, and can be suitable for all kinds of raw materials. It is comprehensive drier.

 Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. ,(subsidiary corporation Liaoyang zonelink trading Co.,Ltd ) belongs to ZHONGLINAN international Group. We are the professional manufacturer of pharmaceutical equipment and food equipment, which including separating equipment, filling equipment, packing equipment, dryer and relevant complete set of production line equipment.
Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. Our aim is saving your valuable time and cost, providing you with the workable solution!
