Полуавтоматическая металлическая панель забора полностью автоматическая ОБЖИМНАЯ машина для плетения проволочной
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Anping,County,Second,Barbed,Wire,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.94 $* | 0.49 $* |
| Aug-15-2025 | 0.97 $* | 0.56 $* |
| Jul-15-2025 | 0.36 $* | 0.33 $* |
| Jun-15-2025 | 0.77 $* | 0.27 $* |
| May-15-2025 | 0.81 $* | 0.27 $* |
| Apr-15-2025 | 0.75 $* | 0.4 $* |
| Mar-15-2025 | 0.85 $* | 0.27 $* |
| Feb-15-2025 | 0.97 $* | 0.65 $* |
| Jan-15-2025 | 0.73 $* | 0.28 $* |
Характеристики
Product Description
The series of crimped wire mesh machine weaves crimped wire net steel, iron,lead and staimless steel wire with big diameter. The net is weaved by the machine after thick wire is forced to crimp by rolling machine.
The crimped wire mesh machine can be divided into full-automatic crimped wire mesh machine, semi-automatic crimped wire mesh machine and hydraulic crimped wire mesh machine. In fact, the hydraulic type is also semi-automatic.
The crimped wire mesh machine can be divided into full-automatic crimped wire mesh machine, semi-automatic crimped wire mesh machine and hydraulic crimped wire mesh machine. In fact, the hydraulic type is also semi-automatic.
The finished product--crimped wire mesh mainly used for mining, coal, petroleum, fertilizer, grain, salt, environmental protection and so on.
Specification
Semi-automatic crimped wire mesh machine mainly weaves a little thicker wire, the wire diameter range is 2mm-6mm, this machine also includes mesh weaving machine, crimped wire machine, rolling machine and mould.
And the aperture is 3x3mm-50x50mm, the weaving width can reach 4m.
The products are widely used in the mine sieving, it is also easy to operate
Full-automatic crimped wire mesh machine mainly weaves little wire diameter.
The wire diameter range is 0.4mm-2mm, this machine includes mesh weaving machine, crimped wire machine, rolling mesh machine and mould.
The aperture is from 1.5mm to 20mm,the cross wore can be fed automatic and not manually.
So it is very easy to operate.
It is very popular around the world market.

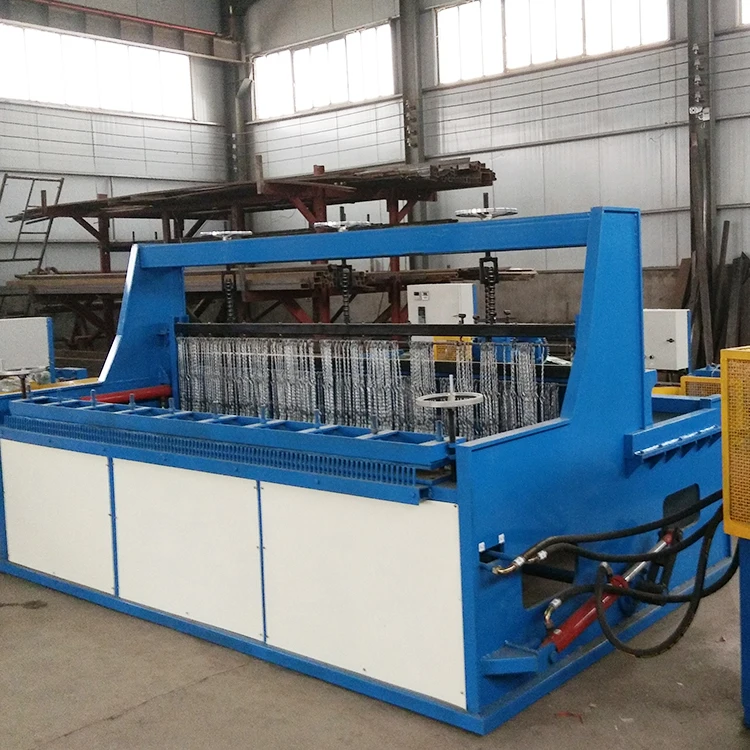

Hydraulic crimped wire mesh machine weaves thick wire, the wire diameter range is 6mm-12mm.
And big hole size from 6mmx6mm to 100mmx100mm.
This type is also semi-automatic.
The machine includes mesh weaving machine,crimped wire machine and mould.
Accessory | Crimping Wire Machine | ||||
Type | Semi-Automatic Crimped Wire Mesh Machine | Full Automatic Crimped Wire Mesh Machine | Hydraulic Crimped Wire Mesh Machine | ||
Wire Diameter | 2mm-6mm | 0.4mm-2mm | 6mm-12mm | ||
Motor | 380V/50HZ | 380V/50HZ | 380V/50HZ (Other type can be customized) | ||
Power | 1.5KW | 1.5Kw | 5.5KW+2.2KW | ||
Motor Quantity | one | One | Two | ||
Machine Size | L1.3m x W 1.1m x H 1.2m | L2.2m x W 0.7m x H1.3m | L1.5m x W 1.1m x H1.3m | ||
Weight | 500KG | 250kg | 500kg | ||
Output | 30-100m/min | / | 300-100m/min | ||
Our Services:
1.Test the machine before shipment
2.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
3.Within guarantee time, if any components are broken under normal condition, we can change for free.
4.We can send our best technician to buyer’s factory for installation, debugging and training.
2.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
3.Within guarantee time, if any components are broken under normal condition, we can change for free.
4.We can send our best technician to buyer’s factory for installation, debugging and training.
