Характеристики





KPAL CUTTING PLOTTER
With the accurate enhanced AAS Ⅱ, reliable tracking capability, and intuitive features to meet the demands of today's professionals, the KPAL K1-160 Series represents the apex of vinyl cutting plotter technology.

· Up to 60 inches/second of cutting speed
· Guaranteed 10 meters tracking
· Section Cutting
· Segmental Positioning
· Ingenious media basket
· Media take-up system for PPF cutting


Model Number
K1-160-A
K1-160-B
Operational Method
Roller-Type
Max. Cutting Width
1600mm (63")
Max. Cutting Length
50m (164 ft)
Max. Media Loading Width
1782mm (70.2")
Min. Media Loading Width
300mm (11.8")
Acceptable Material Thickness
0.8mm(0.03")
Max. Cutting Force
600g
Max. Cutting Speed
1530mm/sec (60ips) (at 45° direction)
Control Panel
LCD (20 digits x 2 lines), 14 Keys, 1 Power LED
Diameter of Blade
2.5mm
Power Supply
AC 100-240V, 50~60 Hz (auto switching)
Dimension (HxWxD)
1127*1962*756(mm)            44.4*77.2*29.8(in)
Media Take-up System
N/A
Standard
Media Basket
Optional
N/A


Products Description


222
1. Convenient Connection
KPAL K1-160 Series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and plotter. Ethernet connection enables multiple plotters to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.

2. User-Friendly Control Panel
The easy-to-use and multilingual control panel can remarkably simplify complex tasks. It provides various functional settings to meet users' needs.

3. Media Support System
The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.

4. Selective Pinch Roller Positioning
Each pinch roller can be operated respectively to selective position wherever is proper to optimize its utility.


Product Features




· Enhanced AAS Ⅱ Contour Cutting System

KPAL K1-160 Series features an enhanced Automatic-Aligning System (AAS Ⅱ) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.

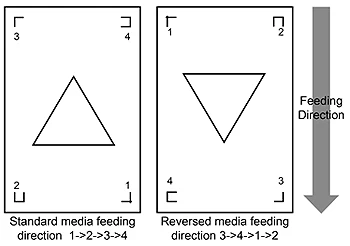

· Auto Rotation

New registration marks defined to detect material feeding direction. KPAL K1-160 Series detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.




· Section Cutting
Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. KPAL K1-160 Series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.




· Segmented Positioning
KPAL K1-160 Series features Segmented Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmented Positioning function can scan the registration marks one by one automatically to calibrate shift.
