Характеристики
Products Description

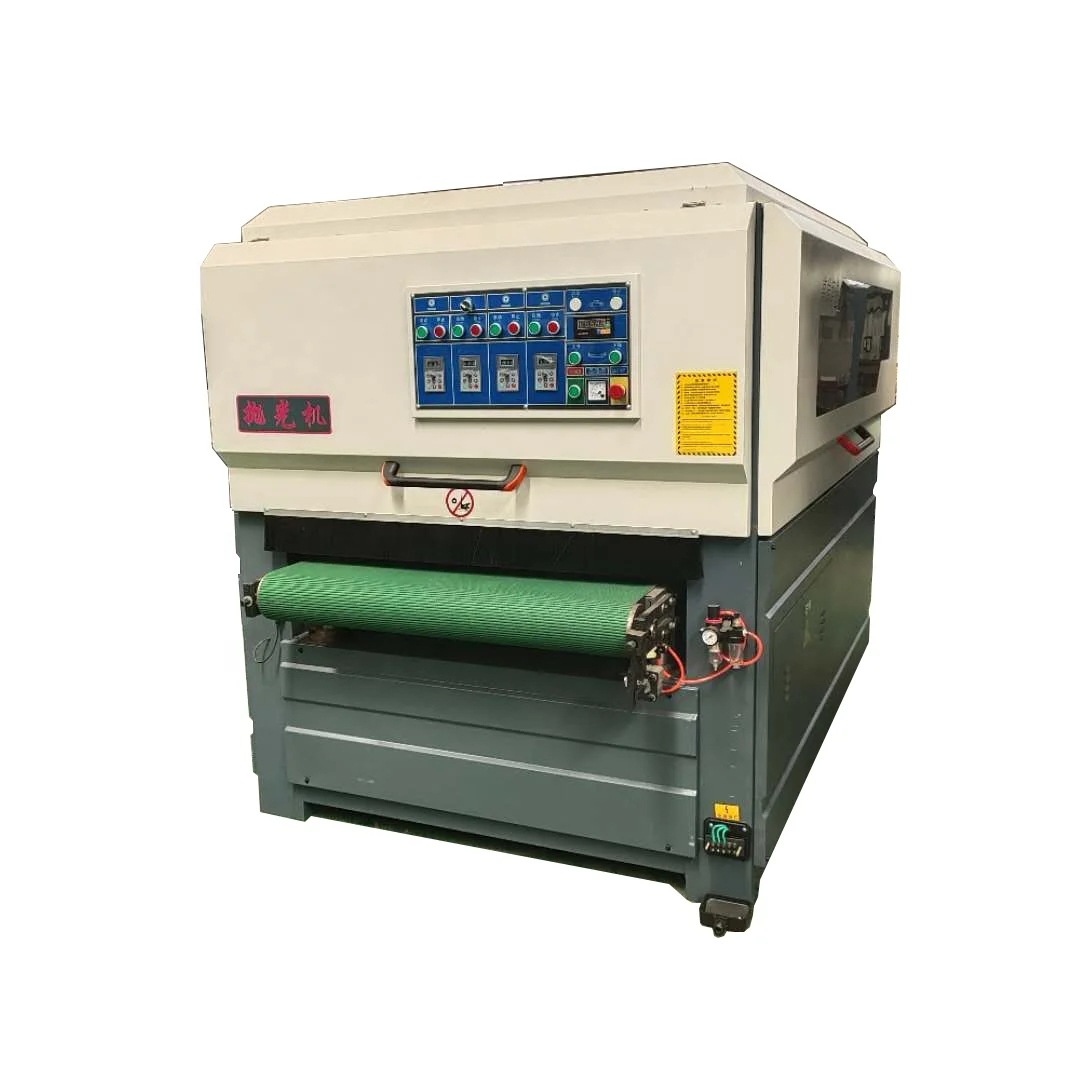

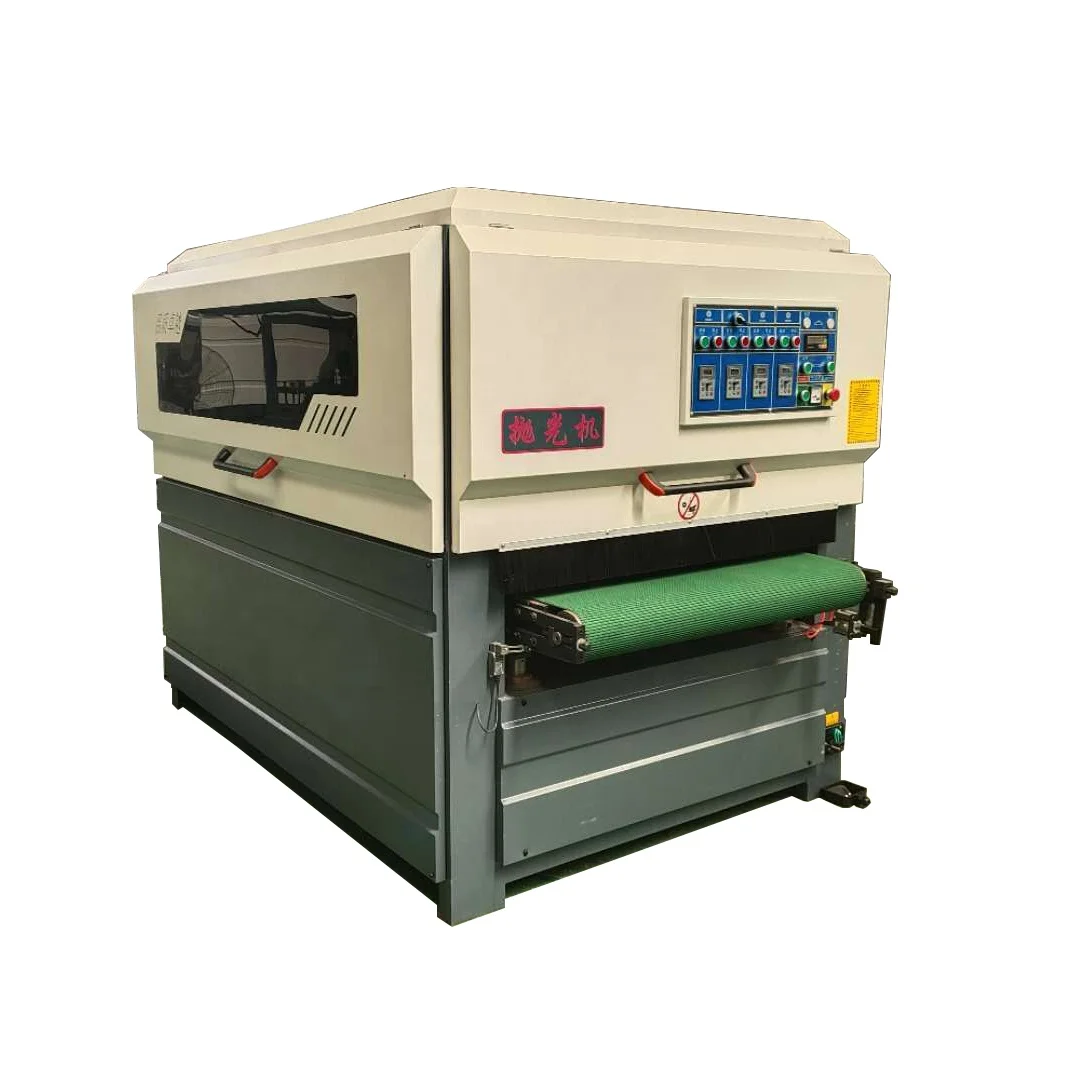

WOOD DOOR BRUSH PROFILE SANDER SANDING POLISHING MACHINE
WOOD DOOR BRUSH PROFILE SANDER SANDING POLISHING MACHINE It is suitable for rough and fine sanding, grinding and polishing of all kinds of solid wood, density board, veneer board, straight line (such as door edge line, door frame, corner line, photo frame frame frame, shutter, etc.), L-shaped wood line, regular surface, special-shaped surface, plane and special-shaped surface, primer wood door, cabinet door surface
Product Paramenters
WOOD DOOR BRUSH PROFILE SANDER SANDING POLISHING MACHINE | ||||
Parameter specification | MP-1000-2YHP | MP-1300-2YHP | ||
WORKING WIDTH | 1000MM | 1300MM | ||
WORKING LENGTH | ≥320MM | ≥320MM | ||
WORKING THICKNESS | 5-110mm | 5-110mm | ||
CONVEYING SPEED | 0-25m/s | 0-25m/s | ||
TOTAL POWER | 13.87kw | 15.47kw | ||
POLISHING SPEED | FREQUENCY CONTROL | FREQUENCY CONTROL | ||
AVERAGE SUCTION VELOCITY | ≥25m/s | ≥25m/s | ||
OVERALL MACHINE SIZE | 3650*1850*1800mm | 3650*2150*1800mm | ||
PACKAGE SIZE | 2200*1950*2100mm | 2200*2150*2100mm | ||
GROSS WEIGHT | 2200KG | 2600KG | ||
Details Images

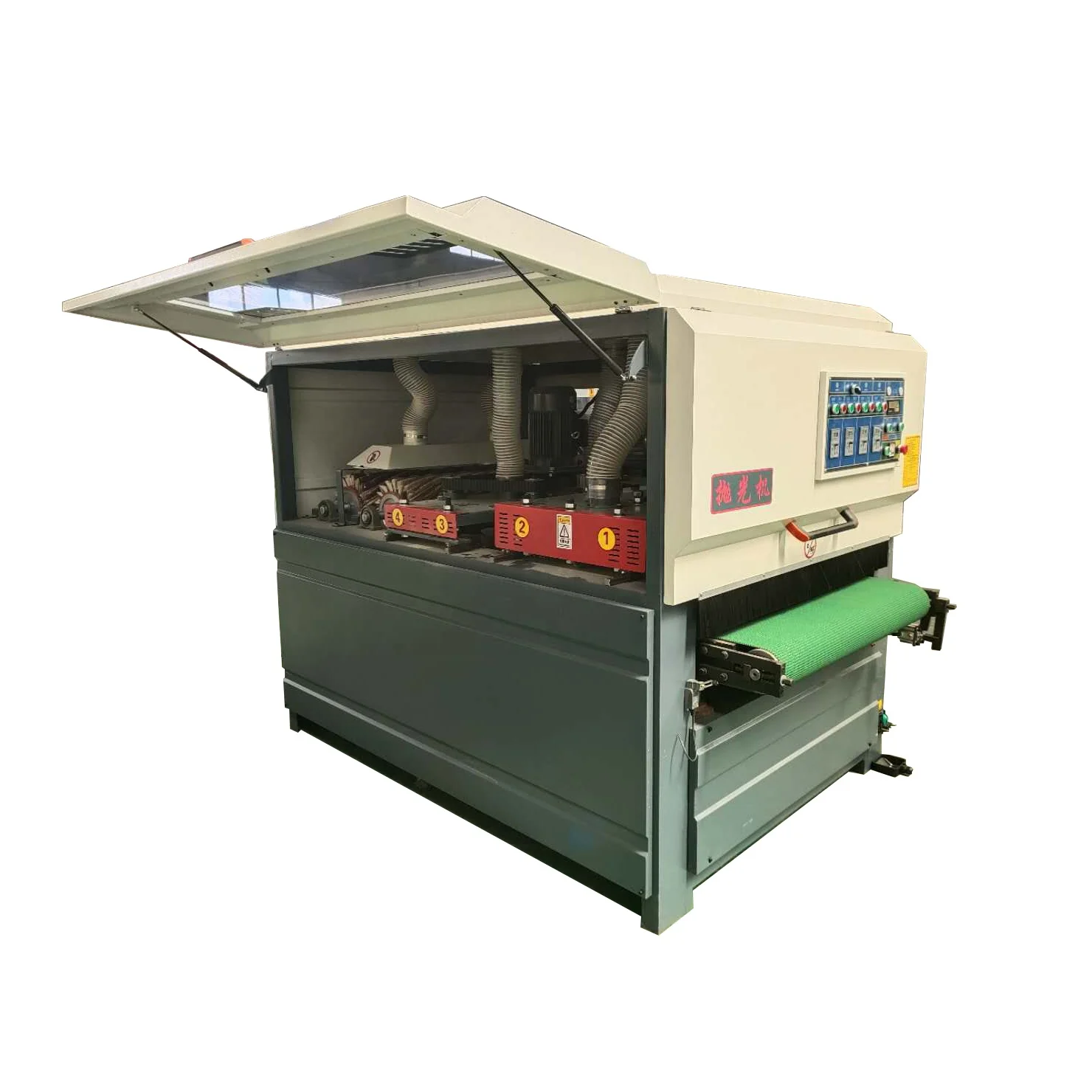

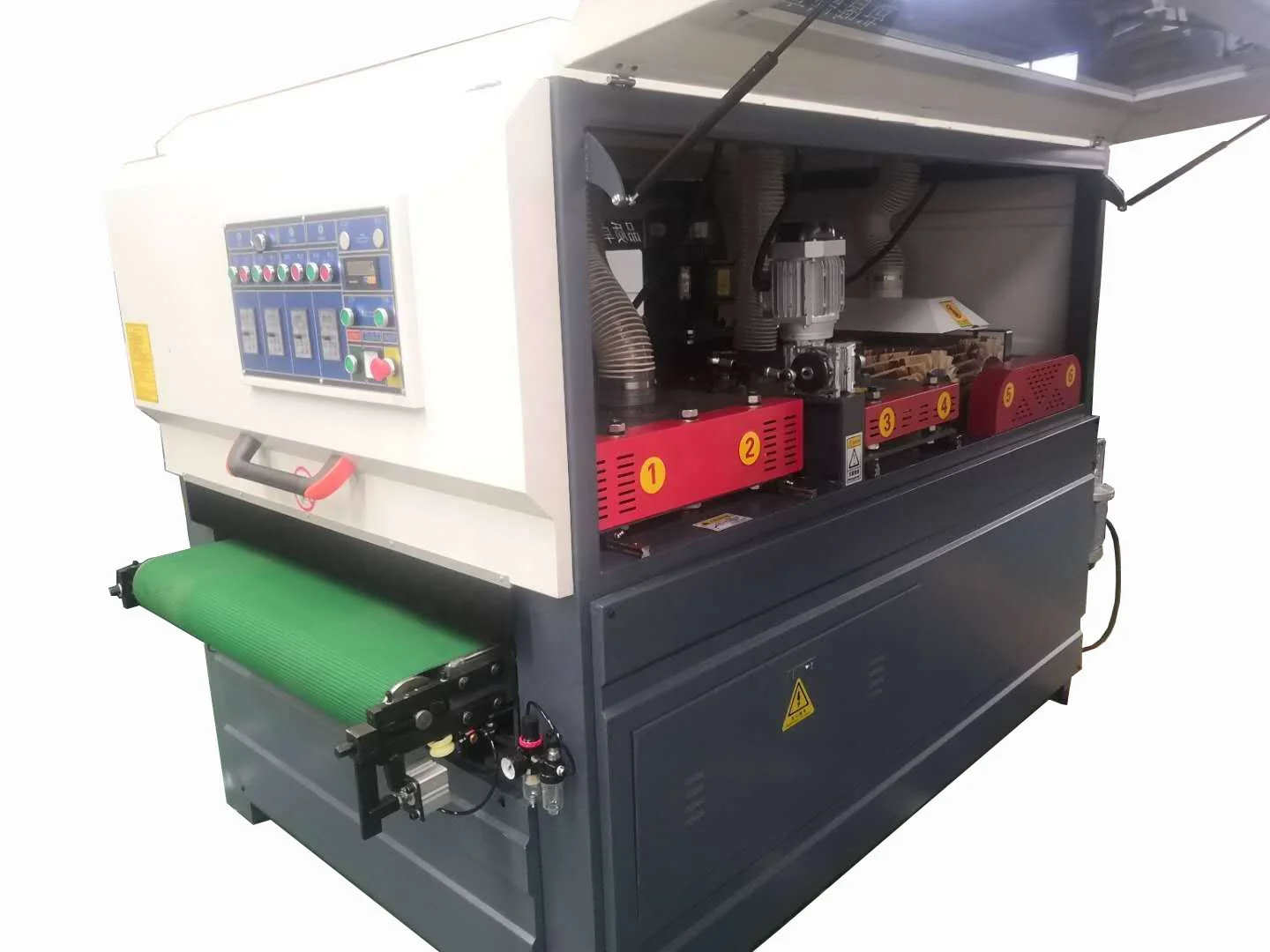

The combination mode in the picture is 2 line disc brush,2 line vertial rollers and 2 straight rollers.Sander paper consumables can choice from 120-600 Grit according to your products. Grit number for sander paper more high more delicate the grinding. This machine specially designed for furniture industry.Different combinations can be customized according to the customer’s needs. The operation is simple, beautiful, practical and reasonable For details, please contact customer service to provide you with professional purchasing guidance.
Polishing Disc
Vertical staggered grinding,
to prevent missing, equipped
with quick replacement
joint, easy to replace
to prevent missing, equipped
with quick replacement
joint, easy to replace
Vertical Rollers
Horizontal grinding,
the effect is more ideal
the effect is more ideal
Polishing rollers
The polished steel rod
imported from Taiwan has
longer service life and smooth
polishing without dead angle
imported from Taiwan has
longer service life and smooth
polishing without dead angle
Disc Rollers Can Design Number
To meet the needs of your material polishing process, the thickness of polishing can also be customized
DISC POLISHING
The vertical grinding plate (the grinding disc can swing left and right) can realize the deep cleaning of the gap. It is equipped with quick replacement joint, which can make the disc replacement more convenient.
VERTICAL POLISHING
The two groups of longitudinal rollers can swing left and right, and the swing direction of the two groups of longitudinal rollers can be opposite, so as to realize 360 degree grinding without dead angle, eliminate missing and wrong beating, so as to improve the grinding efficiency.
Polishing roller
Using the polishing steel roller imported from Taiwan, different number of sandpaper and sisal strip can be matched according to the hardness of the grinding material to further refine the grinding
01 Control Panel
Button control panel, plate thickness up and dwon, processing simple, easy to understand

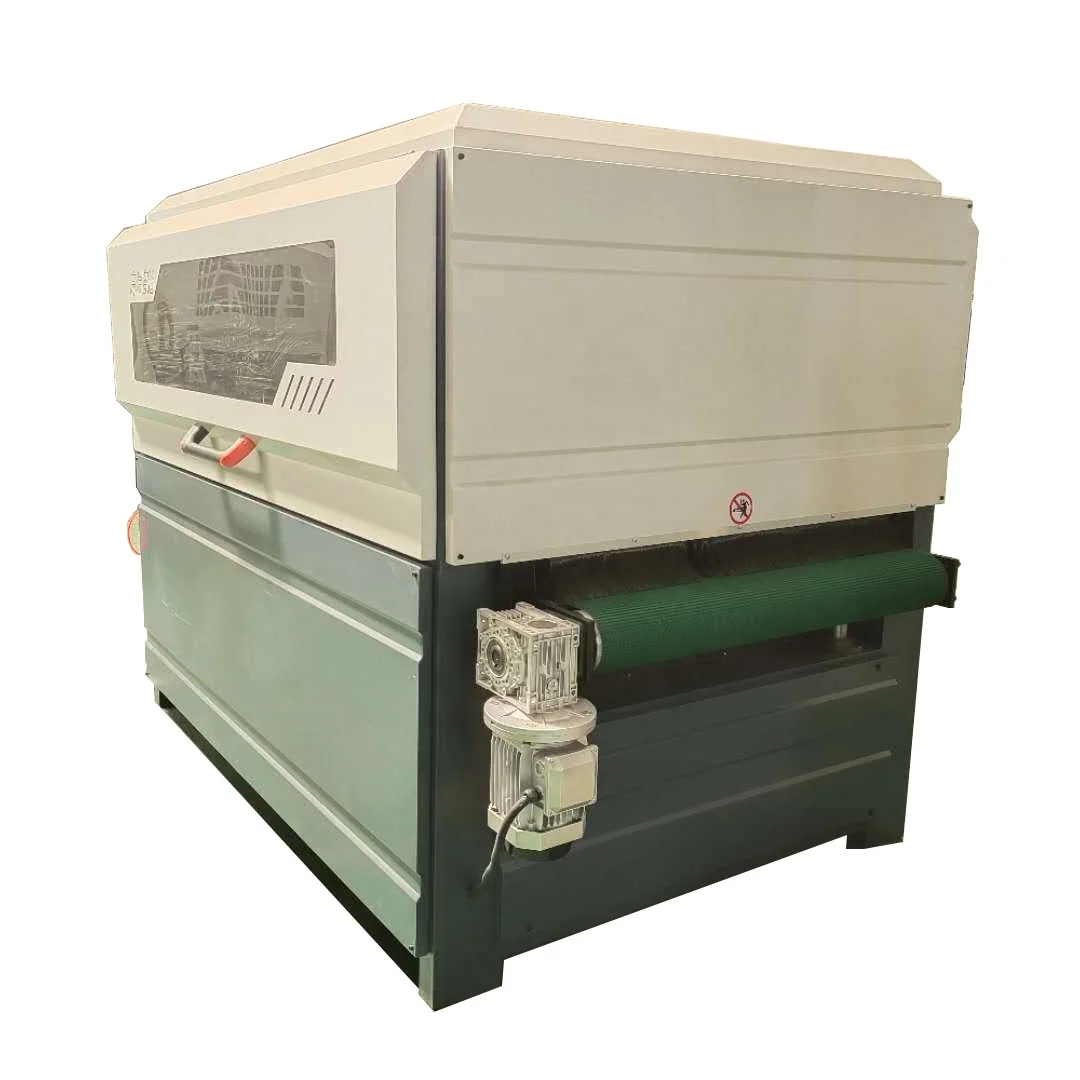

02 Feeder
The conveyor belt is equipped with cast iron gearbox reducer motor as standard,
which is not easy to deform. It will not affect the fuselage during long-term operation at high temperature. The service life of the machine body is lengthened and the conveying can be adjusted at will, which is more convenient
which is not easy to deform. It will not affect the fuselage during long-term operation at high temperature. The service life of the machine body is lengthened and the conveying can be adjusted at will, which is more convenient
03 IMPORTED REDUCER
Standard cast iron gearbox reducer motor, compared with the gearbox is not easy to deform, high temperature operation will not have an impact on the machine, enhance the life of the machine, command transmission can be adjusted at will, more worry free Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
04 OIL WATER SEPARATOR
Oil water separator, can effectively prevent the water vapor in the air from entering the machine, use safely, and ensure the safety of the machine in use
05 Magnetic ring induction of lifting motor
Lifting motor magnetic ring induction, higher accuracy, use of altimeter upgrade, longer service life
06 AUTOMATIC DEVIATION CORRECTION
Start the automatic deviation correction design to ensure that the product does not deviate, the service life of the conveyor belt is longer, and it can still be effectively polished at high speed

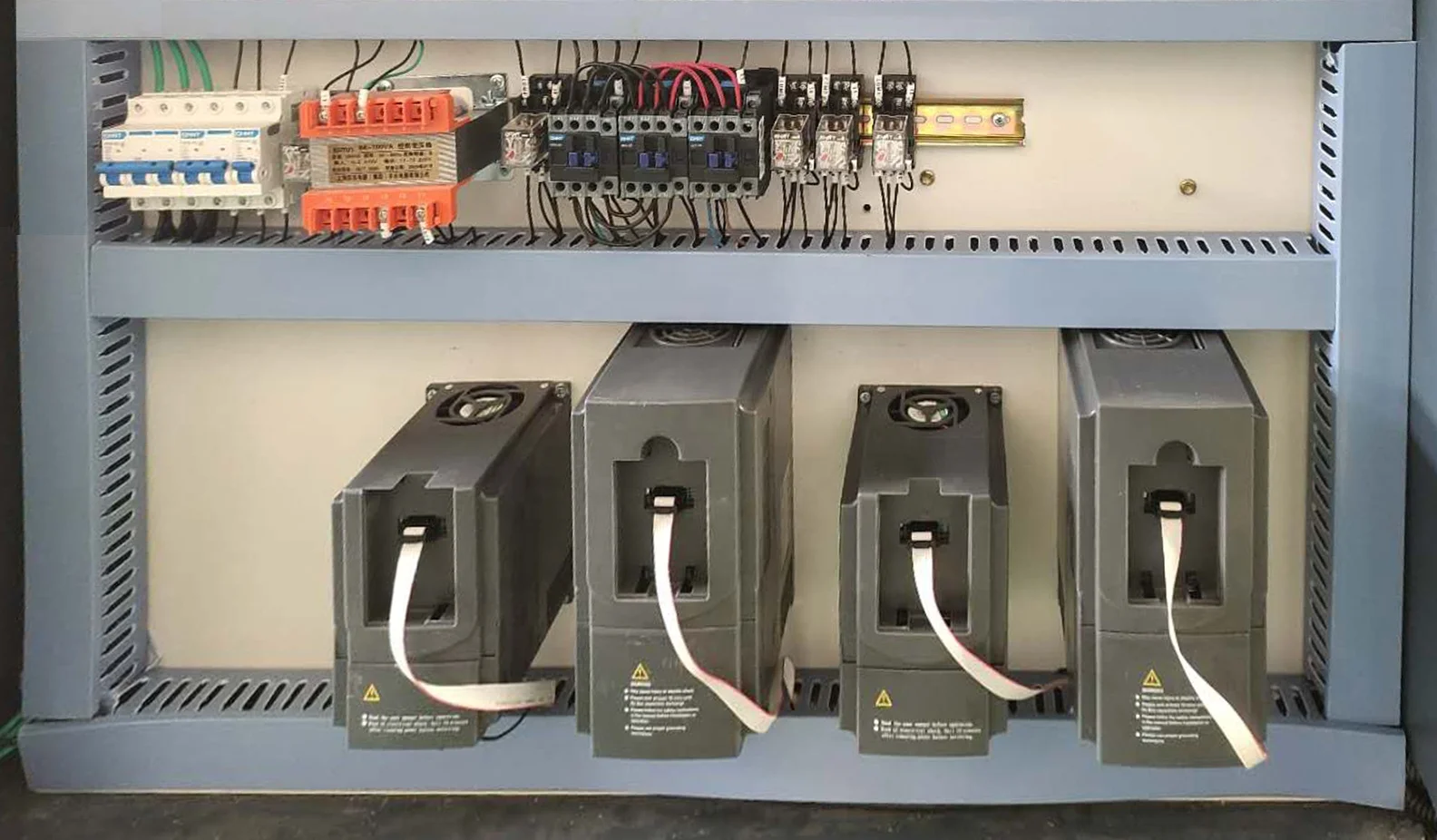

07 FREQUENCY CONVERSION CONTROL CABINET
The frequency conversion is stable, and the frequency converter with high-end imported accessories is used, which is sensitive and safe to ensure the safety and service life of the machinery. Moreover, the conveyor belt is equipped with frequency conversion, which is convenient for use and speed regulation, improves work efficiency and saves labor cost
Processing Effect Display
Factory Display
Product packaging
Company Profile
Qingdao Hailiju trade Co., Ltd. is located in the beautiful coastal city - Wangtai Town, Huangdao District, Qingdao. Our company is a professional manufacturer of woodworking machinery and equipment, such as woodworking polishing machine, sanding machine, precision cutting saw, automatic edge banding machine, CNC cutting machine, etc. The company has several senior engineers engaged in new product development, continuous development and innovation. With the high quality and good reputation, the company has won the trust of the vast number of users. The products are constantly expanding new horizons in two international and domestic markets. With the spirit of "honesty, truth-seeking and innovation", the enterprise adheres to the principle of "relying on science and technology as the guide, relying on quality" as the guideline, and adhering to the management and service concept of "people-oriented, user-centered, and all-round and high-quality". Customer satisfaction is our pursuit of quality objectives, to provide customers with excellent products is our eternal purpose. Our company is honest with you in the way of mutual benefit and the concept of service first. We hope to establish a long-term and stable partnership with you for common development and future. May we cooperate sincerely. Welcome the majority of users to call and write to inquire.
Certifications
Why Choose Us
1.Our company on same quality can do best price for you.
2.On same price can give you best quality and best service for you.
3.Our machine all have 5 warranty for technoligy service.
4.And we will ensure in 1 year have broken will afford free part.
5.We can design according clients requirement.
6.We can OEM for you.
7.Payment way Flexible.
8.Our agents have more than in 35 countries.
9.Send requirement contact us will give you more material benefits.
Customer Photos
Our Advantages
