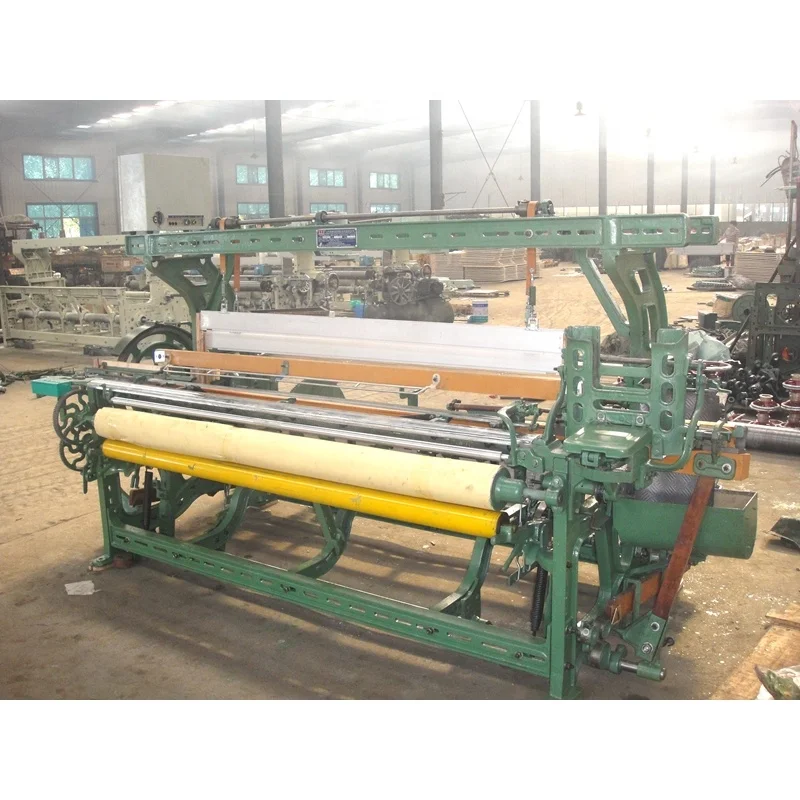

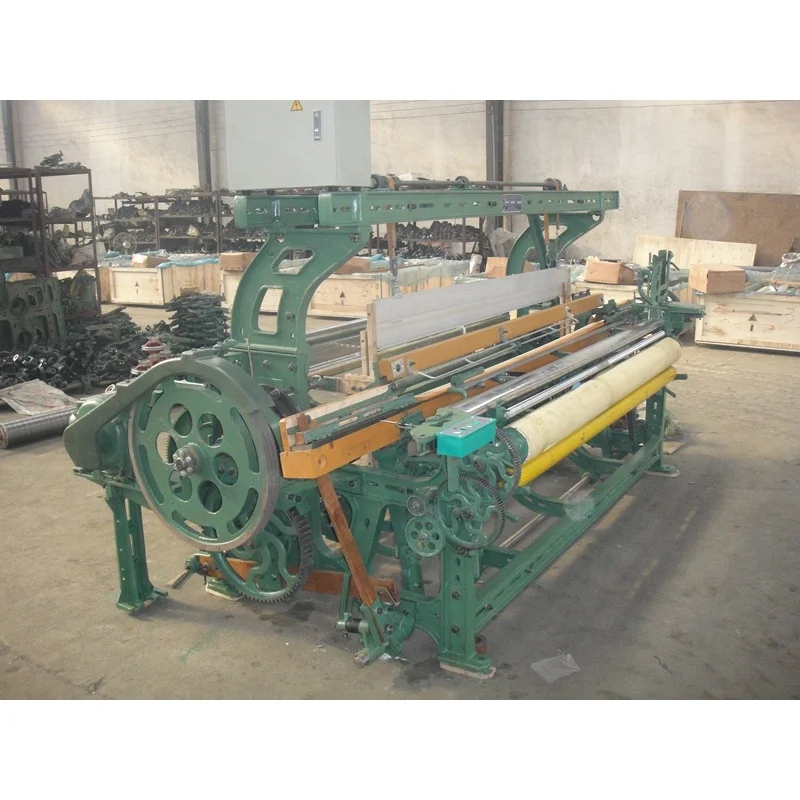

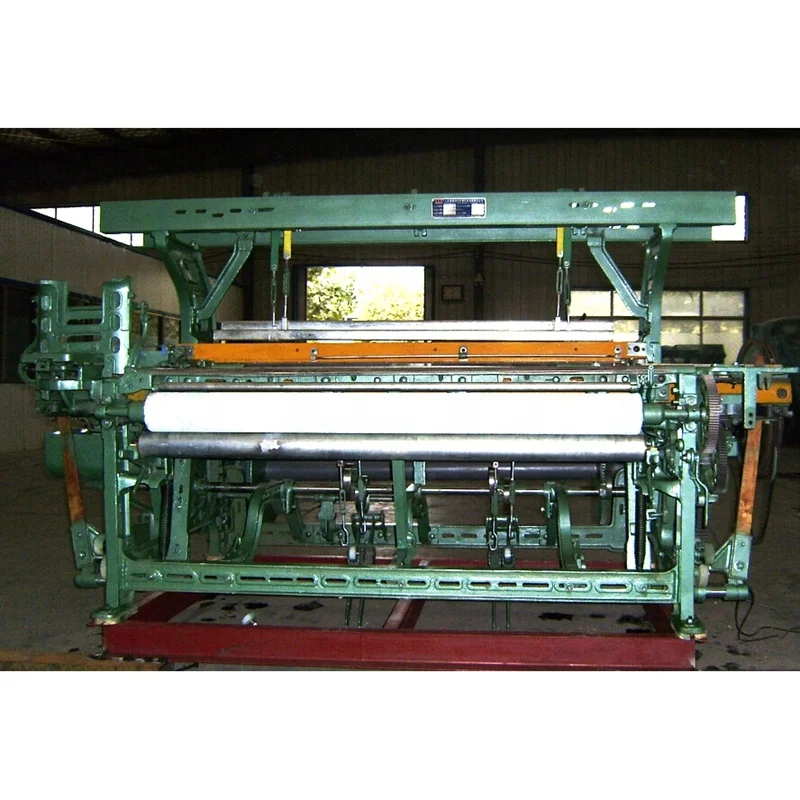

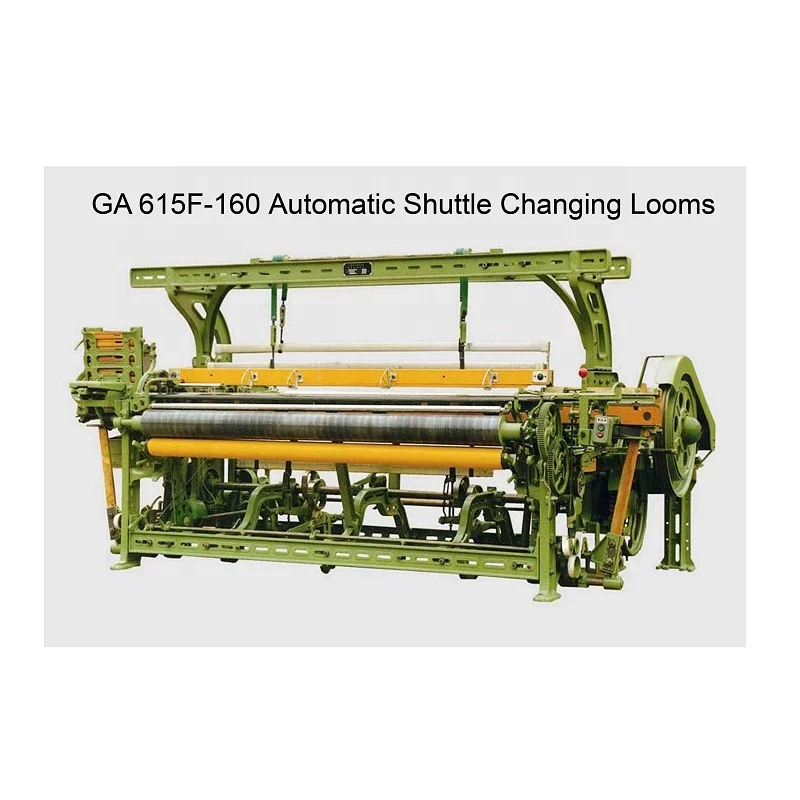

GA615F Series 135-180cm Automatic Shuttle Changing Loom

Applications
This loom is mainly used for weaving plain cotton fabrics.twill and syntheticfibre fabrics.
If add dobbly lifting frame,this loom can also be used to weave more complicated fabrics with upto 16 pieces of frames.2.technical features.
Type: under picking,non-stop and auto-changing.
Hand:R&L
Reed space:
1350mm(56" loom) 1500mm(63" loom) 1800mm(75" loom) Crank shaft rpm:
160---190rpm(for 1350mm loom).
155---180 rpm(for 1500mm loom).
145---160 rpm(for 1800mm loom).
Shuttle box NO.and shuttle Nos.:1X1/10pcs
Angle between read and shuttle box:86° 36'
Diameter of warp beam flanges:495/550mm
Distance between disc plates:
1380mm(1350mm loom) 1555mm(1500mm loom)
18600mm(1800mm loom)
Motor speed & power: 960rpm, 0.8Kw
Overall size:
1350mm loom:2692X1656x 1540mm (for plain)/2250mm(for dobby).
1500mm loom:2866 X1656 x1540mm (for plain)/2250mm(for dobby).
1800mm loom:3171 X1656 x 1540mm (for plain)/2250mm(for dobby).

Weight:
1350mm loom:1140kg(for plain)/1340kg(for dobby)
1500mm loom:1200kg(for plain)/1400kg(for dobby)
1800mm loom:1300kg(for plain)/2100kg(for dobby)

1350mm l
