Блок развертки тележки Yuchai на гусеничном ходу прямая пуш-ап грунтов экологического мониторинга отбора проб грунта Rig
- Категория: Mine Drilling Rig >>>
- Поставщик: Newindu,Construction,Engineering,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 103530.79 $* | 108707.5 $* |
| Aug-19-2025 | 102660.47 $* | 107793.77 $* |
| Jul-19-2025 | 86130.93 $* | 90437.10 $* |
| Jun-19-2025 | 100920.44 $* | 105966.4 $* |
| May-19-2025 | 87870.75 $* | 92264.45 $* |
| Apr-19-2025 | 99180.69 $* | 104139.37 $* |
| Mar-19-2025 | 98310.31 $* | 103226.11 $* |
| Feb-19-2025 | 97440.34 $* | 102312.41 $* |
| Jan-19-2025 | 96570.57 $* | 101399.31 $* |
Характеристики

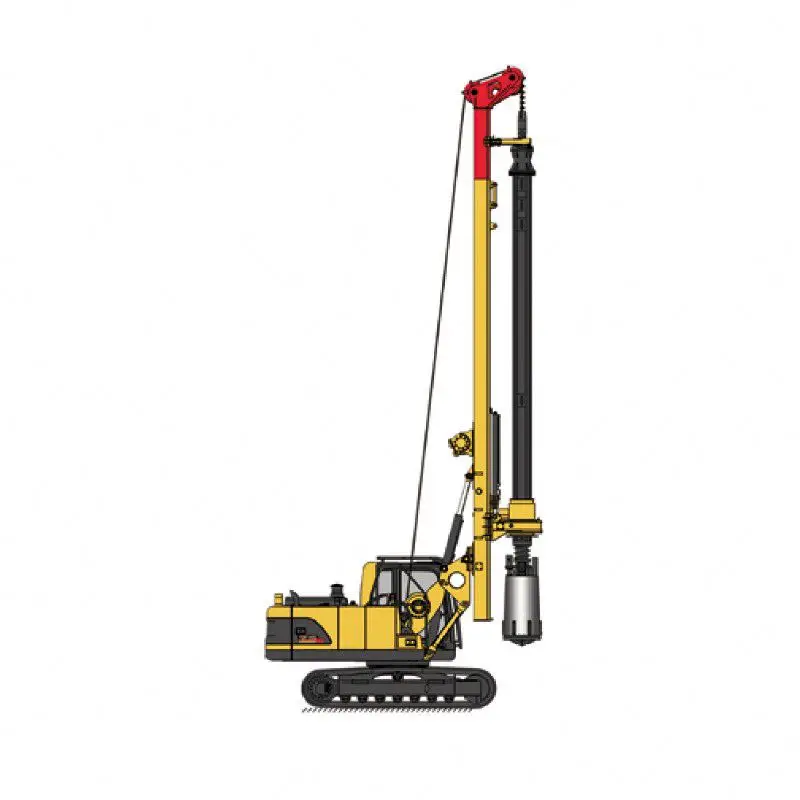

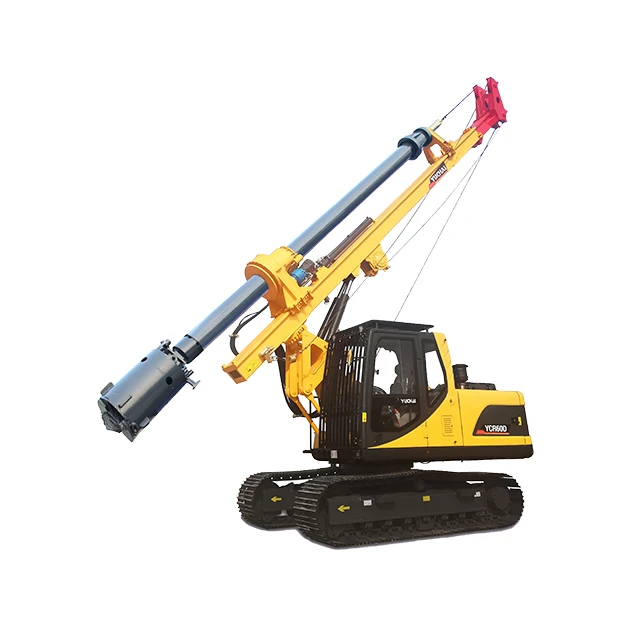

Yuchai Hydraulic Mobile Rotary Drilling Rig YCR60D with High Performance
Contact
Sales Manager
Carol Liu
Newindu International Ltd.
Wechat/QQ: 1550152545
Mobile/WhatsApp/Skype: +86-15026835867
Product Description
13-16m friction Kelly, 13-16m interlocking Kelly made of high strength steel tubes are available; Maximum output torque reaches 265kN.m, the maximum pile depth is 73m down, maximum pile diameter is 2200mm.
engine with rated power of 257kW@2000rpm, six gears control provides strong power to the machine, improving the drilling capacity.
New design of main winch delivers faster line speed of 80m/min, bigger lifting power with 275kN line pull
Parameters
| item) | (Parameters) | |||
| (Chasis) | Engine type | QSF3.8-115 | ||
| / Power/ revolution | 86kW/2200rpm | |||
| ()Deployment speed (margin) | 2600mm | |||
| Track shoe width | 600mm | |||
| Traction | 104KN | |||
| (Power head) | The maximum out torque | 60kN·m | ||
| Power head revolution | 0~35rpm | |||
| The maximum pressure increased | 55kN | |||
| The maximum pullout force | 80kN | |||
| Pressurizing oil cylinder stroke | 1500mm | |||
| (Winch) | (Main winch) | |||
| Lifting force of the first layer | 70kN | |||
| The maximum lifting speed | 59m/min | |||
| Steel wire diameter | ∅18mm | |||
| Auxiliary winch | ||||
| Lifting force of the first layer | 15kN | |||
| The maximum lifting speed | 50m/min | |||
| Steel wire diameter | ∅12mm | |||
| (Mast) | Front inclination angle of mast | 5° | ||
| Left and right inclinations of mast | ±4° | |||
| (Hydraulic pump) | The maximum working pressure of system | 32MPa | ||
| (Hole depth and diameter) | The maximum drilling diameter | 1.2m | ||
| The maximum drilling depth | 28m/22m(4/3) | |||
| Weight at working state | 20 t | |||
| () | 15.7t | |||
| () | 19t | |||
| Drill pipe | (The standard configuration) | ∅299-4x7.6 m | ||
| (optional configuration ) | ∅299-3x7.6 m | |||
