Машина для производства пластиковых резервуаров для воды Juneng
US $35000-$38000
Semi автоматическая небольшая машина для выдувания бутылок воды из ПЭТ формовочный станок производства
- Категория: Экструзионно-выдувные формовочные машины >>>
- Поставщик: Zhangjiagang,Sky,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 35700.0 $* | 37485.70 $* |
| Aug-19-2025 | 35400.45 $* | 37170.11 $* |
| Jul-19-2025 | 29700.51 $* | 31185.69 $* |
| Jun-19-2025 | 34800.15 $* | 36540.74 $* |
| May-19-2025 | 30300.56 $* | 31815.99 $* |
| Apr-19-2025 | 34200.52 $* | 35910.68 $* |
| Mar-19-2025 | 33900.29 $* | 35595.86 $* |
| Feb-19-2025 | 33600.30 $* | 35280.75 $* |
| Jan-19-2025 | 33300.99 $* | 34965.4 $* |
Характеристики
Video Description
Product Description

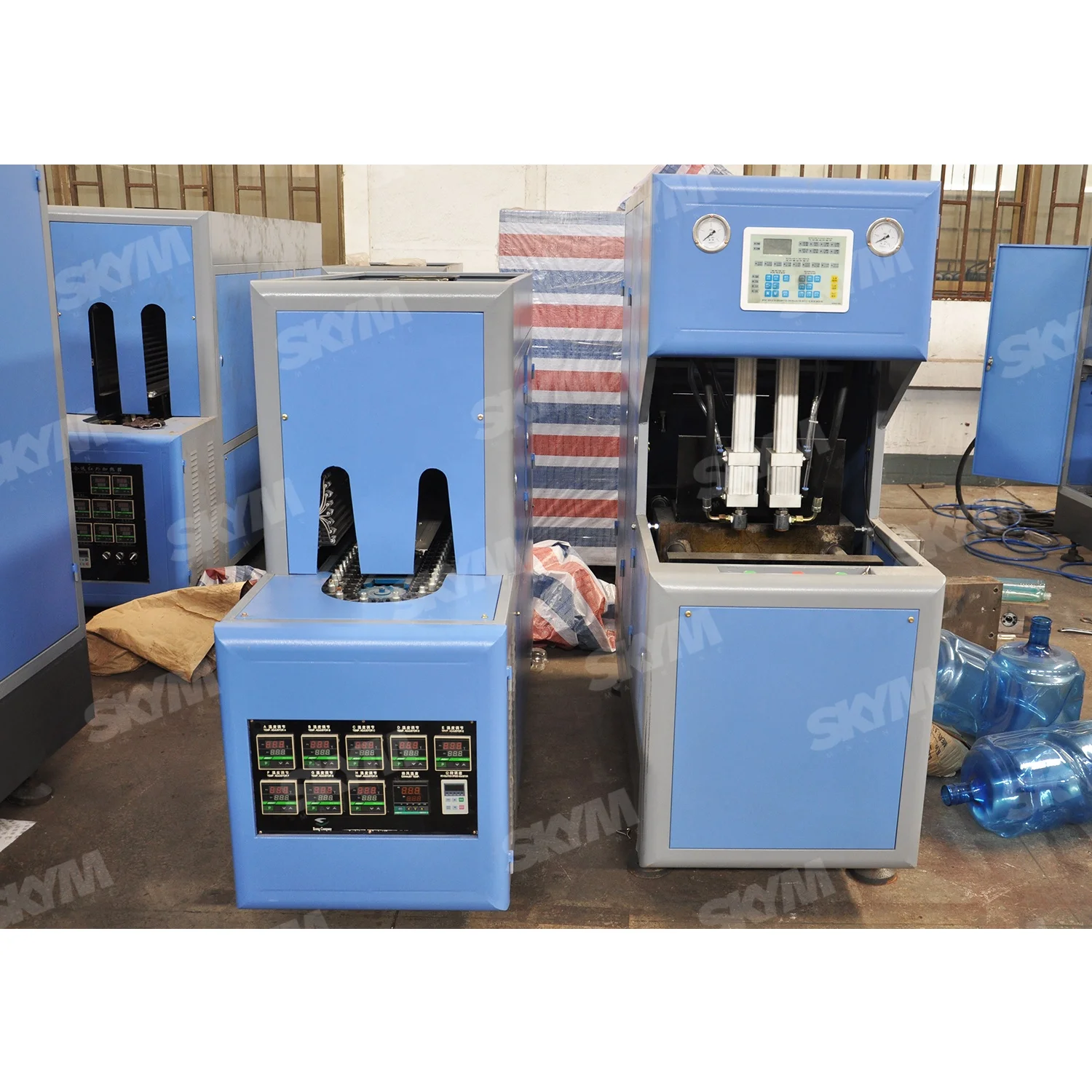

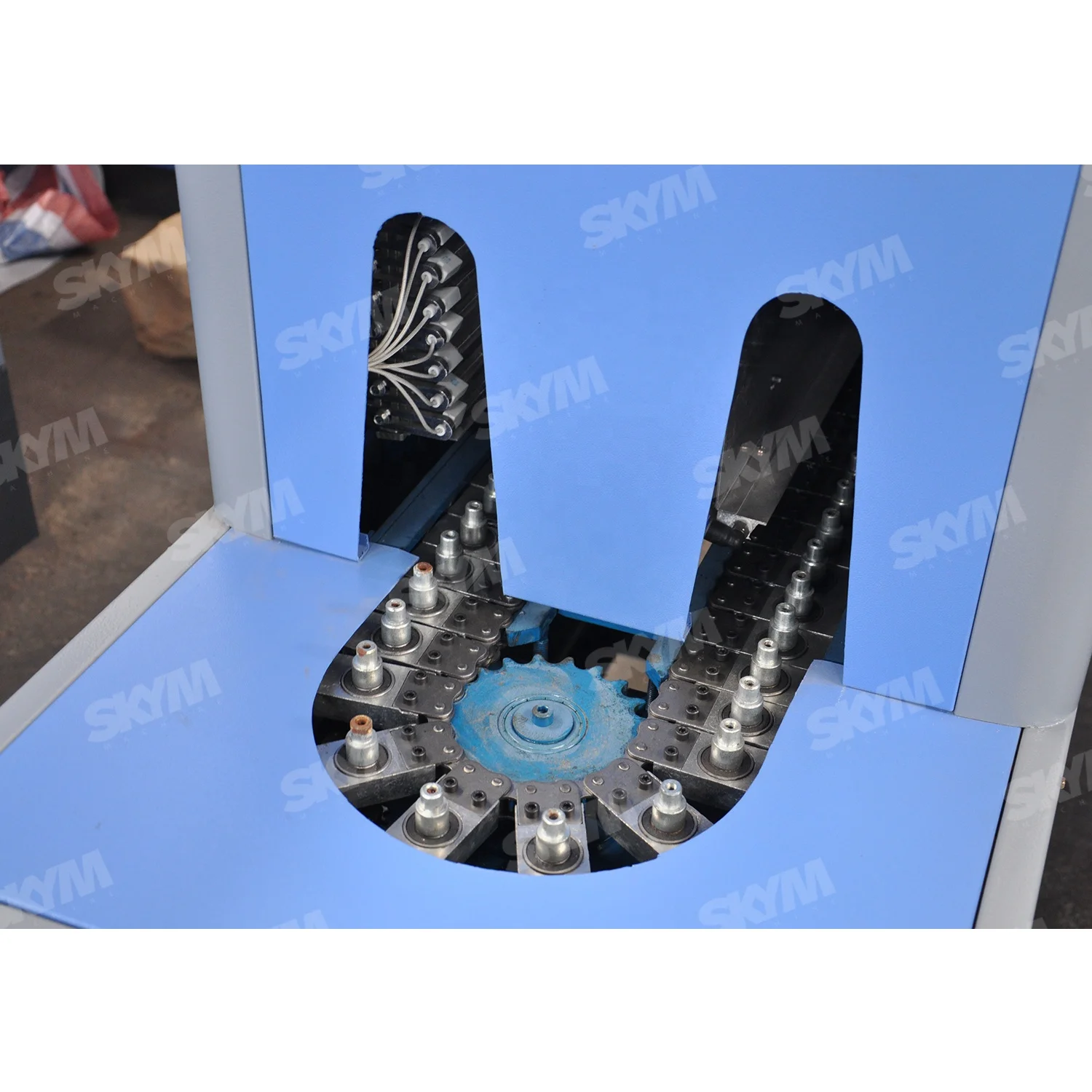

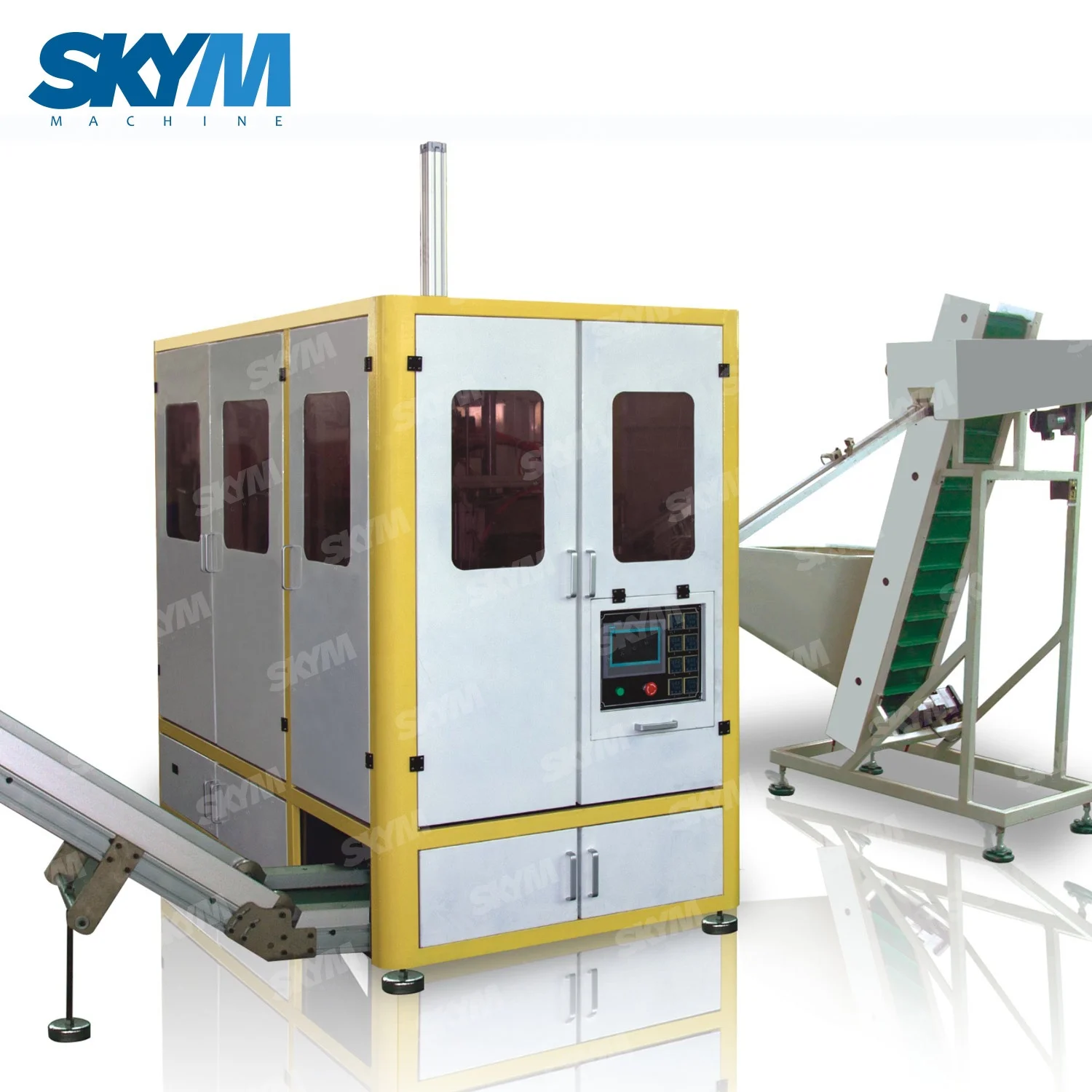

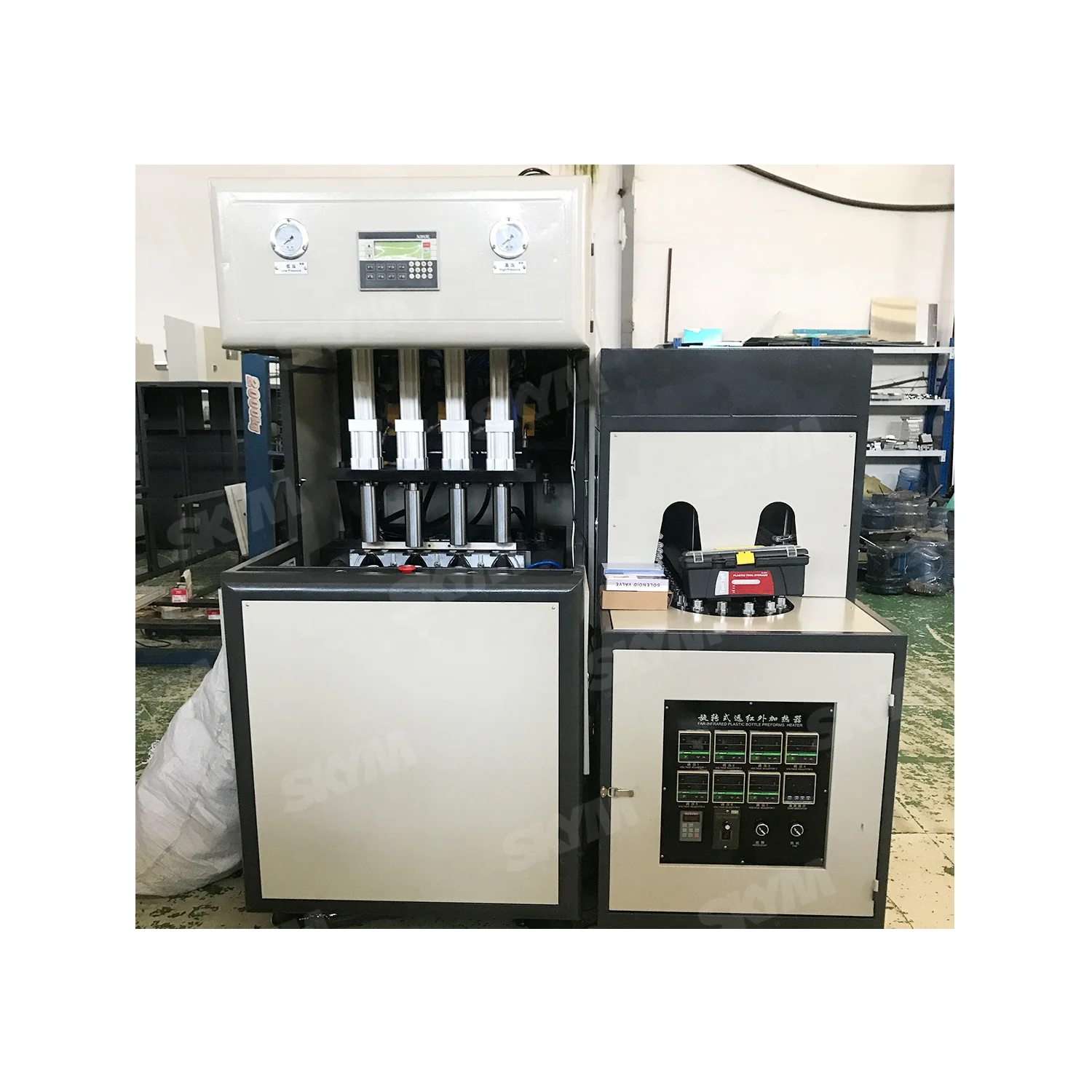

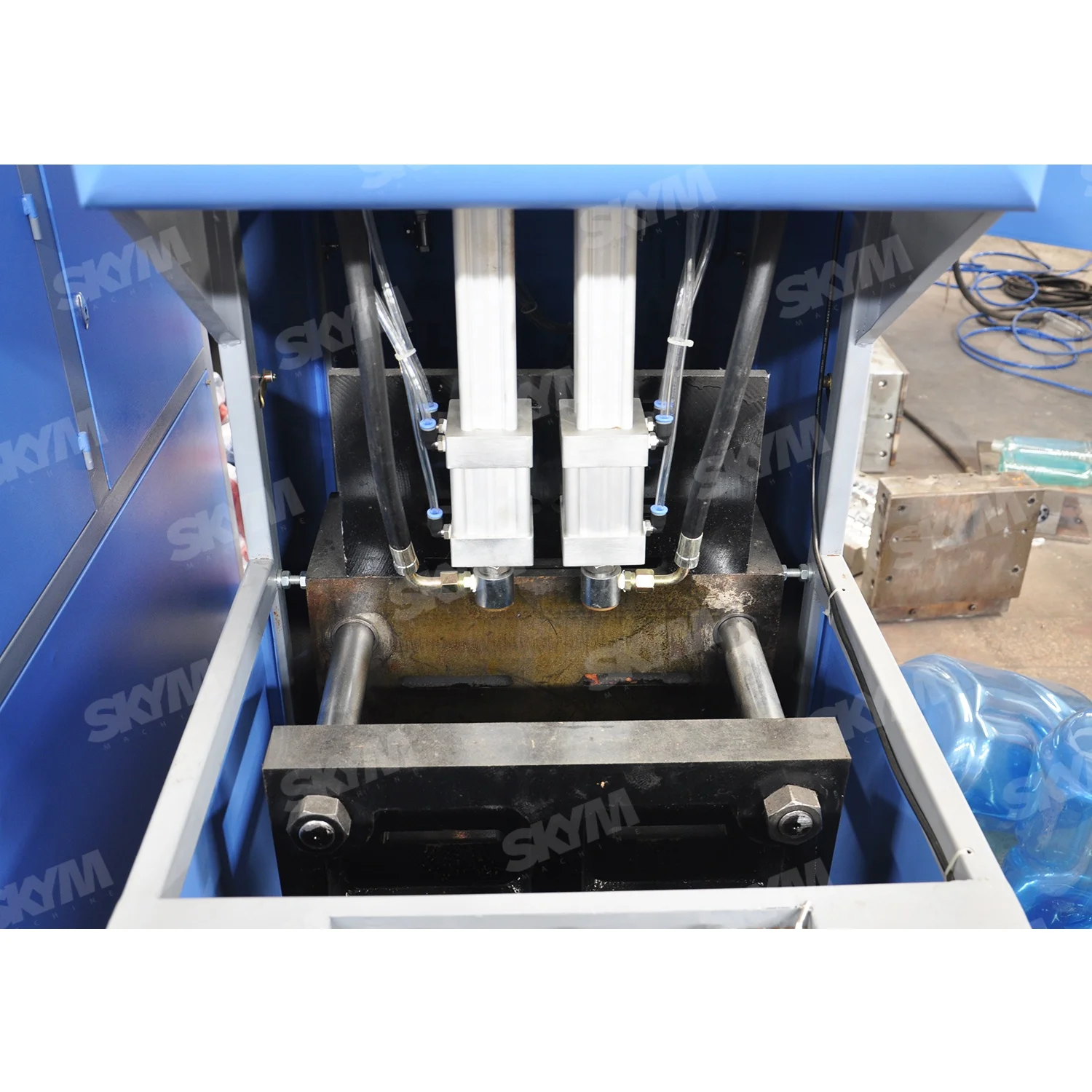

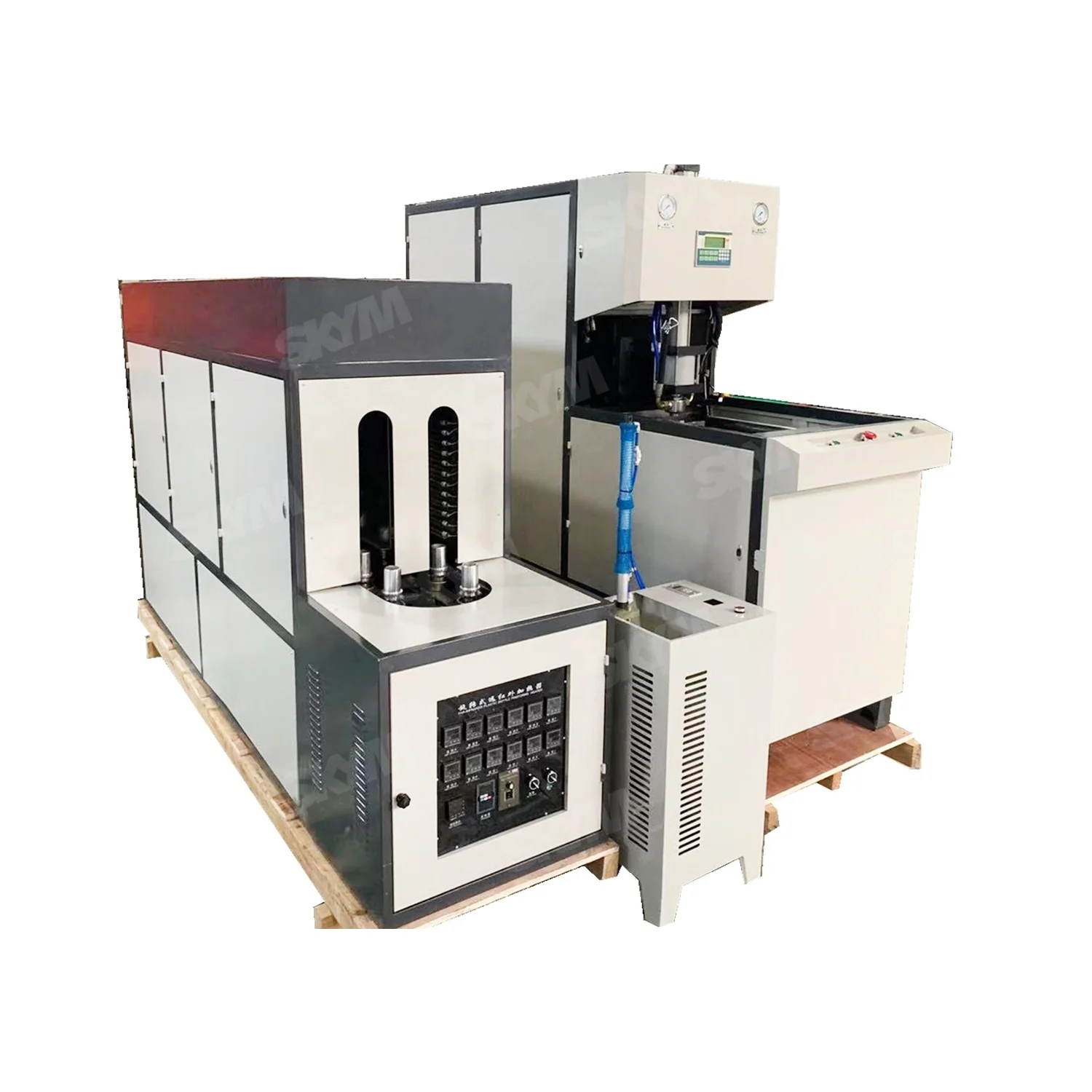

Detailed Images
Features of main body
A. Stable performance with advanced PLC.B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously in the infrared preheater.
D. High adjust ability to enable the pre-heater to preheat preforms in shapes by adjusting the light tube and the length of the
reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a
state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into
three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to
understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc., with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting.
O. Low rejection rate: less than 0.3 percent.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously in the infrared preheater.
D. High adjust ability to enable the pre-heater to preheat preforms in shapes by adjusting the light tube and the length of the
reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a
state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into
three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to
understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc., with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting.
O. Low rejection rate: less than 0.3 percent.
Specification
\t\t\t Type \t\t\t | \t\t\t Item \t\t\t | \t\t\t Unit \t\t\t | \t\t\t Description \t\t\t |
\t\t\t End product \t\t\t | \t\t\t Material \t\t\t | \t\t\t / \t\t\t | \t\t\t PET \t\t\t |
\t\t\t \t\t\t | \t\t\t Volume \t\t\t | \t\t\t L \t\t\t | \t\t\t 0.05-1.5L(3cavity) \t\t\t |
\t\t\t \t\t\t | \t\t\t Theoretical output \t\t\t | \t\t\t pcs/hr \t\t\t | \t\t\t 0.5L:2800~3000pcs 3-cavity \t\t\t |
\t\t\t \t\t\t | \t\t\t Max. length \t\t\t | \t\t\t mm \t\t\t | \t\t\t 360 \t\t\t |
\t\t\t \t\t\t | \t\t\t Max. diameter \t\t\t | \t\t\t mm \t\t\t | \t\t\t 180 \t\t\t |
\t\t\t Mould plate \t\t\t | \t\t\t Max. mould plate dimension \t\t\t | \t\t\t mm \t\t\t | \t\t\t 420*640 \t\t\t |
\t\t\t \t\t\t | \t\t\t Max. mould thickness \t\t\t | \t\t\t mm \t\t\t | \t\t\t 160-340 \t\t\t |
\t\t\t \t\t\t | \t\t\t Clamping force \t\t\t | \t\t\t KN \t\t\t | \t\t\t 360 \t\t\t |
\t\t\t \t\t\t | \t\t\t Mould opening stroke \t\t\t (adjustable) \t\t\t \t\t\t | \t\t\t mm \t\t\t | \t\t\t 150-350 \t\t\t |
\t\t\t Main body electricity \t\t\t | \t\t\t Power \t\t\t | \t\t\t KW \t\t\t | \t\t\t 8kw \t\t\t |
\t\t\t \t\t\t | \t\t\t Voltage/frequency \t\t\t | \t\t\t V/Hz \t\t\t | \t\t\t 220-380/50-60 \t\t\t |
\t\t\t Machine dimension and weight \t\t\t | \t\t\t Main body dimension \t\t\t (L*W*H) \t\t\t \t\t\t | \t\t\t M \t\t\t | \t\t\t 1.75*1.25*2.05 \t\t\t |
\t\t\t \t\t\t | \t\t\t Main body weight \t\t\t | \t\t\t T \t\t\t | \t\t\t 1.6 \t\t\t |
Bottle design
Bottle mold
Finished PET bottle
Packing & Delivery
Packing:
Conventional packaging: inside is wrapped with PE film, outside is wooden box.
Delivery:
The normal delivery period is 7 days, depending on the equipment, the specific time is about 7 to 30 days.
After-Sale Service
1. Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5. We provide one year warranty
6. well-trained & experienced staff are to answer all your inquiries in English and Chinese
7. 12 Months guarantee and life-long technical support.
8. Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5. We provide one year warranty
6. well-trained & experienced staff are to answer all your inquiries in English and Chinese
7. 12 Months guarantee and life-long technical support.
8. Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
FAQ
WE WELCOME YOU TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you are interested in our products, you may pay a visit to SKY Machine site
● The meaning of visiting supplier, because seeing is believing, SKY Machine with own manufacture and developed& research team, we
can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE SKY MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to
ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF SKY MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or
instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
● If we can fullfill your request and you are interested in our products, you may pay a visit to SKY Machine site
● The meaning of visiting supplier, because seeing is believing, SKY Machine with own manufacture and developed& research team, we
can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE SKY MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to
ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF SKY MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or
instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
