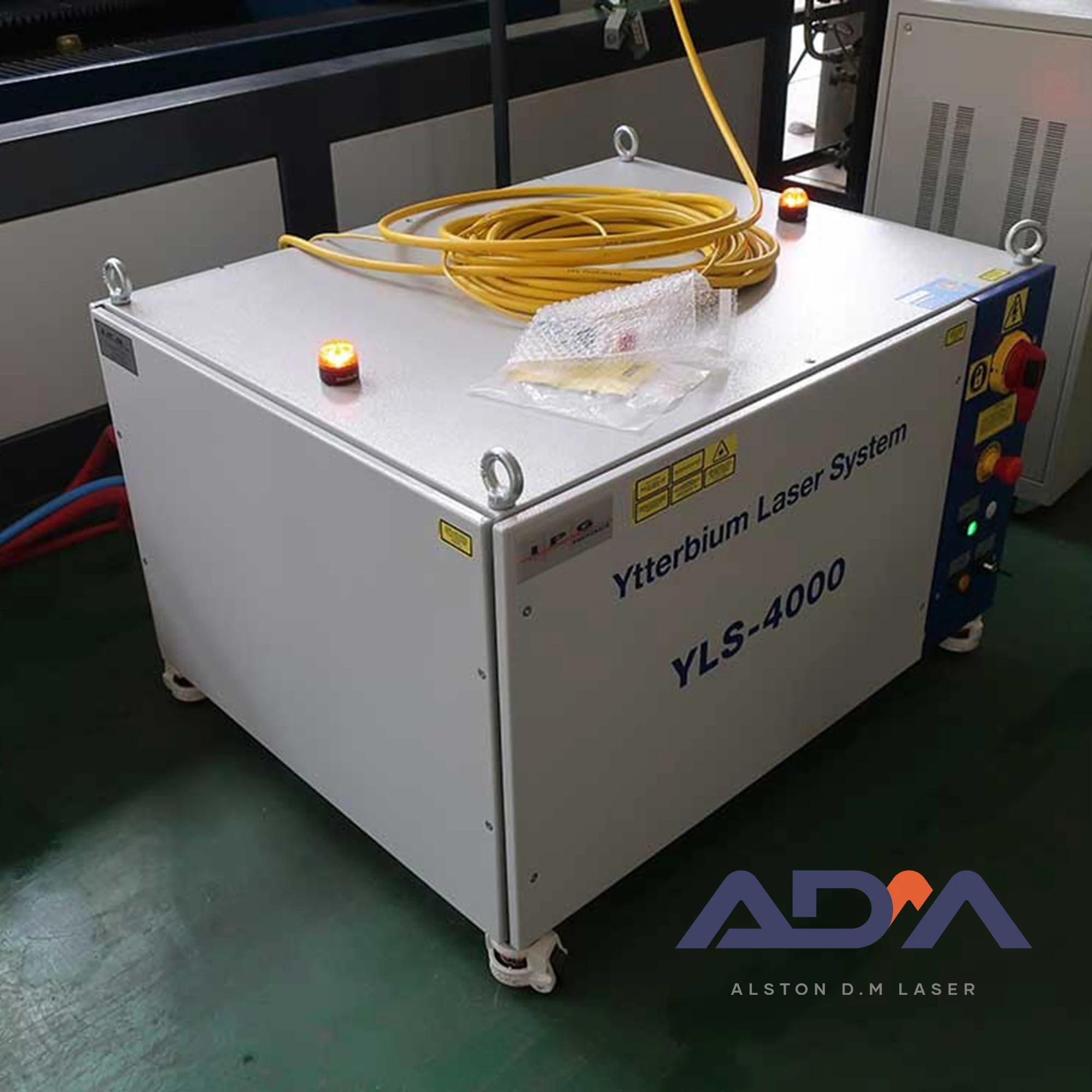

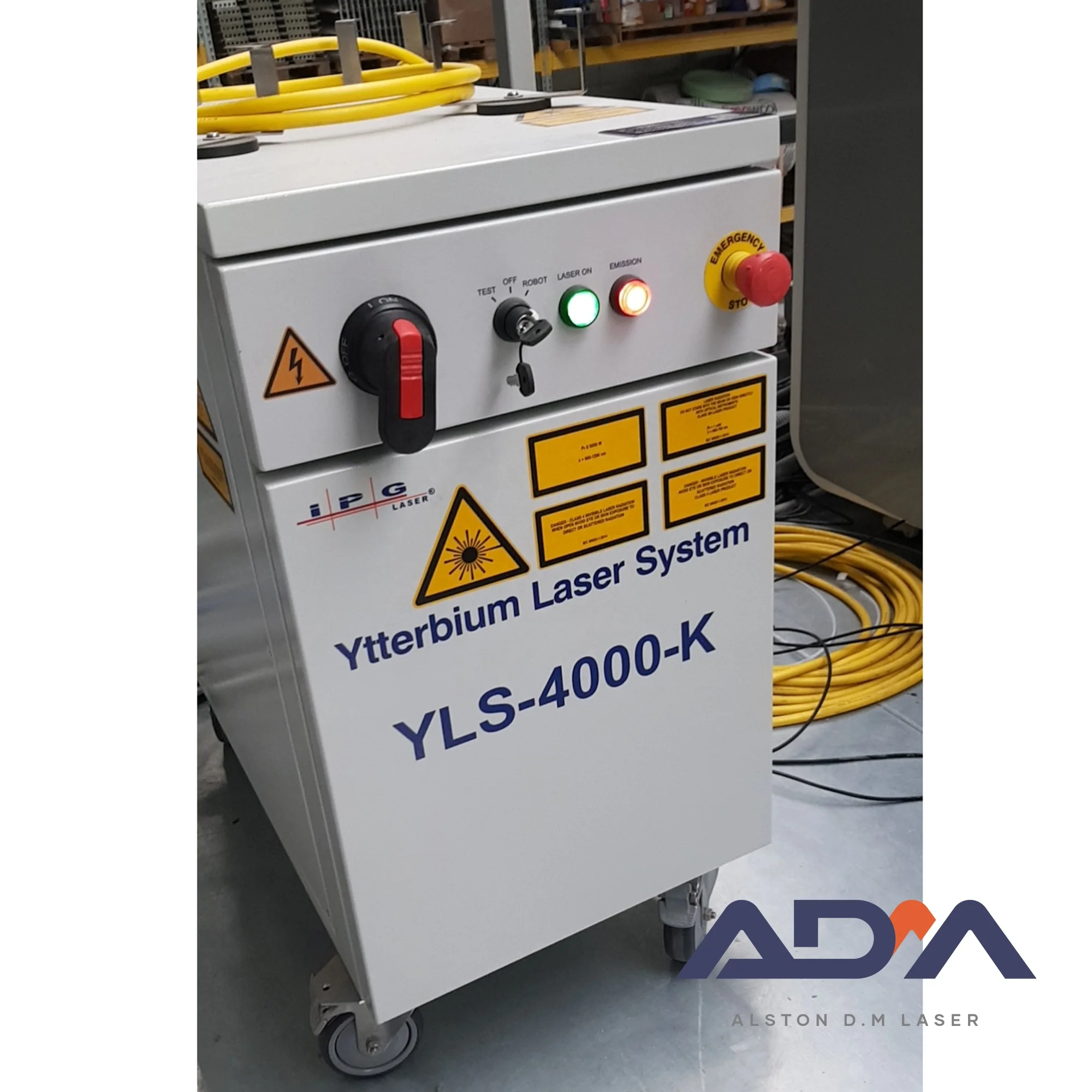

МИКРО лазерный модуль IPG 4000 Вт источник одиночный режим YLS-4000-K волоконного лазера
- Категория: Laser Equipment Parts >>>
- Поставщик: Suzhou,Alston,D.M,Laser,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.73 $* | 0.47 $* |
| Aug-16-2025 | 0.14 $* | 0.1 $* |
| Jul-16-2025 | 0.11 $* | 0.22 $* |
| Jun-16-2025 | 0.33 $* | 0.9 $* |
| May-16-2025 | 0.60 $* | 0.27 $* |
| Apr-16-2025 | 0.72 $* | 0.54 $* |
| Mar-16-2025 | 0.88 $* | 0.92 $* |
| Feb-16-2025 | 0.18 $* | 0.23 $* |
| Jan-16-2025 | 0.21 $* | 0.80 $* |
Характеристики
Products Description
IPG’s mid power CW fiber lasers cover output power range from 100 to 4000 W and feature a wide range of operating wavelengths,single-mode and multi-mode options, low amplitude noise, high stability and extremely long pump diode lifetime. Lasers are typically air-cooled up to 500 W average power. Compact water-cooled units are also available for average powers up to 4 kW.
Redesigned electronics offers extended control functionality. The lasers are available with a wide variety of fiber terminations or collimation optics.
In the near infrared, from 1 to 2 µm, CW Ytterbium, Erbium, Thulium and Raman fiber lasers provide output in the 100 W to 4 kW range. Other CW lasers operating in mid-power range are Diode Lasers and CW Fiber Amplifiers.

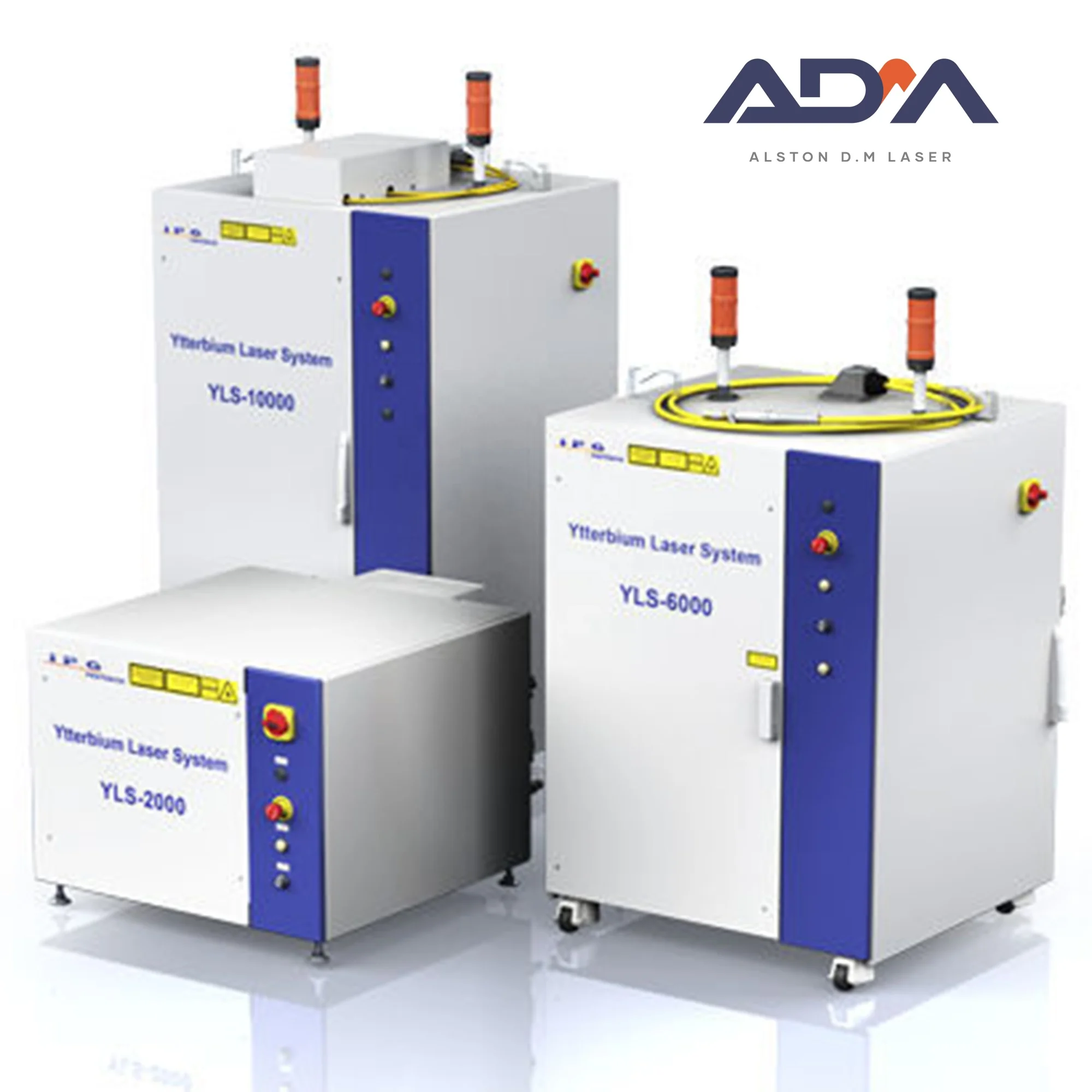

Higher kW-classs output powers are available for Ytterbium (1 μm), Erbium (1.5 μm) and Thulium (2 μm) lasers in 1 kW-120 kW CW fiber laser family. Green GLPN Quasi-CW high repetition rate lasers suitable for many CW applications are also available in 100-1000 W power range.
Redesigned electronics offers extended control functionality. The lasers are available with a wide variety of fiber terminations or collimation optics.
In the near infrared, from 1 to 2 µm, CW Ytterbium, Erbium, Thulium and Raman fiber lasers provide output in the 100 W to 4 kW range. Other CW lasers operating in mid-power range are Diode Lasers and CW Fiber Amplifiers.
Higher kW-classs output powers are available for Ytterbium (1 μm), Erbium (1.5 μm) and Thulium (2 μm) lasers in 1 kW-120 kW CW fiber laser family. Green GLPN Quasi-CW high repetition rate lasers suitable for many CW applications are also available in 100-1000 W power range.
Features
Compared with traditional lasers, IPG CW fiber laser has higher efficiency electric-optical conversion, lower power consumption and excellent beam quality. The fiber laser is compact and ready to use. It can be used as a stand-alone unit or easily inserted into user’s apparatus.
Main Features:
Excellent beam quality

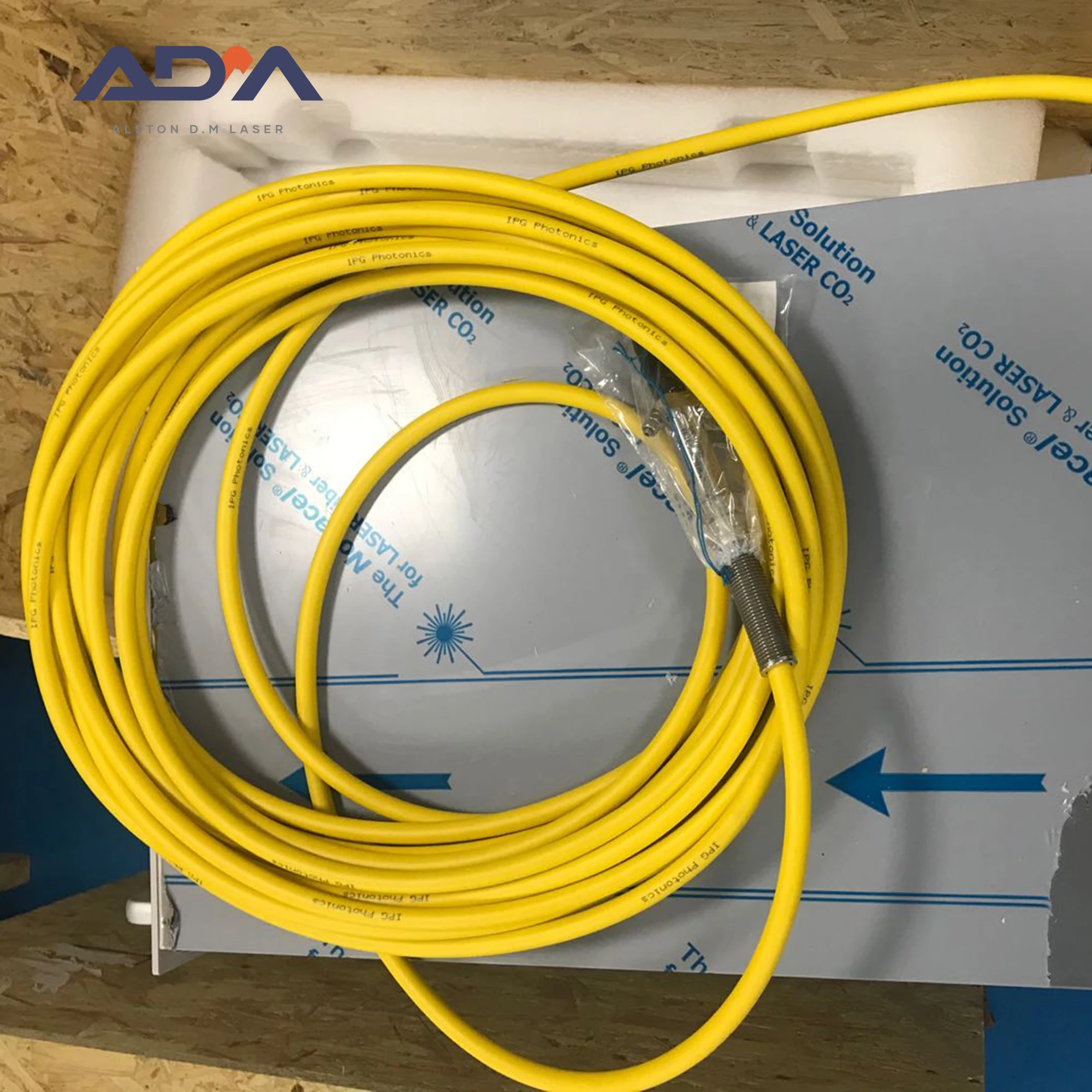

High quality fiber output
High Power Stability
Continuously tunable output power, quick switching response
Maintenance free operation
High wall plug efficiency
Convenient control interface
High frequency modulation
Applications:
Cutting, Welding
3D Printing
Scientific research
Main Features:
Excellent beam quality
High quality fiber output
High Power Stability
Continuously tunable output power, quick switching response
Maintenance free operation
High wall plug efficiency
Convenient control interface
High frequency modulation
Applications:
Cutting, Welding
3D Printing
Scientific research
Beam Mode Quality:
Depending on the application requirements, the CW lasers in mid-power range are offered with either single-mode or multi-mode beam quality. Due to absence of thermal lensing refractive index gradients in the laser cavity, fiber lasers maintain beam mode quality and divergence when the output power is adjusted. This is not the case with DPSS bulk lasers which are typically optimized to run at nominal power level.
Polarization:
The CW fiber lasers in the mid power range are typically offered with random polarization; linear polarization is an option. We also offer linearly polarized ytterbium CW fiber amplifiers up to 3 kW. Please contact your IPG Photonics representative if linear polarization is required.
Direct Modulation:
Direct power modulation in the kHz range is a standard feature.
Power Stability
Typical power stability is <1% over 4 hours under stable environmental conditions.
Cooling
YLM modules are air cooled up to 400 W output power, YLR rack unit lasers are air cooled up to 700 W. TLR-200 is water cooled.
Packaging

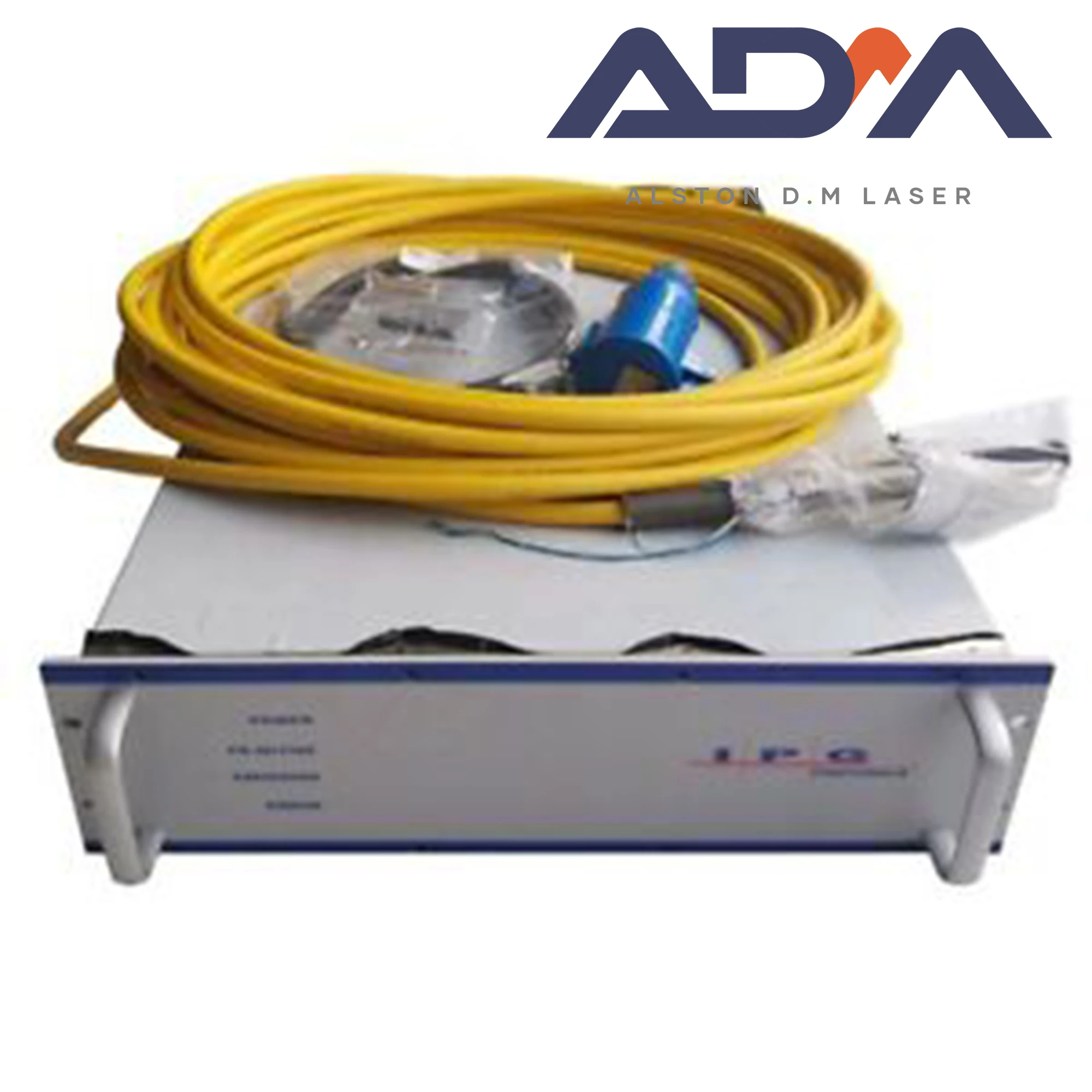

The lasers are packaged as either OEM modules or as 19” rack mountable units. OEM modules require a DC power source and control electronics, rack mounted units require single-phase or 3-phase 50-60 Hz power source and have built-in control electronics. OEM modules are controlled externally, typically through RS-232. The front panel laser power controls and LCD display can be a standard feature or an option on rack-mounted units. Some rack-mounted models come without the front panel controls and LCD display in a standard version. Please discuss your requirements with an IPG Representative.
Depending on the application requirements, the CW lasers in mid-power range are offered with either single-mode or multi-mode beam quality. Due to absence of thermal lensing refractive index gradients in the laser cavity, fiber lasers maintain beam mode quality and divergence when the output power is adjusted. This is not the case with DPSS bulk lasers which are typically optimized to run at nominal power level.
Polarization:
The CW fiber lasers in the mid power range are typically offered with random polarization; linear polarization is an option. We also offer linearly polarized ytterbium CW fiber amplifiers up to 3 kW. Please contact your IPG Photonics representative if linear polarization is required.
Direct Modulation:
Direct power modulation in the kHz range is a standard feature.
Power Stability
Typical power stability is <1% over 4 hours under stable environmental conditions.
Cooling
YLM modules are air cooled up to 400 W output power, YLR rack unit lasers are air cooled up to 700 W. TLR-200 is water cooled.
Packaging
The lasers are packaged as either OEM modules or as 19” rack mountable units. OEM modules require a DC power source and control electronics, rack mounted units require single-phase or 3-phase 50-60 Hz power source and have built-in control electronics. OEM modules are controlled externally, typically through RS-232. The front panel laser power controls and LCD display can be a standard feature or an option on rack-mounted units. Some rack-mounted models come without the front panel controls and LCD display in a standard version. Please discuss your requirements with an IPG Representative.
Cutting parameters
3000W Cutting Parameters | ||||||||||||
Mild Steel O2 | ||||||||||||
Thickness (mm) | Cutting Power （W） | Focus (mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 1200 | 1 | O2 | 6 | S1.5 | 9--12 | ||||||
2 | 1400 | 2 | O2 | 0.6-1.0 | D1.0 | 5--6 | ||||||
3 | 3000 | 3 | O2 | 0.6-1.0 | D1.0/D1.2 | 4--4.5 | ||||||
4 | 3000 | 3 | O2 | 0.6-1.0 | D1.0/D1.2 | 3.2--3.8 | ||||||
5 | 3000 | 3 | O2 | 0.6-1.0 | D1.0/D1.2 | 3.2--3.4 | ||||||
6 | 3000 | 3 | O2 | 0.6-1.0 | D1.0/D1.2 | 3--3.2 | ||||||
8 | 3000 | 3 | O2 | 0.6-1.0 | D1.2 | 2--2.3 | ||||||
10 | 3000 | 3 | O2 | 0.6-1.0 | D1.2 | 1.5--1.7 | ||||||
12 | 3000 | 3 | O2 | 0.6-1.0 | D2.0/D2.5 | 0.8--1 | ||||||
14 | 3000 | 3 | O2 | 0.6-1.0 | D2.5/D3.0 | 0.8--0.9 | ||||||
16 | 3000 | 3 | O2 | 0.6-1.0 | D3.0 | 0.7--0.85 | ||||||
20 | 3000 | 4 | O2 | 0.6-1.0 | D3.5 | 0.65--0.8 | ||||||
Mild Steel Air | ||||||||||||
Thickness (mm) | Cutting Power （W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | -1 | Air | 16 | S2.0 | 25--30 | ||||||
2 | 3000 | -2 | Air | 16 | S2.0 | 12--15 | ||||||
Stainless Steel N2 | ||||||||||||
Thickness (mm) | Cutting Power （W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | -1 | N2 | 12 | S2.0 | 30--40 | ||||||
2 | 3000 | -1.5 | N2 | 12 | S2.0 | 15--18 | ||||||
3 | 3000 | -2.5 | N2 | 13 | S2.0 | 8--10 | ||||||
4 | 3000 | -3.5 | N2 | 13 | S2.5 | 5.4--6 | ||||||
5 | 3000 | -4 | N2 | 16 | S2.5 | 2.8--3.5 | ||||||
6 | 3000 | -4.5 | N2 | 16 | S3.0 | 1.8--2.6 | ||||||
8 | 3000 | -5.5 | N2 | 16 | S3.0 | 1.0--1.3 | ||||||
10 | 3000 | -6 | N2 | 16 | S3.5 | 0.6--0.8 | ||||||
12 | 3000 | -7 | N2 | 20 | S4.0 | 0.5--0.7 | ||||||
Stainless Steel Air | ||||||||||||
Thickness (mm) | Cutting Power （W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | -1 | Air | 16 | S2.0 | 30--40 | ||||||
2 | 3000 | -1.5 | Air | 16 | S2.0 | 15--18 | ||||||
3 | 3000 | -2.5 | Air | 16 | S2.0 | 8--10 | ||||||
4 | 3000 | -3.5 | Air | 16 | S2.5 | 5.4--6 | ||||||
5 | 3000 | -4 | Air | 16 | S2.5 | 2.8--3.5 | ||||||
6 | 3000 | -4.5 | Air | 16 | S3.0 | 1.8--2.6 | ||||||
8 | 3000 | -5.5 | Air | 16 | S3.0 | 1.0--1.3 | ||||||
10 | 3000 | -6 | Air | 16 | S3.5 | 0.6--0.8 | ||||||
12 | 3000 | -7 | Air | 16 | S4.0 | 0.5--0.7 | ||||||
AL N2 | ||||||||||||
Thickness (mm) | Cutting Power （W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | -1.0 | N2 | 12 | S2.0 | 30--40 | ||||||
2 | 3000 | -1.5 | N2 | 12 | S2.0 | 15--20 | ||||||
3 | 3000 | -2.0 | N2 | 12 | S2.0 | 8--10 | ||||||
4 | 3000 | -2.5 | N2 | 13 | S2.5 | 5--6.5 | ||||||
5 | 3000 | -3.0 | N2 | 14 | S2.5 | 2.8--3.5 | ||||||
6 | 3000 | -3.5 | N2 | 14 | S3.0 | 2--2.5 | ||||||
8 | 3000 | -4.0 | N2 | 15 | S3.0 | 0.8--1.3 | ||||||
10 | 3000 | -4.5 | N2 | 15 | S3.0 | 0.5--0.65 | ||||||
12 | 3000 | -5.0 | N2 | 16 | S3.0 | 0.3--0.45 | ||||||
Copper | ||||||||||||
Thickness (mm) | Cutting Power （W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | 0 | N2 | 8 | S1.5 | 15--18 | ||||||
2 | 3000 | -1 | O2 | 10 | S1.5 | 7--9 | ||||||
3 | 3000 | -2.5 | O2 | 10 | S1.5 | 3--3.5 | ||||||
4 | 3000 | -3 | O2 | 10 | S2.0 | 1.5--2 | ||||||
5 | 3000 | -4 | O2 | 10 | S2.5 | 0.8--1 | ||||||
Brass N2 | ||||||||||||
Thickness (mm) | Cutting Power （W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | -0.5 | N2 | 12 | S2.0 | 22--30 | ||||||
2 | 3000 | -1.5 | N2 | 13 | S2.0 | 10--14 | ||||||
3 | 3000 | -2.5 | N2 | 14 | S2.0 | 5--7 | ||||||
4 | 3000 | -3 | N2 | 14 | S2.5 | 3--4 | ||||||
5 | 3000 | -3.5 | N2 | 15 | S2.5 | 2--2.5 | ||||||
6 | 3000 | -4 | N2 | 16 | S3.0 | 1.3--1.5 | ||||||
8 | 3000 | -4.5 | N2 | 16 | S3.0 | 0.5--0.8 | ||||||
Note: 1) All the lens inside the laser head need clean. 2) Cutting gas purity meets the requirements O2:99.95%,N2:99.99%. 3) Plate meets laser cutting requirements (smooth surface, no rust, no paint, etc.) 4) AL is high reflection lens, Mass produce thickness is 1-6MM. | ||||||||||||
Company Profile
About ADM
Suzhou Alston D.M Laser Technology Co., Ltd is an integration of laser cutting machine manufacturer and
industrial machinery trading company based in south central China, Suzhou city.
Suzhou Alston D.M Laser Technology Co., Ltd
Suzhou Alston D.M Laser Technology Co., Ltd is dedicated and committed to represent the highest quality
in equipment and customer service.
Who we are
1. An ambitious laser cutting machine manufacturer that enjoys a leaping growth over the past 6 continuous years.
2.Laser cutting machine and parts exporter in China.
3.Metal sheet processing machinery & parts international trading and exporting.
4. Tech service provider, including machine installation, debugging, upgrading, maintenance, trouble-shooting.
5.Purchasing service provider, we help purchase all the industrial machinery and parts for clients.
Suzhou Alston D.M Laser Technology Co., Ltd is an integration of laser cutting machine manufacturer and
industrial machinery trading company based in south central China, Suzhou city.
Suzhou Alston D.M Laser Technology Co., Ltd
Suzhou Alston D.M Laser Technology Co., Ltd is dedicated and committed to represent the highest quality
in equipment and customer service.
Who we are
1. An ambitious laser cutting machine manufacturer that enjoys a leaping growth over the past 6 continuous years.
2.Laser cutting machine and parts exporter in China.
3.Metal sheet processing machinery & parts international trading and exporting.
4. Tech service provider, including machine installation, debugging, upgrading, maintenance, trouble-shooting.
5.Purchasing service provider, we help purchase all the industrial machinery and parts for clients.
Device model naming rules:
1. Solar system
2. The Milky Way (English: Milky Way Galaxy)
3. Andromeda Galaxy (English: Andromeda Galaxy; M31; NGC 224; once known as the Andromeda Nebula)
SS economic version
MWG quality version
AG high configuration version (VIP customer NGC 224)
1. Solar system
2. The Milky Way (English: Milky Way Galaxy)
3. Andromeda Galaxy (English: Andromeda Galaxy; M31; NGC 224; once known as the Andromeda Nebula)
SS economic version
MWG quality version
AG high configuration version (VIP customer NGC 224)
FAQ
1. What is your Fiber Laser Cutting Machine Advantages?
Top-rated laser source: stable beam quality, long service life;
User-friendly control system: Easy to use, even a green hand can get started quickly;
Exceptional service: quick response, lifelong after-sales service, we are still serving customers’ who have built relationship
with us for more than 10 years
2. Do You Have Agents or Distributors in Our Country?
We have ender-users all over the world.At present, we have agency in India, Vietnam and Russia.If you are interested in agency cooperation, please contact us for detailed agency policy.
3. Are you a factory or a trading company?
We are factory, with headquarter in Suzhou,JIangsu province , and branch in Wuhan,Hubei province.
4. When I got this machine, but I don’t know how to use it. What should I do?
We will provide user manual and video of the machine. In addition, our engineer can also provide training online. If necessary, we can also provide door-to-door service
5. If some problems happen to this machine during the warranty period, what should I do?
We will provide 2-3 Year Warranty, and will supply free parts during the machine warranty period if the machine has some problems.
We also supply free life long after-sales service. Thus, any problems, just feel free to let us know, we will provide you
solutions.
6. How to make the payment and how about the delivery time?
We accept to make the payment by T/T, Credit Card ,Online Bank Payment,etc.Lead time 10-15 working days for the standard machine;Lead time 20-27 working days for a non-standard machine.
7. Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following detailes:
1.What is your material?
2.The size of material?
3.The thickness of material?
8. Q: If we need Yosoontechnician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning, 1-3 working days.(Every one learning ability is
different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s business travelling
ticket / room and board/ and additional 100 USD per day.
9. About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
10. What’s package, will it protect the products?How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement . Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for seaworthy transportation.
Top-rated laser source: stable beam quality, long service life;
User-friendly control system: Easy to use, even a green hand can get started quickly;
Exceptional service: quick response, lifelong after-sales service, we are still serving customers’ who have built relationship
with us for more than 10 years
2. Do You Have Agents or Distributors in Our Country?
We have ender-users all over the world.At present, we have agency in India, Vietnam and Russia.If you are interested in agency cooperation, please contact us for detailed agency policy.
3. Are you a factory or a trading company?
We are factory, with headquarter in Suzhou,JIangsu province , and branch in Wuhan,Hubei province.
4. When I got this machine, but I don’t know how to use it. What should I do?
We will provide user manual and video of the machine. In addition, our engineer can also provide training online. If necessary, we can also provide door-to-door service
5. If some problems happen to this machine during the warranty period, what should I do?
We will provide 2-3 Year Warranty, and will supply free parts during the machine warranty period if the machine has some problems.
We also supply free life long after-sales service. Thus, any problems, just feel free to let us know, we will provide you
solutions.
6. How to make the payment and how about the delivery time?
We accept to make the payment by T/T, Credit Card ,Online Bank Payment,etc.Lead time 10-15 working days for the standard machine;Lead time 20-27 working days for a non-standard machine.
7. Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following detailes:
1.What is your material?
2.The size of material?
3.The thickness of material?
8. Q: If we need Yosoontechnician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning, 1-3 working days.(Every one learning ability is
different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s business travelling
ticket / room and board/ and additional 100 USD per day.
9. About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
10. What’s package, will it protect the products?How is the shipping method?

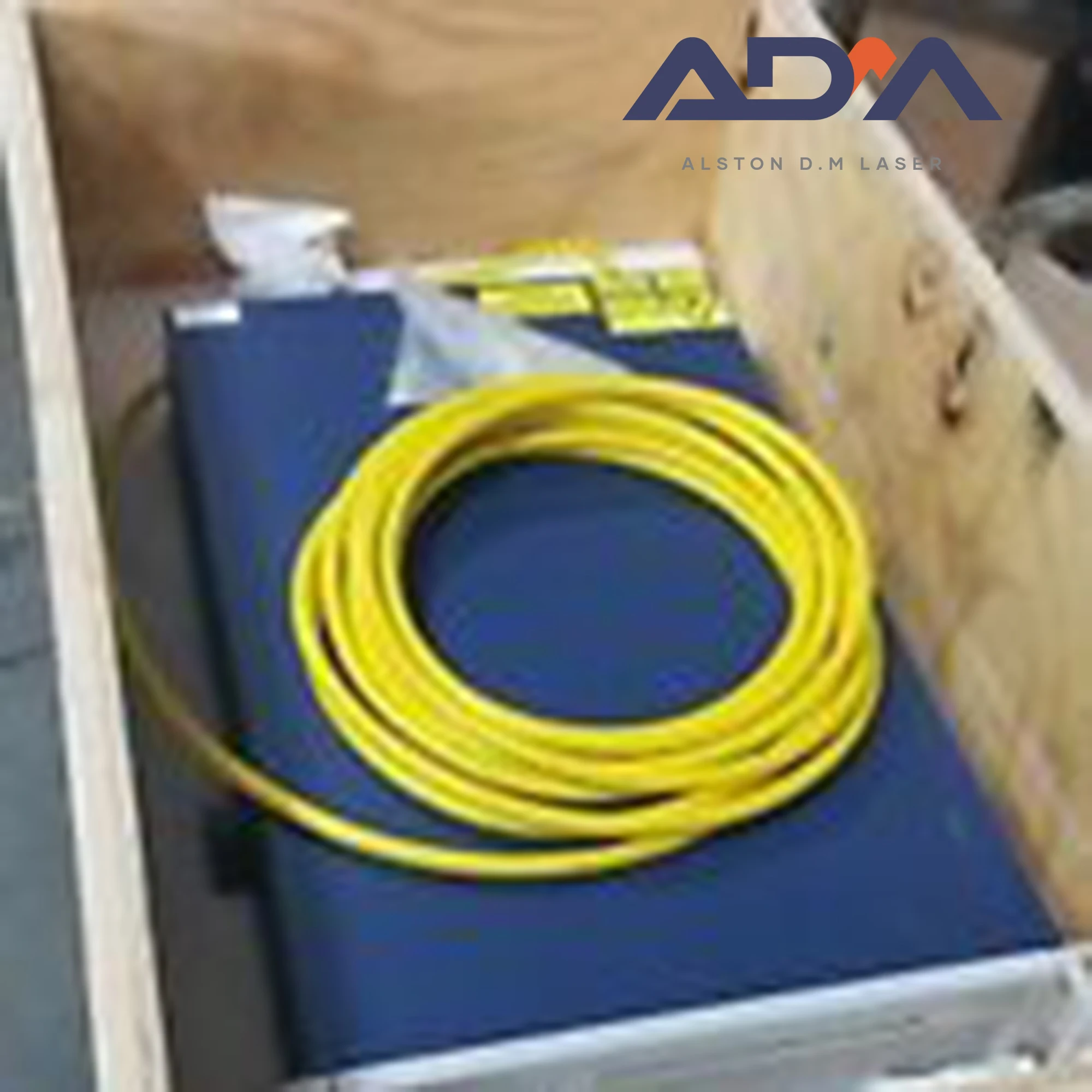

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement . Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for seaworthy transportation.
Похожие товары
