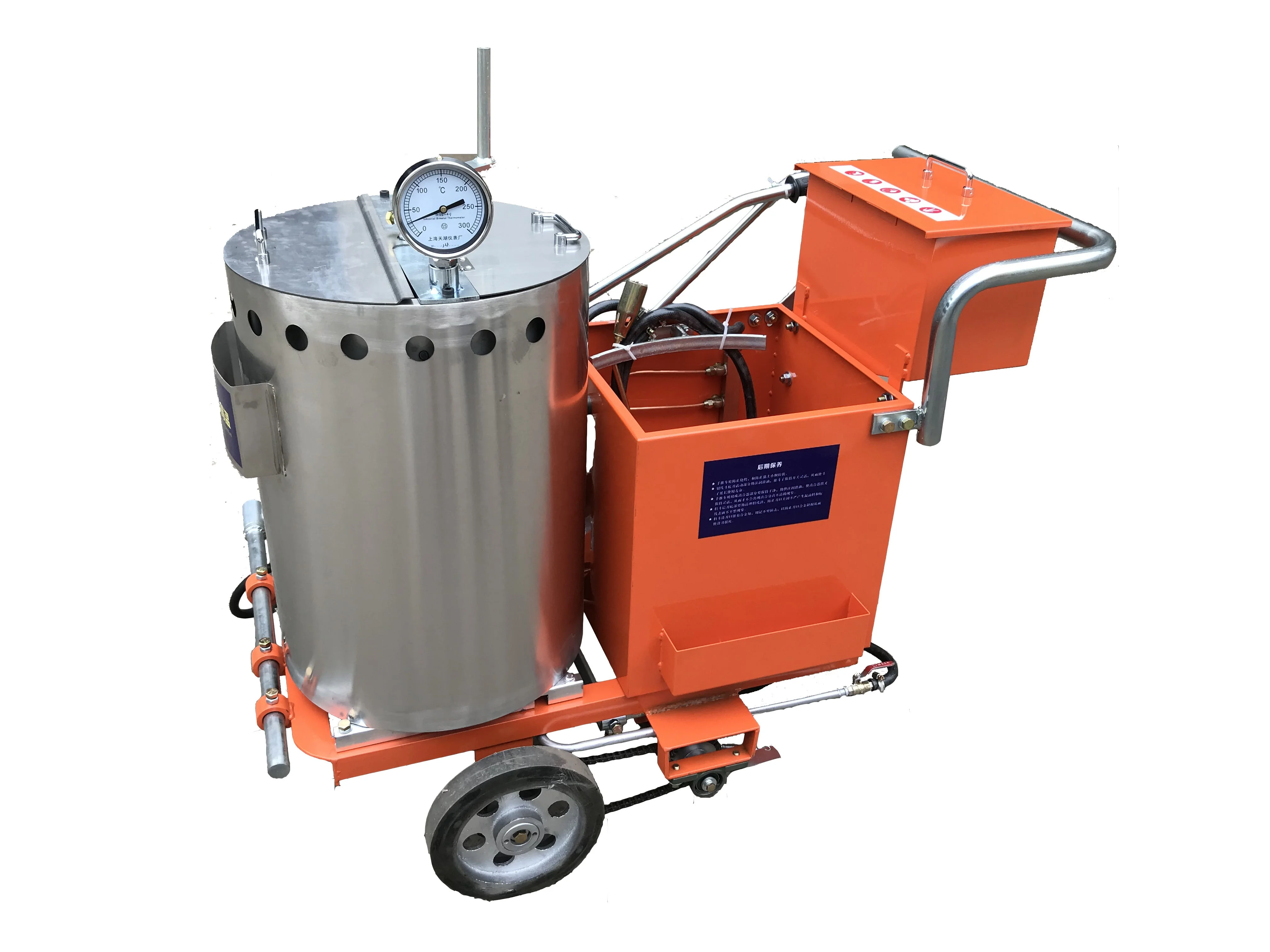

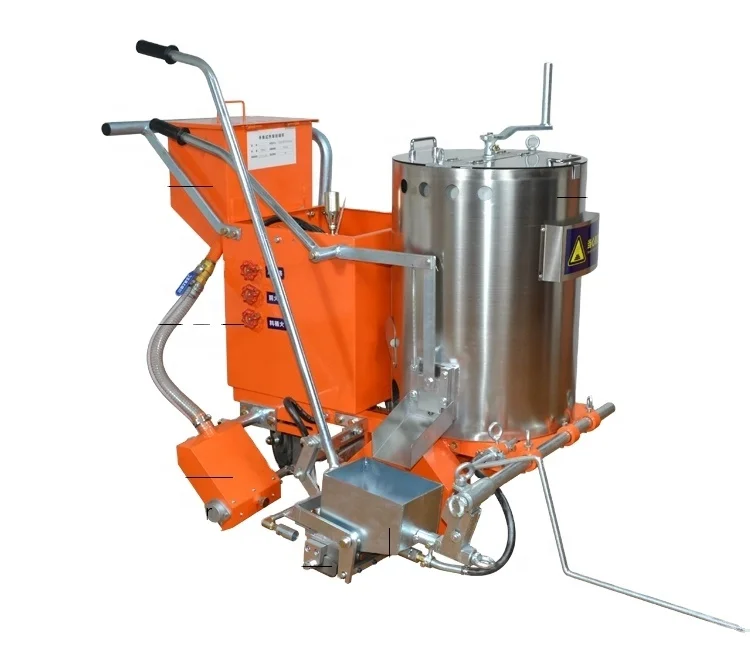

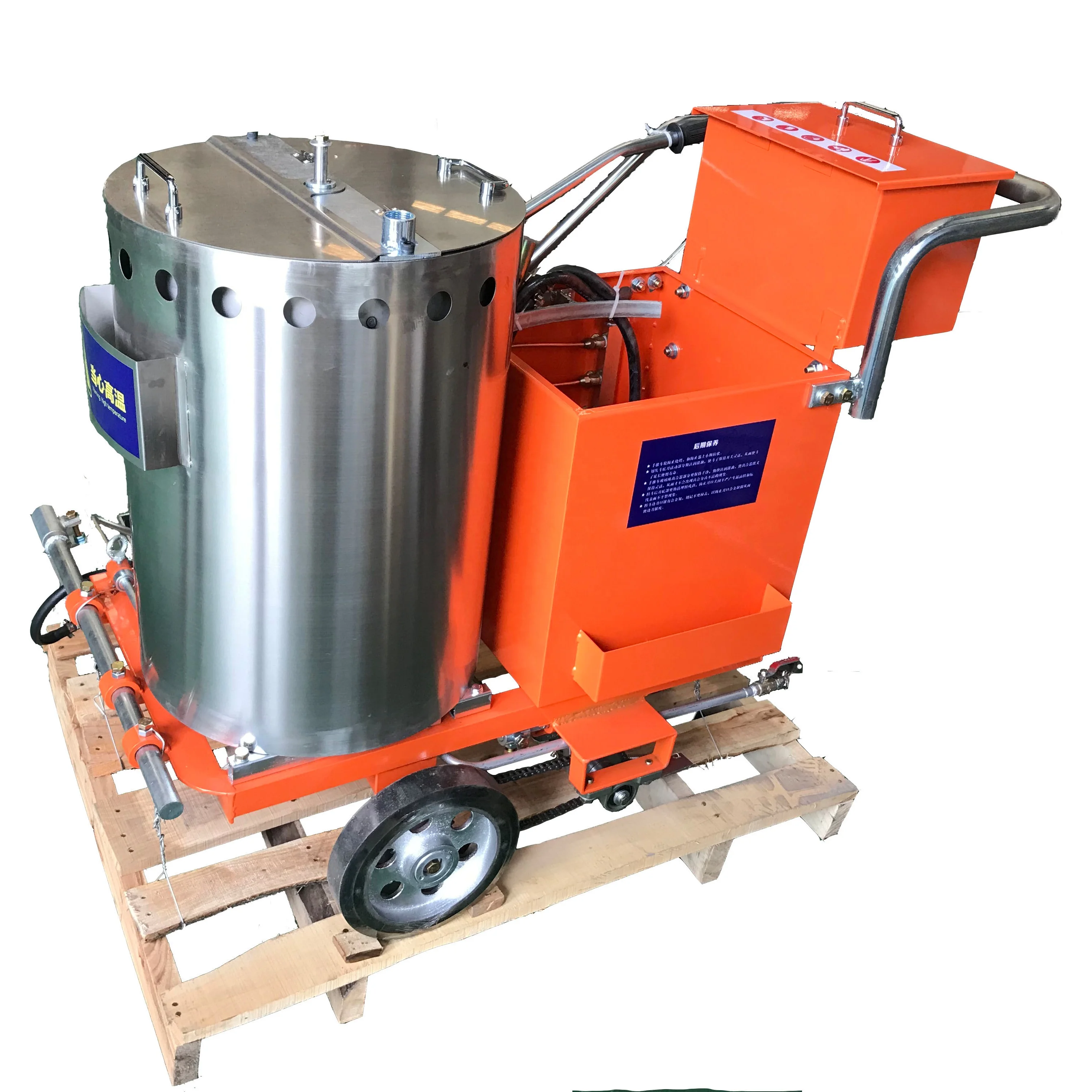

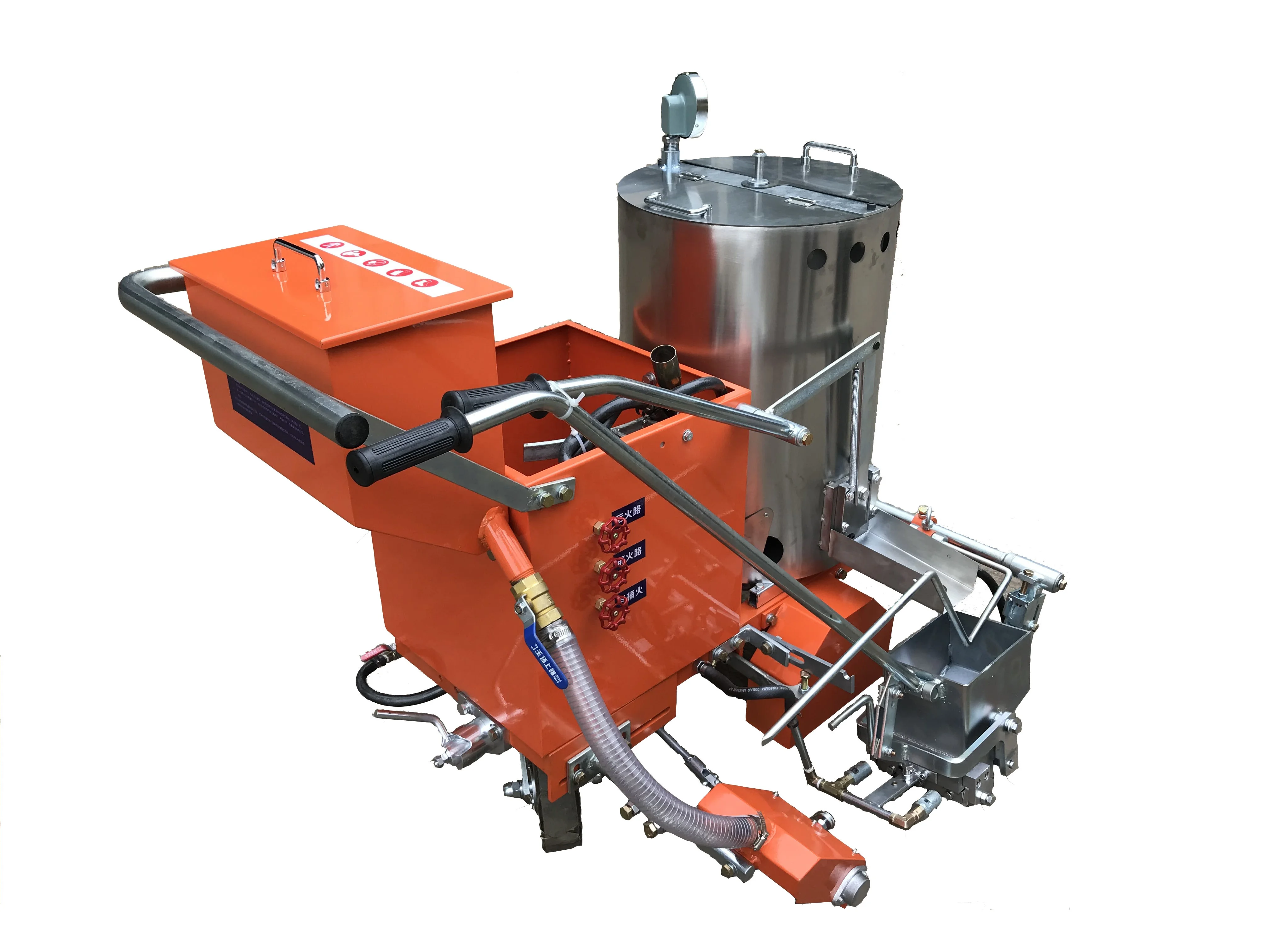

Hot melt Road marking machine

Описание и отзывы

Трекер стоимости

Характеристики

 road marking machine factory

Application: It Used in railway, highway, bridge, tunnel, mine, construction and other fields.



Fatures and benefits :



1. Paint barrels: double stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices.



2. Glass Bead storage box: 10 kg / box.



3. Glass beads beads sow browser: synchronous clutch spread with speed gearshift device.



4. Crossed Doo: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm.Be exchangeable.



5. Landing knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5 mm.



6. Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction.



7. Heating method: liquefied petroleum gas.



8. Subscript Line Width: engineering requirements in accordance with the replacement of different specifications crossed hopper.



Technical parameters:

Content of Paint container	100kg
Line thickness	1.0-2.5mm
Speed	2km/h
Heating Temperature	170-250ºC
Heating Method	LPG
Suggest gas tank	30kg
Dimension	1320×820×1000mm
G.W.	135kg
Power	4.8kw
rated speed	3200r/min
Roller diameter	220mm
Line marking wideth	100/150/200/300mm or adjust as requires
