Samsr SS1705A20A Nema 17 42 мм 1 8 градусов 2 а нм гибридный шаговый двигатель с открытой
- Категория: Шаговый электродвигатель >>>
- Поставщик: Shenzhen,Melike,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 17.27 $* | 18.32 $* |
| Aug-20-2025 | 17.1 $* | 18.41 $* |
| Jul-20-2025 | 14.41 $* | 15.94 $* |
| Jun-20-2025 | 16.9 $* | 17.63 $* |
| May-20-2025 | 14.91 $* | 15.84 $* |
| Apr-20-2025 | 16.91 $* | 17.12 $* |
| Mar-20-2025 | 16.51 $* | 17.36 $* |
| Feb-20-2025 | 16.51 $* | 17.52 $* |
| Jan-20-2025 | 16.15 $* | 17.0 $* |

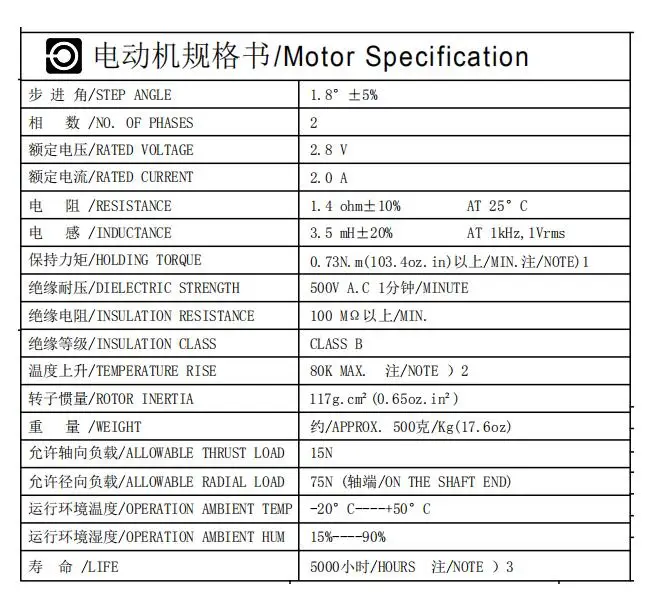

Характеристики

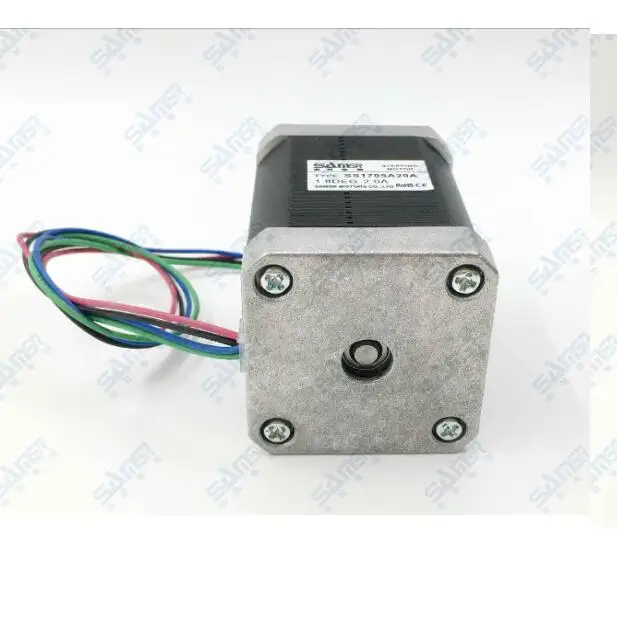

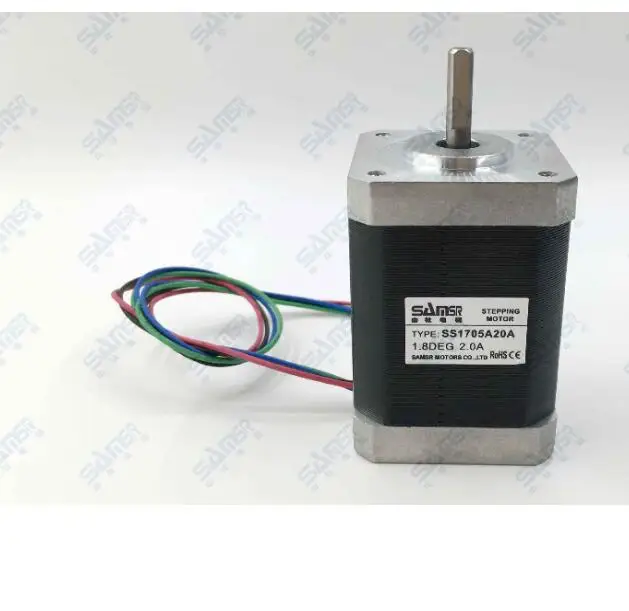

Samsr SS1705A20A Nema 17 42mm 1.8 Degrees 2A 0.73N.m Hybrid Opened Loop Stepper Motor
Product Detail
Feature:
| Brand | Samsr |
| Model No | SS1705A20A |
| Step angle | 1.8° |
| No of phases | 2 |
| Rated voltage | 2.8V |
| Rated current | 2.0A |
| Resistance | 1.4ohm (AT 20°C) |
| Inductance | 3.5mH |
| Holding torque: | 0.73N.m(oz.in) |
| Insulation resistance: | 100 MΩ |
| Dielectric strength: | 500V A.C |
| Temperature rise: | 80K (Max) |
| Rotor inertia: | 117g.cm |
| Operation ambient temp | Operation ambient temp:-20°C~+50°C |
| Operation ambient hum | 15%~90% |
| Life | 5000Hours |
| Weight | 0.5Kg |

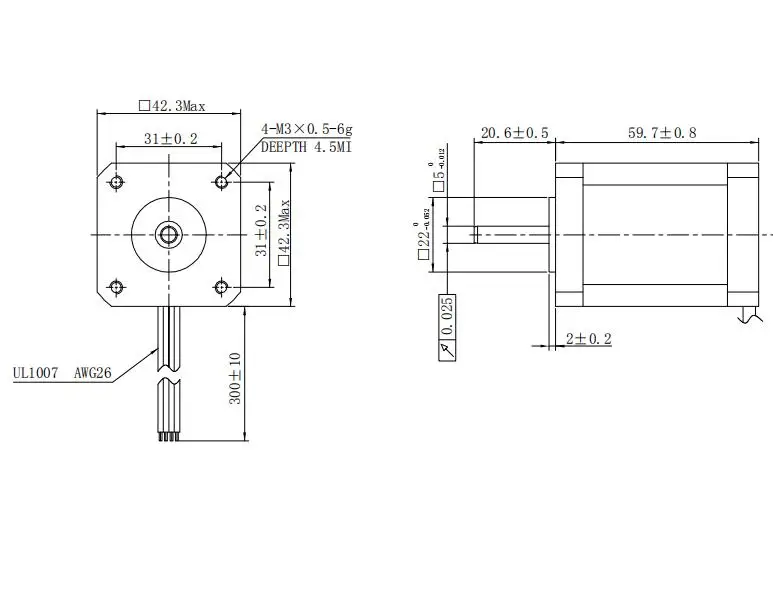

| Motor Length | 59.7mm |
Numbering System
Product Description

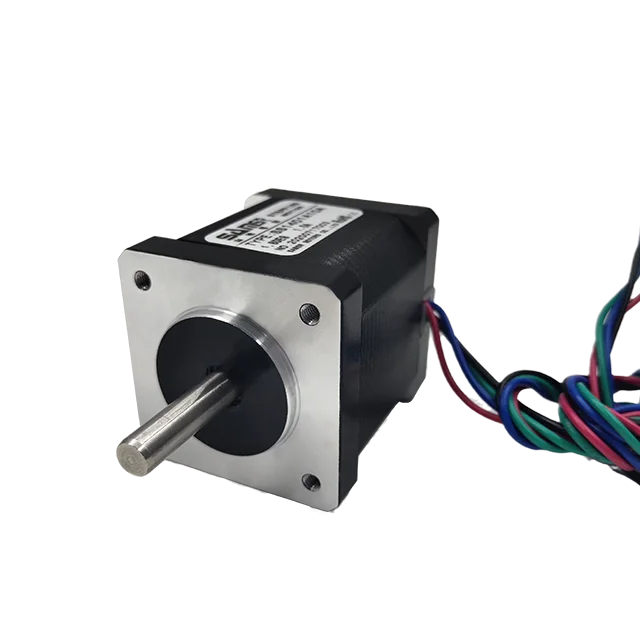

Option-NEMA 17 Motors
| Model | Rated voltage | Rated current | Resistance | Holding Torque | Motor length | Weight | Encoder | Brake | single shaft | dual shaft | IP grade |
| SS1701A10BB18 | 2.6V | 0.95A | 2.7ohm | 0.8N.m | 65.0mm | 0.33kg | No | No | No | Yes | IP40 |
| SS1702A10A | 4.8V | 0.85A | 5.75ohm | 0.257N.m | 34.0mm | 0.23kg | No | No | Yes | No | IP40 |
| SS1703A10A | 3.2V | 1.0A | 3.2ohm | 0.4N.m | 49.0mm | 0.36kg | No | No | Yes | No | IP40 |
| SS1703A12A | 5.76V | 1.2A | 4.8ohm | 0.4N.m | 39.8mm | 0.28kg | No | No | Yes | No | IP40 |
| SS1703A15A | 2.55V | 1.5A | 1.8ohm | 0.42N.m | 41.0mm | 0.28kg | No | No | Yes | No | IP40 |
| SS1704A08A | 5.0V | 1.0A | 8.2ohm | 0.567N.m | 17.5mm | 0.36kg | No | No | Yes | No | IP40 |
| SS1704A10A | 3.2V | 1A | 3.2ohm | 0.4N.m | 47.0mm | 0.36kg | No | No | Yes | No | IP40 |
| SS1704A12A-01 | 3.36V | 1.2A | 2.8ohm | 0.48N.m | 47.5mm | 0.43kg | No | No | Yes | No | IP40 |
| SS1704A13E | 3.9V | 1.3A | 3.0ohm | 0.35N.m | 45.5mm | 0.325kg | No | No | Yes | No | IP65 |
| SS1704A20A | 3.6V | 2.0A | 1.8ohm | 0.53N.m | 49.5mm | 0.60kg | No | No | Yes | No | IP40 |
| SS1704A20B-02 | 3.4V | 2.0A | 1.7ohm | 0.54N.m | 47.7mm | 0.36kg | No | No | No | Yes | IP40 |
| SS1704A20D | 3.6V | 2.0A | 1.81ohm | 0.54N.m | 72.5mm | 0.52kg | No | Yes | Yes | No | IP40 |
| SS1704A20F1000 | 3.6V | 2.0A | 1.35ohm | 0.48N.m | 67.6mm | 0.36kg | 1000 line | No | Yes | No | IP40 |
| SS1704A20F1000D | 3.6V | 2.0A | 1.35ohm | 0.48N.m | 99.6mm | 0.36kg | 1000 line | Yes | Yes | No | IP40 |
| SS1705A20F1000 | 3.6V | 2.0A | 1.8ohm | 0.72N.m | 60.1mm | 0.50kg | 1000 line | No | Yes | No | IP40 |
| SS1705A23F1000 | 3.6V | 2.0A | 1.3ohm | 0.76N.m | 65.0mm | 0.53kg | 1000 line | No | Yes | No | IP40 |
| SS1705A21A | 3.6V | 2.0V | 1.8ohm | 0.72N.m | 60.1mm | 0.50kg | No | No | Yes | No | IP40 |
Configuration and Option driver:MD-2522
Related Products:Nema 8/11/14/23/34/42/54 2 phase stepper motor
---Click following picture to check the corresponding product information
Nema 14(35mm) Nema 23(57mm) Nema 24(60mm)
Nema 34(86mm)
Packaging & Shipping
Company Informtion
FAQ
1. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-15 days.
2. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.
3. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.
4. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
