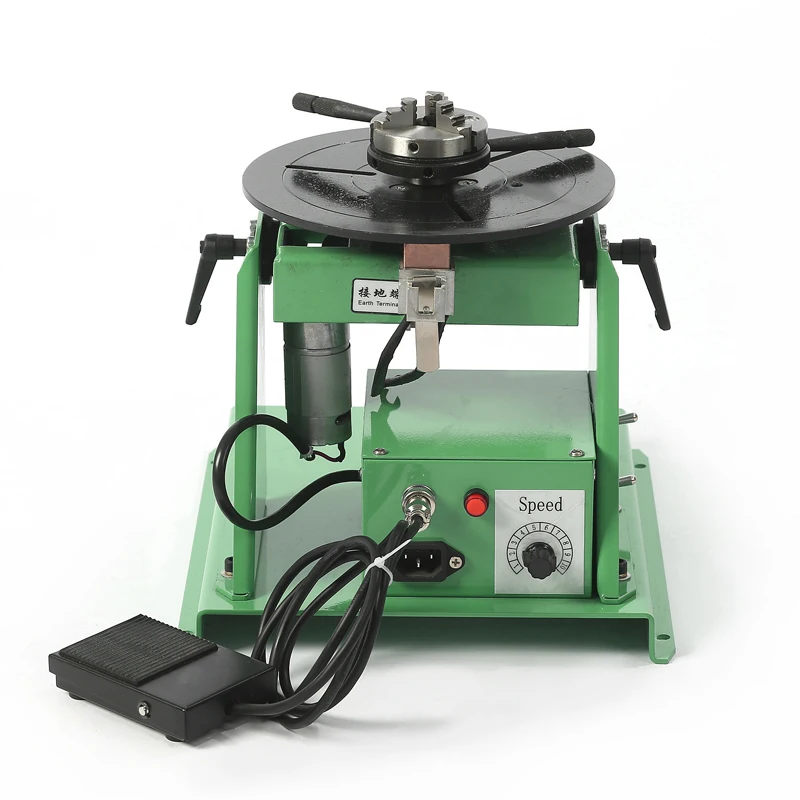

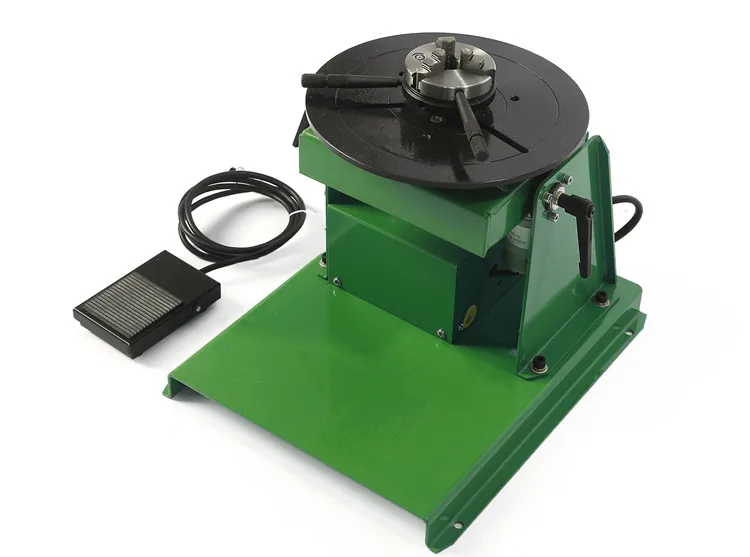

Lightweight rotary welding positioner table 10KG 10kg light duty welding positioner is designed for rotation of lighter work pieces. Welding positioner is used for round, circular welding, cutting, polishing and assembly.
Product Details

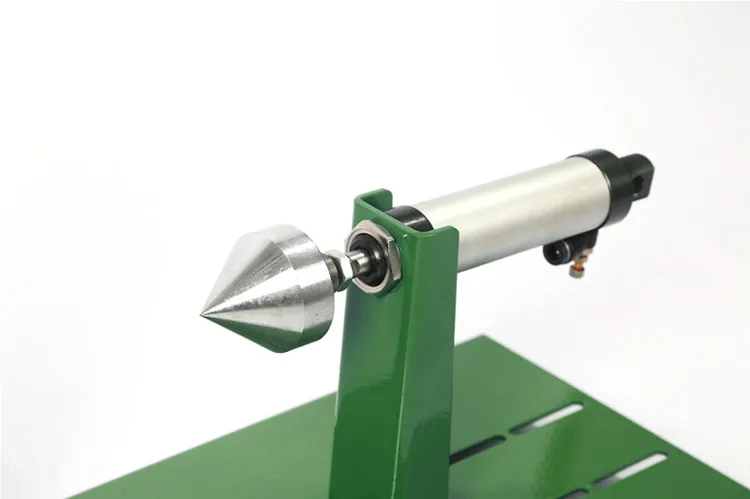

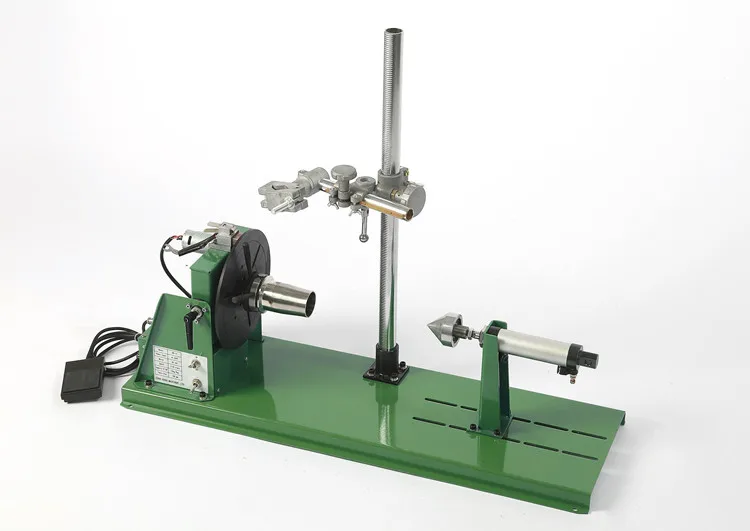

1.The rotation structure of positioner is driven by the DC motor, while stepless speed regulation can be achieved. 2.The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90°. 3.The welding chuck and adjustable-welding gun support can be furnished to fix the position of the welding torch. 4.The air-powered tail tip can be furnished to achieve the function of self-holding to the workpieces.
According to the rated capacity of different different specifications can be customized.
Product Paramenters
SPECIFICATIONS FOR 10KG WELDING POSITIONER
MODEL
YM-10
Horizontal Capacity Loading
10Kg
Vertical Capacity Loading
5Kg
Rotating Speed
2-16r/min
Tilt Range
0~90°
Table Dimension
180mm
Table Height
232mm
Motor Power
20W
Weight
10kg
Power Input
1PH 220V 50~60Hz
Adapter chuck
KC-65/KC-80
After Sales Service
1. One year warranty for whole machine 2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines. 3. Full stock of spare parts and comsumbles are at competitive price.
FAQ
Q1. Are you a Manufacturer or a trading company? A1.We are the manufacturer, integrating with design, machining and assembling for machines.
Q2. Do you have stock product ready to deliver? A2. In order to satisfy with the customer for fast delivery, we have certain amount of machines in stock, you can check the machine on LIVE-DEMONSTRATION at any time.
Q3. How do you deliver the finished products? A3. The machine is mostly delivery by sea, rail way or road for some exception. For some urgent part or shipping document we delivered by air or Express like TNT, FEDEX,DHL,UPS,EMS, Etc.
Q4. How can you guarantee the after-sales service? A4. We have the special after-sales service department, they will provide training program for operation and trouble shouting during installation. And they will visit the customer regularly for service.all questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
Q5. What's delivery time for the angle machine. A5. Within 20 days after payment.
Q6. How can you guarantee your finished machine quality? A6. First, the machine will have 8 hours idle running; Second, we will test the machine with the material working together.
