Характеристики
Product Description

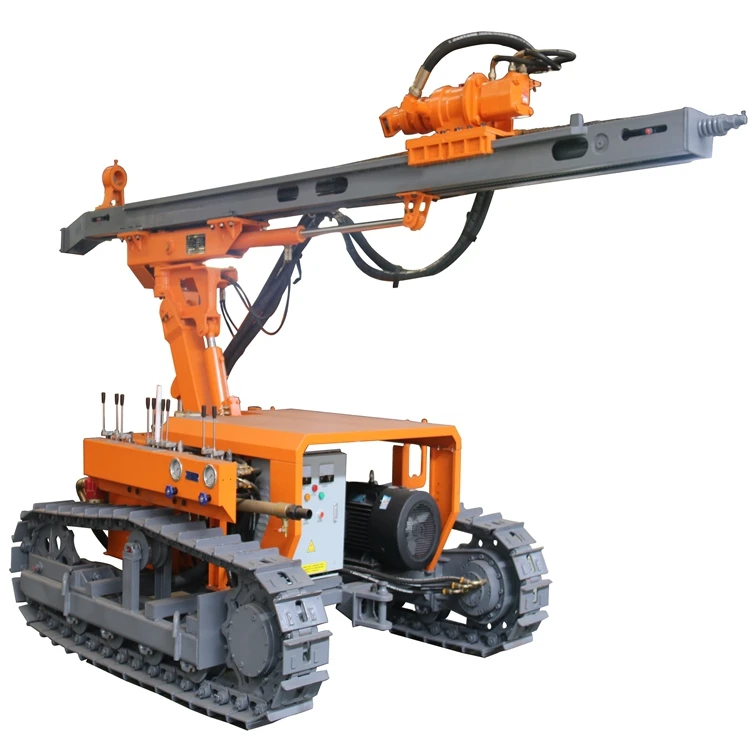

HENGWANG HW415 factory wholesale geotechnical engineering drilling rig for mine explosive
HW415 separated DTH surface drill rig is another model of high performance low cost rig of Hengwang for surface mining industry.HW415 rig tramming components, hydraulic system ,feed beam, rotary head & the whole rig chassis are upgraded based on data collected & analysis of HW410E application reports by the R&D department. The upgraded rig with improved features of strong climbing ability, large rotation torque, long life motor, hole depth up to three meters at one time and available for various side & horizontal holes, is widely applicable to various surface mining environment.
Main Features:
* 1.With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. Hole range up to 127 mm now.
* 2.All Controls integrated on the control panel for convenient operation, higher work efficiency, safer and more comfortable operation.
* 3.Piston tramming motor, special processed casted track shoe for stronger tramming traction force & more stable quality.
* 4.Equipped with the own developed dry dust collection system for high efficiency & more eco-friendly.
Related Products
HENGWANG HW415 factory wholesale geotechnical engineering drilling rig for mine explosive
related products as water well drill machine, pile driver, guardrail press machine, trailer mounted drill rig
Product Paramenters
HENGWANG HW415 factory wholesale geotechnical engineering drilling rig for mine explosive
Parameters of surface blasting hole drill rig HW415
HENGWANG HW415 factory wholesale geotechnical engineering drilling rig for mine explosive
Diesel Engine Specifications | ||||
Rig Model | Power | Rated Power | ||
HW415F | Yuchai YCD4R12T-70 | 50 KW | ||
HW415F-1 | YuchaiYCD4R22T-80 | 59KW (Dust collection system as standard equipment) | ||
HW410D | Electric motor | 22 kW | ||
General Specifications | ||||
Drill Pipe Sizes | 60*3000 mm | |||
Hole range | 90-115 mm | |||
Rotation torque (Max.) | 1,850 N.m | |||
Rotation Speed | 0-110 rpm | |||
Feed Force | 15 kN | |||
Pull Up Force | 25 kN | |||
Feed Type | Chain / cylinder | |||
Tramming Speed (Max.) | 2.5 km/h | |||
Gradient | 25° | |||
Total Weight | 4,500 kg | |||
Transportation Dimensions | 4,900X2,000X2,200 mm | |||
Detailed Images
HENGWANG HW415 factory wholesale geotechnical engineering drilling rig for mine explosive
drill rig detail images as follows:
The following is the Down to the hole(DTH) hammer and diamond drill bits used for rock drilling
HENGWANG HW415 factory wholesale geotechnical engineering drilling rig for mine explosive
Working case
HENGWANG HW415 factory wholesale geotechnical engineering drilling rig for mine explosive
Our Company
Jining Luheng Machinery Equipment Co., Ltd. as one of the seven branches of head office Shandong Hengwang Group Co., Ltd. is a professional company engaged in research , development, production, sales, application and service of rock drill machines and pile driver machines. With more than 400 workers and 25 senior engineers, high quality products and best after sales service can both be guaranteed. Hengwang is eyeing the global market with world class products and services and is working hard and moving forward to help the rise of China national machinery and equipment manufacture industry.
