Характеристики
Product Description
100kg 150kg 200kg 250kg 300kg 500kg Electric Industrial coreless induction Melting Furnace price

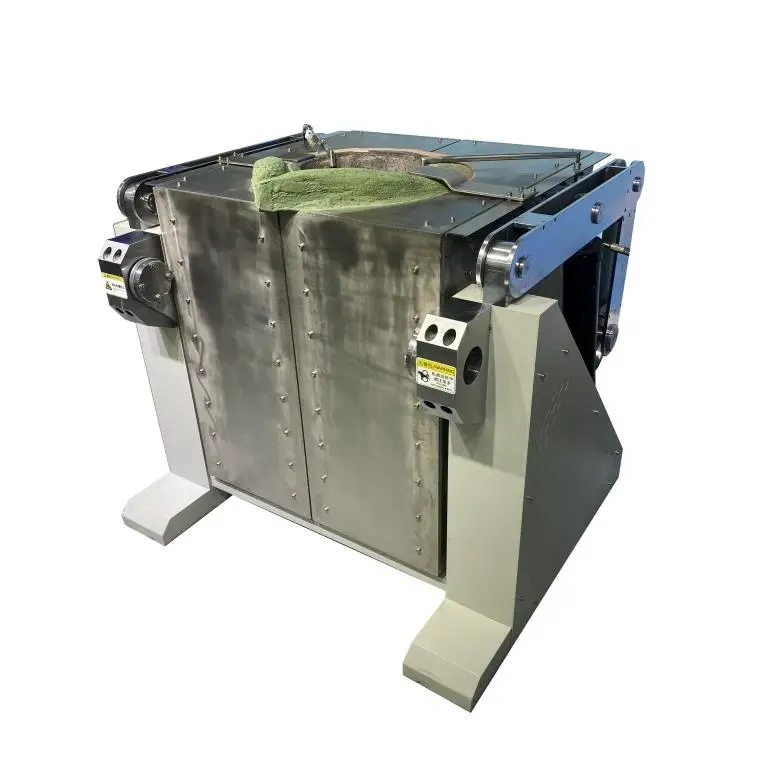

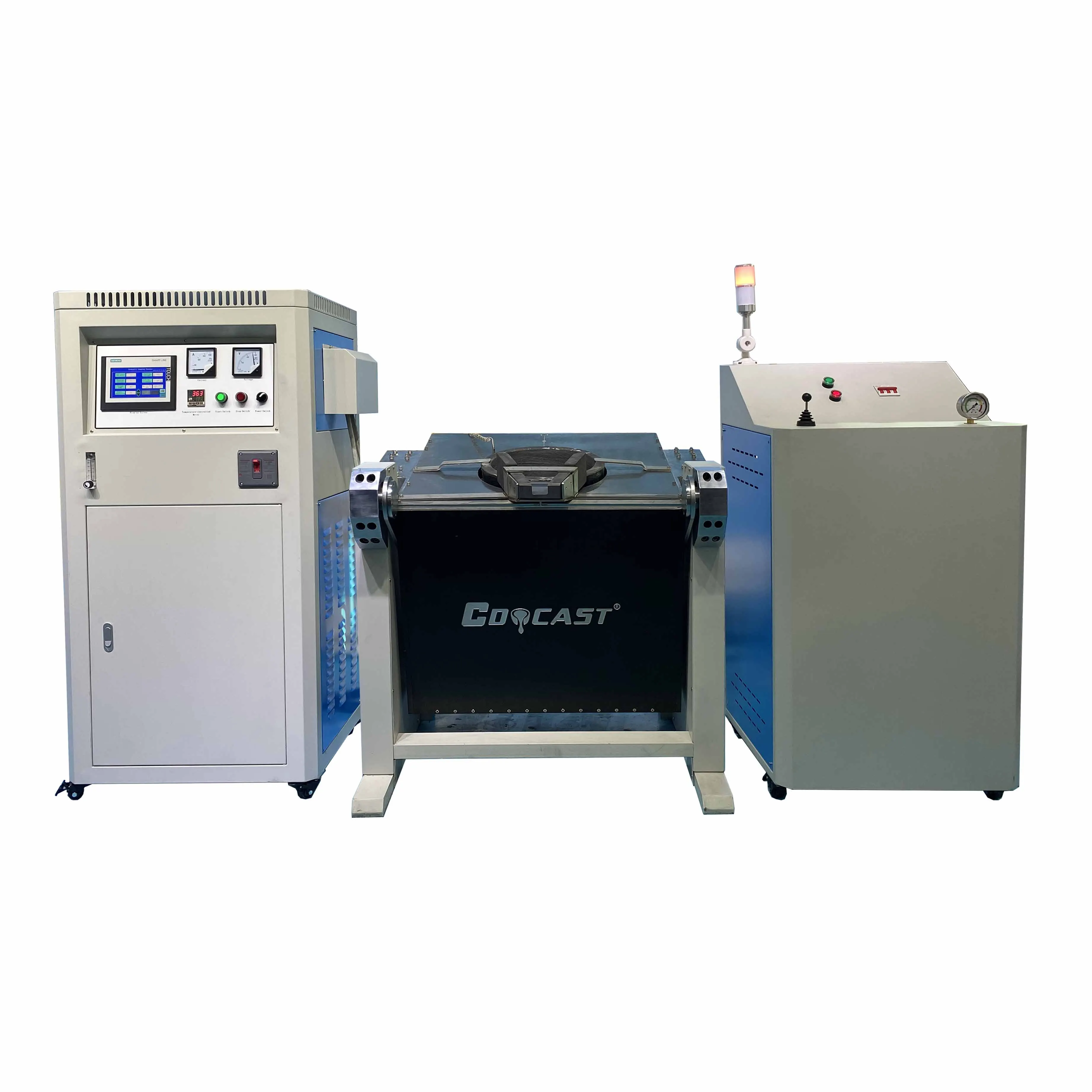

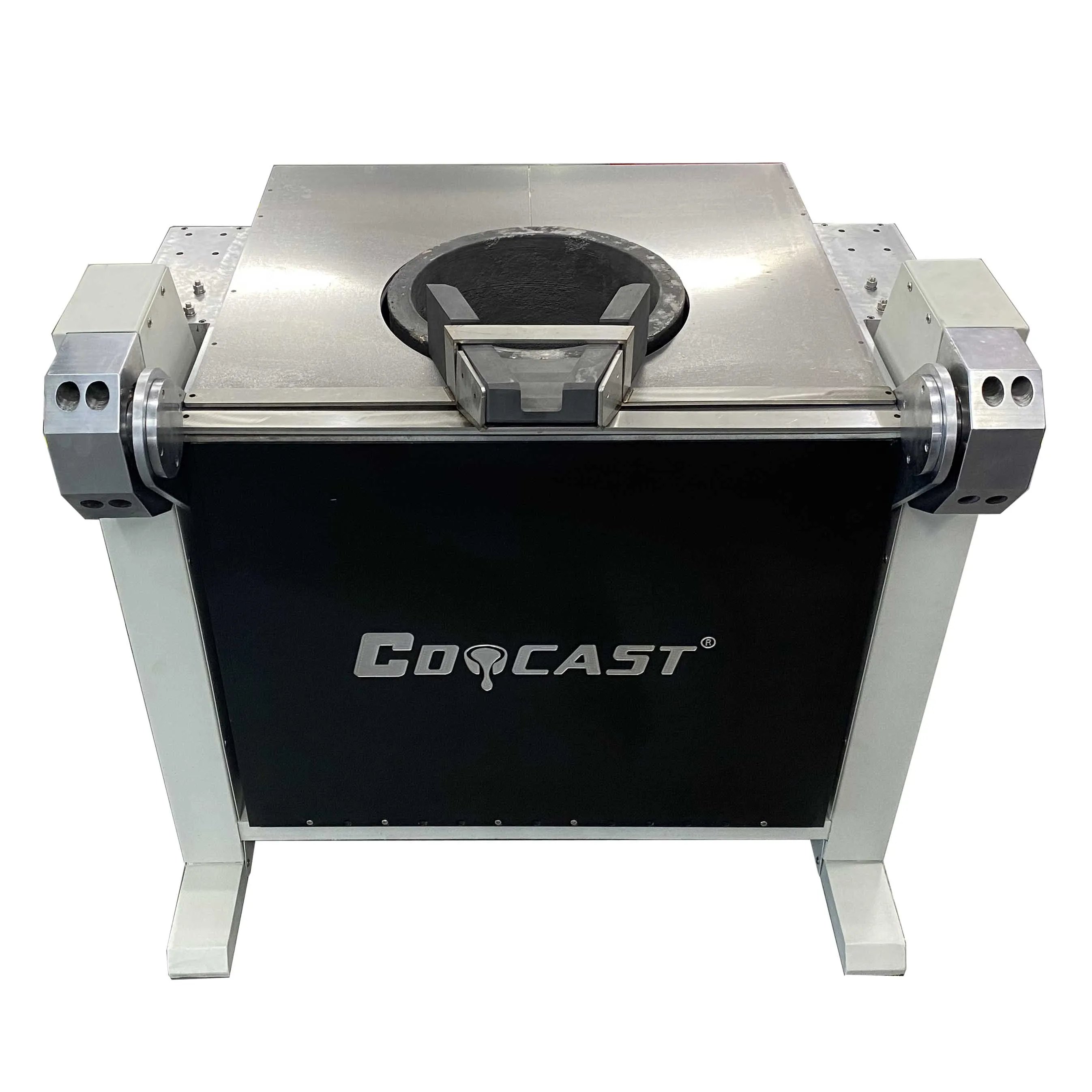

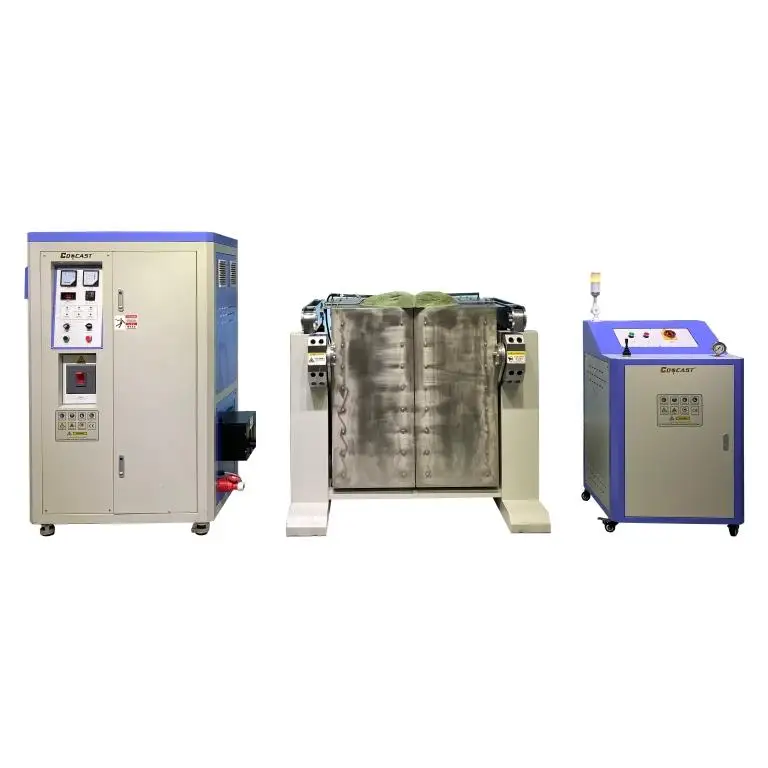

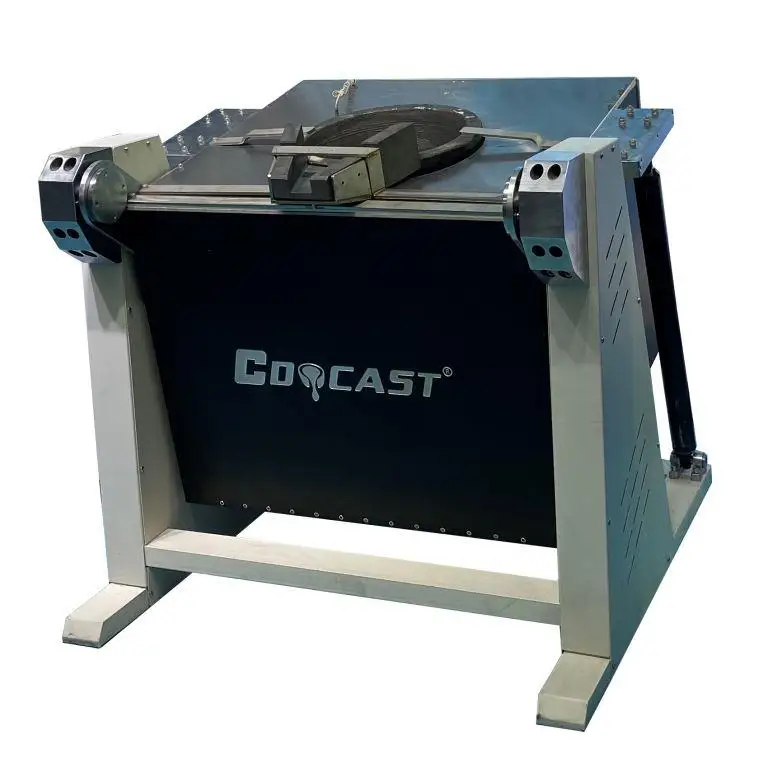

The small hydraulic titling small induction furnace is specially designed for melting 100-350 kg of non-ferrous and non-ferrous metals.
Small induction furnace is equipped with hydraulic tilting mechanism, body tilting furnace is equipped with hydraulic cylinder and hydraulic station,IGBT induction heating power supply technology application, small induction smelter is equipped with PLC touch screen design, making the whole process more accurate, accurate and safe.
The whole furnace body adopts steel shell and silicon steel sheet around the furnace body is used for magnetic insulation, which can effectively prevent the furnace body from heating up.
Because of the structural design of the whole steel shell furnace, the whole furnace is very strong and its service life is
greatly extended.
The melting capacity of this small induction furnace ranges from 100kg to 350kg. Graphite crucibles are used for all kinds of metals. The melting temperature can reach 1650 degrees in 10 minutes.
Structure
Parameter
Power Supply Parameter of Hydraulic titling small induction furnace：
Model | CDO-HT45 | CDO-HT70 | CDO-HT90 | CDO-HT110 | CDO-HT160 | ||||||
MAX input power | 45KW | 70KW | 90KW | 110KW | 160KW | ||||||
MAX input current | 68A | 105A | 135A | 168A | 240A | ||||||
Input voltage | Three-phase 340V ~420V 50/60Hz | ||||||||||
Oscillation frequency | 1K~20KHz | ||||||||||
Requirement of cooling water | Hydraulic pressure | ≥0.3Mpa | |||||||||
Flow rate | ≥20L/Min | ||||||||||
Temperature of water | ≤45℃ | ||||||||||
Melting Capacity Parameter of Hydraulic titling small induction furnace：
Model | Fe, ss | Cu, Au, Ag | Al, Al-alloy | |||
CDO-HT45 | 18kg | 50kg | 18kg | |||
CDO-HT70 | 25kg | 80kg | 25kg | |||
CDO-HT90 | 40kg | 120kg | 40kg | |||
CDO-HT110 | 50kg | 150kg | 50kg | |||
CDO-HT160 | 100kg | 250kg | 100kg | |||
Remark: Above melting capacity sheet for general reference; Melting duration: When the crucible is hot,20~30min./workload; When the crucible is cold(first melt),40~50min./ workload. | ||||||
Application
Feature
1: Graphite crucibles and quartz crucibles are available, thus enabling the melting of almost all non-ferrous and non-ferrous metals, and are particularly suitable for small foundries.
2:This small silver melting machine adopt advanced IGBT induction heating technology, power from 15kw-110Kw available, compared to KGPS induction heating, comes with energy saving effect of 20% .
3: PLC touch screen design is optional design, all the over-current, over-voltage, water shortage security alarm functions and temperature control can be set and display in the PLC, the operation is convenient and intuitive, the overall structure of the machine is aesthetically pleasing due to the reduced number of buttons in the control cabinet.
4: The crucible can be easily replaced without the need to dismantle the furnace to replace a broken crucible, just take it out. The whole process takes only 20 minutes
5: The silver melting furnace is equipped with a mobile trolley for loading the molds, and at the end of the melting process, the worker only needs to push the trolley to the furnace nozzle for pouring, which greatly increases the safety of the operation.
6: Customized graphite moulds are available to support the entire pouring process according to customer requirements.
2:This small silver melting machine adopt advanced IGBT induction heating technology, power from 15kw-110Kw available, compared to KGPS induction heating, comes with energy saving effect of 20% .
3: PLC touch screen design is optional design, all the over-current, over-voltage, water shortage security alarm functions and temperature control can be set and display in the PLC, the operation is convenient and intuitive, the overall structure of the machine is aesthetically pleasing due to the reduced number of buttons in the control cabinet.
4: The crucible can be easily replaced without the need to dismantle the furnace to replace a broken crucible, just take it out. The whole process takes only 20 minutes
5: The silver melting furnace is equipped with a mobile trolley for loading the molds, and at the end of the melting process, the worker only needs to push the trolley to the furnace nozzle for pouring, which greatly increases the safety of the operation.
6: Customized graphite moulds are available to support the entire pouring process according to customer requirements.
Packing & Delivery
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
