Малогабаритный Электрический измельчитель зерен маленькая коллоидная мельница для мокрого сырья кукурузы риса арахиса
- Категория: Шлифовальное оборудование >>>
- Поставщик: Henan,Workers,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3094.47 $* | 3249.11 $* |
| Aug-19-2025 | 3068.80 $* | 3221.11 $* |
| Jul-19-2025 | 2574.31 $* | 2703.26 $* |
| Jun-19-2025 | 3016.22 $* | 3167.55 $* |
| May-19-2025 | 2626.32 $* | 2757.72 $* |
| Apr-19-2025 | 2964.30 $* | 3112.96 $* |
| Mar-19-2025 | 2938.5 $* | 3085.9 $* |
| Feb-19-2025 | 2912.20 $* | 3058.59 $* |
| Jan-19-2025 | 2886.49 $* | 3030.83 $* |
Характеристики
Product Description
Features of colloid mill:
Colloid mill is mainly a multi-functional wet processing fluid ultrafine particlecrushing, grinding, emulsifying, dispersing, homogenizing, tring, mixing and other functions. It canreplace and be superior to stone mill, sand mill,
ball mill, Milk homogenizer, shear dispersing pump,homogenous emulsifier, three-roller machine, tissue masher and other working efficiency, productfineness can reach 2-40um, motor speed 2800rmp.
ball mill, Milk homogenizer, shear dispersing pump,homogenous emulsifier, three-roller machine, tissue masher and other working efficiency, productfineness can reach 2-40um, motor speed 2800rmp.
The machine uses the relative movement of movable copper grinding discs and solid copper grinding discs of different geometric shapes under the rotation, and is crushed by shearing, grinding, and high-frequency vibration. The crushing chamber is equipped with two grinding areas, the first level is the fine grinding area, and the second level is the ultra-fine grinding area. The grinding fineness can be adjusted between the upper and lower copper grinding discs, which can effectively achieve the required ultra-fine grinding at one time effect. The machine has the characteristics of compact structure, stable operation, low noise, corrosion resistance, easy cleaning and convenient maintenance. At present, it is the most ideal equipment for domestic wet grinding.
●GMP and food grade design
●Fine detail workmanship
●Customized service
●High Efficiency Easy Operate
●Video technical /Online support
GRINDING CHAMBER:
●Alloy steel disc and cutter head●Precision manufactured parts
●Multifunctional
●A variety of grinding structure chamber are available
●Polishing and oxidation resistance treatment
●Dymatic balance support
●Customized
●Triple phase asynchronous motor
●All copper motor, excellent performance
●Customized
●All copper motor, excellent performance
●Customized
WATER COOLING SYSTEM
●Reserve the water cooling joint●Excellent heat dissipation performance
●Effectively reduce the temperature of the grinding chamber and the drive shaft to ensure the long time safe run of the machine
●Can be connected to the chiller system or tap water
●For temperature-sensitive materials, its unique design ensures that the materials can be ground at a low temperature, ensuring that the effective ingredients in the materials are not destroyed, and improving the quality of the products.
●Customized
●Customized
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our machine can be customerized. Before we can provide you with detailed quotation, we have to know the following information:
1) What is your handling capacity?
2) Process capacity in kg/batch?
3) What are your requirements for fineness?
Q: How the machine will be delivered ?
A: The machine is packed in wood box for shipping
A: Our machine can be customerized. Before we can provide you with detailed quotation, we have to know the following information:
1) What is your handling capacity?
2) Process capacity in kg/batch?
3) What are your requirements for fineness?
Q: How the machine will be delivered ?
A: The machine is packed in wood box for shipping
Specification
Model | WKS-500B | WKS-1500B | WKS-2000B | WKS-2500B | WKS-3000B |
Capacity (kg/h) | 10-500 | 100-1500 | 100-2000 | 100-2500 | 100-3000 |
Shaft speed (r/min) | 2900 | 2900 | 2900 | 2900 | 2900 |
Disc diameter (mm) | 50 | 80 | 80 | 100 | 120 |
Inlet diameter | 42 | 57 | 76 | 76 | 89 |
Motor power（kw） | 2.2 | 4 | 7.5 | 7.5 | 11 |
Weight（kg） | 100 | 150 | 240 | 260 | 290 |
Dimension (mm) | 320*720*750 | 780*450*980 | 800*420*950 | 800*420*980 | 920*540*1150 |
Voltage | 380v/220v | 380v | 380v | 380v | 380v |
Packing & Delivery

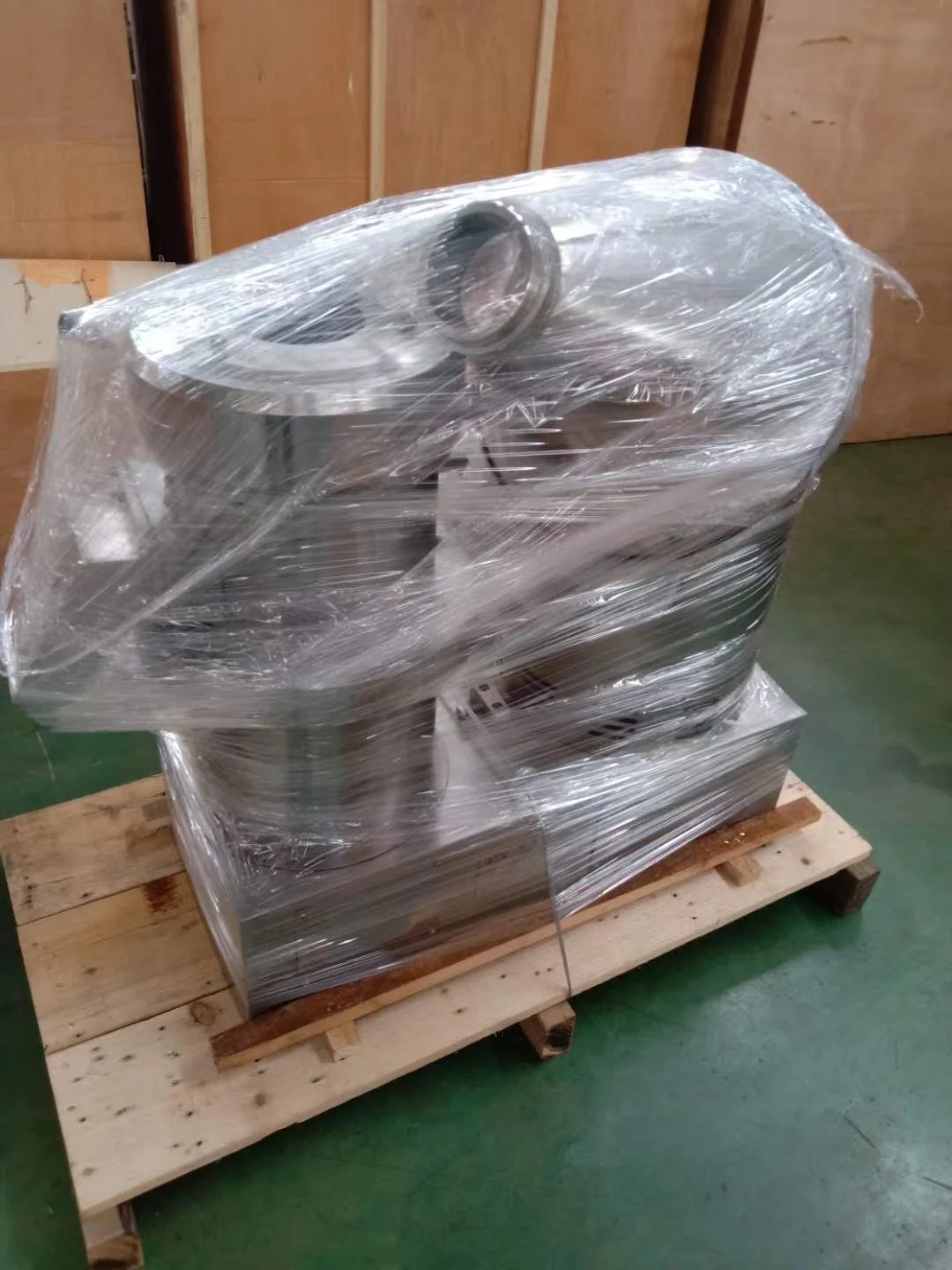

Package:Wooden Case( (fumigation free) or as per customers' requirements)
Shipping:within 5-7 working day after receiving the balance payment.
Company Profile
Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing, and sales of various industrial drying machines, fruits & vegetables, and food processing machines.
We have a modern standard workshop, covering over 2,000 square meters; WKS has more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. All of our products are made of high-quality stainless steel with mature product design and sophisticated production technology.
Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria, and South Africa, etc.
WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices, and wholehearted services.
Welcome to visit us to start the cooperation!
We have a modern standard workshop, covering over 2,000 square meters; WKS has more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. All of our products are made of high-quality stainless steel with mature product design and sophisticated production technology.
Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria, and South Africa, etc.
WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices, and wholehearted services.
Welcome to visit us to start the cooperation!
