Оптовая продажа хорошее качество маленькая машина для штамповки контейнеров из алюминиевой фольги с
- Категория: Punching Machines >>>
- Поставщик: Dongying,Besco,Machine,Tool,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 29750.91 $* | 31238.96 $* |
| Aug-17-2025 | 29500.41 $* | 30975.32 $* |
| Jul-17-2025 | 24750.28 $* | 25988.16 $* |
| Jun-17-2025 | 29000.91 $* | 30450.45 $* |
| May-17-2025 | 25250.50 $* | 26513.5 $* |
| Apr-17-2025 | 28500.15 $* | 29925.94 $* |
| Mar-17-2025 | 28250.13 $* | 29663.40 $* |
| Feb-17-2025 | 28000.31 $* | 29400.21 $* |
| Jan-17-2025 | 27750.64 $* | 29138.10 $* |
Характеристики
Product Overview

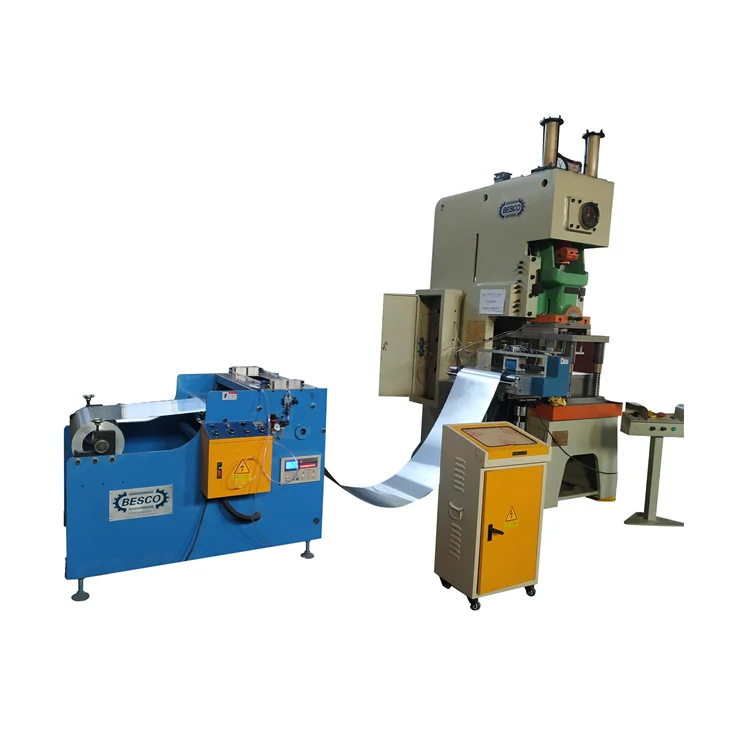

Aluminum Foil container Making machine
Aluminum Foil Container making machine line
Aluminum Foil Container Machine adopt imported Seimens motor,PLC and Schneider electronic componets to make sure the machine's top
quality, the whole line include:
Aluminium foil roll---decoiler--pneumatic press----mould---conveyor---collection desk---packing
1). Aluminium Foil Container Machine adopt a lot of imported brand electronic componets, like
SEIMENS PLC and sevo motor to make sure the machine work accurate and steady.
2).There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
The foil feeder provides the supply of right quantity and length of aluminium foil, and it is
controlled by servo system in SEIMENS, which assure a high-precision step.
3).This machine equipped with a Mould lifter to make sure changing the mould easily by the worker.
4).We can design and manufacture machine according to customer's requirment and customer's target price.
Aluminum Foil Container Machine adopt imported Seimens motor,PLC and Schneider electronic componets to make sure the machine's top
quality, the whole line include:
Aluminium foil roll---decoiler--pneumatic press----mould---conveyor---collection desk---packing
1). Aluminium Foil Container Machine adopt a lot of imported brand electronic componets, like
SEIMENS PLC and sevo motor to make sure the machine work accurate and steady.
2).There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
The foil feeder provides the supply of right quantity and length of aluminium foil, and it is
controlled by servo system in SEIMENS, which assure a high-precision step.
3).This machine equipped with a Mould lifter to make sure changing the mould easily by the worker.
4).We can design and manufacture machine according to customer's requirment and customer's target price.
Machine Detalies
ITEM | Unit | 45T | 63T | |
Nominal Pressure | kn | 450 | 630 | |
Slide Stroke Per Minutes | s.p.m | 40-70 | 40-70 | |
Maximum Mold Set Height | mm | 450 | 450 | |
Slide Adjustment | mm | 60 | 80 | |
Slide Bottom Size | mm | 340*410 | 340*410 | |
Bolster Size | mm | 800*900 | 1100*1000 | |
Throat Depth | mm | 400 | 500 | |
Total Power | kw | 5.5 | 7.5 | |
Weight | kg | 5500 | 8500 | |
Dimension | mm | 1700*1200*3100 | 2200*1450*3400 |
1. Automatic Feeding Machine
Our Feeding Machine Is The Automatic Feeding Device Which Is The Ancillary Equipment For Punching Equipment. a Machine Can Realize
Automatic Oiling, Automatic Feeding, Automatic Tracking Features, Which Automatically Feeding 20-999mm In Length, The Length Of An
Arbitrary Set, It Provide Accurate Positioning And Widely Adjusting Range. The Device Has The Characteristics Of
Automatic Oiling, Automatic Feeding, Automatic Tracking Features, Which Automatically Feeding 20-999mm In Length, The Length Of An
Arbitrary Set, It Provide Accurate Positioning And Widely Adjusting Range. The Device Has The Characteristics Of
Feeding Accuracy,
Coating The Oil Evenly, Material Waste Is Small, High Efficiency, Clean Appearance, Small Size And Easy Installation, Simple
Operation And Low Noise, It Is The Ideal Automatic Feeding Device For Film, Aluminum Foil, Paper And Other Metal Coils, And Also
Is a Reliable Guarantee For The Success Of Your Project..
Coating The Oil Evenly, Material Waste Is Small, High Efficiency, Clean Appearance, Small Size And Easy Installation, Simple
Operation And Low Noise, It Is The Ideal Automatic Feeding Device For Film, Aluminum Foil, Paper And Other Metal Coils, And Also
Is a Reliable Guarantee For The Success Of Your Project..
2. High Quality Punching Press Machine
Configuration Of Press Machine
.
3. Auto Stacker (Container Collector)
Function: Auto Stacker is an assist system to collect containers.
1.Frequency Control Speed Adjustment of Conveyor. 2.Auto-Counting Function. 3.Container Platform Anti-collision Function. 4.Can
Connect Production Line Linkage or Single Use. 5.Adopt Touch Screen And PLC Computer Control. 6.Lifting Table Adopt Stepper And
Ball Screw Table. 7.Stacking Table Use PLC Control Quantity. 8.Air Operated Control Table Cut Off.
1.Frequency Control Speed Adjustment of Conveyor. 2.Auto-Counting Function. 3.Container Platform Anti-collision Function. 4.Can
Connect Production Line Linkage or Single Use. 5.Adopt Touch Screen And PLC Computer Control. 6.Lifting Table Adopt Stepper And
Ball Screw Table. 7.Stacking Table Use PLC Control Quantity. 8.Air Operated Control Table Cut Off.
4. Waste Metal Collector
Function:
As a Part of production line , scrap collector play an important role in it. Its primary role is to collect the Excess aluminum foil .
The vacuum adsorb collect system system collects the scrap in a bin and then will compact the aluminium scrap into bales.
Product Features：
Use Vacuum Adsorb Collect system , Easier to collect the Al-foil .
Low Coise , More Greener. Reduce Noise Pollution.
Use Round knife And Flat Cutter To Cut The Materials.
As a Part of production line , scrap collector play an important role in it. Its primary role is to collect the Excess aluminum foil .
The vacuum adsorb collect system system collects the scrap in a bin and then will compact the aluminium scrap into bales.
Product Features：
Use Vacuum Adsorb Collect system , Easier to collect the Al-foil .
Low Coise , More Greener. Reduce Noise Pollution.
Use Round knife And Flat Cutter To Cut The Materials.
optional
conveyor belt
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product Features：
This Packing Machine Mainly Is Used For Baling Cartons, Cotton Yarn, Plastic, Wood, Etc. It Is Designed As Vertical Structure, Hydraulic Transmission, Electrical Control And Manual Binding.
Air Compressor(Optional
Feature:
1.Low-Noise
2.Used For High Production Aluminum Foil Container Making Factory.
3.Support 3-4 Aluminum Foil Container Production Line
1.Low-Noise
2.Used For High Production Aluminum Foil Container Making Factory.
3.Support 3-4 Aluminum Foil Container Production Line
Manual Forklift Semi-Auto Forklift
Piston Type Air Compressor Rotary Screw Air Compressor Gasholder Air Drier
Feature:
1.Economics
2.Used For New Aluminum Foil Container Making Factory.
3.Only Support One Aluminum Foil Container Production Line
. Feature:
1.Low-Noise
2.Used For High Production Aluminum Foil Container Making Factory.
3.Support 3-4 Aluminum Foil Container Production Line
1.Economics
2.Used For New Aluminum Foil Container Making Factory.
3.Only Support One Aluminum Foil Container Production Line
. Feature:
1.Low-Noise
2.Used For High Production Aluminum Foil Container Making Factory.
3.Support 3-4 Aluminum Foil Container Production Line
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing & Delivery
Sample Products
Successful Project
Our Exhibition
After Sales Service
FAQ
GUARANTY PERIOD
One year free , a lifetime warranty after-sale support .
GUARANTY COVERS
Main parts of the machine , wearing parts not included .
PARTS DELIVERY
Within 5 days by DHL / Fexed .
TECHNOLOGY SUPPORT
Techanicans are available for oversea service .
INSTALLATION & COMMISSIONING
Seller can arrange the techanicals to do the installation for buyer if it is necessary.
One year free , a lifetime warranty after-sale support .
GUARANTY COVERS
Main parts of the machine , wearing parts not included .
PARTS DELIVERY
Within 5 days by DHL / Fexed .
TECHNOLOGY SUPPORT
Techanicans are available for oversea service .
INSTALLATION & COMMISSIONING
Seller can arrange the techanicals to do the installation for buyer if it is necessary.
