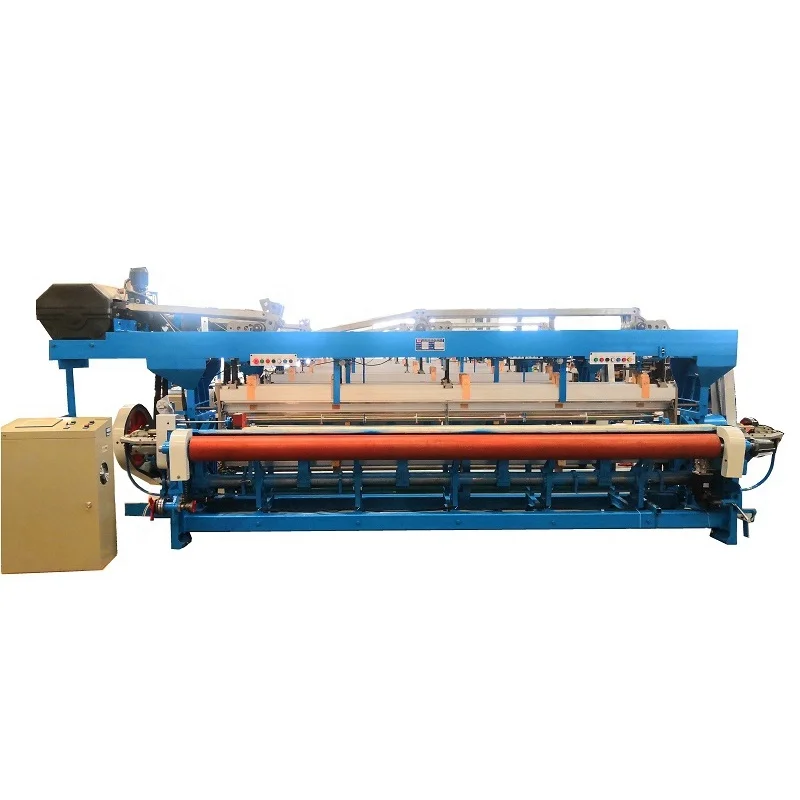

GA736 type flexible rapier loom China shuttleless

Описание и отзывы

Трекер стоимости

Характеристики

GA736 type flexible rapier loom is together with the advantages of various looms from home and abroad at present. it adopts flexible rapier ribbon in weft insertion,controlled by micro-computer,steady performance,lower voice,convenient operation. it can easily weave fabric of plain,twill and heavy fabric. the machine also adopts independent model let-off worm wheel box,short swinging arm movement,four connecting rod beat up,double colth-pressing roller take up,six connecting rod weft insertion,bearing model warp beam foot,large model beam flange.
The main performances and specification
1.Working Width: 180cm 200cm 230cm 250cm 280cm,340cm
2.Working Speed:160-280 r/min
3.Yarn to be woven: cotton,wool,hemp,chemical fibre and its blended
4.Weaving No: chemical fiber 75-1800den., others: 13-195tex
5. Number of head frames: 16 frames
6.Color number of weft yarn: six color (dobby control)
7.Weaving density: 30-800/10cm
8. Selvedge type: doup edge
9. Warp diameter: Φ500mm,Φ550mm,Φ600mm
10. The diameter of fullcloth:Φ400mm
11. Warp position motion:six-row electrical control.
12. Weft position motion: piezoelectric ceramic736.
13. filling insertion:six levers filling insertion,center connection.
14. shedding device:upper mechanicl dobby with spring forced head return.
15. drive system:clutch driven by motor with triangle type belt.
16.take-up:continuous take-up motion.
17. temple:single row copper needle ring roller
18. motor power:2kw
19. electrical control:controlled by micro-computer
