Product Description

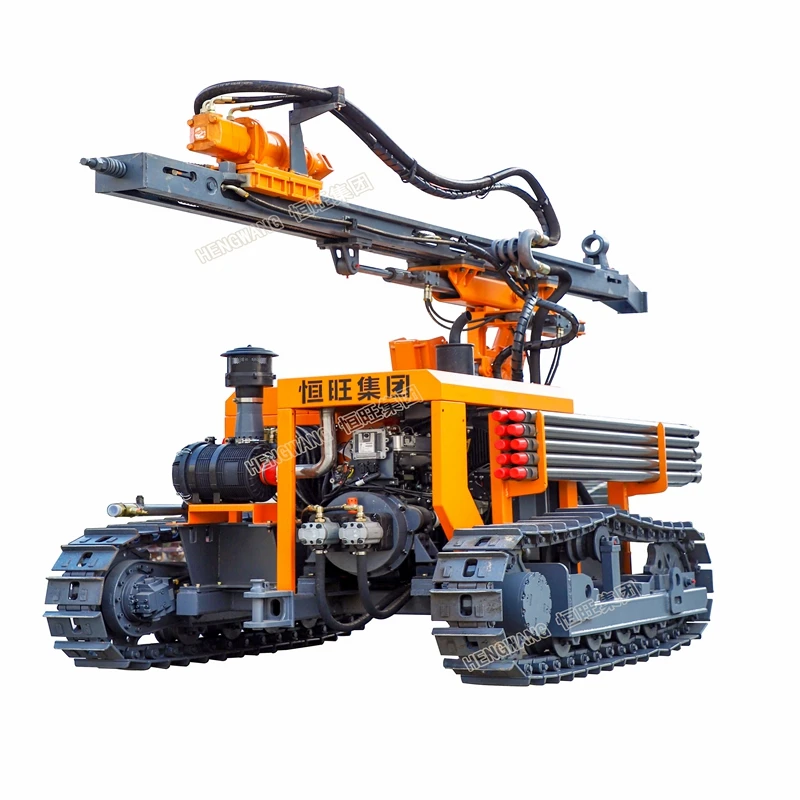

HENGWANG HW410 electric motor 22kw civil engineering dust free blast drill rig
HW410 blasting drill rig operation platform, tramming components, hydraulic system, feed beam & rotary head are upgraded from the original 410C tooptimize the functional capability of the drill rig. Piston tramming motor greatlyincreases the work life of tramming mechanism, Upgraded operation platformcan be controlled by one operator instead of two, to increase the work efficiencywhile lowering drilling cost.
Main Features:
1. HW410 DTH drill rig equipped with Yuchai 4 cylinder Diesel engine or 50 kW Electric motor for 2m drill rod with Φ60mm or Φ76mm, dry dust collector for option.
2. Mine drill rig HW412 is mainly for mine blasting holes with various work conditions.
3. The drill machine with compact structure and low weight and high torque improved for larger hole range drilling and widely used for foundation bolting and anchoring, casing and large hole spiral drilling.
4. HW410 wagon new enclosure design for better appearance and convenient for maintenance and service.
5. Optional dry dust collector for dust free drilling more environment friendly and energy saving.
HENGWANG HW410 electric power 100mm hole DTH surface drilling rig for construction site
Related Products
HENGWANG HW410 electric motor 22kw civil engineering dust free blast drill rig
related products as water well drill machine, pile driver, guardrail press machine, trailer mounted drill rig
Product Paramenters
Parameters of surface blasting hole drill rig HW412
HENGWANG HW410 electric motor 22kw civil engineering dust free blast drill rig
Diesel Engine Specifications | ||||
Rig Model | Power | Rated Power | ||
HW410F | YuchaiYCD4R12T-70 | 50 KW | ||
HW410F-1 | YuchaiYCD4R22T-80 | 59KW (Dust collection system as standard equipment) | ||
HW410D | Electric motor | 22 kW | ||
General Specifications | ||||
Drill Pipe Sizes | 60*2000 mm | |||
Hole range | 90-110 mm | |||
Rotation torque (Max.) | 1,650 N.m | |||
Rotation Speed | 70-120 rpm | |||
Feed Force | 15 kN | |||
Pull Up Force | 25 kN | |||
Feed Type | Chain / cylinder | |||
Tramming Speed (Max.) | 2.5 km/h | |||
Gradient | 25° | |||
Total Weight | 3,800 kg | |||
Transportation Dimensions | 4,900X2,000X2,200 mm | |||
Detailed Images
HENGWANG HW410 electric motor 22kw civil engineering dust free blast drill rig

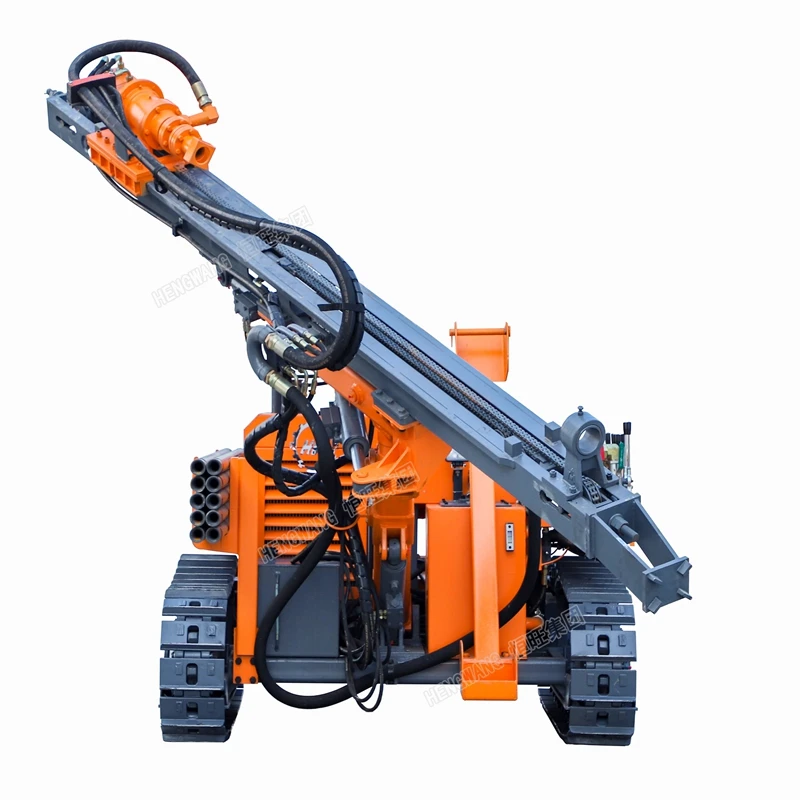

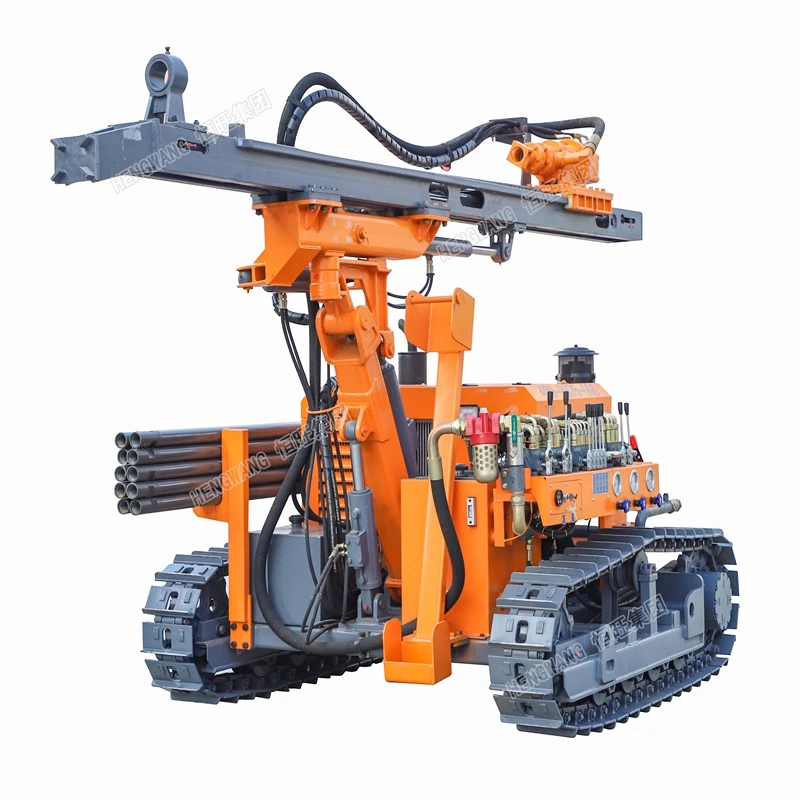

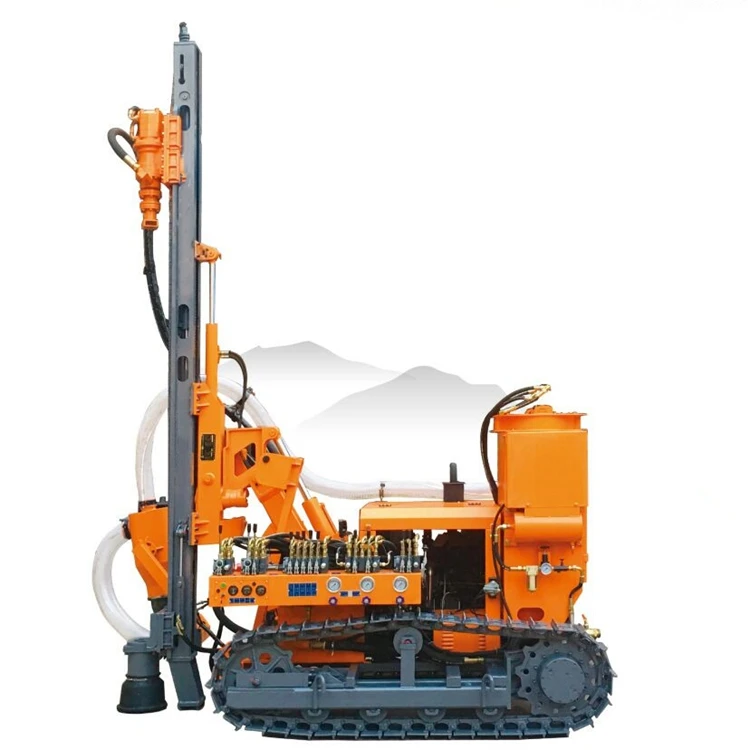

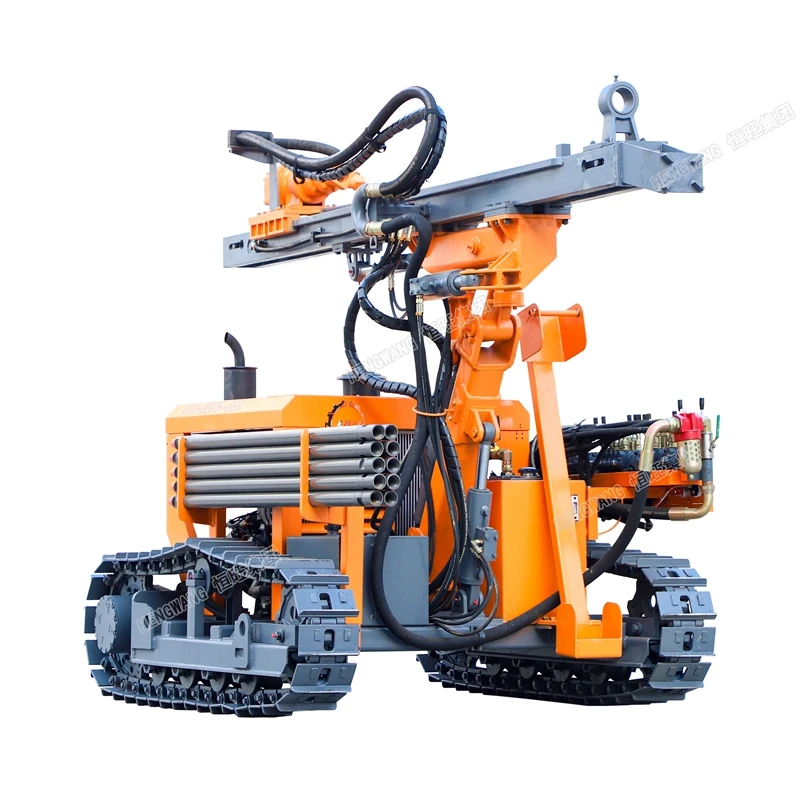

drill rig detail images as follows:
The following is the Down to the hole(DTH) hammer and diamond drill bits used for rock drilling
HENGWANG HW410 electric motor 22kw civil engineering dust free blast drill rig
Working case
HENGWANG HW410 electric motor 22kw civil engineering dust free blast drill rig
