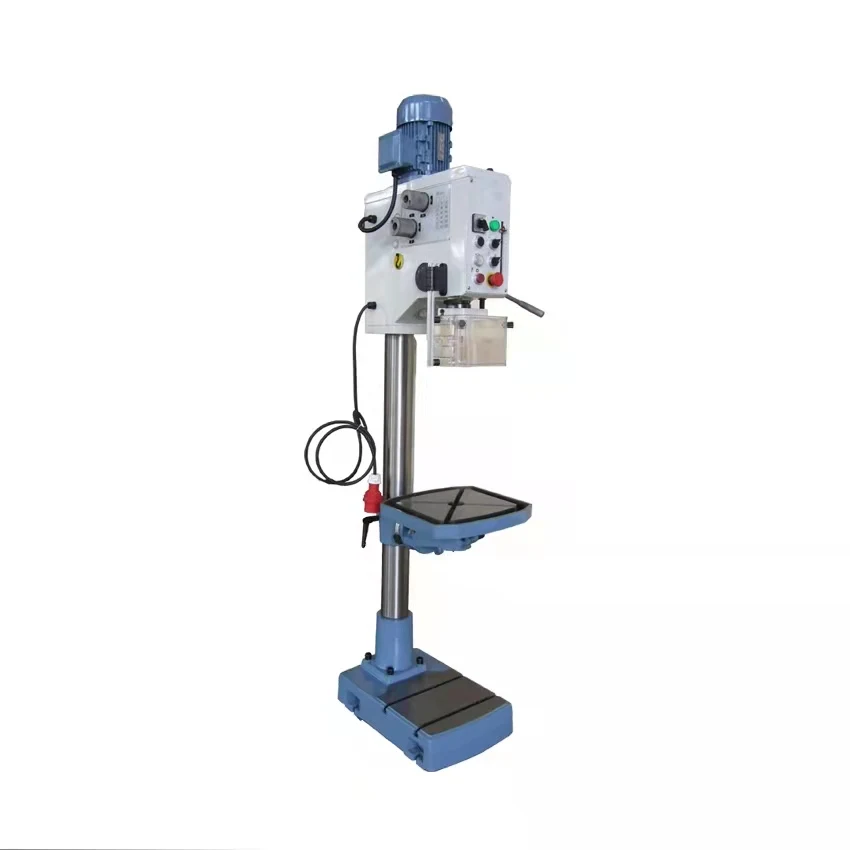

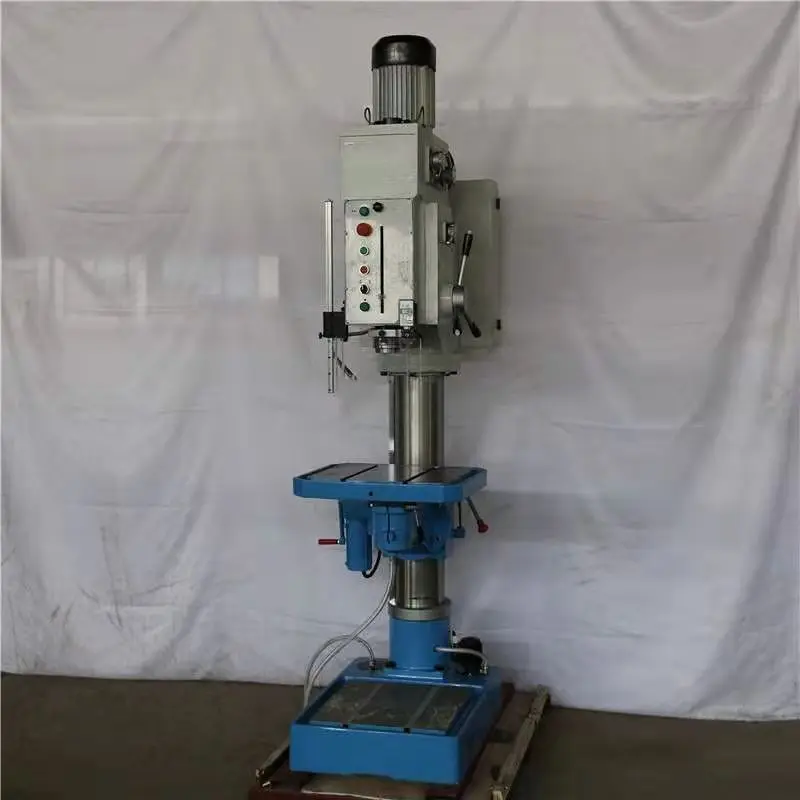

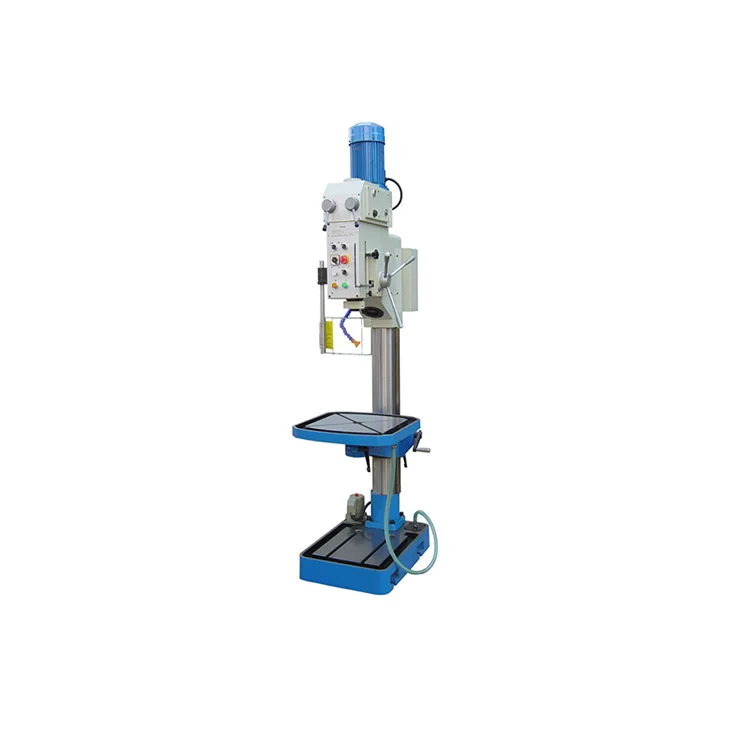

Z5025 25 мм полностью редукторный вертикальный сверлильный станок с автоматической
- Категория: Drilling Machines >>>
- Поставщик: SJR,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.23 $* | 0.12 $* |
| Aug-17-2025 | 0.35 $* | 0.78 $* |
| Jul-17-2025 | 0.43 $* | 0.23 $* |
| Jun-17-2025 | 0.58 $* | 0.83 $* |
| May-17-2025 | 0.67 $* | 0.95 $* |
| Apr-17-2025 | 0.55 $* | 0.41 $* |
| Mar-17-2025 | 0.8 $* | 0.49 $* |
| Feb-17-2025 | 0.2 $* | 0.3 $* |
| Jan-17-2025 | 0.2 $* | 0.82 $* |
Характеристики
Products Description
Drilling machine refers to the machine tool that mainly uses the drill to process holes on the workpiece. Generally, the rotation of the bit is the main motion, and the axial movement of the bit is the feed motion. The structure of the drilling machine is simple, and the machining accuracy is relatively low. It can drill through holes and blind holes, replace special tools, expand, countersink, ream or tap.
Product parameter
Main Specifications:
Maximum Drilling Diameter | 25mm |
Spindle taper | MT3 |
Diameter of column | 100mm |
Maximum Travel Of Spindle | 150mm |
Distance spindle axis to column generating line | 630mm |
Maximum Distance From Spindle Nose To Base Plate Working Surface | 1670mm |
Spindle speed | 100-2900r/min |
Table travel | 560mm |
Overall height | 1900 |
Dimension of worktable surface | φ440mm |
Main motor | 1.1KW |
Coolant motor | 40W |
Weight | 300/290kg |
Packing dimension | 70*56*182cm |
Machine features and scope of application: novel design. Beautiful appearance. Compact structure, wide speed range. Workbench can rotary 180°, can also tilt 45°, wide use. Equipped with cooling device and tapping device. Electrical system meet IEC electrical standards, with short circuit and overload protection.
