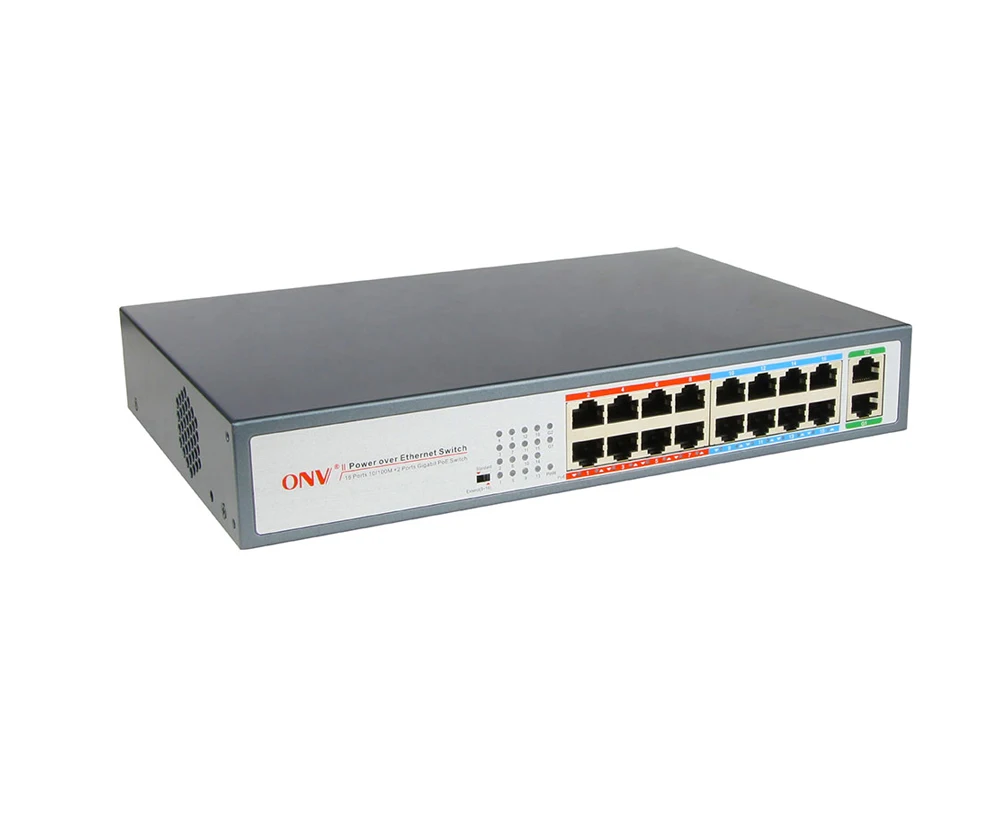

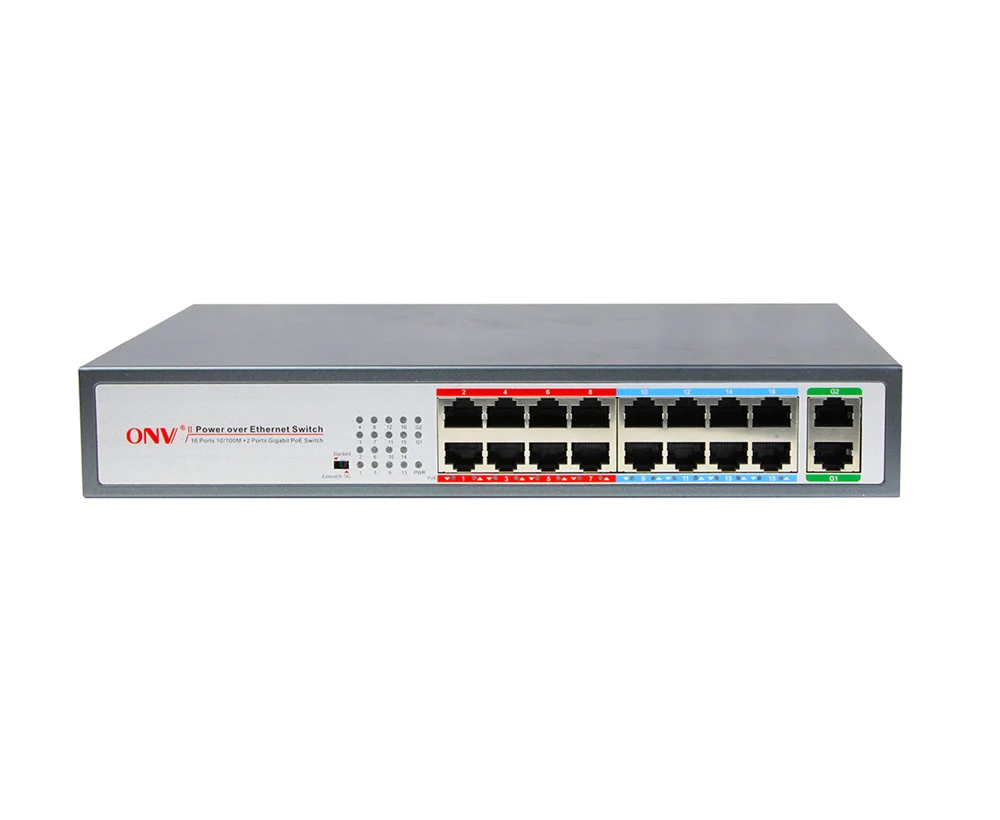

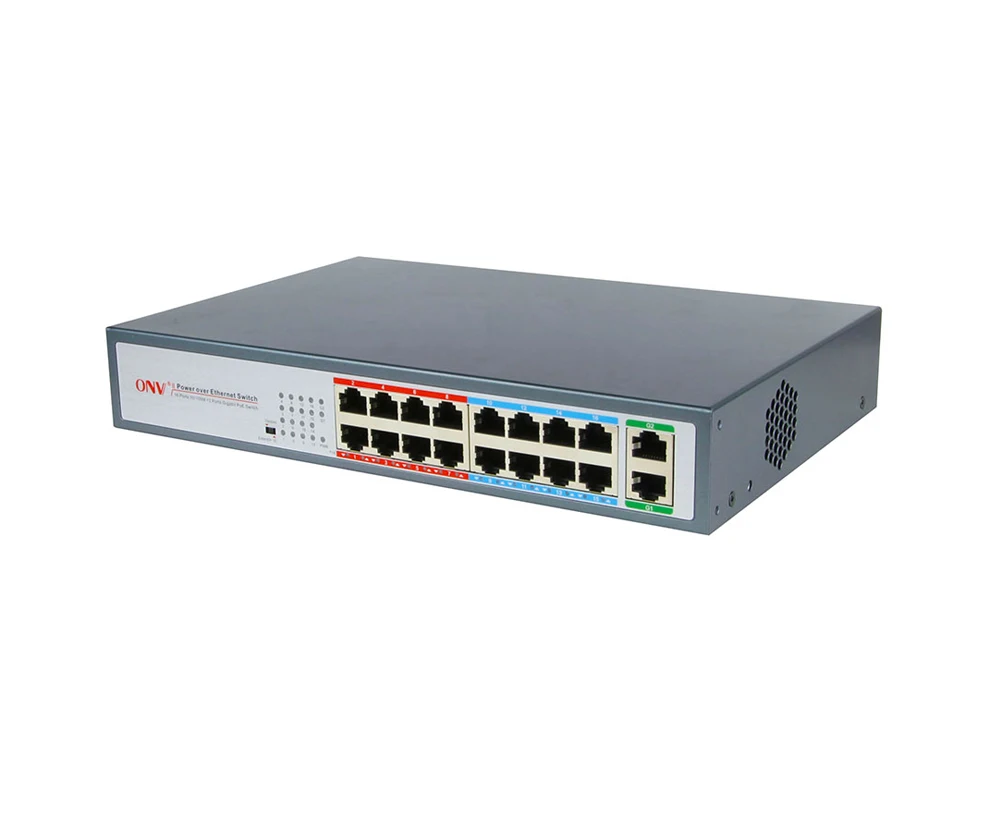

Системы видеонаблюдения 16 портов Gigabit Uplink ethernet poe сетевой

Model

POE31016PL

POE31024PL

Interface Characteristics

Fixed Port

16*10/100Base-TX PoE ports (Data/Power)

2*10/100/1000Base-T Uplink RJ45 ports (Data)

24*10/100Base-TX PoE ports (Data/Power)

2*10/100/1000Base-T Uplink RJ45 ports (Data)

Functional Switch

After opening, port 9-16 support 10M/250 meters long distance transmission.

After opening, port 17-24 support 10M/250 meters long distance transmission.

Note: When the switch status changes, the PoE switch must be restarted for the switch function to take effect.

Ethernet Port

10/100Base-T(X) ,10/100/1000Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive

Twisted Pair Transmission

10BASE-T:Cat5 UTP(≤250 meter)

100BASE-TX:Cat5 or later UTP(≤100 meter)

100BASE-T:Cat5e or later UTP(≤100 meter)

Chip Parameter

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T

IEEE802.3x

Forwarding Mode

Store and Forward(Full Wire Speed)

Switching Capacity

14.8Gbps(non-blocking)

Forwarding

Rate@64byte

5.36Mpps

6.55Mpps

MAC

16K

Buffer Memory

4M

Jumbo Frame

10K

LED Indicator

Power: PWR (green), Network: 1-16(24)/G1-2 (green), POE: PoE (green)

Reset Switch

Yes, One-button factory reset

PoE & Power

PoE Port

Port 1 to 16 IEEE802.3af/at @ POE

Port 1 to 24 IEEE802.3af/at @ POE

Power Supply Pin

Defaul 1/2 (+), 3/6 (-), Optional 4/5(+), 7/8(-)

Max Power Per Port

30W; IEEE802.3af/at

Total PWR / Input Voltage

250W (100-240V)

Power Consumption

Standby<15W,Full load<240W

Standby<20W,Full load<250W

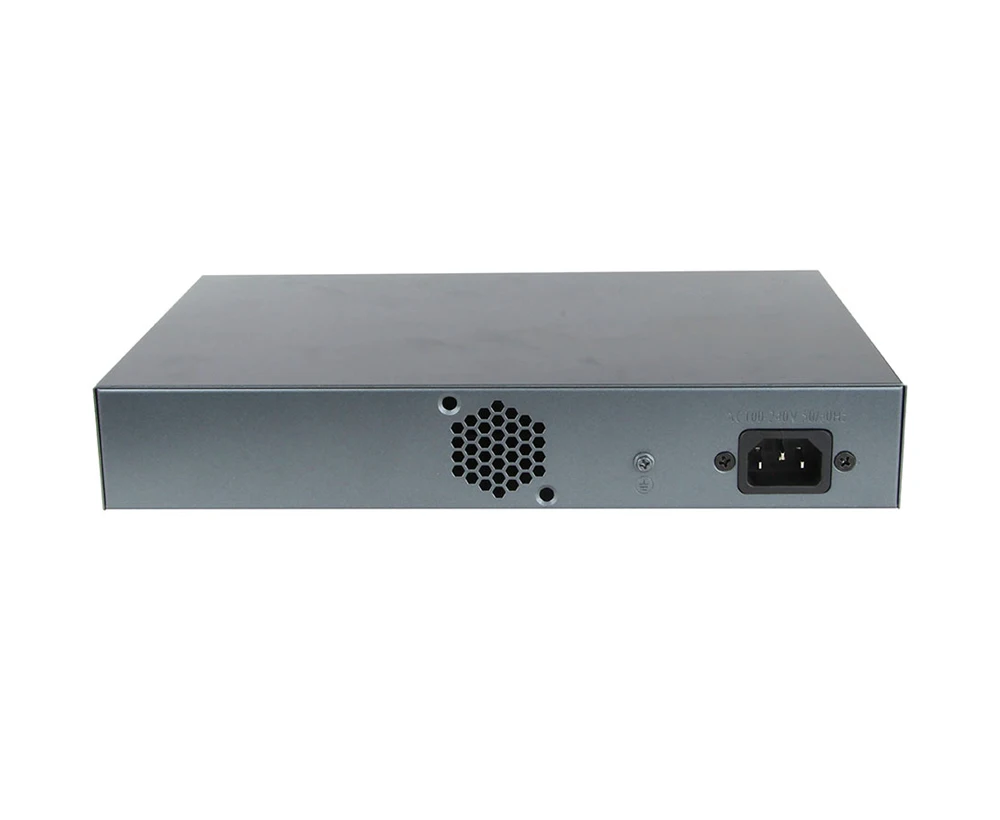

Power Supply

Built-in switching power supply, AC 100 ~ 240V 50-60Hz 4.1A, support short circuit, over current, overload protection

Physical Parameter

Operation TEMP / Humidity

-20~+55°C, 5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+75°C, 5%~95% RH Non condensing

Dimension (L*W*H)

270*171*44.5mm

330*204*44mm

Net /Gross Weight

<1.7kg / <2.2kg

<2.3kg / <3kg

Installation

Desktop, wall mounted,19 inch 1U cabinet

Certification & Warranty

Lightning protection / protection level

Lightning protection: 4KV 8/20us, Protection level: IP30

Certification

CCC,CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS

Warranty

3 years, lifelong maintenance.
