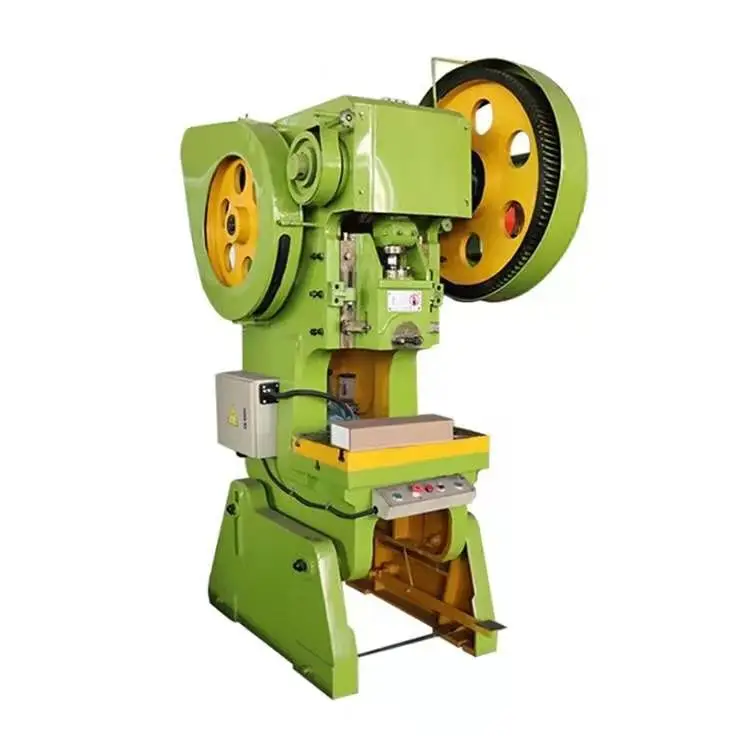

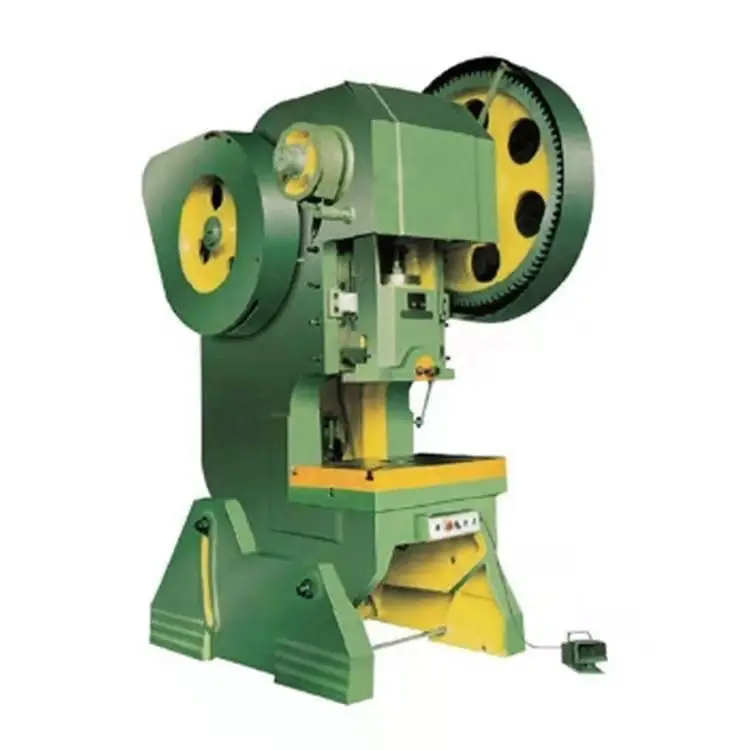

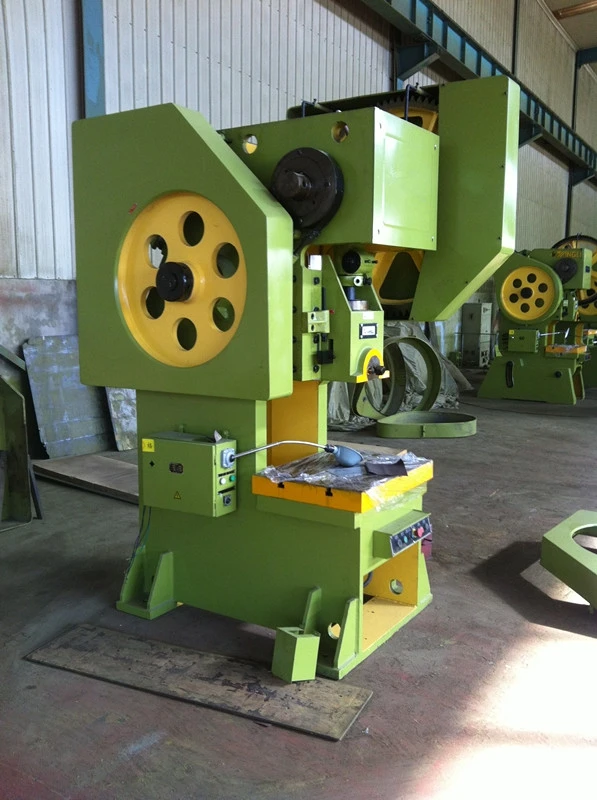

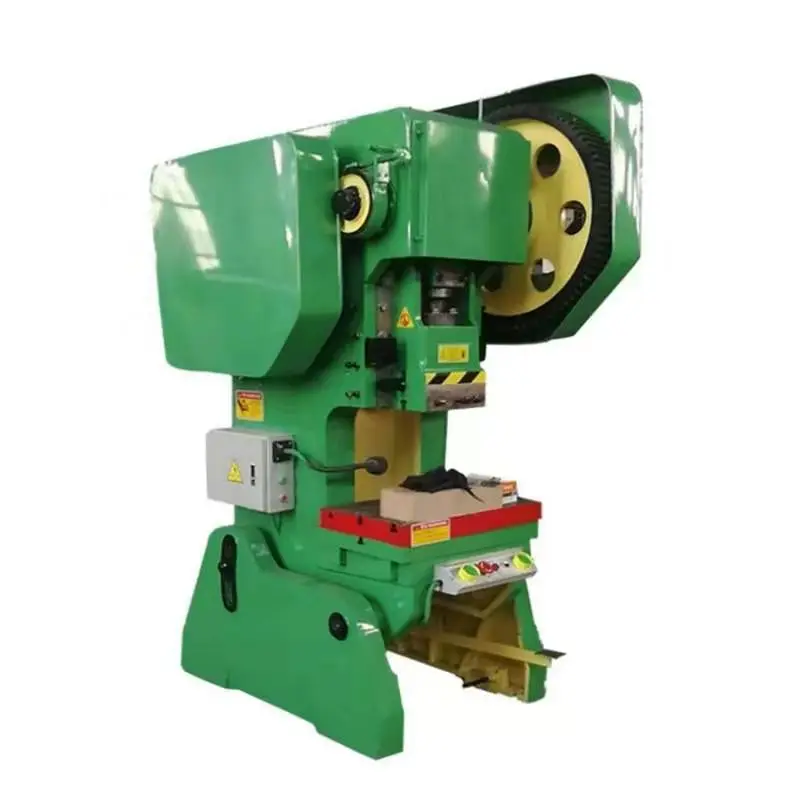

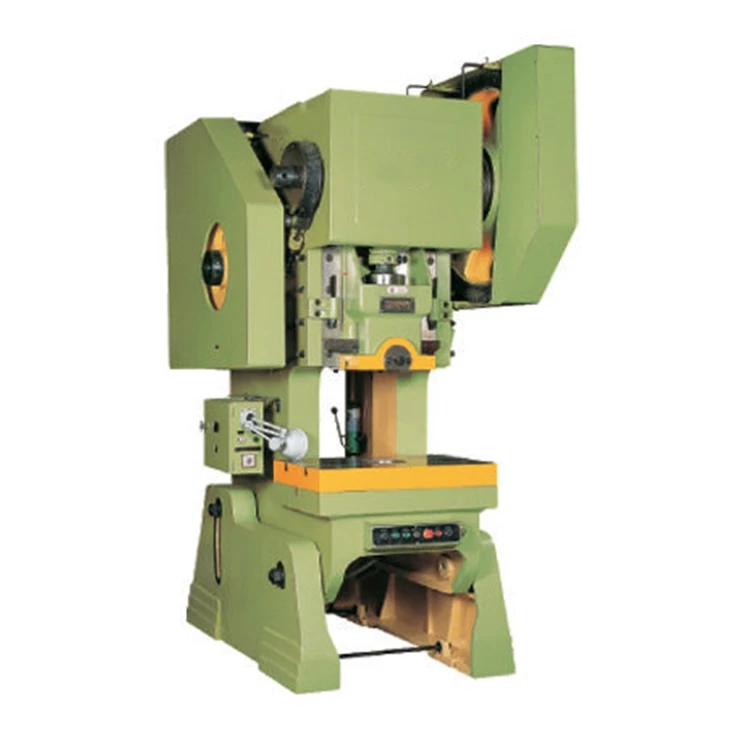

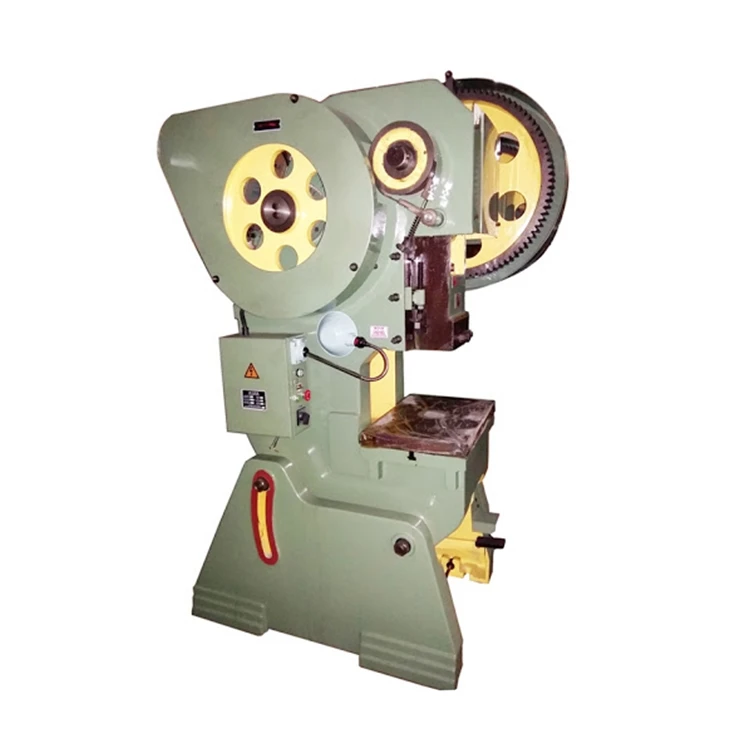

Открытая спина Наклонный пресс машина силовой с регулируемым
- Категория: Punching Machines >>>
- Поставщик: Almaco,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.16 $* | 0.46 $* |
| Aug-17-2025 | 0.83 $* | 0.44 $* |
| Jul-17-2025 | 0.83 $* | 0.66 $* |
| Jun-17-2025 | 0.10 $* | 0.57 $* |
| May-17-2025 | 0.19 $* | 0.49 $* |
| Apr-17-2025 | 0.44 $* | 0.51 $* |
| Mar-17-2025 | 0.22 $* | 0.74 $* |
| Feb-17-2025 | 0.40 $* | 0.55 $* |
| Jan-17-2025 | 0.29 $* | 0.15 $* |
Характеристики
Products Description
Features:
⭐Adopts horizontally placed crankshaft.
⭐Stroke adjustment device mounted on crankshaft.
⭐Combined dry type pneumatic friction clutch and brake.
⭐Manual shut height adjustment with scale display.
⭐MPS-100 and above adopts lifting balance device
⭐Safety Duplex valves.
⭐Control by PLC with international brand.
⭐Stroke adjustment device mounted on crankshaft.
⭐Combined dry type pneumatic friction clutch and brake.
⭐Manual shut height adjustment with scale display.
⭐MPS-100 and above adopts lifting balance device
⭐Safety Duplex valves.
⭐Control by PLC with international brand.
⭕High position accuarcy:most suitable for machining parts such as dies,drilling or boring
⭕wider range of application:drilling, boring, medium-load milling, scribing,scaling and measuring all are ok
⭕various sizes of table:three standard sizes and much more amounts of size just as your requirement
Application
A. Pressing and withdrawing axle and sleeve
B. Bending and deep drawing sheet metal
C. Straightening, forming, cutting and punching various materials
D. Applied in compression trial.
E. External cover of computer and sheet metal parts
F. OA steel furniture drawer and rail parts
G. External cover of air conditioner and sth. liked.
B. Bending and deep drawing sheet metal
C. Straightening, forming, cutting and punching various materials
D. Applied in compression trial.
E. External cover of computer and sheet metal parts
F. OA steel furniture drawer and rail parts
G. External cover of air conditioner and sth. liked.
MP-6.3 | MP-10 | MP-16 | MP-25 | ||
Capacity | kN | 63 | 100 | 160 | 250 |
Nominal Force | mm | 3 | 4 | 5 | 5 |
Slide Stroke | mm | 35 | 60 | 55 | 80 |
SPM | min-1 | 170 | 145 | 125 | 60 |
Max. Die Height | mm | 110 | 130 | 160 | 180 |
Die Height Adjustment | mm | 30 | 35 | 45 | 70 |
Between Slide Center & Frame | mm | 110 | 130 | 160 | 210 |
Bolster (FB×LR) | mm | 200×310 | 240×360 | 300×450 | 400×600 |
Bolster Opening | mm | Φ60 | Φ120×20 | Φ100 | Φ120 |
Bolster Thickness | mm | 40 | 50 | 40 | 70 |
Bolster Opening (Dia.×FB×LR) | mm | Φ140×110×160 | Φ130×90×180 | Φ210×160×240 | Φ180×130×260 |
Slide Area (FB×LR) | mm | 120×140 | 150×170 | 180×200 | 210×250 |
Shank Hole (Dia.×Dpth) | mm | Φ30×55 | Φ30×55 | Φ40×60 | Φ40×70 |
Max. Inclined Angle | ° | 30° | 25° | 25° | 25° |
Between Columns | mm | 150 | 180 | 220 | 260 |
Motor Power | kW | 0.75 | 1.1 | 1.5 | 2.2 |
Net Weight | kg | 360 | 600 | 1080 | 1900 |
