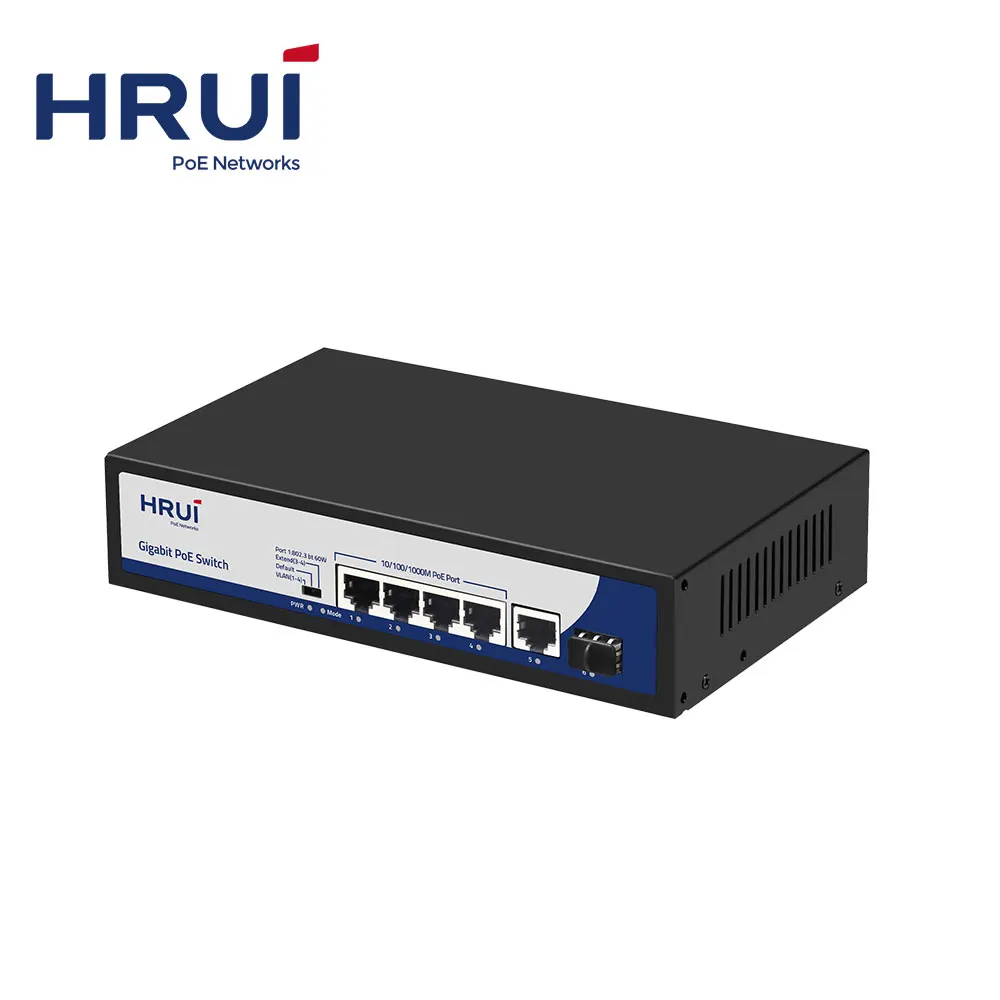

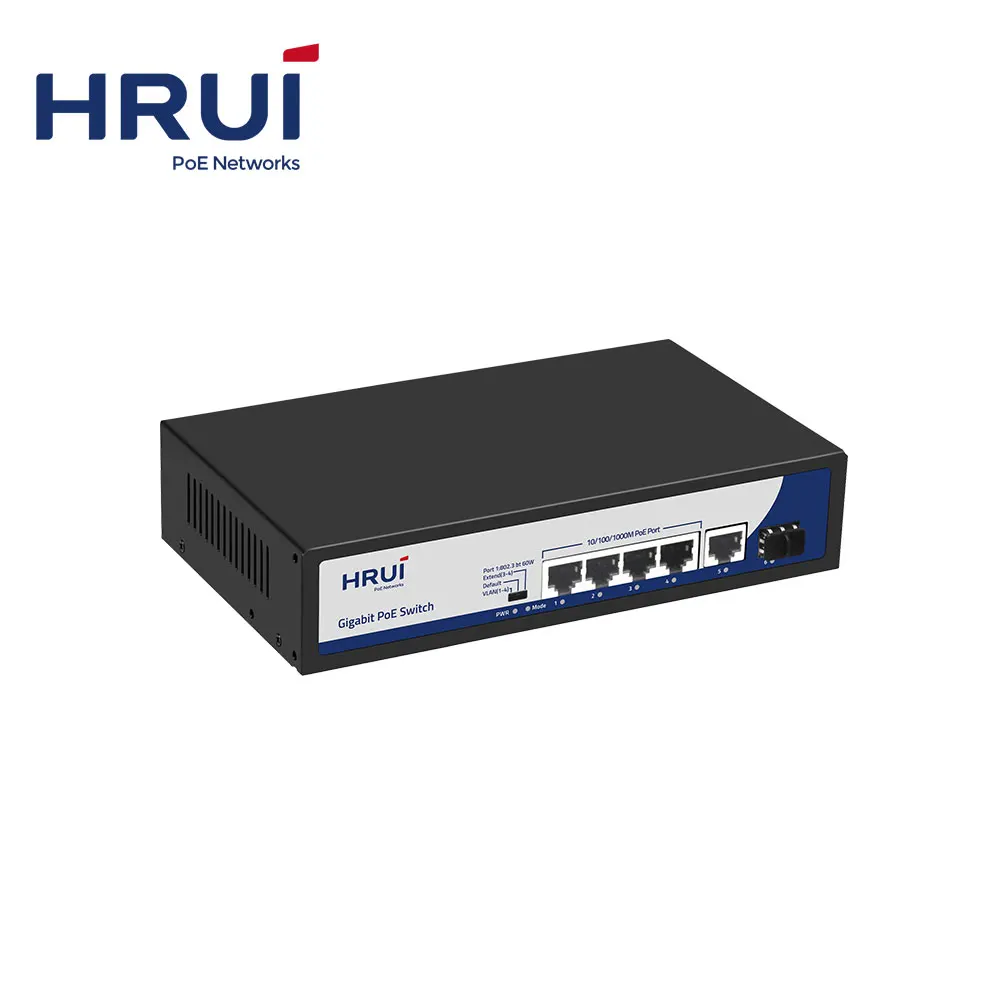

Full Gigabit Fast Network PoE Switch 4 Port for CCTV IP

Specifications

I/O Interface

Power

Input: AC 100-240V, 50/60Hz

Ethernet

4 Port 10/100/1000M PoE +1 Port 1000M RJ45+1 Port 1000M SFP

Performance

Switching Capacity

12 Gbps

Forwarding Rate

8.928Mpps

Packet Buffer

1Mb

MAC Address

2K

Jumbo Frame

9216bytes

Transfer Mode

Store and forward

MTBF

100000  hours

Standard

Network protocol

IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3x

PoE Protocol

IEEE802.3af (15.4W)

IEEE802.3at (30W)

IEEE802.3bt (60W)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT),EN61000-4-5 (Surge)

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Network Medium

10BASE-T: Cat 3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or more UTP (≤100 meter)

1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Optical Media

Multimode fiber  : 50/125,62.5/125,100/140um

Single mode fiber : 8/125,8.7/125,9/125,10/125um

Protection

Certificate

CE,FCC,RoHS

Environment

Environment

Working Temperature:-20~50°C

Storage Temperature:-40~85°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~90%,non-condensing

Working Height:Maximum10,000 feet

Storage height:Maximum 10,000 feet

Physical Features

Dimension

Product Dimension (L*W*H): 200*118*44mm

Package Dimension (L*W*H): 245*190*60mm

N.W:0.6kg

G.W:0.9kg

Packing Info

Carton MEAS:505*320*402mm

Packing Qty:20 units

Packing Weight:19KG

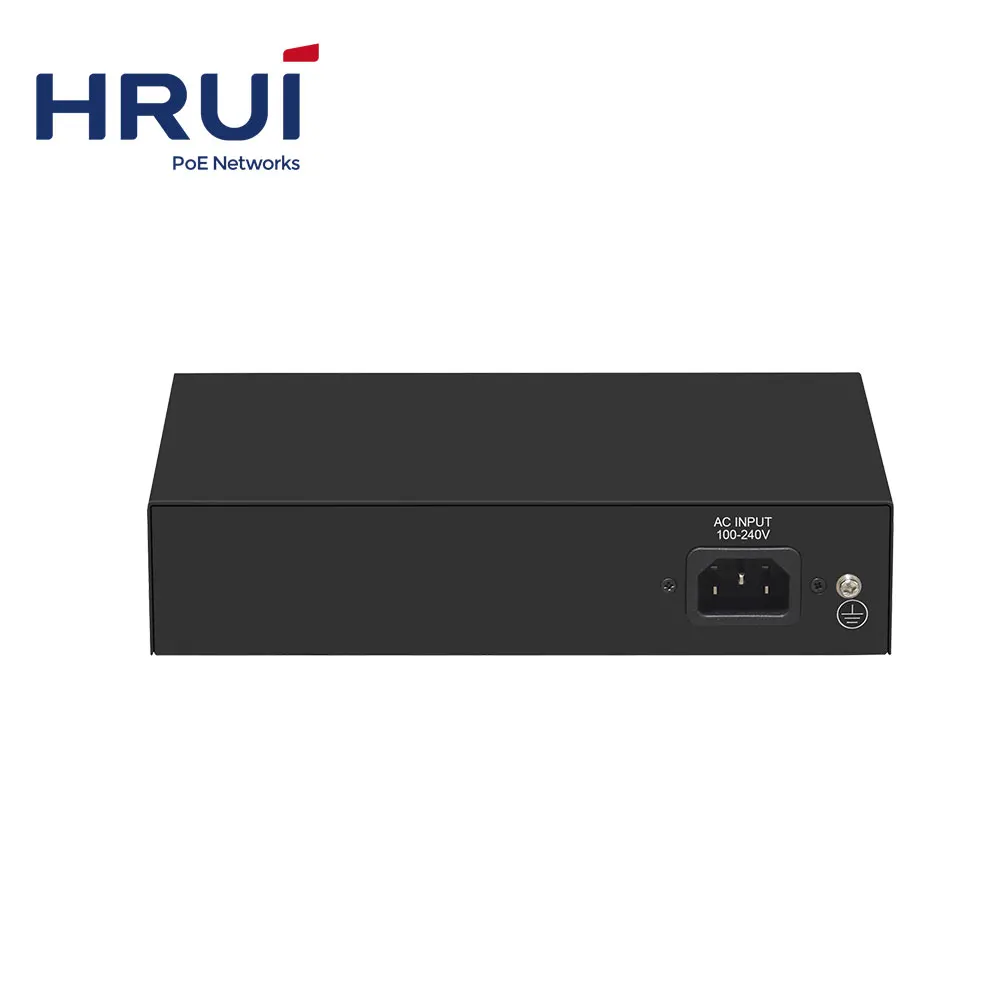

Power Voltage

Input Voltage :AC 100-240 V

Power supply:52V1.25A/52V2.3A

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc

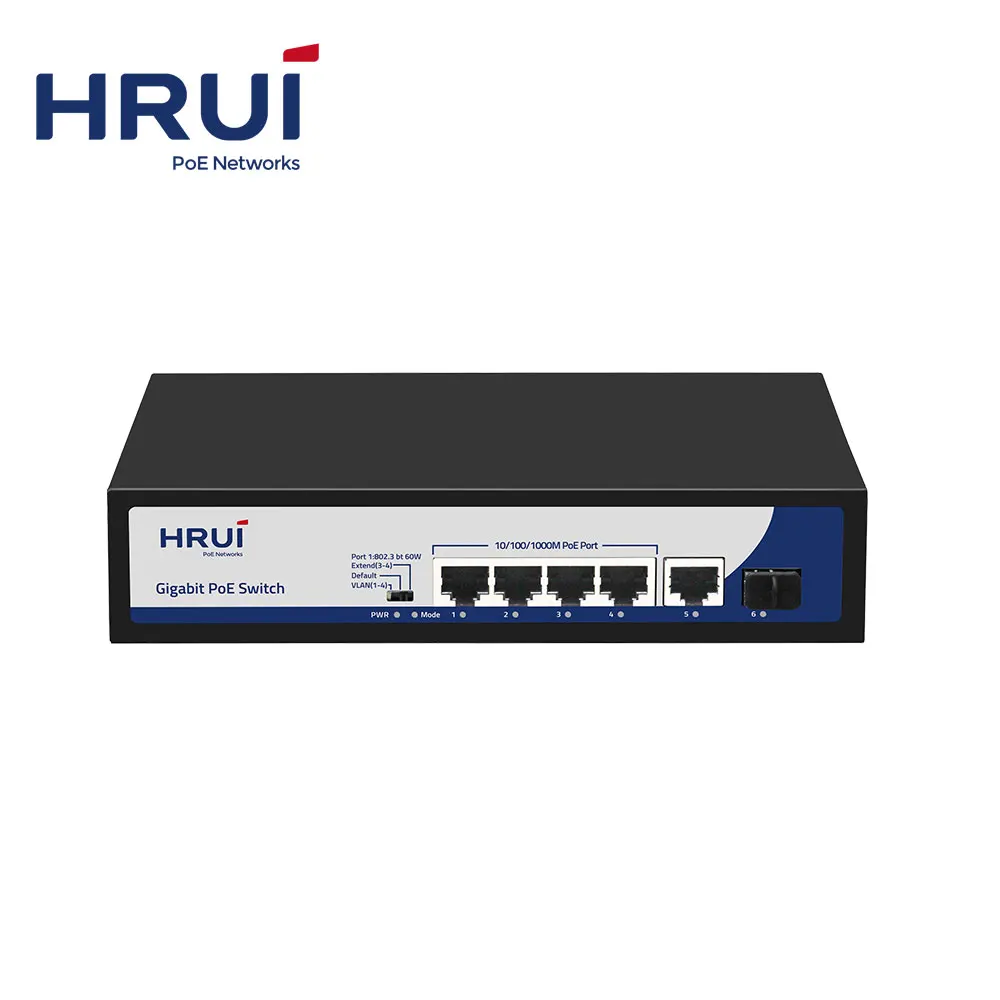

Indicators

DIP Switch

VLAN : Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Default : Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100/1000M adaptive;

Extend : Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

LEDs

PWR(power supply),Mode(DIP),1-6(Link&Data)

Ordering Info

HR902-AXG-411NS-65

6-Port Gigabit PoE Switch (52V1.25A)

HR902-AXG-411NS-120

6-Port Gigabit PoE Switch (52V2.3A)
