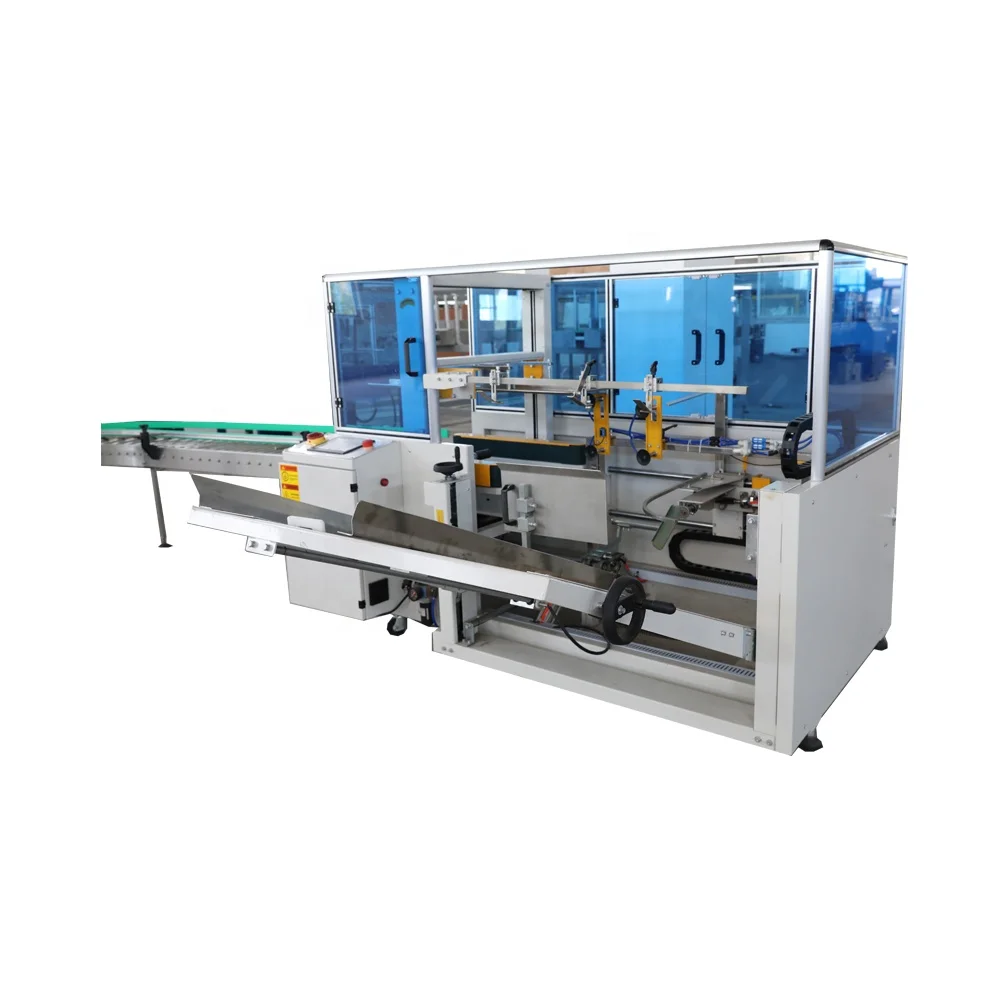

Automatic Carton Box Making Machine case Packing

Product capacity:15carton per minute

15KW

Rating power: 15KW

380V,50Hz;

Used power supply: three phase,380V,50Hz

Controlling power supply: 24V DV

Compressor air:1500L per minute, 0.6-0.8Mpa

Hot melting glue solidify time: 1.5-2S

Machine weight: 4000kg

Overall size: L6285*W2582*H2115MM

Bottle entry conveyor size: L3000*W620*1200MM

Package product overall size: Length 350-450,Width 230-300mm, Hieght:85-320mm;

Package bottle diameter: D55-108MM

Cardboard requirement: accord with international GB/T6544-2008

Machinery Structure



Carton package procedure flow:

Bottle are separated to multi channel at conveyor, and then group by bottle separate fracture evenly. Bottle are grouped , then drop to cardboard via bottle drop fracture. At drop fracture with bottle and cardboard fall procedure, via one group of form block board, then card board fold to carton form. Via main drive with carton move forward, at the same time, via glue spray fracture to finish carton top glue spray, again the cam fracture via top ledge fold, at the same top carton fold to finish top sticking. Carton move forwarder, again via glue spray fracture to finish carton side glue spray, and via side pressure and carton press fracture to finish carton finally form and sticking, and via main drive let carton move forwarder to conveyor .

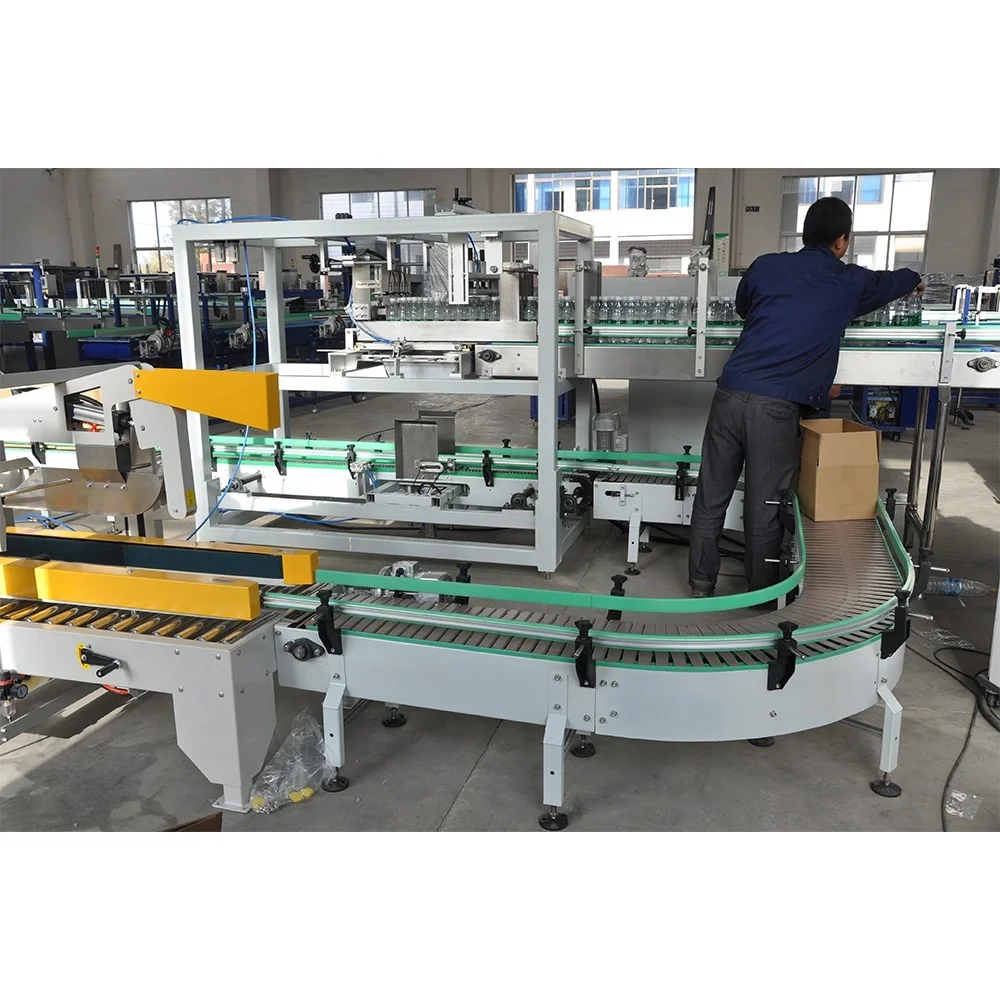

Cardboard Packaging Machine carton wrap-around packer For Bottles Machine configuration

Bottle transportation fracture

The part adopt to our country good brand motor and reduction gear motor separate move, via Japan Mitsubishi frequency convertor realize speed adjust. Bottle entry conveyor adopt to high module, low abrasion, make out via lubrication engineering plastic. For each details super design, to ensure character steadily. To ensure production continue, steadily movement. Bottle Before package, system will check package zone if have bottle lack, bottle inverse phenomena, bottle dropping fracture auto stop bottle drop and system will display.

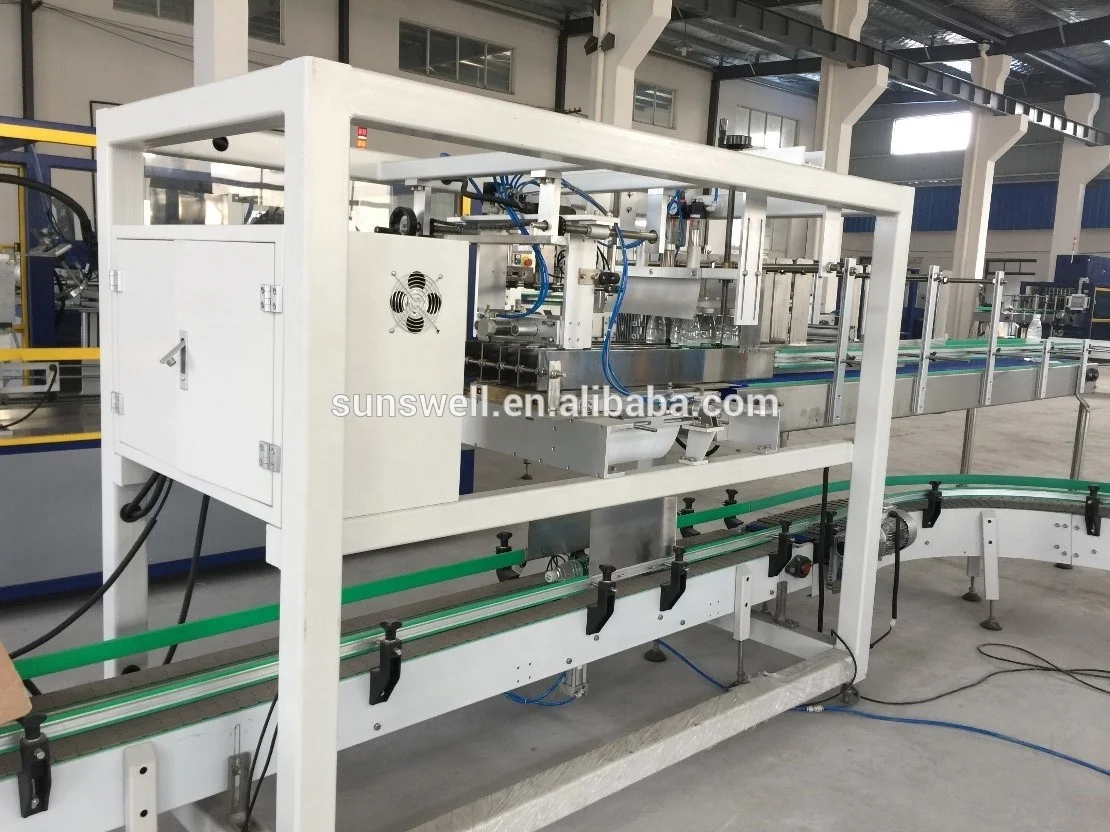

bottle drop fracture

While photoelectric detect bottle and cardboard also be transported to bottle bottom, at this time, cylinder will push bottle dropping fracture, machine force section load cylinder reduce pressure, let bottle quickly drop to cardboard from bottle drop interval.

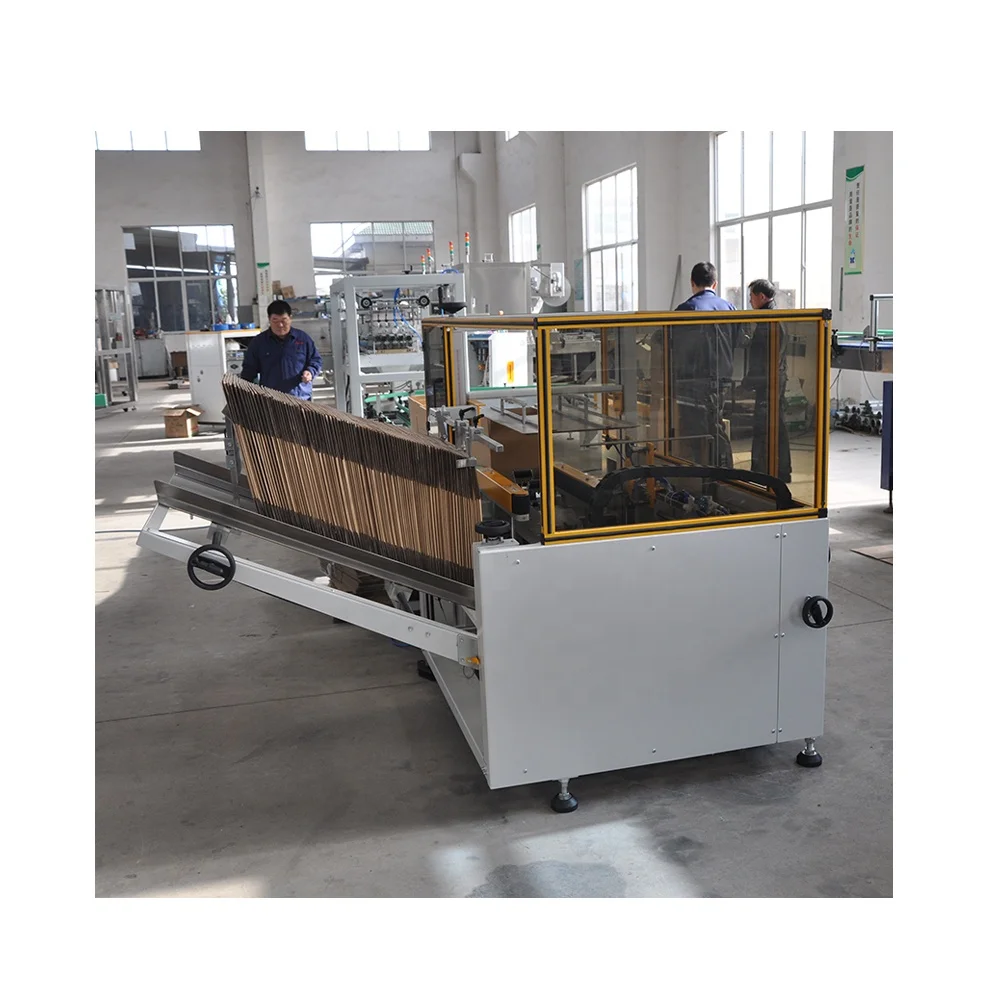

cardboard transportation fracture
Cardboard fracture is for saving cardboard and let cardboard transport to the bottle drop bottom position fracture. And on it load cardboard saving quantity inspection fracture, when saving quantity above on an quantity, system will indict manipulation worker to add cardboard. Via promote and demote cylinder enhance board absorb  (FESTO vacuum start component produce vacuum), save cardboard one by one absorb cardboard, right conveyor cardboard cylinder conveyor to cardboard leading groove. Via reduce motor drive transmission wheel let cardboard leading groove cardboard, via top and bottom V type conveyor belt to bottle dropping fracture bottom.

 carton dropping fracture
Via servo motor via wheel gear in phase device , let left and right two group in phase uplift to cardboard bottom and let card board absorb, and when bottle separation device let bottle top cardboard, again via servo motor drive in phase device dropping, at the same time left and right two group absorb plate absorb card board, bottle finally drop to main drive conveyor chain force and back clip carton chain middle.
