Product Description

1,Dual analog channels width range 1mV/div~20V/div;
2,7 inches widescreen LCD displays;
3,The new interface style;
4,Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5,USB drive system software upgrade;
6,Storage of waveforms setups and interfaces waveforms and setups reproduction;
7,Automatic measurement of 32 waveform parameters;
8,Unique waveform recording and replay function;
9,Multilingual menu displays.

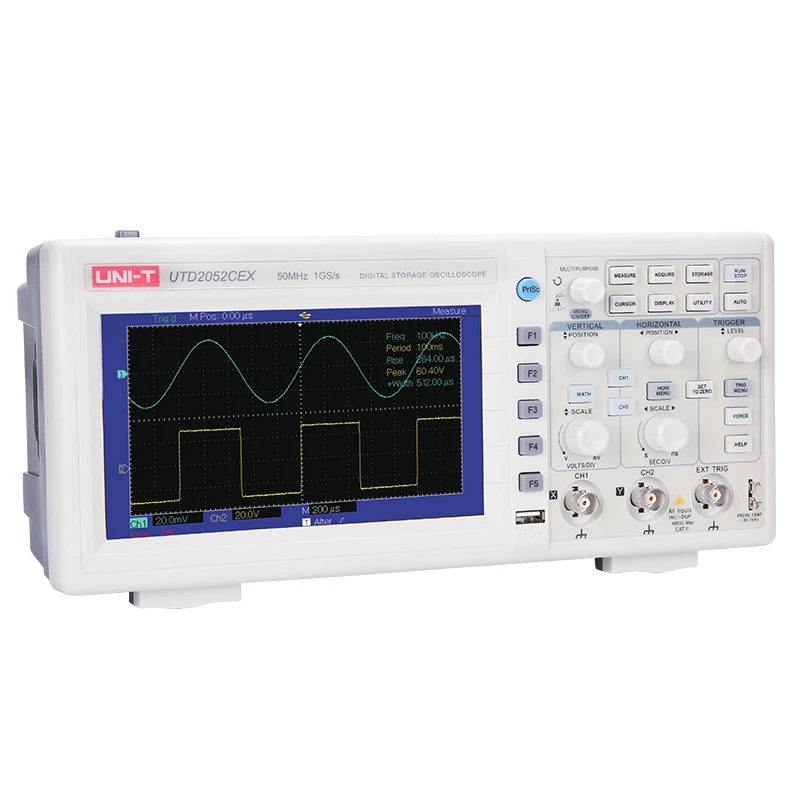

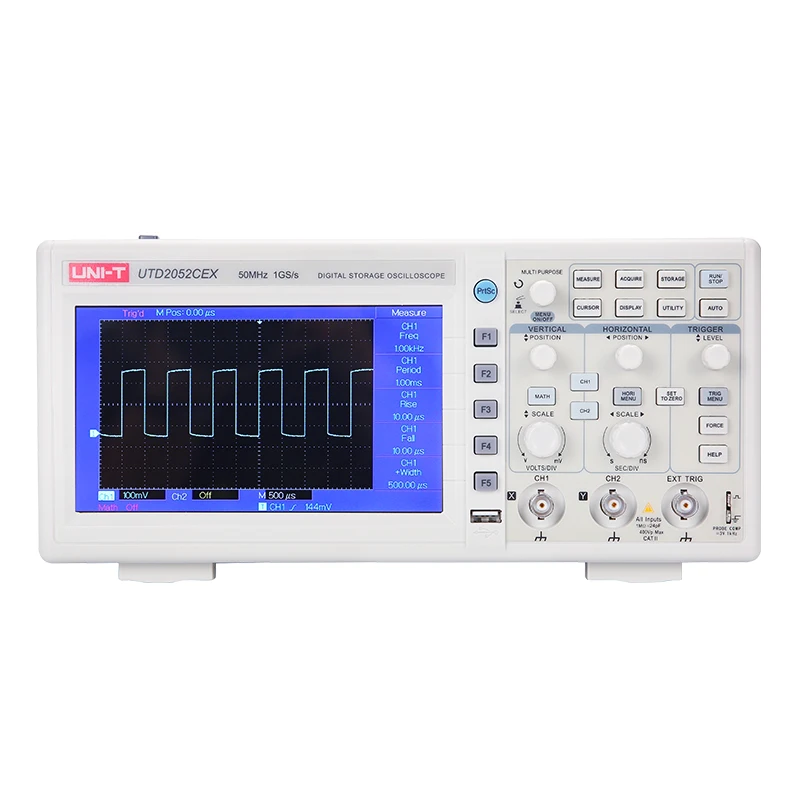

Specification	UTD2052CEX
Channels	2
Bandwidth	50MHz
Sample Rate	1Gs/s
Rise Time	7ns
Memory Depth	25kpts
Waveform Acquisition Rate	2000wfms/s
Vertical Sensitivity(V/div)	1mV/div~20V/div
Timebase Range(s/div)	2ns/div~50s/div
Storage	Setup,Wave,Bitmap
Trigger Modes	Edge, Pluse, Video,Slope,Alternate
Interface	USB OTG
Power	100-240VAC, 45-440Hz
Display	7 Inches 64K Color TFT LCD, 800×480
Product Color	White and Gray
Product Net Weight	2.2 Kg
Product Size (W×H×D)	306mm ×147mm × 122mm

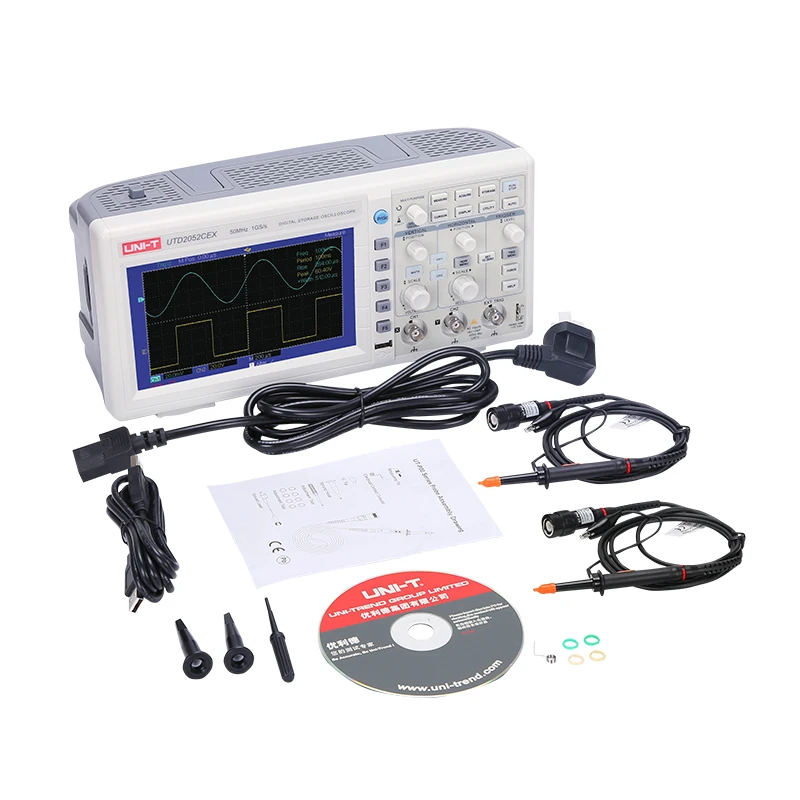

Standard Accessories	Probe×2 (1×,10× switchable), Power Cord , USB Cable, PC Software CD
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	2 PCs
Standard Carton Measurement (L×W×H)	450mm× 420mm × 280mm
Standard Carton Cross Weight	8.5 Kg
Optional Accessories*
