Характеристики
SMT880 Intrduction

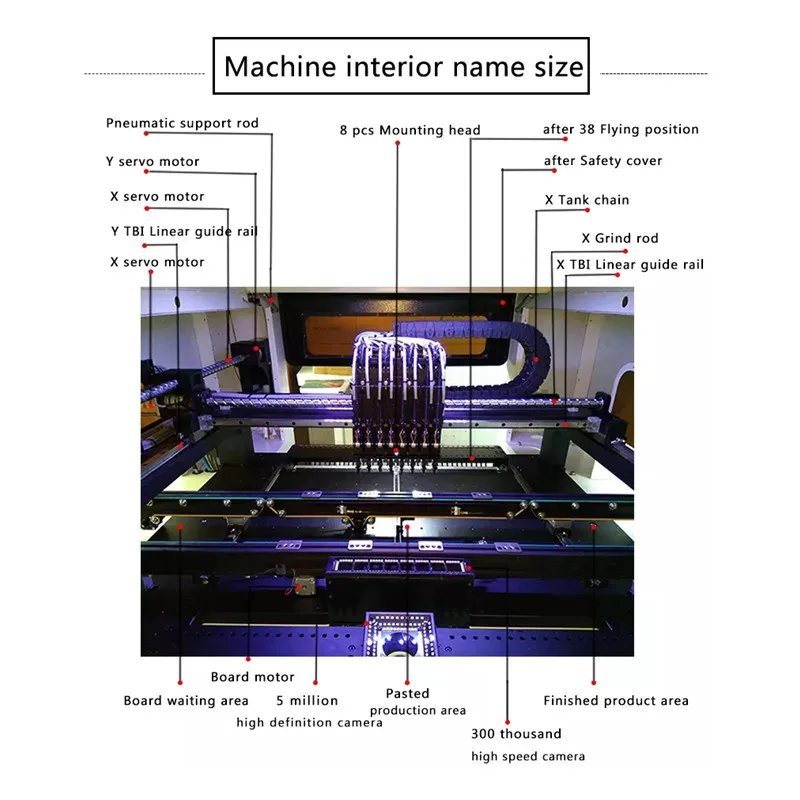

The machine SMT880 with 8 heads+10 cameras+80pcs feeders+Three stage track+Panasonic servo motor+Screw guide.
SMT880 Feature
1.Three stage track.
2.Panasonic servo motor.
3.Screw Guide.
4.8 Heads+10 cameras +80 feeders.
SMT880 Packing List
1.Pick and place machine:1 Set
2.IC fixed support:4 Set(Four M5*8,Four M5*20 screw)
3.JUKI nozzle:20Pcs(502*4，503*6，504*6，505*3，506*1)
4.Solid alibrate nozzle:8 Pcs
5.Power wire:1 Pcs(A machine external power supply)
6.Fixed foot:4 Pcs(Three coats)
7.The keyboard and mouse:1 Set
8.Nozzle calibration inkpad:1 box
9.Lubricant:1 Pcs
10.I3 industrial control PC (with key):1 Set
11.17 inch liquid crystal display:1 Set(Display*1, VGA line*1, power line*1)
12.Bracket:2 Set(Display bracket*1 keyboard and mouse bracket*1)
13.Conveyor connection line:2 Pcs
14.Camera parameter adjustment line:1 Pcs(Plug*3)
15.Handle:2 Pcs(M4*6 screw*6)
15.Handle:2 Pcs(M4*6 screw*6)
16.Seal ring of feeder:10 Pcs
The SMT880 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The SMT880 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The SMT880 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
Product Paramenters
Specification | ||
Number of feeders | 80 | |
Number of IC tray | 8 | |
Number of cameras | 10 | |
Number of heads | 8 | |
Average power | 1000W | |
Automatic board | Three-stage track | |
Guide | Screw guide | |
Maximum mounting speed | 15000 Pcs/h | |
Average mounting speed of actual mounting resistance | 12000 Pcs/h | |
Maximum travel scope in Z axis | 20mm | |
Maximum circuit board area | 500×455mm | |
Positioning precision | 0.01mm | |
The buffer range of suction nozzle | 4.5mm | |
Place height | 20mm(Option) | |
Weight | 600KG | |
Dimension | 1420*1370*1350mm | |
Power supply | 110V/220V, 50/60Hz | |
Compressed air | 0.5-0.6Mpa | |
Drive motor | Panasonic servo motor | |
Motion drive system | Panasonic high-speed DSP drive | |
Recognition mode | Simultaneous recognition of eight heads | |
Vacuum source of suction nozzle | High-speed on-off vacuum generator with vacuum breaker | |
Operating system | Full-automatic chip mounter operating system operating system. | |
Independently developed by us based on Windows operating system | ||
Supports windows xp, win7 | ||
Element angle | 0-360°synchronous rotation during movement | |
X/Y operation mode | Intelligent curve of the linear acceleration and deceleration linkage | |
MARK point positioning | Full-automatic (the MARK point can be adjust at will) | |
Intelligent alarm | Automatic correction, automatic filling, feeding shortage alarm | |
Plate entering mode | Automatic connection from left to right in single sections | |
Automatic PCB transfer positioning/plunger positioning, manual plate feeding | ||
Visual display | 17-inch industrial control display, 4:3, resolution: 1280 x1024 | |
Number of recognition cameras | One Mark recognition camera, four quick-recognition cameras | |
One precise-recognition camera. | ||
Adaptive mounting scope | Adaptive to 0201 0402, 0603, 0805, 1206, diode, audion, SOT, QFP | |
Within 40*40mm and the pin distance ≥0.3mm (0.5mm center distance) and BGA. | ||

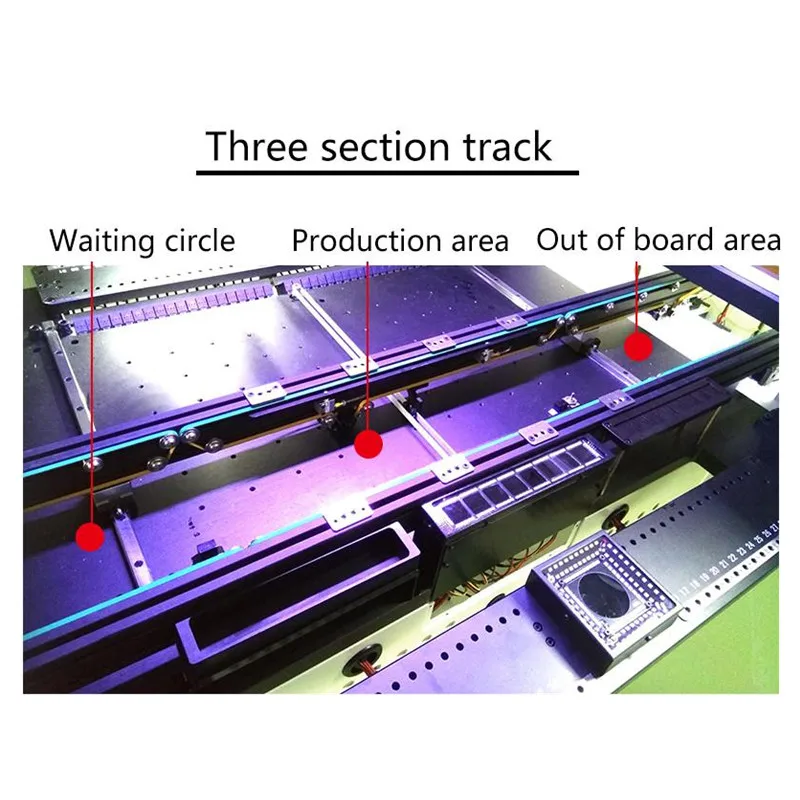

Three-stage track

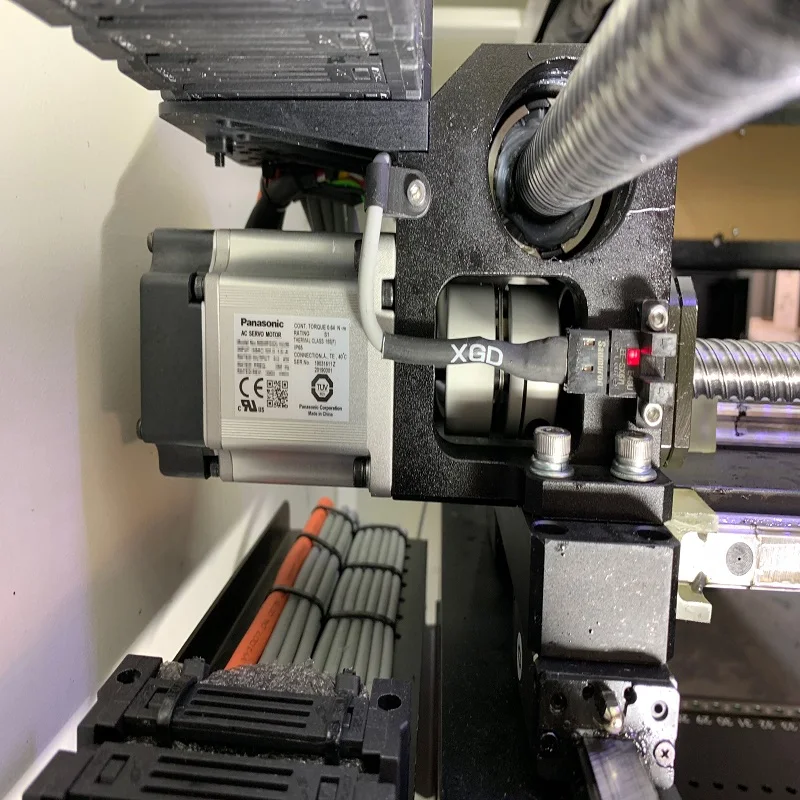

Panasonic Servo Motor

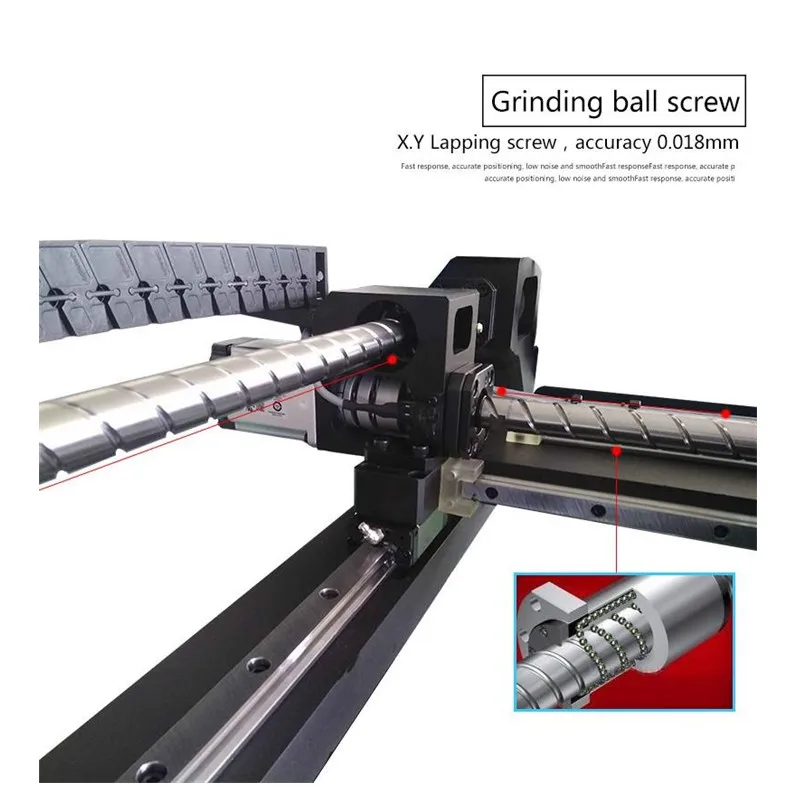

Screw Guider
Packing details
Certifications
Wenzhou Yingxing Technology Co.,Ltd Specialises in SMT Production Line (PNP Machine）more than 9 years
Our Services
1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts（With 1 YEAR warranty）
2.24-hour online support
3.Goods tracking support
4.Free broken parts（With 1 YEAR warranty）
FQA
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
A:Yes
