EchoLife HS8546V GPON ONU двухдиапазонный Wi-Fi 2 4G 5G для Huawei похожие на EG8145V5

Описание и отзывы

Трекер стоимости

Характеристики

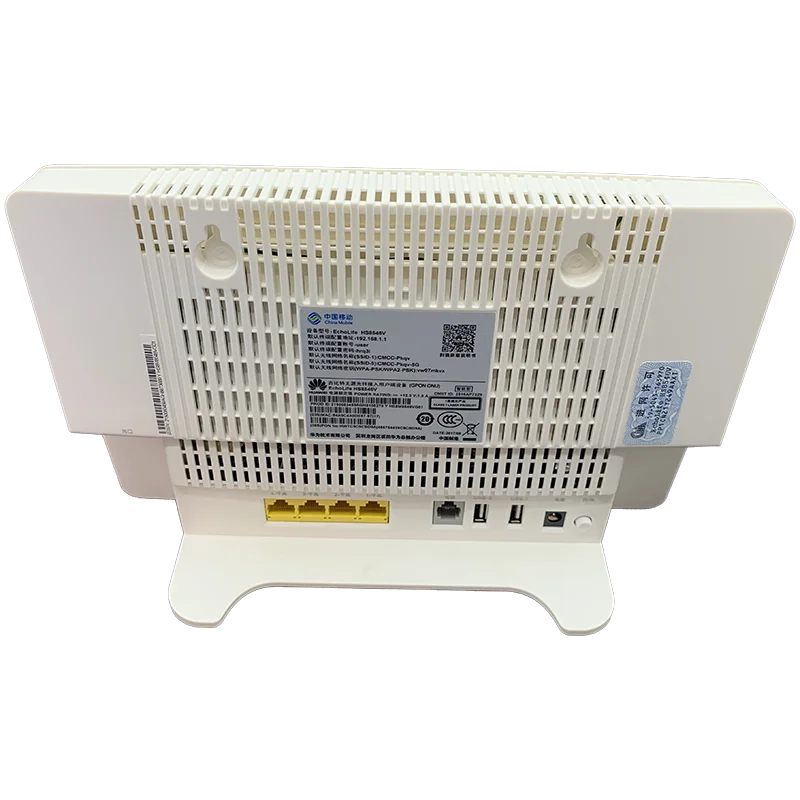

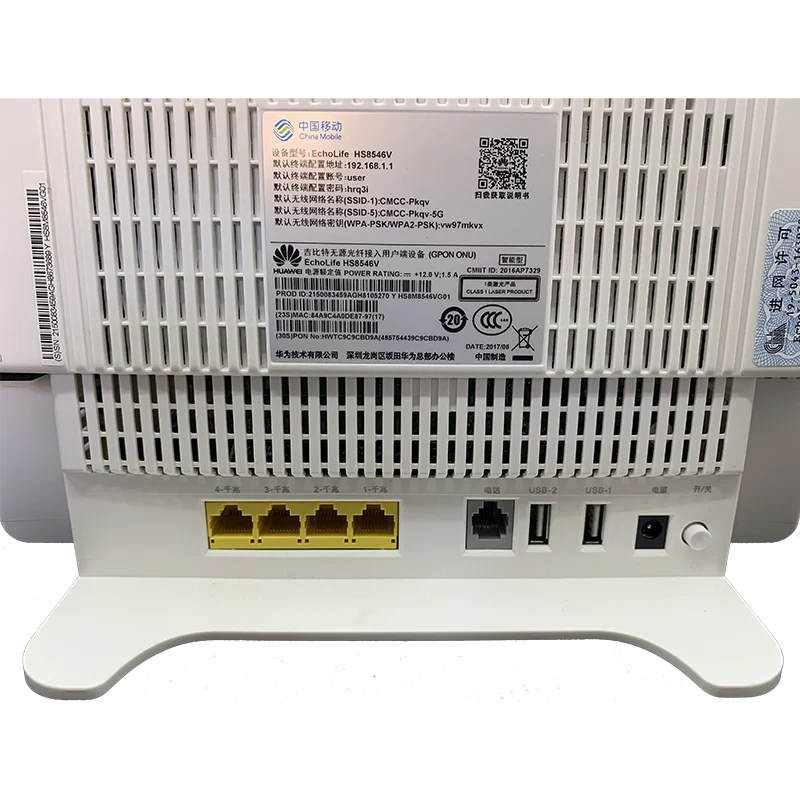

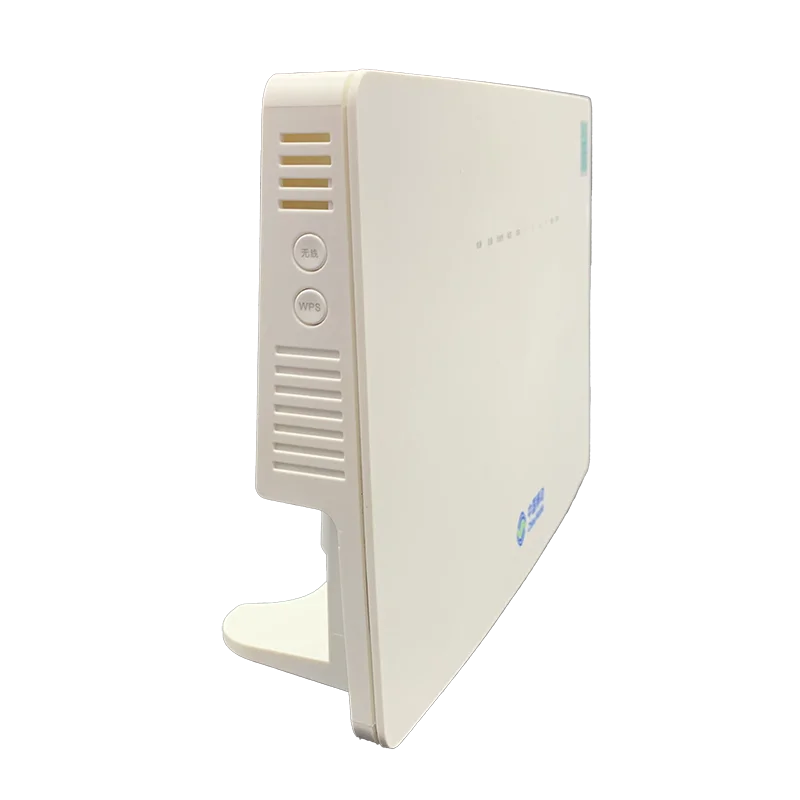

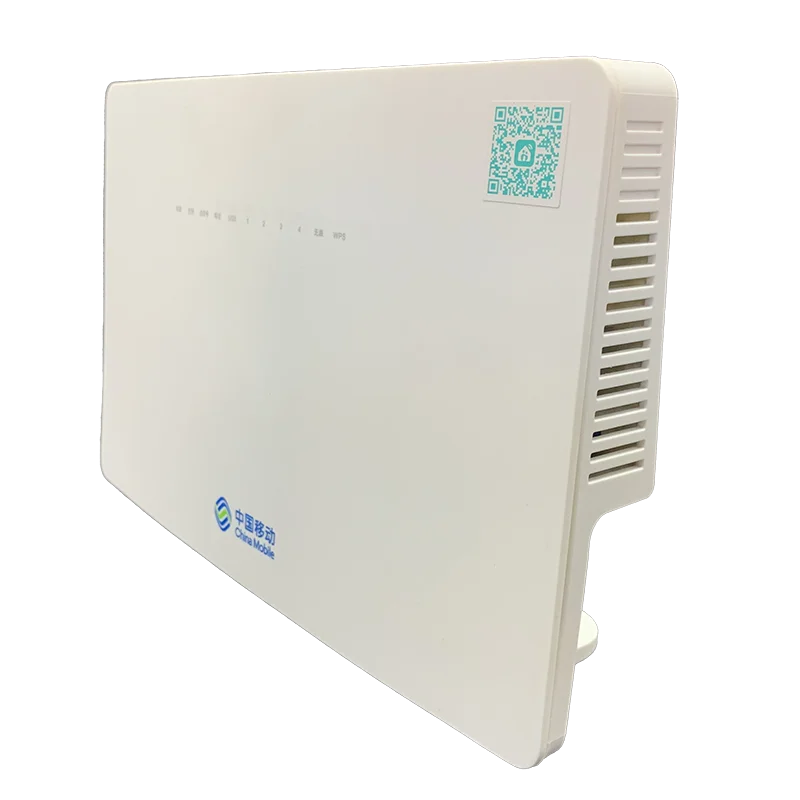

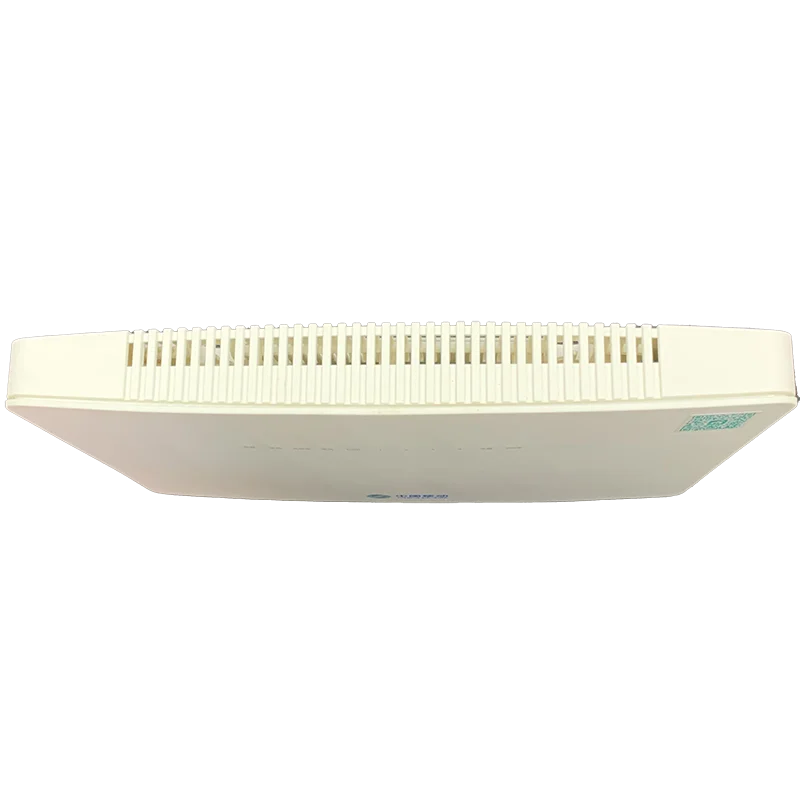

HS8546V2 FTTH Overview

HS8546V2 FTTH is a device with 4 Gigabit Ethernet ports, 1 telephone port, 1 class B + GPON port, 2 USB ports and also equipped with a WPS button and a built-in 8G SD memory card. HS8546V2 FTTH can transmit a wireless network. it is possible to simultaneously transmit in two 2.4 and 5G bands. It has been equipped with security functions such as a firewall and filtering based on MAC / UP / URL addresses.



HS8546V2 FTTH Specifications

Model	HS8546V2
PON Type	GPON
Optical interface	SC/UPC
UNI	1POTS+4GE+2USB+2.4G&5G Wi-Fi
WiFi standard	2.4GHz: 2 x 2 MIMO 802.11b/g/n
	5GHz: 2 x 3 MIMO 802.11a/n/ac
Antenna gain	2dBi
Dimensions(Width×Depth×Height)	265mm x 176mm x 82mm
Box Dimensions(Width×Depth×Height)	290mm x 230mm x 95mm
Box Weight(kg)	0.85kg
Power supply	Power supply: 11-14V DC, 1A
	Input power: 100-240V AC, 50/60HZ
Operating temperature and operating humidity	0℃ to 40℃
	5% to 95%, non-condensing
Cooling	Passive cooling
Maximum number of MAC addresses learned	1024
L2 forwarding capability	200 Mbit/s downstream (with any length packets)
	200 Mbit/s upstream (with any length packets)
IPv4 L3 forwarding capability	2Gbit/s with any length packets in downstream direction
	1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability	2Gbit/s with any length packets in downstream direction
	1Gbit/s with any length packets in upstream direction
Configuration method	NMS, Web, or TR069
Voice protocol	SIP, H.248
Software version	V300R017C10











HS8546V2 FTTH Feature

HS8546V2 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, The HS8546V2 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

Smart interconnection

• Smart Wi-Fi coverage


• SIP/H.248 auto-negotiation


• Any port any service


• Parental control

Smart O&M

• IPTV video quality diagnosis


• Variable-length OMCI messages


• Active/Passive rogue ONT detection and isolation


• Call emulation, and circuit test and loop-line test


• PPPoE/DHCP simulation testing


• Wi-Fi emulation


• One-click diagnosis(Web)
