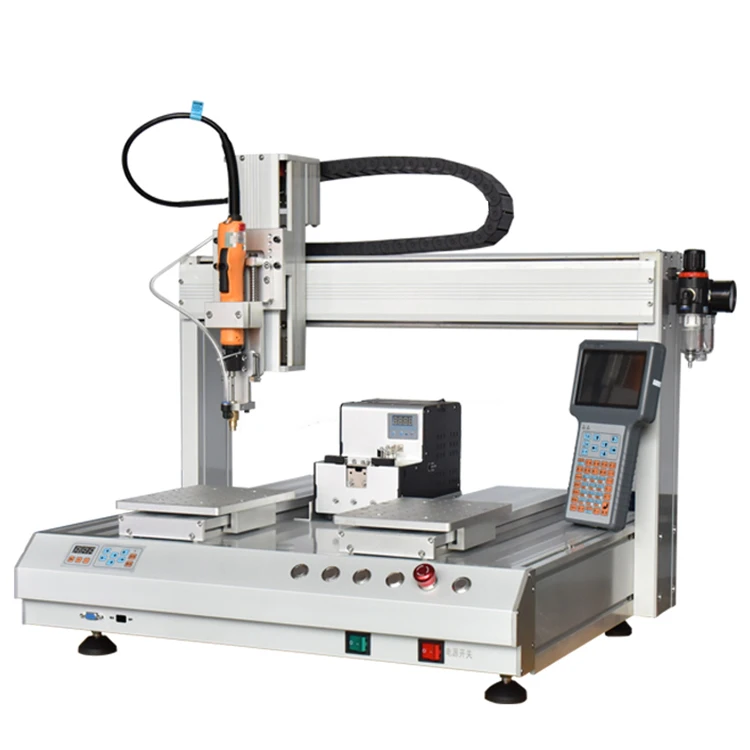

Высококачественное электрическое колесо OEM трехосевая настольная двойная платформа автоматическая машина для блокировки винтов
- Категория: Power Screw Drivers >>>
- Поставщик: Dongguan,Biaoganzhizao,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 4403.55 $* | 4623.11 $* |
| Aug-17-2025 | 4366.4 $* | 4584.79 $* |
| Jul-17-2025 | 3663.86 $* | 3846.17 $* |
| Jun-17-2025 | 4292.98 $* | 4507.18 $* |
| May-17-2025 | 3737.10 $* | 3924.34 $* |
| Apr-17-2025 | 4218.53 $* | 4429.48 $* |
| Mar-17-2025 | 4181.38 $* | 4390.37 $* |
| Feb-17-2025 | 4144.30 $* | 4351.60 $* |
| Jan-17-2025 | 4107.42 $* | 4312.93 $* |
Характеристики
Products Description
Model | BG-331 | BG-441 | BG-551 | BG-4331 | BG-5331 | ||||||
Number of controlled axes | Three axis | Four axis | |||||||||
Effective travel | X | 300mm | 400mm | 500mm | 400mm | 500mm | |||||
Y1 | 300mm | 400mm | 500mm | 300mm | 300mm | ||||||
Y2 | 300mm | 300mm | |||||||||
Z | 100mm | 100mm | 100mm | 100mm | 100mm | ||||||

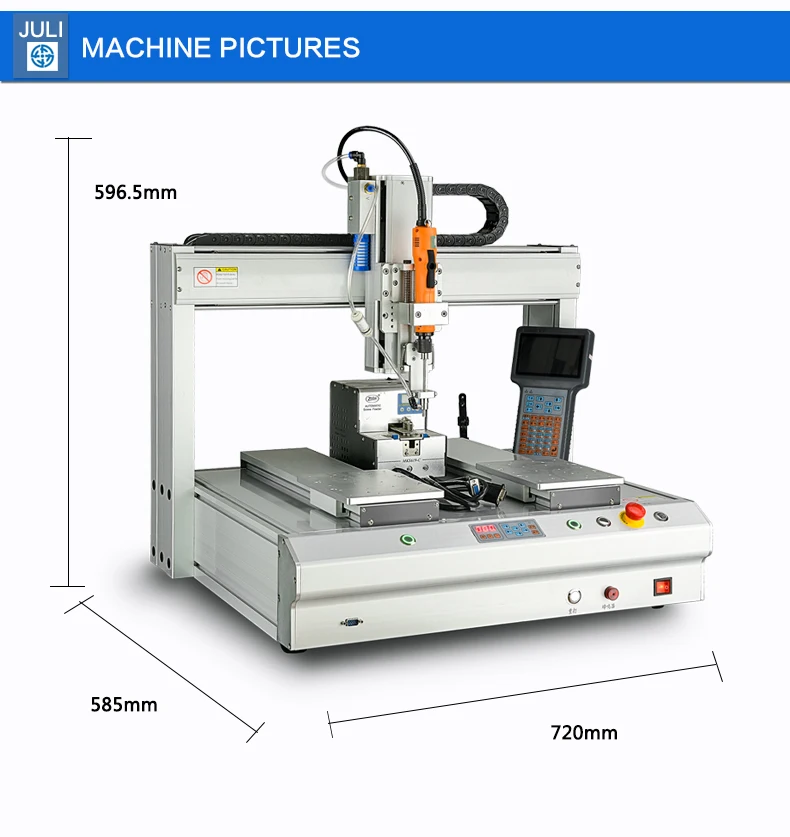

Size | L | 520mm | 620mm | 720mm | 620mm | 720mm | |||||
H | 585mm | 685mm | 785mm | 585mm | 585mm | ||||||
G | 596.5mm | 596.5mm | 596.5mm | 596.5mm | 596.5mm | ||||||
Transmission mode | Double-track timing belt | ||||||||||
Power source | Stepper motor | ||||||||||
Max speed | X/Y axis 500mm/sec,Z axis 300mm/sec | ||||||||||
Repeat accuracy | ±0.05mm | ||||||||||
Maximum load | X/Y/Z-5KG/5KG/3KG | ||||||||||

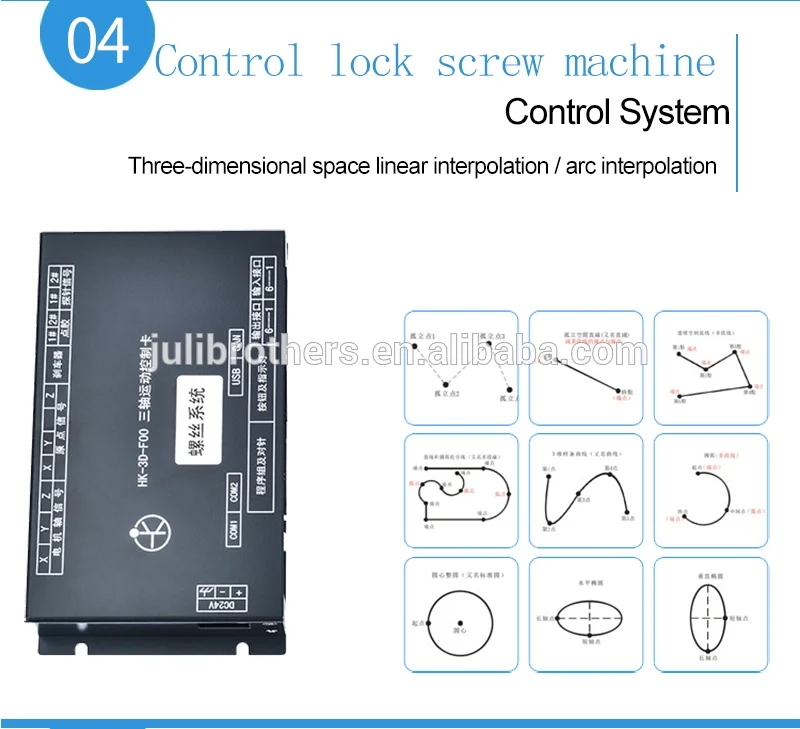

Control System | Three-axis control system | ||||||||||
Power | AC110-250V 50-60HZ 350W | ||||||||||

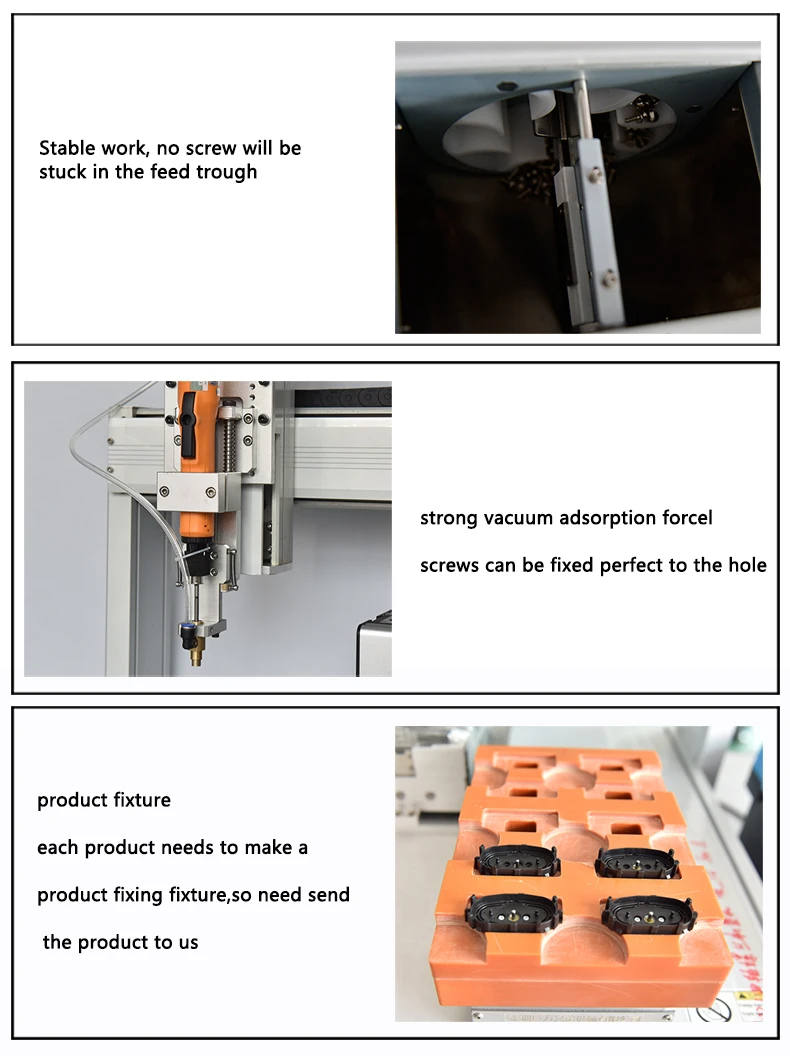

1. The screws will feed to the screwdriver bit directly one by one through a tube, to achive extremely fast feeding and screwing.

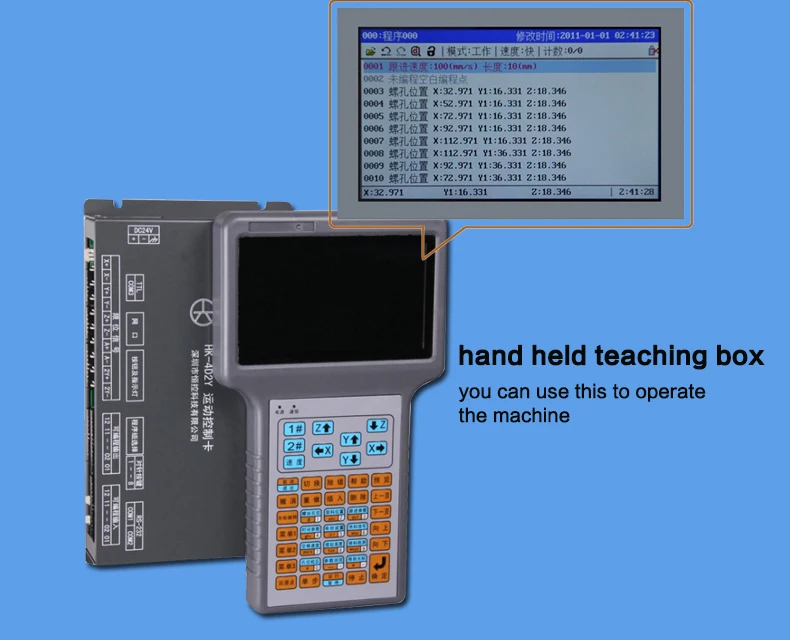

2. The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
3. Support lock/slip/float alarm function.
4. Support auto sensing start operation function.
2. The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
3. Support lock/slip/float alarm function.
4. Support auto sensing start operation function.
