Характеристики
Product Description

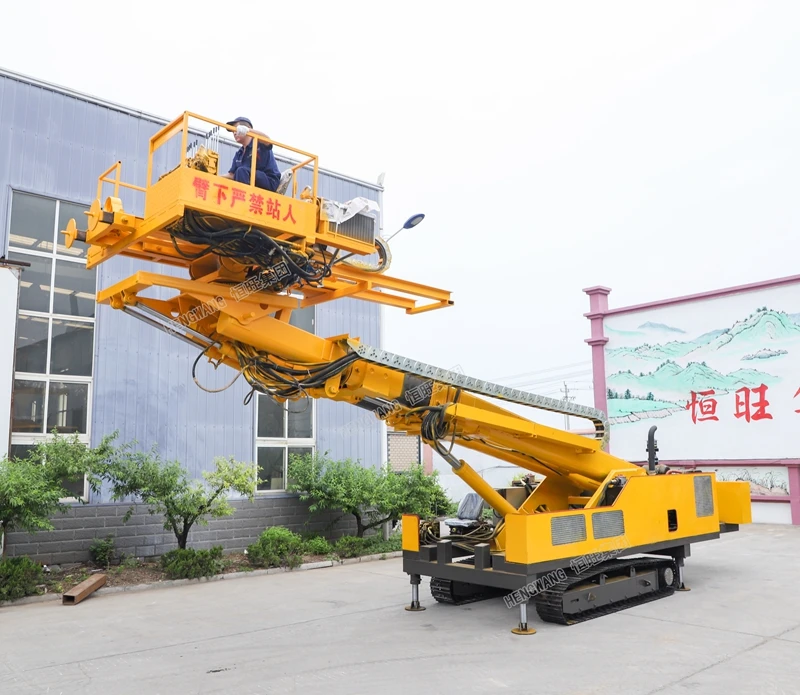

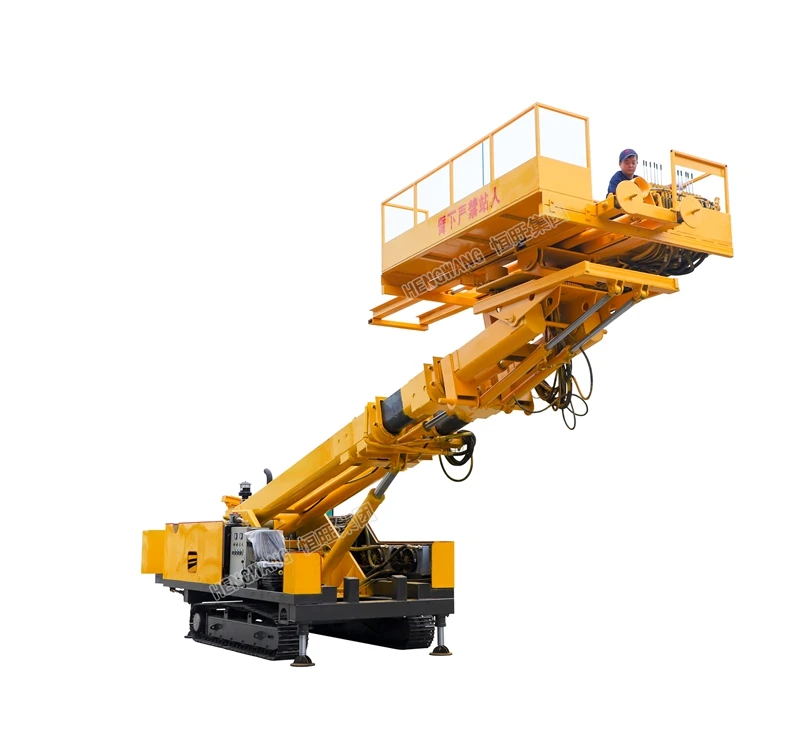

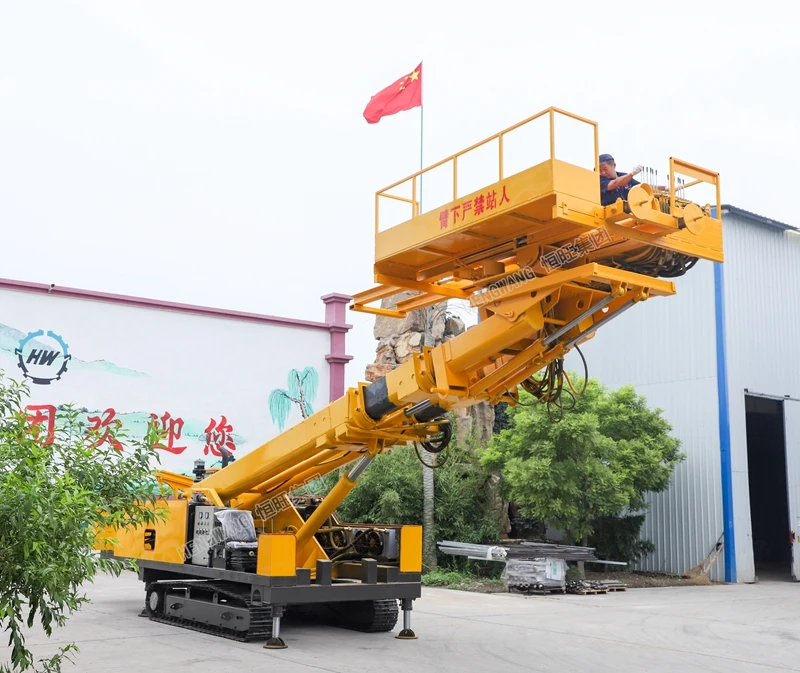

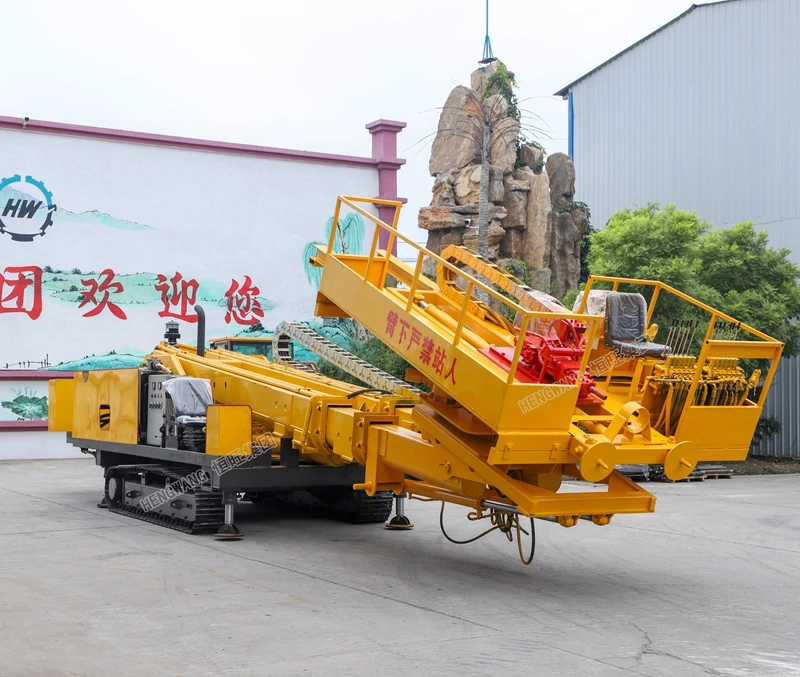

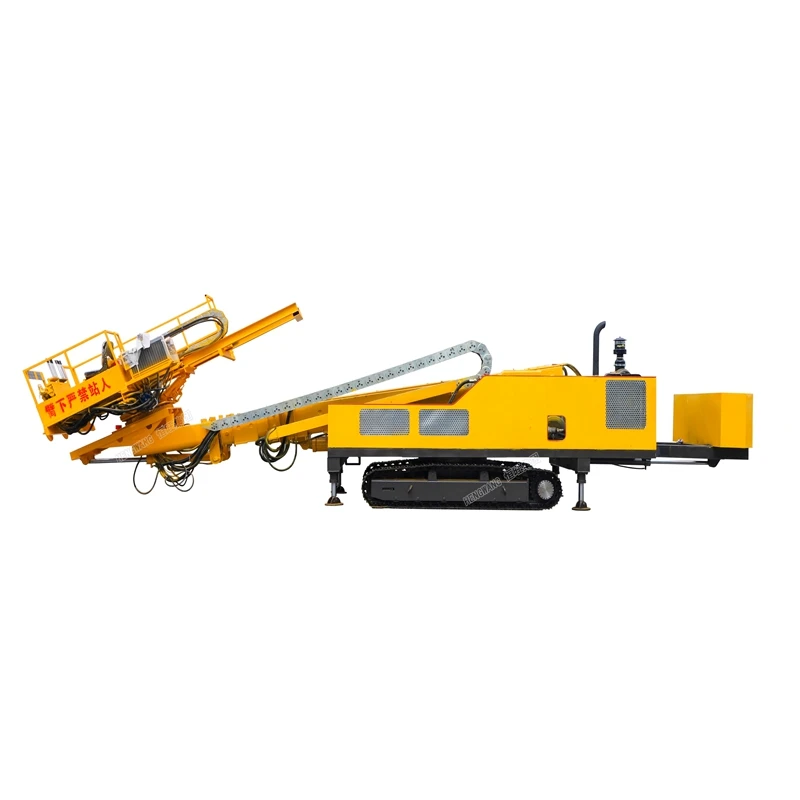

track mounted Slope Geotechnical horizontal Drill Rig for 12m height drilling
HW ANCHOR MINING SLOPE STRENGTHEN DRILLING RIG
HW12M (CRAWLER TYPE) +ELECTRIC MOTOR
Super hydraulic transmission, CNC control, automatic drilling experience+360° direction drilling
HW12M (CRAWLER TYPE) +ELECTRIC MOTOR
Super hydraulic transmission, CNC control, automatic drilling experience+360° direction drilling
Drill soil + drill rock
Drilling rate:20M~40M/Hour
Drilling rate:20M~40M/Hour
track mounted Slope Geotechnical horizontal Drill Rig for 12m height drilling
Mainly suitable for urban foundation pit support and construction control of displacement, geological disasters and other construction projects, machine use crawler walking ,and holder shackle device the drilling holes are convenient for centering.
Electric crawler multi-function rock drill machine is for small and medium-sized mines and road construction, defense and water conservancy and stone works with large hole size shallow depth borehole drilling operations.
The crawler type slope stabilisation electric drill rig HW12M can drill soil and rock for open pit mining, especially for bumps and rugged terrain where other drilling vehicles do not work properly.
Related Products
multi-function soil nail screw 12meter high drilling rig for foundation protection
Product Paramenters
track mounted Slope Geotechnical horizontal Drill Rig for 12m height drilling
Name | 10m Crawler rock drill | 12m Crawler rock drill |
Track | 3200*2300mm | 3200*2300mm |
Track shoe width | 400mm | 400mm |
Down steering | 360° | 360° |
Big arm | Double big arms three sections | Double big arms three sections |
Power head model | Double hydraulic power head | Double hydraulic power head |
Electric motor | 45kw | 45kw |
Drilling angle | Can drill flat holes / drill oblique holes / drill vertical holes | Can drill flat holes / drill oblique holes / drill vertical holes |
Oil pump | 63/63 | 63/63 |
Oil pressure | 25Mpa | 25Mpa |
Drilling diameter | 0-250mm | 0-250mm |
Pressurized cylinder | 2.5 | 2.5 |
Depth | 0-40 | 0-40 |
Engine | 4105 Autoclaved | 4105 Autoclaved |
Outrigger | Four hydraulic outriggers | Four hydraulic outriggers |
Rear counterweight | Telescopic 1 meter | Telescopic 1 meter |
Hydraulic radiator | Increase double fan | Increase double fan |
Main feature of anchor slope strengthen drilling machine:
track mounted Slope Geotechnical horizontal Drill Rig for 12m height drilling
1, The anchor slope drill rig with full hydraulic control, Operation is convenient and flexible, easy shifting, good maneuverability, saving time and labor.
2, Drill rotary machine driven by electric motor, High output torque, rotary center lower than similar products, greatly improving the rig drilling rig stability.
3, The anchor electric rock drill facility with crawler chassis can be 360° rotary.
4, Drilling angle from 0 degree to 360 degree for slope climbing drilling rig
5,Electric rock drill machine is mainly suitable for deep foundation pit anchor support, but also through the rotary spray module replacement, so machine can be rotary jet spray construction.
6,The mining drilling rig can meet three-wing drill drilling, DTH hammer drilling, casing drilling, drill pipe / casing complex drilling, single / double/ triple rotary spray, fixed spray, swing spray and so on .
2, Drill rotary machine driven by electric motor, High output torque, rotary center lower than similar products, greatly improving the rig drilling rig stability.
3, The anchor electric rock drill facility with crawler chassis can be 360° rotary.
4, Drilling angle from 0 degree to 360 degree for slope climbing drilling rig
5,Electric rock drill machine is mainly suitable for deep foundation pit anchor support, but also through the rotary spray module replacement, so machine can be rotary jet spray construction.
6,The mining drilling rig can meet three-wing drill drilling, DTH hammer drilling, casing drilling, drill pipe / casing complex drilling, single / double/ triple rotary spray, fixed spray, swing spray and so on .
Working case
Hengwang anchor slope strengthen drilling rig machine has been exported many times to lots of countries which get a very good feedback. And the following is the pictures from our customer:
track mounted Slope Geotechnical horizontal Drill Rig for 12m height drilling
Feedback from our customers about our electric powered anchor drill machine
track mounted Slope Geotechnical horizontal Drill Rig for 12m height drilling
Packing&Shipping
anchor mining drilling rig machine packing method
→Generally, we use standard exported wooden case for LCL goods, and fixed container for FCL goods.
track mounted Slope Geotechnical horizontal Drill Rig for 12m height drilling
Company Introduction
Headquarters--Shandong Hengwang Group CO.LTD
Jining luheng machinery equipment co.,as one branch of Shandogn Hengwang Group Co.Ltd. is the professional manufacturer of Pile driver,Drilling rig,Road construction machine . With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
