Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000

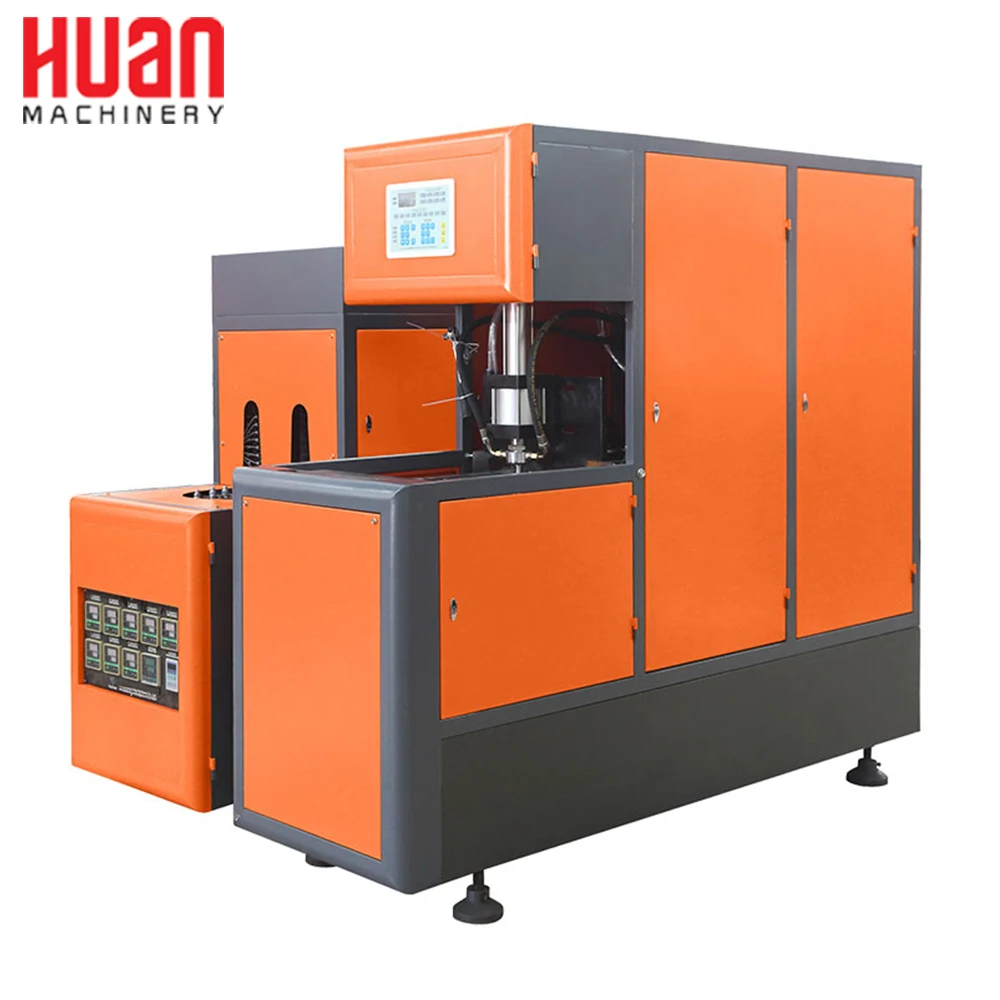

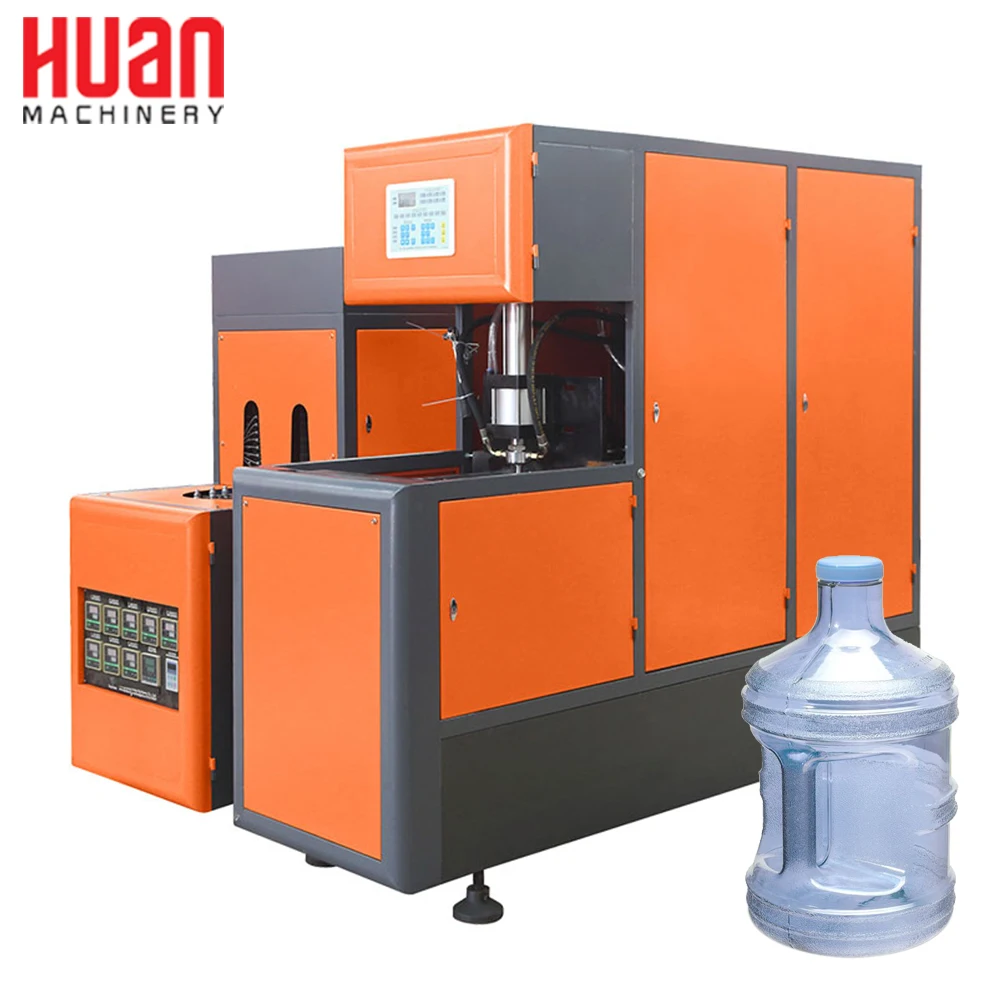

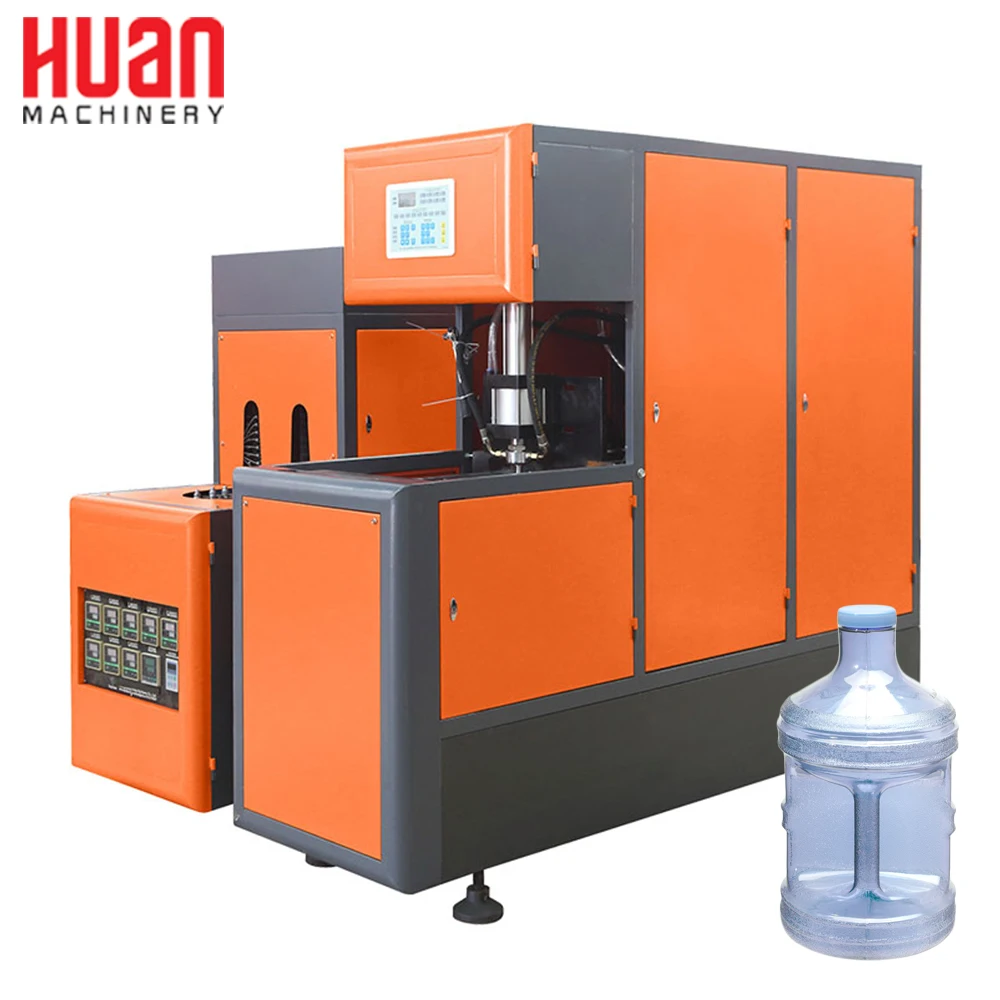

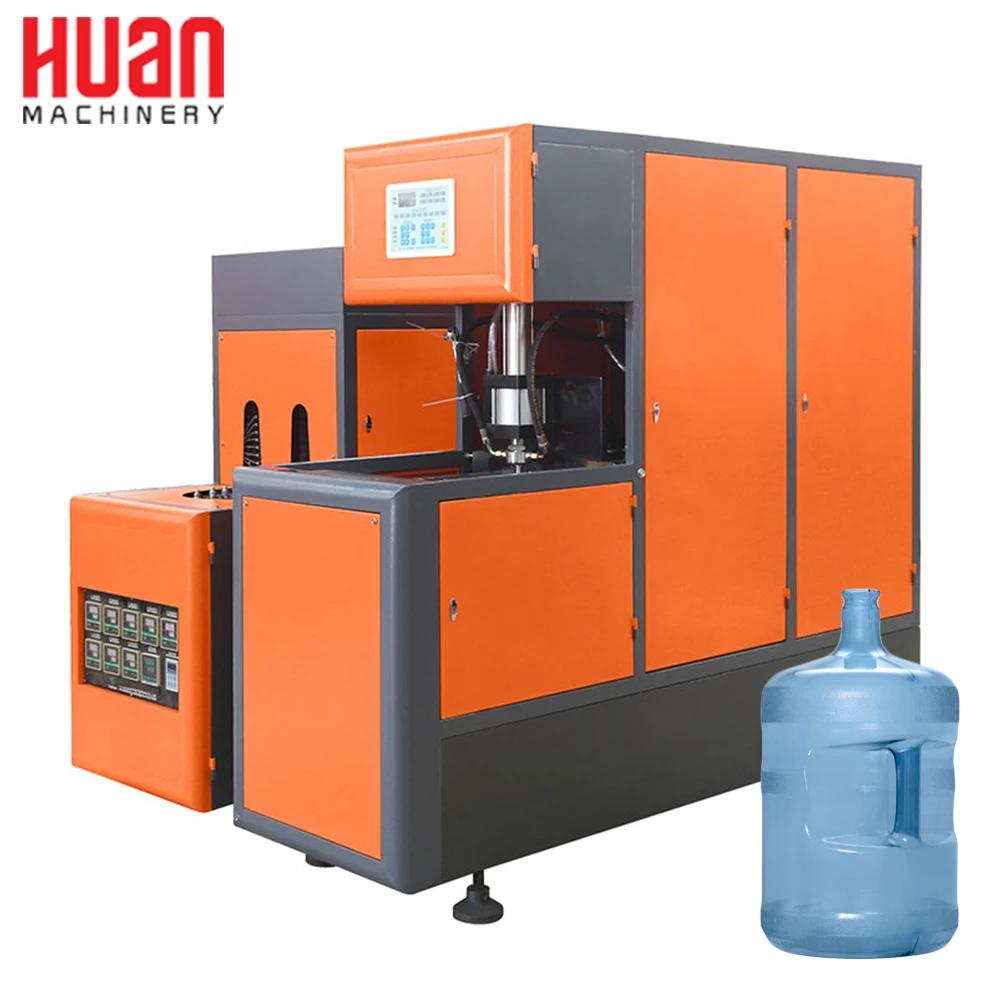

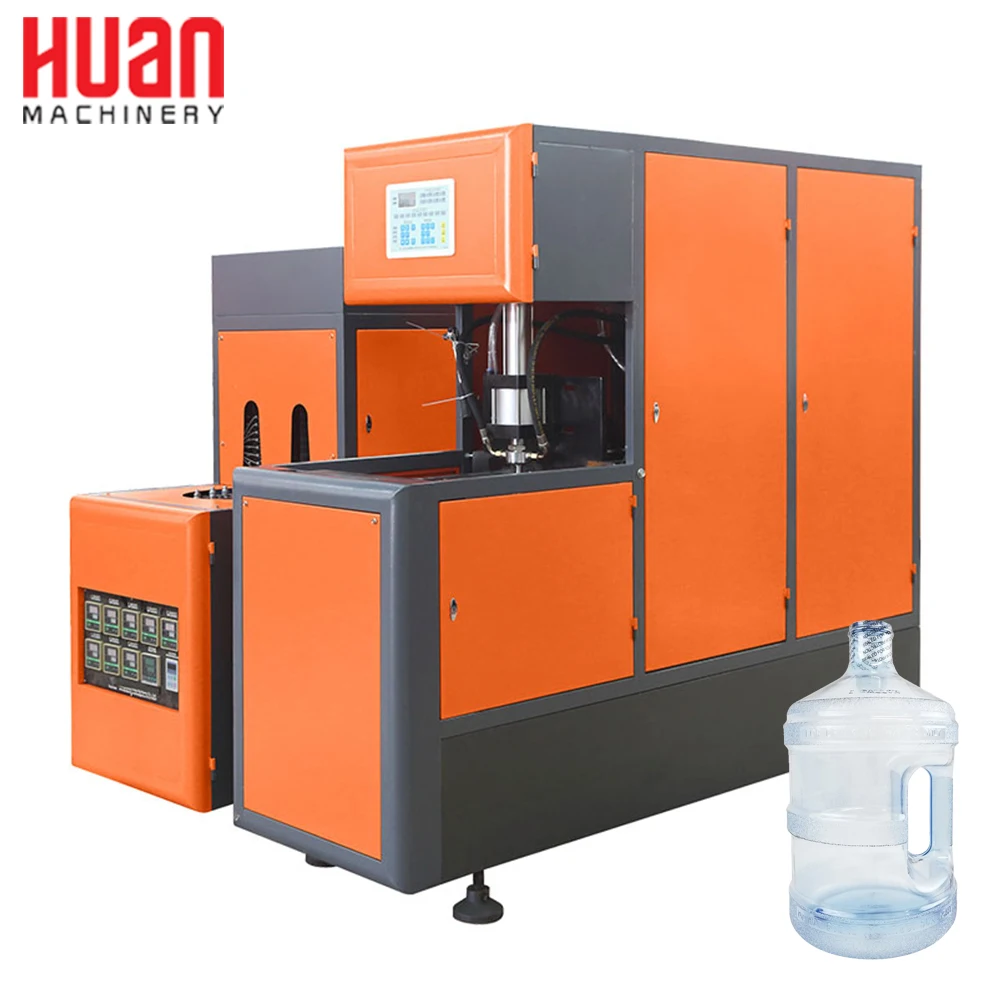

Полуавтоматическая Автоматическая ПЭТ пластиковая 20 литровая машина для выдувания бутылок
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Zhangjiagang,Huan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 4165.48 $* | 4373.70 $* |
| Aug-17-2025 | 4130.58 $* | 4337.59 $* |
| Jul-17-2025 | 3465.27 $* | 3638.44 $* |
| Jun-17-2025 | 4060.11 $* | 4263.11 $* |
| May-17-2025 | 3535.23 $* | 3712.2 $* |
| Apr-17-2025 | 3990.59 $* | 4190.45 $* |
| Mar-17-2025 | 3955.50 $* | 4153.46 $* |
| Feb-17-2025 | 3920.64 $* | 4116.19 $* |
| Jan-17-2025 | 3885.85 $* | 4079.80 $* |
Характеристики
Product Description
PET water bottle making machine
Model: HJQ1L-4 Fully PET Automatic Blowing Machine
Product possible: PET bottle
Max. product volume:1L
Product possible: PET bottle
Max. product volume:1L
Specification
Item | HJQ1L-4E | ||
Bottle type specification | Cavity | 4 | |
Theory output | 5000-6000 | ||
Max.volume | 1L | ||
Bottle mouth maximum overall diameter | 28-38mm | ||
Bottle biggest diameter | 65mm | ||
Bottle maximum height | 280mm | ||
Power specifications | Light tube quantity | 24pcs | |
Light tube power | 1 KW | ||
Maximum heating power | 24KW | ||
All electric machine installation | 27KW | ||
Actual consumption | 8.1KW | ||
Air pressure specification | Work pressure | 7-9kg/cm2 | |
Low-pressure gas consumption | 1600L/MIN | ||
Blow bottle pressure | 25-35kg/cm2 | ||
Higher -pressure gas consumption | 1500Ltr/min | ||
Forzen water specification | Work pressure | 5-6 kg/cm2 | |
Temperature range | 10°C | ||
Consumption | 5000kcal/hr | ||
Forzen water flow | 50L/min | ||
Machine specification | Size of the machine | 3.4x1.6x1.9 | |
Weight of the machine | 2ton | ||
Production Line For Water Bottle
250ml 500ml 5 gallon 20l rotary pet bottle water line using blowing moulding machinery jar blow molding machine price
Auxiliary machine for pet bottle machinery
250ml 500ml 5 gallon 20l rotary pet bottle water line using blowing moulding machinery jar blow molding machine price
More application for pet blow molding machine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing & Delivery
1.The pet blow machine body is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts and wires.
2.The electric controlling parts and spare parts are loaded separately in wooden box.
3.The auxiliary equipments are packaged in wooden box as well.
4.All wooden material is fumigation certificated and safe for exporting to all over the world.
2.The electric controlling parts and spare parts are loaded separately in wooden box.
3.The auxiliary equipments are packaged in wooden box as well.
4.All wooden material is fumigation certificated and safe for exporting to all over the world.
Company Profile
Fully automatic 2 cavity 3cavities small plastic jar blow moulding 20l 5l pet bottle stretch blow molding making machine price
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, our machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.

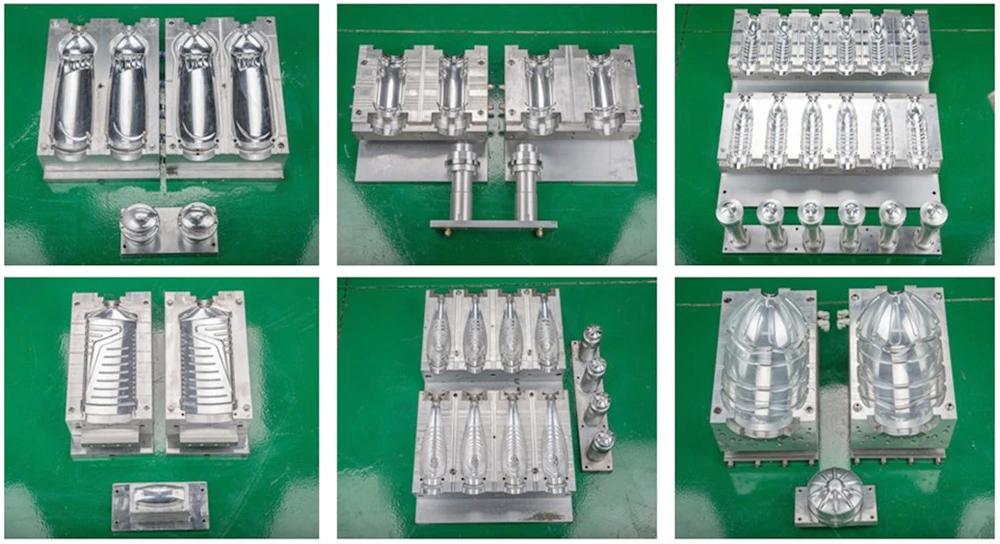

2. Q: -How about the machine mould?
A: - Customized machine mould can be supplied for you.Our Machine and mould can be tested for samples and smooth matching before shipping. Mould raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: T/T/LC,alibaba trade assurance
4. Q: -What is the warranty period?
A: - Our machine main parts is one year warranty with a lifelong maintenance.
A: - Yes, our machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.
2. Q: -How about the machine mould?
A: - Customized machine mould can be supplied for you.Our Machine and mould can be tested for samples and smooth matching before shipping. Mould raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: T/T/LC,alibaba trade assurance
4. Q: -What is the warranty period?
A: - Our machine main parts is one year warranty with a lifelong maintenance.
