1 Gang Tuya Smart Life LED Dimmer Module Amazon Alexa Google Home Remote Control EU UK AU WiFi Light
- Категория: Dimmers >>>
- Поставщик: Shenzhen,Yosyn,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 9.75 $* | 9.84 $* |
| Jul-16-2025 | 7.86 $* | 7.72 $* |
| Jun-16-2025 | 9.74 $* | 9.31 $* |
| May-16-2025 | 9.44 $* | 9.80 $* |
| Apr-16-2025 | 7.71 $* | 7.49 $* |
| Mar-16-2025 | 9.27 $* | 9.24 $* |
| Feb-16-2025 | 8.63 $* | 8.99 $* |
| Jan-16-2025 | 8.80 $* | 8.61 $* |
Характеристики
Recommend Products
Product Description

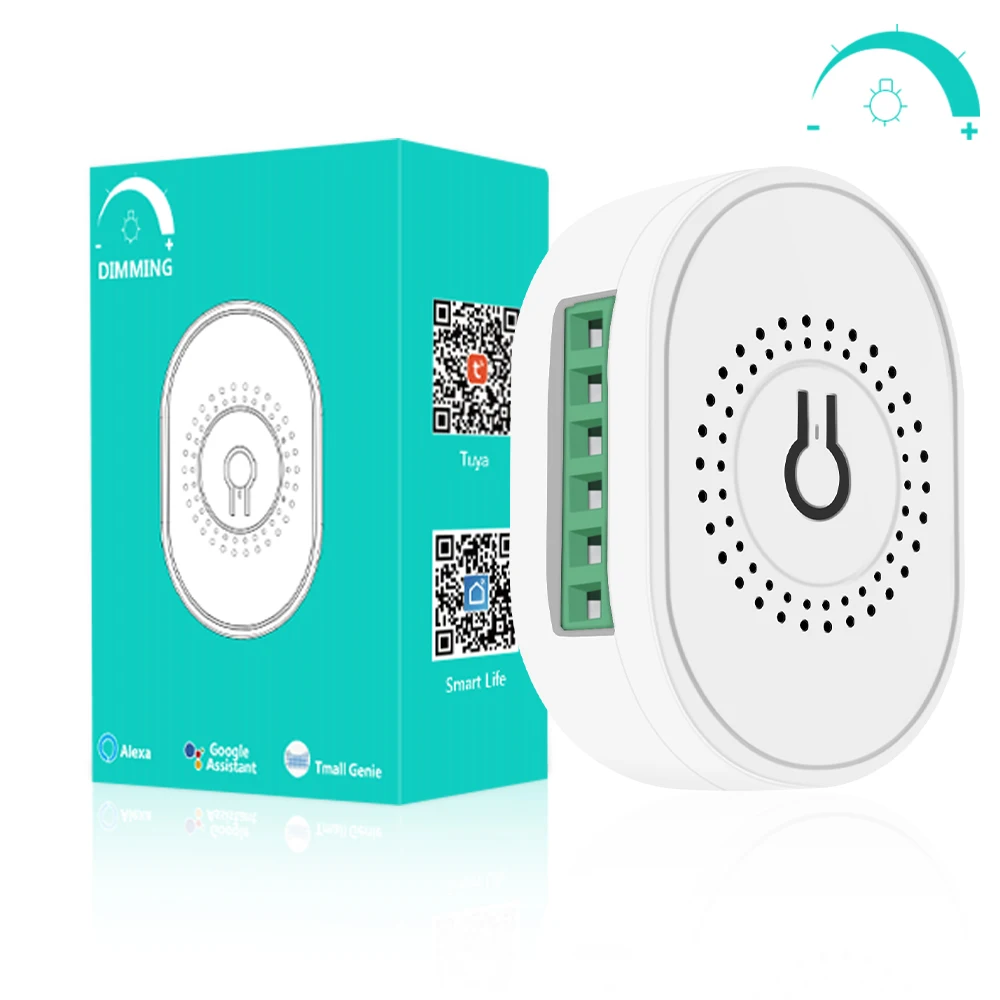

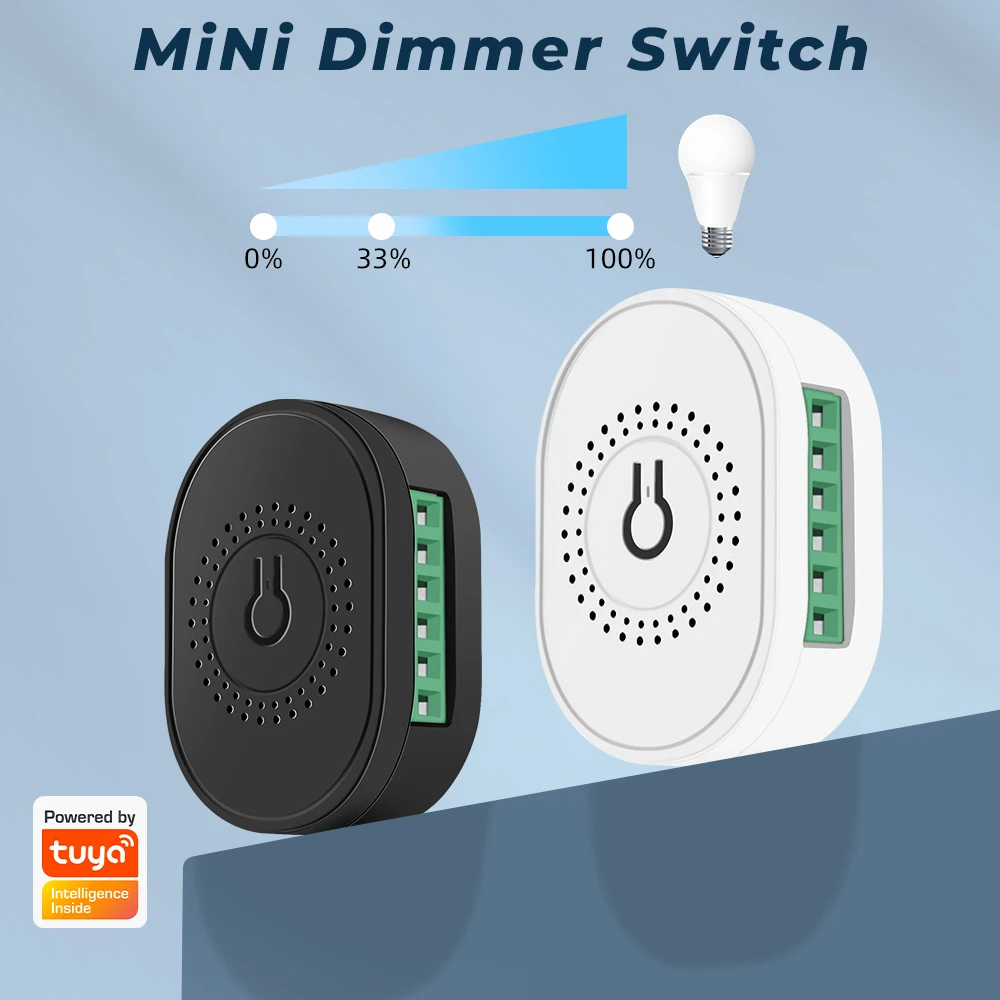

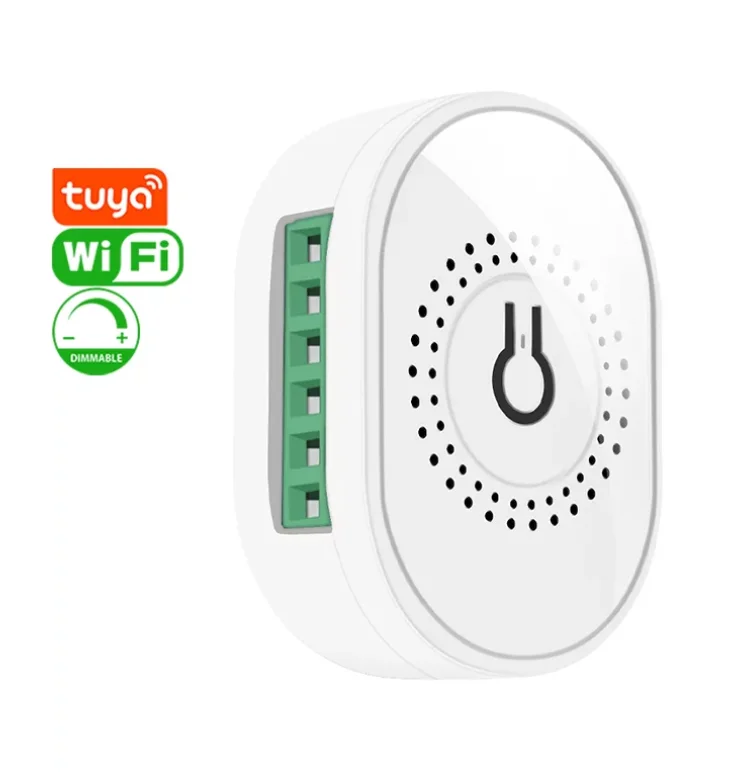

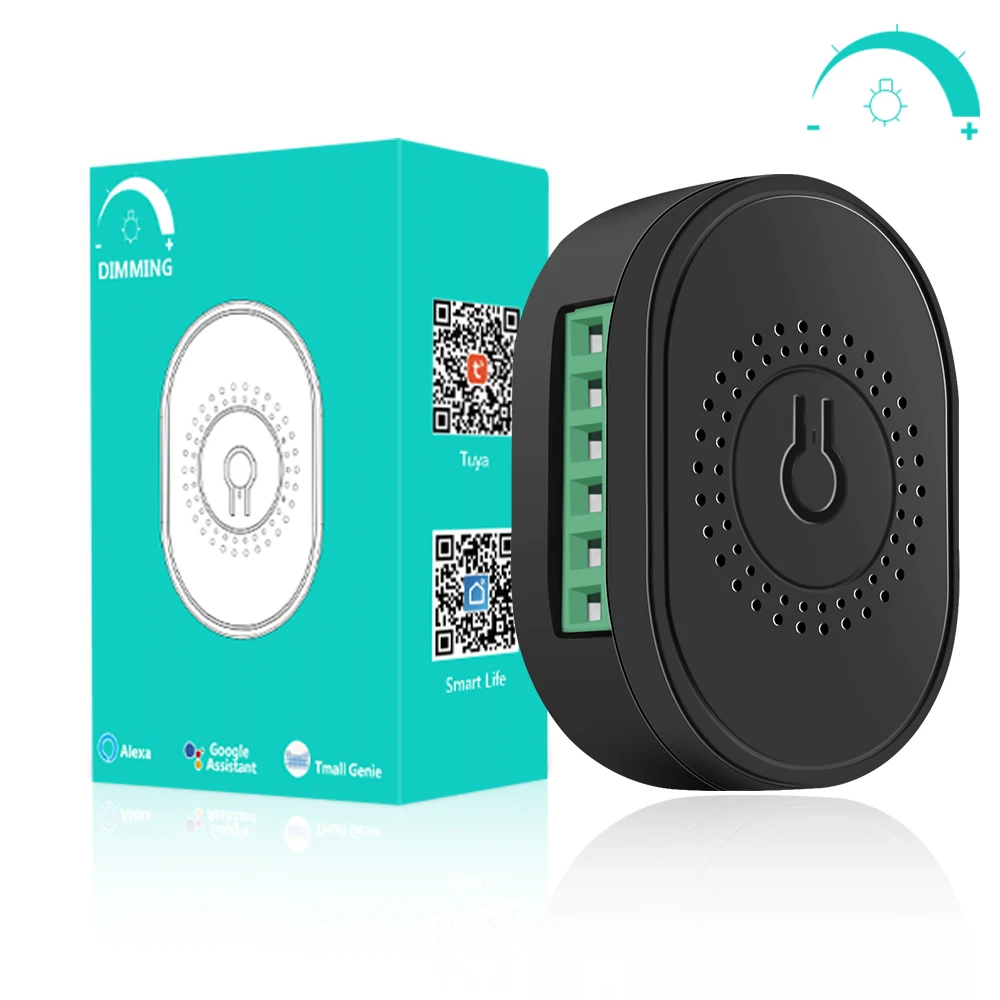

Product Name | Tuya WiFi 1 Gang 1 Way Dimmer Switch Module |
Model | TMWD02 |
Wiring Method | Live+Neutral |
Input Voltage | 85 - 250V | 50/60HZ |
Rated Power | 5 -150W |
Wireless Protocol | Wi-Fi, 2.4GHz |
Size | 59 x 42 x 20mm |
Shell Material | PC - V0 |
App | Tuya/Smart Life |
Function
2. If you wire the dimmer switch, you must first adjust the brightness to the brightest, and then the Dimming breaker can adjust the brightness;
3. Wi-Fi+Bluetooth dual-mode, faster and more stable network distribution;
4. Tuya program, support Amazon Alexa, Google Home, Tmall Genie, you can adjust the brightness by voice;
5. Mini body, can be put in the bottom box, it is more convenient to install;
6. After the network is disconnected, once the Wi-Fi is activated again, the device connected to the module will automatically connect to your Wi-Fi network.
Note
1. This product only supports dimmable light bulbs (SCR), does not support bluetooth bulbs and ordinary bulbs;
2. When connecting to WIFI, please make sure the bulb is off;
3. Long press the reset switch to directly adjust the brightness. When adjusting the brightness or dimming, please release the switch and then operate;
4. Touch switches and other mechanical switches can only operate on and off, and cannot support brightness adjustment. You must first ensure that the switch is open before the on-off device can work;
5. If the adjustment bulb flickers, please set the minimum brightness in the APP interface. Since different bulbs have different compatibility and different quality, the minimum brightness is also different;
6. The timing function can only time the light bulb on and off, and does not support the brightness of the time light bulb.
Details Images

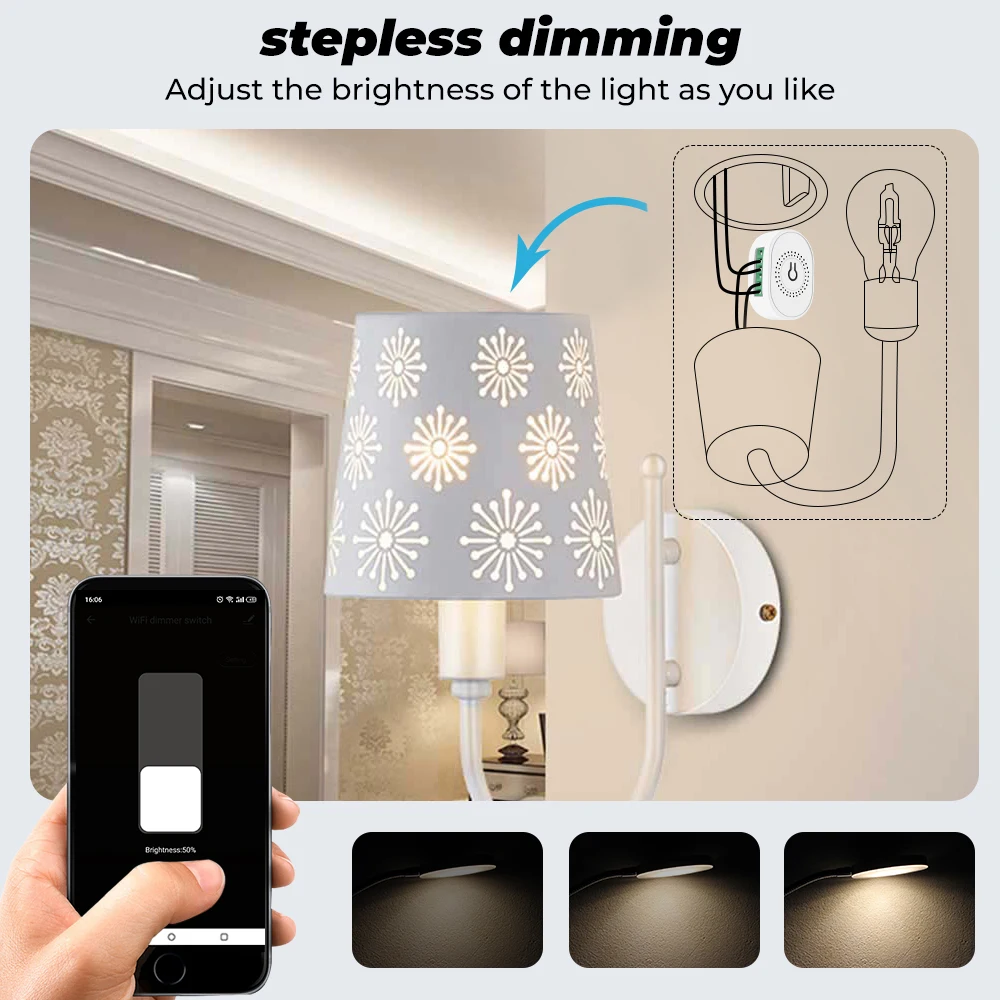

Installation Instructions
Packaging & Shipping
FAQ
Q1 Why the dimmer switch dosen't connect to WIFI?
1.Make sure the dimmer switch is properly connected and powered.
2.Make sure the dimmer and mobile / tablet are connected to the same network.
3.Make sure you WIFI password is entered correctly.
4.Check that any firewall is not blocking traffic.
Q2 What loads can be connected to the dimmer?
LED spotlight, bulb, handkerchief
Q3 What happens if the WIFI connection is broken?
You can still control the lighting via pushbutton,through the dimmer switch must be connected to WIFI to be controlled via the
App.
Q4 How to change WIFI network or password for dimmer switch?
Repeat the pairing process from Step 2.
Q5 How to reset the dimmer?
-Switch off the load via the pushbutton.
-Press and hold the pushbutton for 10 seconds until the connected load starts flashing.
1.Make sure the dimmer switch is properly connected and powered.
2.Make sure the dimmer and mobile / tablet are connected to the same network.
3.Make sure you WIFI password is entered correctly.
4.Check that any firewall is not blocking traffic.
Q2 What loads can be connected to the dimmer?
LED spotlight, bulb, handkerchief
Q3 What happens if the WIFI connection is broken?
You can still control the lighting via pushbutton,through the dimmer switch must be connected to WIFI to be controlled via the
App.
Q4 How to change WIFI network or password for dimmer switch?
Repeat the pairing process from Step 2.
Q5 How to reset the dimmer?
-Switch off the load via the pushbutton.
-Press and hold the pushbutton for 10 seconds until the connected load starts flashing.
