Характеристики
Products Description

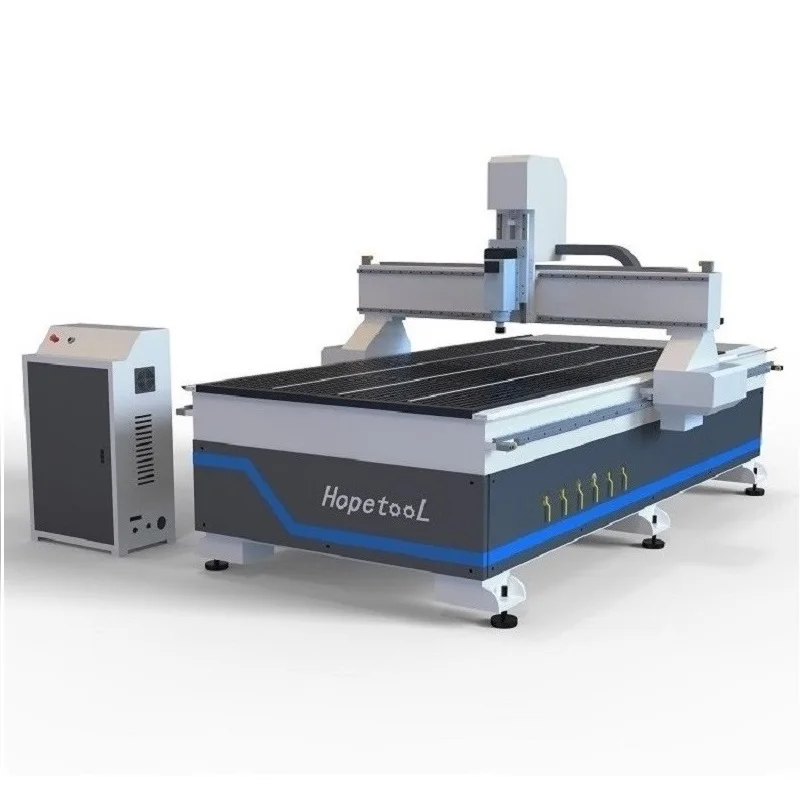

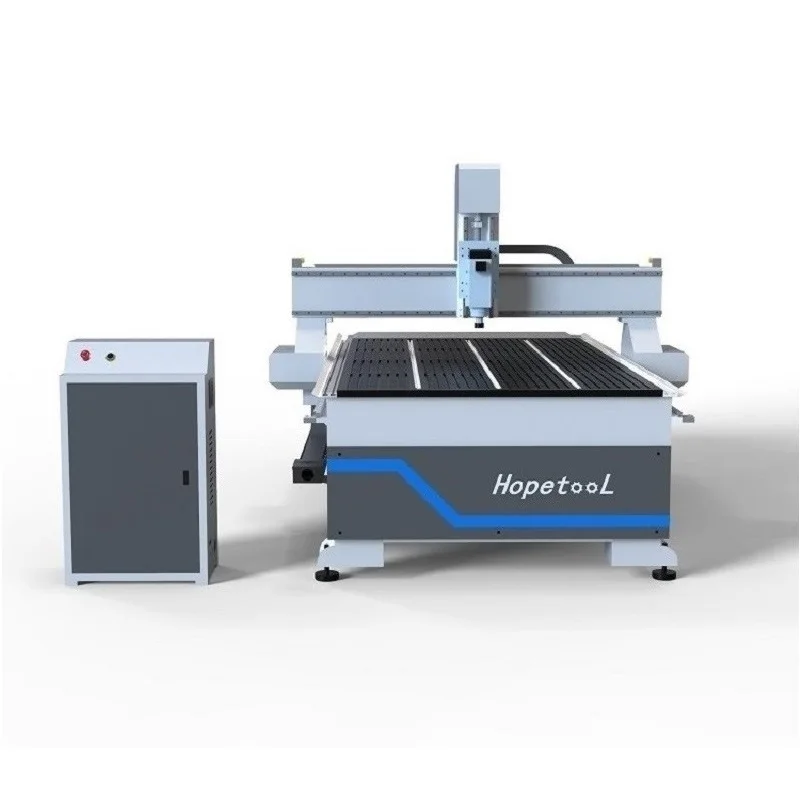

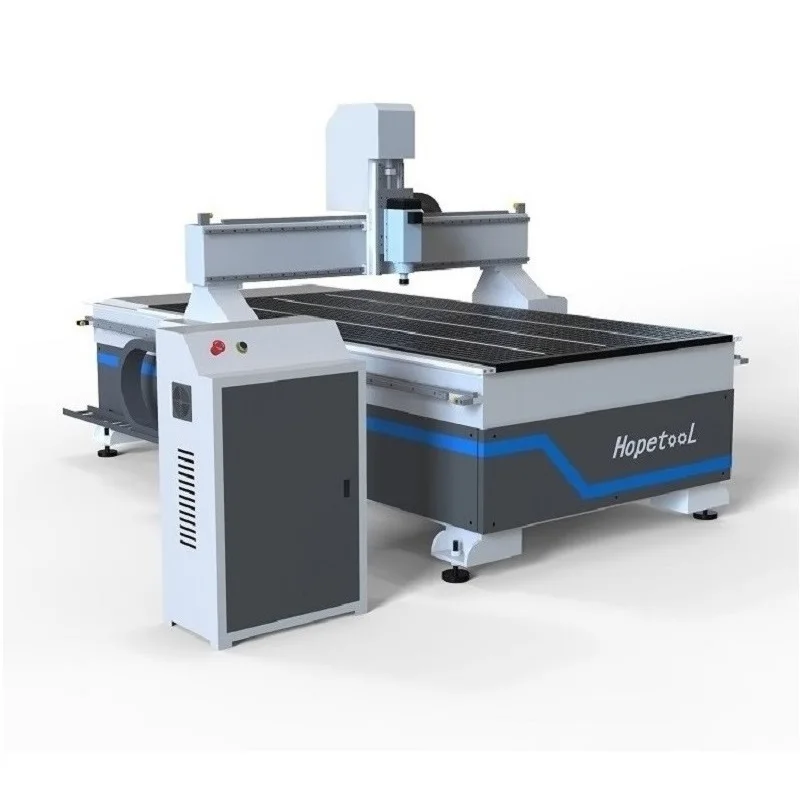

New Design Cnc Router 4x8 3 Axis Cnc Wood Router Machine With Vacuum Table
Characteristic:
1.Water or air cooling spindle,high precision,long life time,steady working,easy to start up.
2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.
3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.
4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.
5.auto oilling system ,easy to operate by pressing one key.
6.seperated control system makes operation easily.
7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.

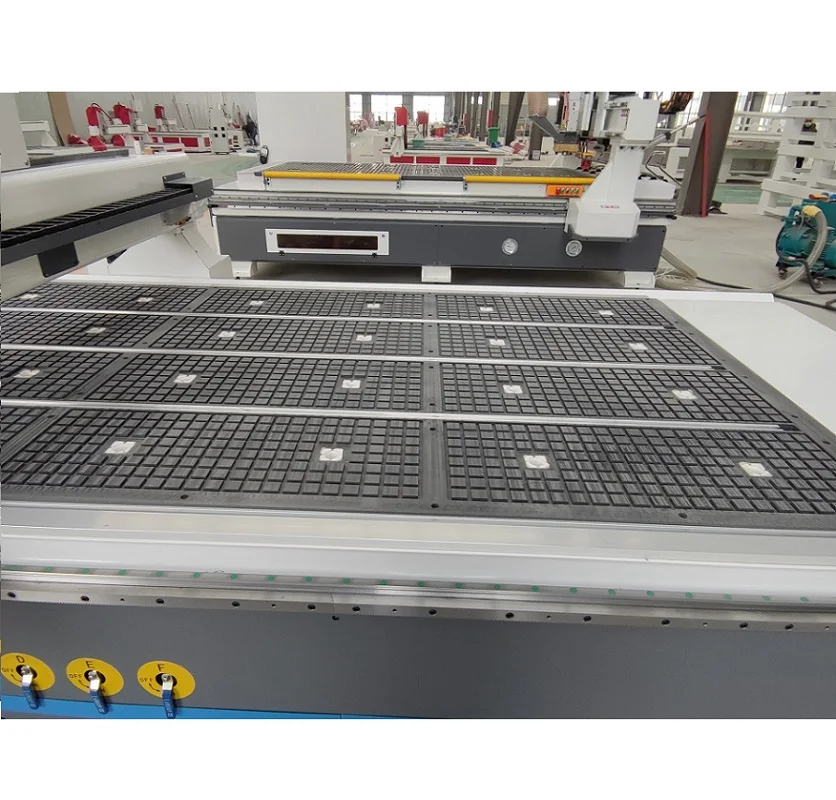

8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.
Performance parameter:
1.Water or air cooling spindle,high precision,long life time,steady working,easy to start up.
2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.
3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.
4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.
5.auto oilling system ,easy to operate by pressing one key.
6.seperated control system makes operation easily.
7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.
8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.
Performance parameter:
Description | parameter |
XYZ working area | 1300*2500*200mm |
Table size | 1310*3000mm |
XYZ travel positioning accuracy | ±0.01mm |
XYZ repositioning positioning accury | ±0.01mm |
Table surface | Bakelite sheet |
Grantry | steel |
Drive system X-Y axis | rack |
Drive system Z axis | Ball screw |
Spindle power | 3/5.5KW |
Max velocity | 50m/min |
Max working speed | 25m/min |
Spindle speed | 0-24000rmp |
Work mode | step(optional servo) |
Working voltage | AC220V/380V |
Command language | G code |
Interface | USB |
Operating system | DSP/Mach3/Ncstudio |
Flash memory | 128 |
X-Y resolution | 0.025mm |
Software environment | Wentai type3 artcam |
Running environment | Temperature:0-45°C |
Paking size | 3300*1900*1900mm |
Net weight | 1000 kg |
Gross weight | 1200 kg |
Details Images
The machine bed with many tubes, it ensure the table don’t sink.
The strip steel for guide with many small tripod ,it ensure the guide don’t bend.
High quality guide Hiwin brand,make sure with high accuracy.
Main Parts
Working Samples
Producing Process
Recommend Products
Company Profile
Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing CNC router , co2 laser machine,fiber laser cutting machine.After 10 years’ hard work, our machines have been exported to more than 80 countries, and we have established regular business relationships with many distributors from many countries.
FAQ
Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
