Products Description

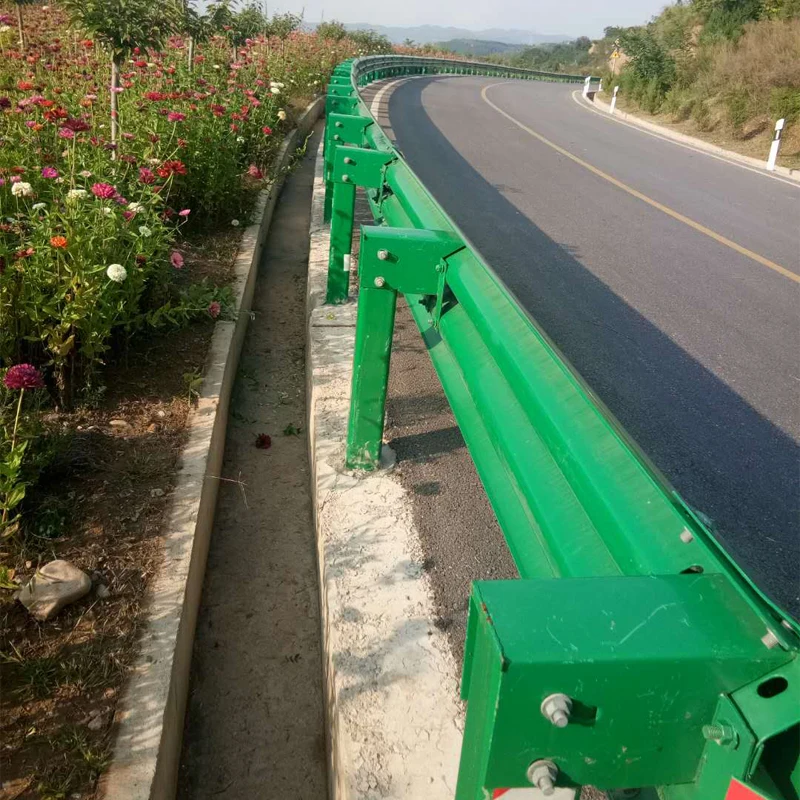

Steel beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.

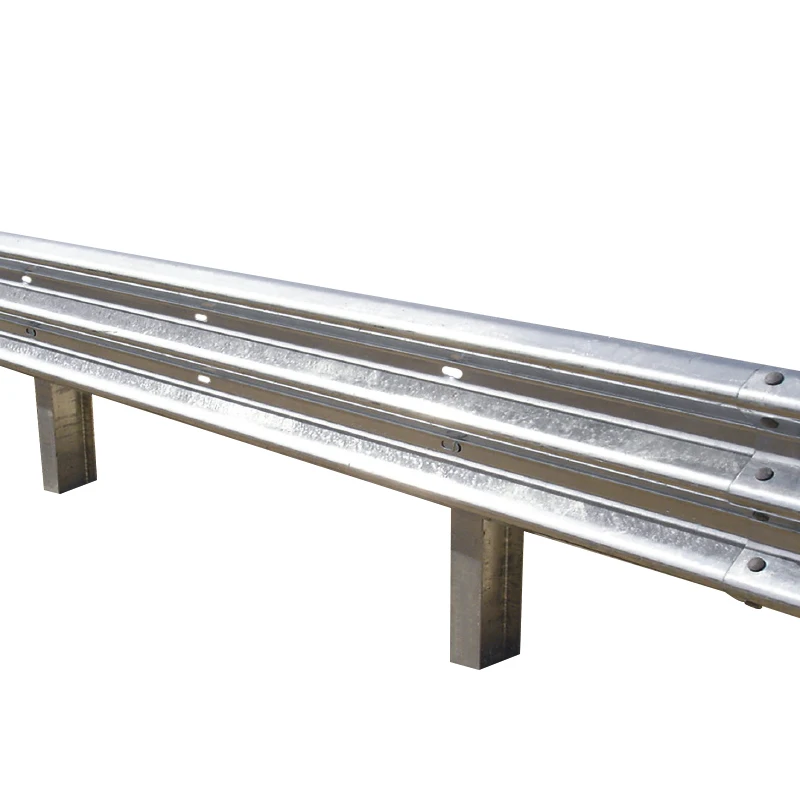

There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited. All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards, AASHTO M180 Standard, SANA 1350 Standard and etc.
Product Paramenters
American AASHTO-M180 Technical Standard W-beam highway guardrail | ||||||
TYPE | Overall Length (mm) | Effection Length (mm) | Norminal Uncoated Thickness (mm) | |||
TYPE Ⅰ | 4130 | 3810 | 2.67 | |||
TYPE Ⅱ | 4320 | 4000 | 2.67 | |||
MECHANICAL PROPERTIES | ◆Material grade: S355JR ◆Yield Point, minimum, 345Mpa (50000psi); ◆Tensile Strength, minimum 483Mpa (70000psi); and ◆Elongation, in 50mm (2 in.),minimum, 12 percent. | |||||
NOTES | ●Thickness of Zinc coating: 550g/㎡ or1100g/㎡; ●The beams may galvantzed before or after fabrication; ●We can customize the length and thickness according to customer requirements. | |||||
Manufacturing Technique
Details Images
C POST+BOX SPACER
CHANNEL POST+CHANNEL SAPCER
C POST+C SPACER
U POST+U SPACER
H POST+ BRACKET
C POST+TRAPEZOIDAL SPACER
SIGMA POST+ BRACKET
H POST+H SPACER
Z POST+STEEL CLIP
Company Profile
Established in 2015, Shandong Safebuild Traffic Facilities Co., Ltd. is located in Economic Development Zone of guan County, Liaocheng City, Shandong Province, China, which is near by jiguan Highway. specialized in manufacturing and exporting Highway Guardrail and accessories.
Safebuild Traffic Facilities Co., Ltd. covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Safebuild company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line.
Safebuild Traffic Facilities Co., Ltd. covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Safebuild company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line.
GUARDRAIL FORMING MACHINE
HOT DIP GALVANIZING PRODUCTION LINE
The company has advanced guardrail plate forming machine, which can realize the strip head removal, smoothing, punching, cutting, forming, leveling and other working procedure, so that the guardrail has good consistency, high processingaccuracy, low production cost, which is widely recognized by the market.
The company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the differentconstruction environment, corresponding surface treatment can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance.
BENDING MACHINE
DECOILER
PUNCHING MACHINE
We are spreaded to 8,000 km since it is established around China and successfully exported to other countries, like Russia and Malaysia, Algeria, Singapore, South Africa, Mozambique, Ghana, Brazil, etc. We have been holding a scientific, rigorous, normative and standardized pragmatic style , and developing impeccable inspection organization to to make sure all of our products quality are in line with national standards, industry standards and enterprise standards. Safebuild people, with our professional, whole-hearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients, create brilliant!
RAW MATERIAL WAREHOUSE
PRODUCTS WAREHOUSE
Recommend Products
C POST FOR GUARDRAIL
H POST FOR GUARDRAIL
U POST FOR GUARDRAIL
Z POST FOR GUARDRAIL
BOX SPACER FOR GUARDRAIL

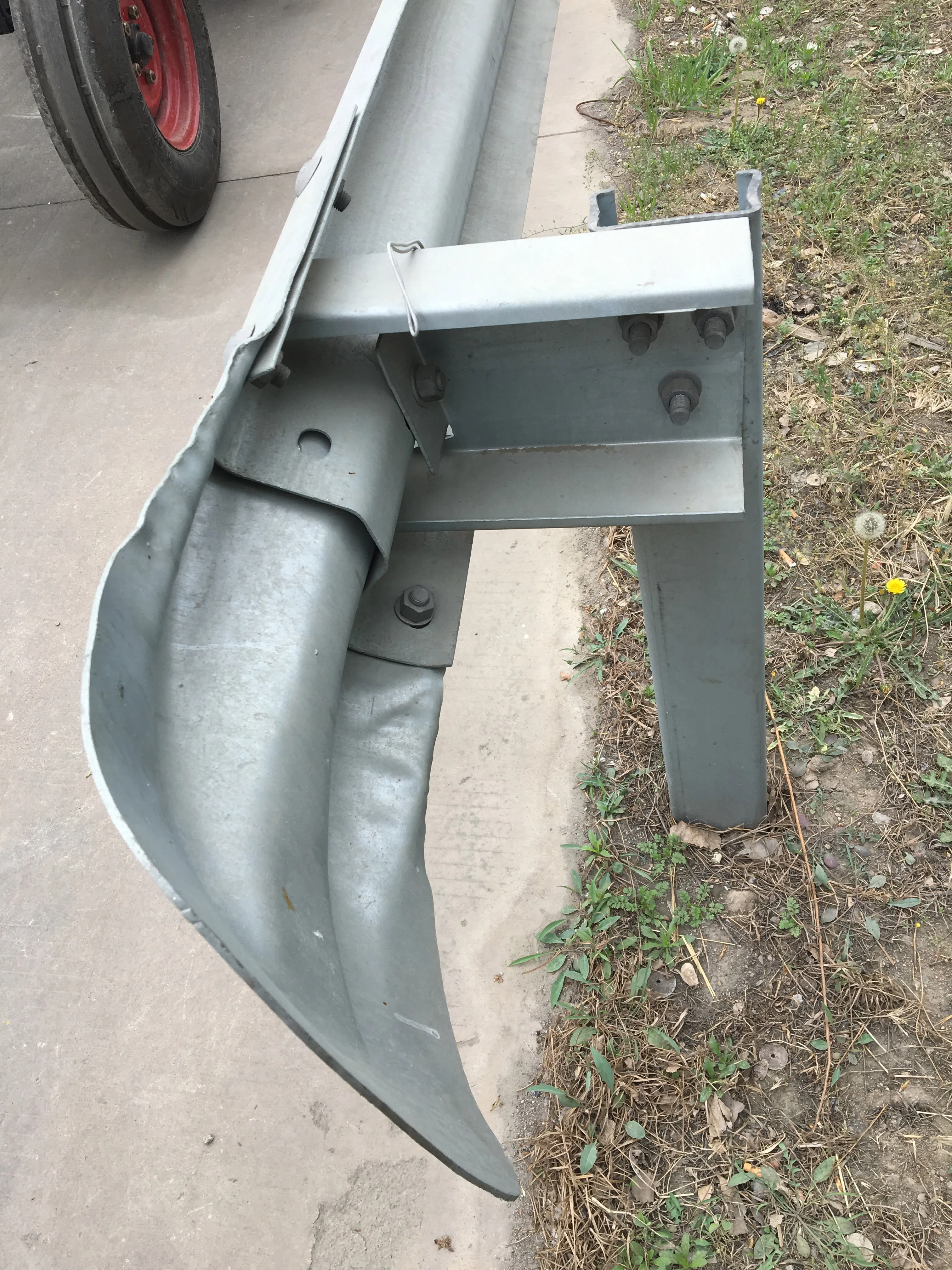

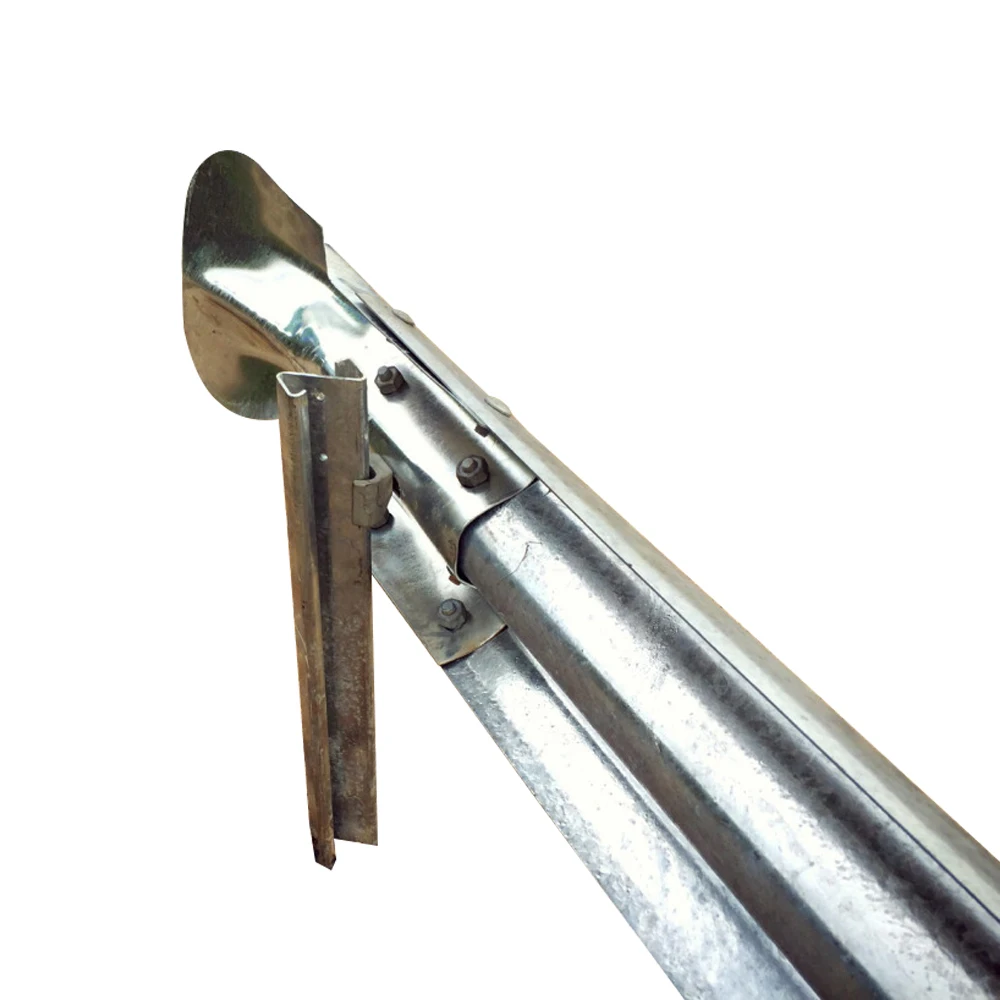

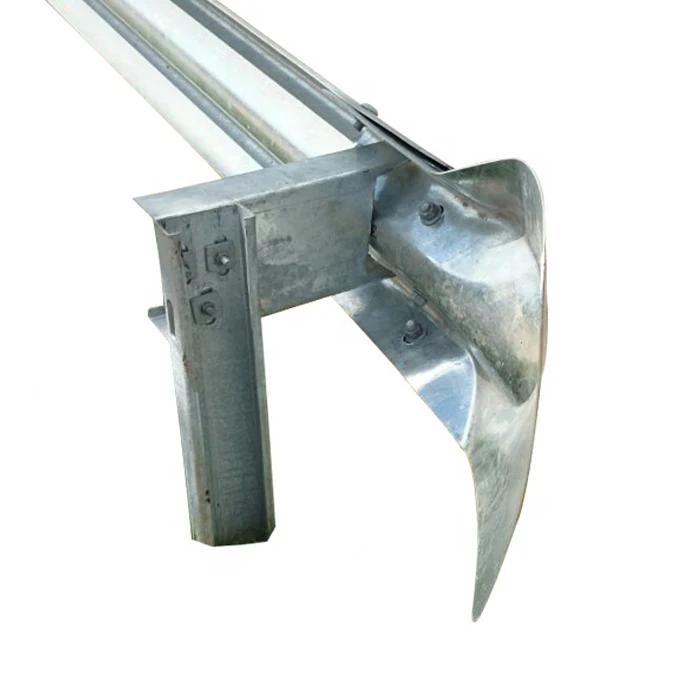

FISHTAIL END FOR GUARDRAIL
TERMINAL CONNECTOR
BEND GUARDRAIL
RADIAN GUARDRAIL
Product packaging
Focusing on the export business of transportation facilities, the company has rich packing and packing experience for container loading. Among them, the guardrail plate is packed with steel wire rope, the post is transported by pallet, and the spacer and other guardrail accessories are shipped in ton package. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.

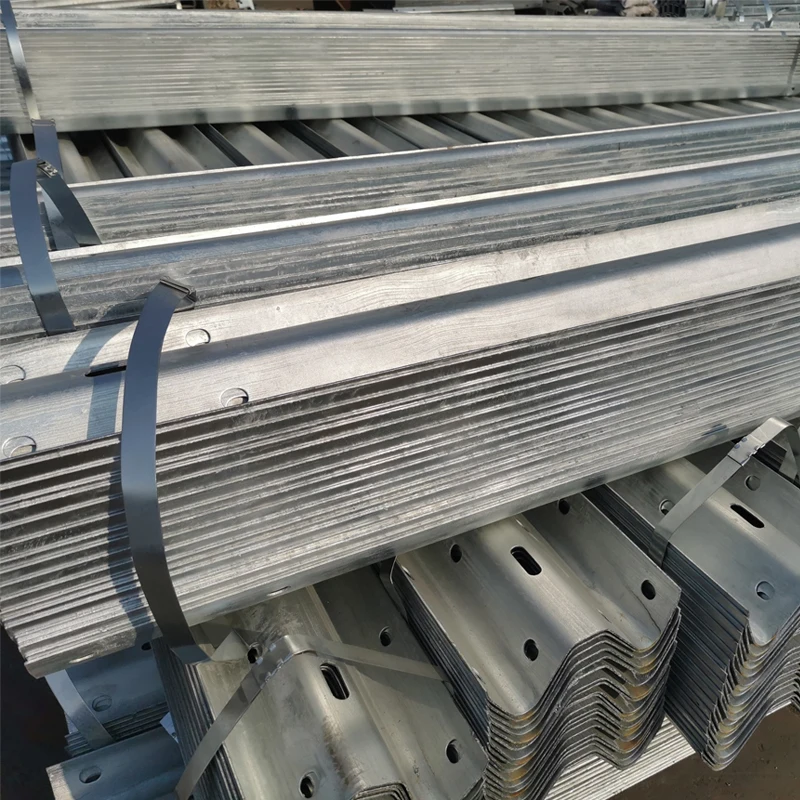

The packing of guardrail adopts bundling method, which is convenient for loading and unloading. It can also keep the balance of containers and facilitate transportation.
The packing of guardrail post adopts the well shaped binding method, which has strong firmness and is easy to be loaded and unloaded by forklift.
We use ton bags or simple wooden cases for packing accessories of guardrail, which is convenient for loading and unloading, and installation after arrival.
Our Advantages
◆Professional manufacturers and suppliers of safety protection products;
◆The company has many years of export experience, the export share is about 50%;
◆According to customer requirements, design, research and development, customized products;
◆Provide one-to-one online installation guidance and 24-hour service hotline : + 86-635-7070701;
◆According to customer requirements, design, research and development, customized products;
◆Provide one-to-one online installation guidance and 24-hour service hotline : + 86-635-7070701;
