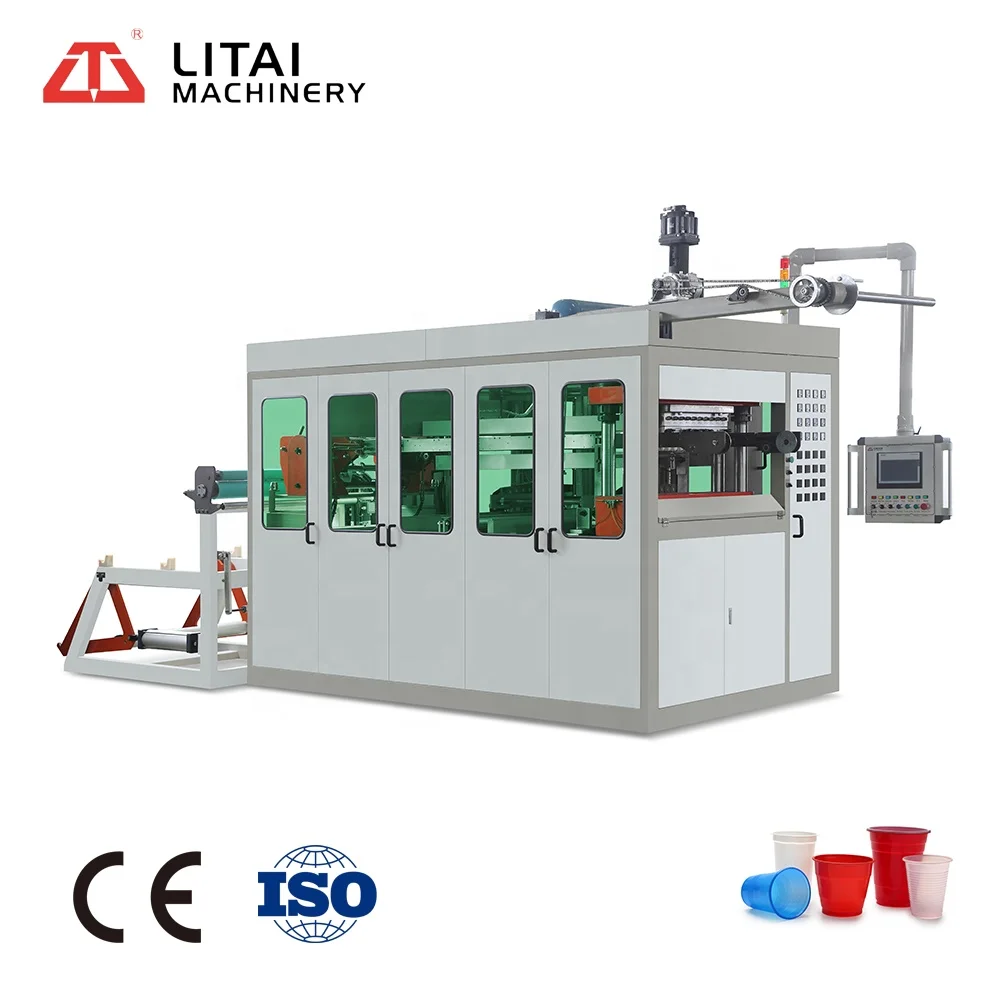

Автоматическая одноразовая посуда машина для производства пластиковых чашек мисок лотков Термоформовочная Машина с производственной
- Категория: Оборудование для производства пластиковых изделий >>>
- Поставщик: Pingyang,Litai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 49385.42 $* | 51854.38 $* |
| Aug-19-2025 | 48970.81 $* | 51419.47 $* |
| Jul-19-2025 | 41085.17 $* | 43139.37 $* |
| Jun-19-2025 | 48140.55 $* | 50547.66 $* |
| May-19-2025 | 41915.23 $* | 44011.43 $* |
| Apr-19-2025 | 47310.62 $* | 49676.11 $* |
| Mar-19-2025 | 46895.0 $* | 49240.76 $* |
| Feb-19-2025 | 46480.16 $* | 48804.70 $* |
| Jan-19-2025 | 46065.92 $* | 48368.8 $* |
Характеристики
Product parameters
Model | TQC-650B |
Max. Forming Area | 650mm x 300mm |
Max. Forming Depth | 125mm |
Sheet thickness | 0.3-1.8mm |
Sheet Width | 650mm |
Max. Forming Speed | 35times/min |
Air pressure | 0.6-0.8mpa |
Air consumption | 2.0 m³/min |
Water consumption | 0.5 m³/h |
Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
Used power | 69Kw |
Rated power | 98Kw |
Dimension | L8500*W2200*H2700mm |
Weight | About 5T |
MACHINE MAIN PARTS | ||
Touch Screen/PLC | SIEMENS (Germany) | |
Servo Motor | YASKAWA (Japan) | |
AC Contactor/Circuit Breaker | SCHNEIDER (France) | |
Proximity Switch | ROCKWELL (USA) | |
Solenoid Directional Valve/solenoid overflowing valve/counterbalance valve | YUKEN (Taiwan) | |
Intermediate Relay | IDEC (Japan) | |
Intermediate Relay Base | OMRON (Japan) | |
Forming Valve | CKD (Japan) | |
Solenoid Valve | SMC (Japan) / Mindman (Taiwan) | |
Products Description
APPLICATION

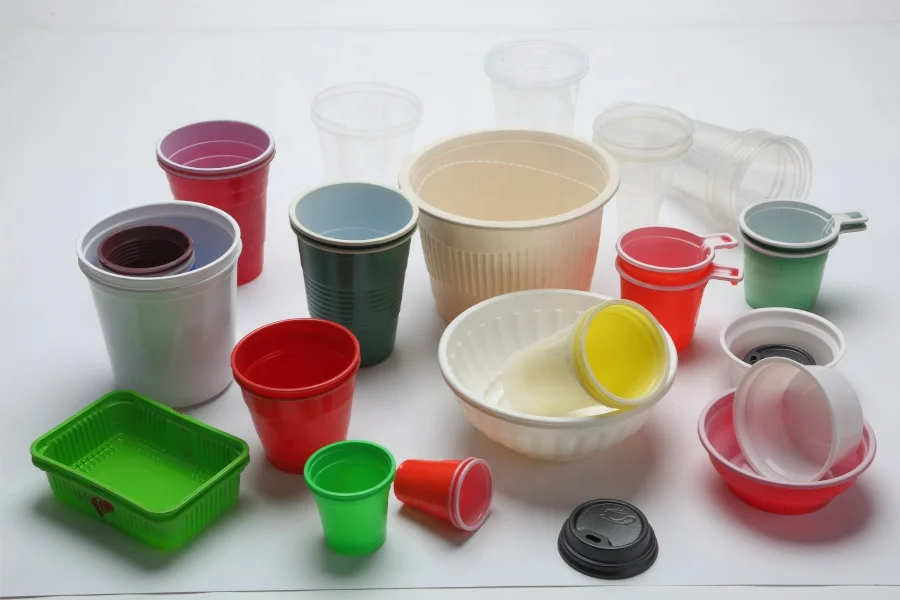

Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor.Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency.

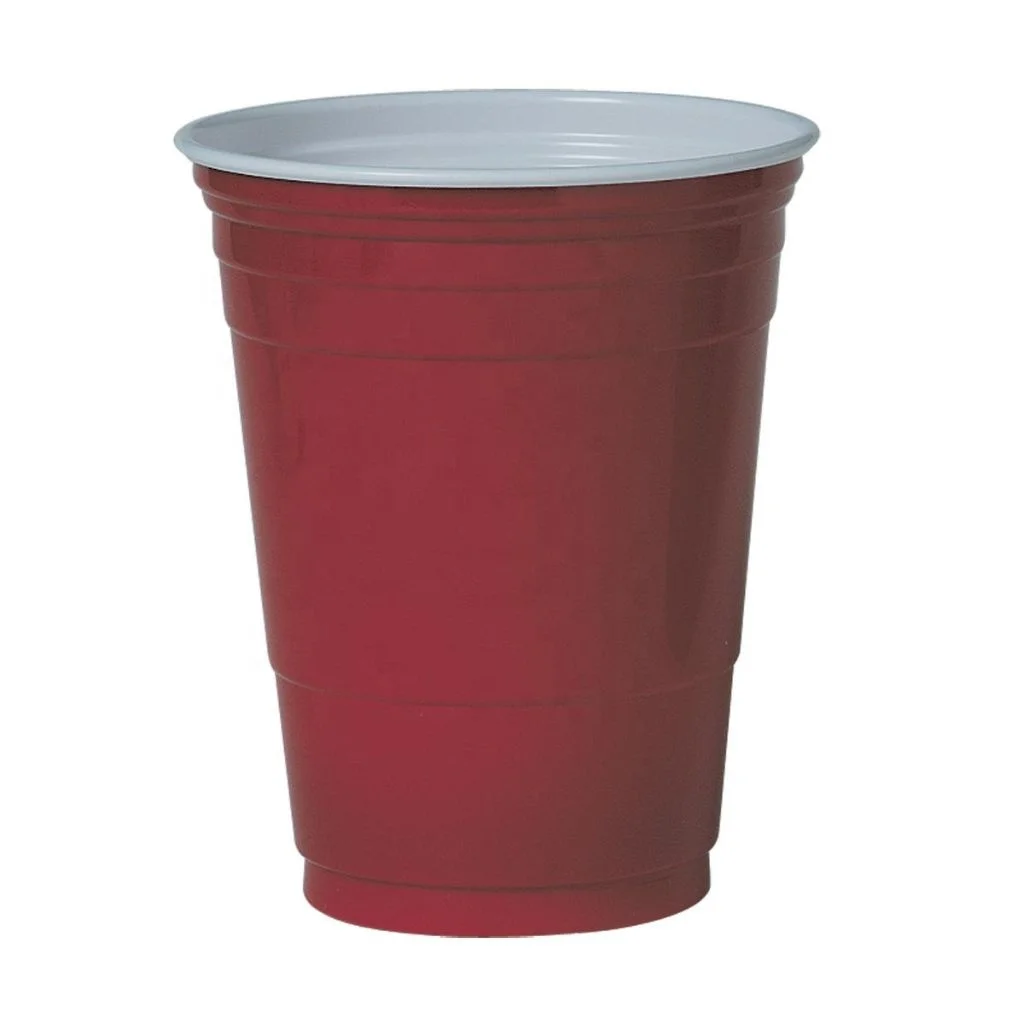

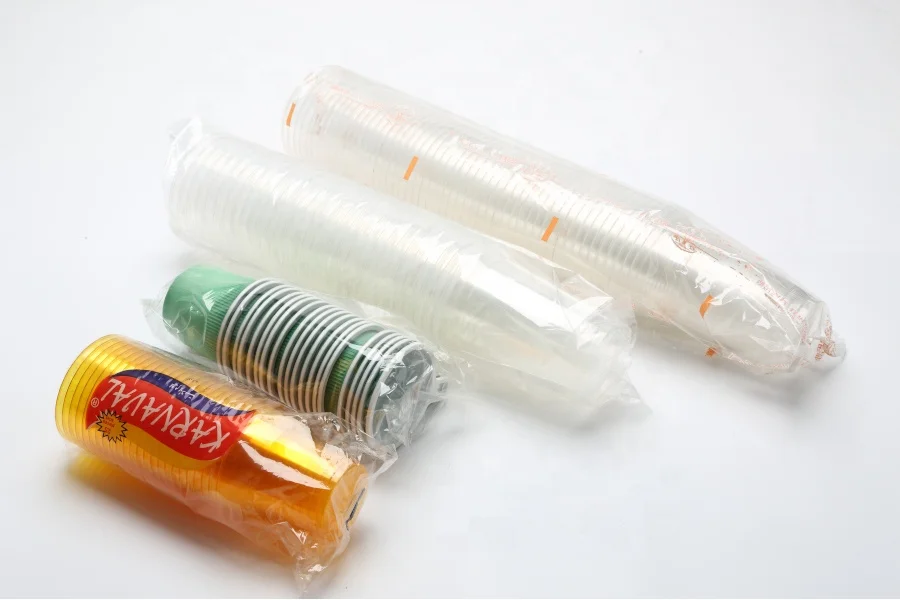

Plastic cup
We are a machine, the most competitive price, the most professional service, we have very advanced equipment, we can make plastic cups of different materials (in addition to ordinary materials, we can also make biodegradable and compostable plastic cups, basically can meet your requirements), size, pattern plastic cup.
Egg tray
The egg tray can be made PET or PVC plastic material. There are 4,6,8,9,10,12,15,30 cells tray. The diameter of it is 4 cm , 4.3 cm, 4.6 cm. It can be printed as your requirement.
Disposable lunch box
Advance meal prep, diet portion control, healthy nutritious meals and to-go meals are super convenient to prepare in these durable food containers. The hard-plastic construction will ensure no cracks or breaking along the way. The leak proof lids will tightly seal the containers, preventing any annoying leaks or spills in your bag or freezer.
Plastic fruit box
Our machine can manufacture 100% new food grade non-toxic and odorless material, which has high transparency and environmental friendliness.
Accurate lid makes our products lock tightly,which is not loose,leakage,strict and fresh.The thicker material box
shape does not change when stacking up.
Accurate lid makes our products lock tightly,which is not loose,leakage,strict and fresh.The thicker material box
shape does not change when stacking up.
Coffee cup lid
Our machine supports 100% biodegradable and compostable materials: our fiber thermal cover is made of 100% plant-based materials,
which is completely environmentally friendly. We are honored to provide you with an innocent alternative that is easy to compost and biodegradable. While reducing plastic waste, you can also better enjoy your favorite hot drinks!
which is completely environmentally friendly. We are honored to provide you with an innocent alternative that is easy to compost and biodegradable. While reducing plastic waste, you can also better enjoy your favorite hot drinks!

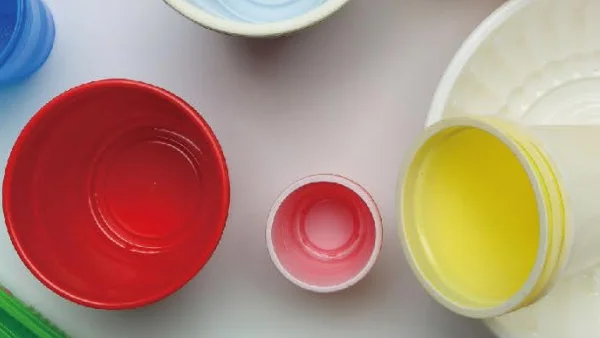

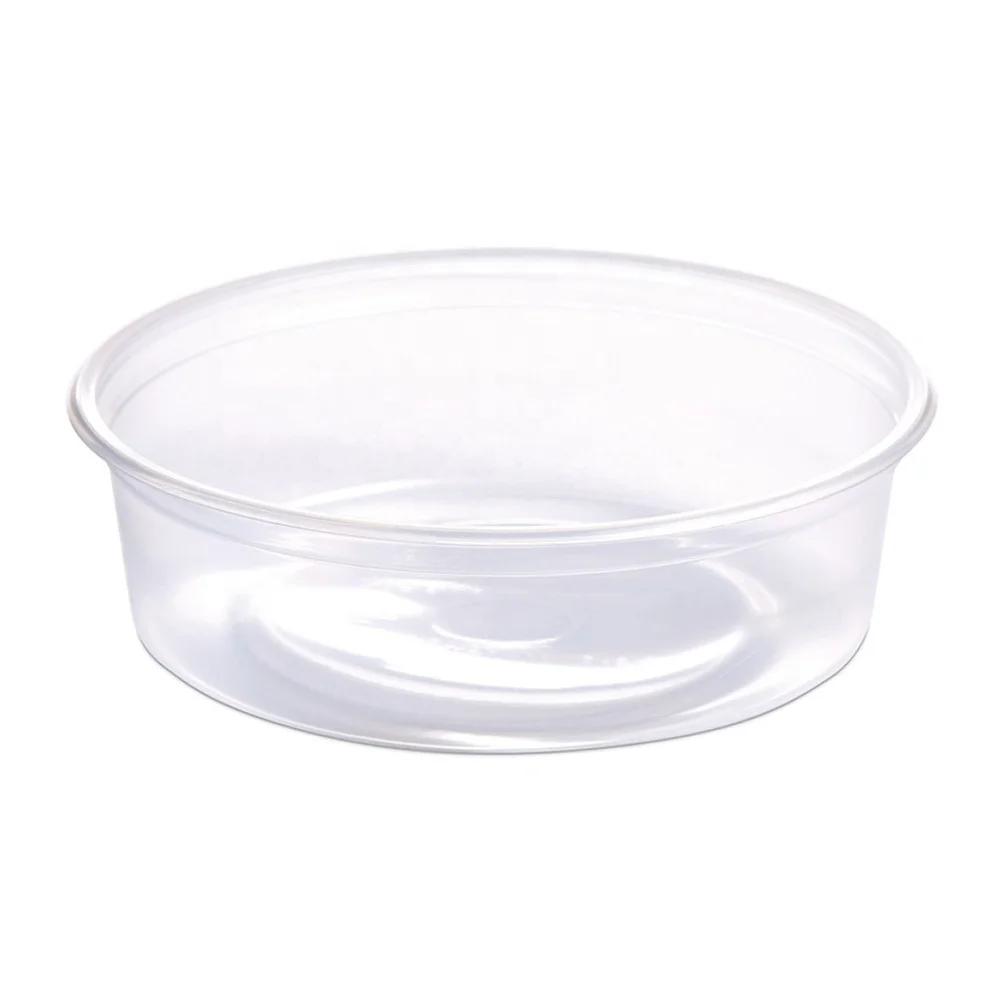

Plastic bowl
Elastic thermoforming is the preferred process for manufacturing plastic parts because it is ideal for producing large numbers of low-cost plastic parts with high tolerance accuracy, repeatability and almost no completion.
Touch screen :Delta
Industrial manual interface and PLC of SIEMENS (Germany) make the high degree automation, accurate control and convenient operation. The document storage function simplifies the operational processes.
Working station
Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life.
Servo motor
Stretching servomotor of YASKAWA (Japan) controls the speed of the upper and lower die, this can maintain the uniform strength to ensure that the bottom thickness of each cup is uniformly. And the servo motor also controls precisely sheet feeding to avoid wasting.
Hydraulic system
Hydraulic driven system can provide adequately movement speed and strongly punching power.
Hydraulic system
The whole part is driven by hydraulic system, which is reliable and steady. Using proximity switch of ROCKWELL (USA) leads to excellent mould positioning precision.
Heater
The heater added vacuum insulation cotton, which shows quick response rate, short processing time, and save energy.
Chain
Sharp chain uses 65#Mn, which has higher strength, better heat resistance and elasticity than 45# steel.
Electric lubricating oil pump
The electric lubricating oil pump can automatically inject lubricating oil regularly and quantitatively through the control of computer under the condition of unmanned control, which can make the rotating part of the machine get proper and reasonable lubrication.
Servo motor
Sheet feeding servo motor adopt YASKAWA brand, made in Japan, the rated power is 3kw, which can ensure stable operation in the process of feeding.
MACHINE FEATURES
1. Automaticsheet feeder with square steel structure, high wear resistance, more stable, efficiently, the accuracy of feeding size could be improved by automatic feeding.
2. Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space.
3. Machine adopts PID temperature system, it shows high precision, and temp control tolerance＜1℃
4. Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine’s counterbalance valve controls the opening and closing speed, good stability, conducive to forming.
2. Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space.
3. Machine adopts PID temperature system, it shows high precision, and temp control tolerance＜1℃
4. Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine’s counterbalance valve controls the opening and closing speed, good stability, conducive to forming.
About US
Certificate
Exhibition
Packaging shipping
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
