Шэньчжэнь Китай микроволновая Чувствительность Регулируемый автомобильный детектор
- Категория: Traffic Barriers >>>
- Поставщик: Shenzhen,Sinomatic,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 60.69 $* | 63.65 $* |
| Aug-18-2025 | 59.48 $* | 62.5 $* |
| Jul-18-2025 | 50.65 $* | 53.92 $* |
| Jun-18-2025 | 58.84 $* | 61.75 $* |
| May-18-2025 | 51.27 $* | 54.12 $* |
| Apr-18-2025 | 57.47 $* | 60.97 $* |
| Mar-18-2025 | 57.35 $* | 60.50 $* |
| Feb-18-2025 | 56.65 $* | 59.10 $* |
| Jan-18-2025 | 56.54 $* | 59.81 $* |
Характеристики
Product description
Brief Introduction

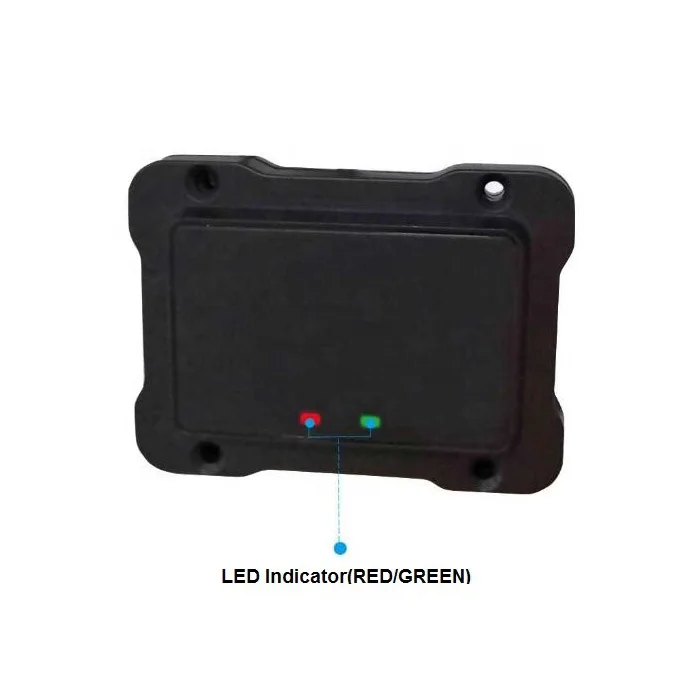

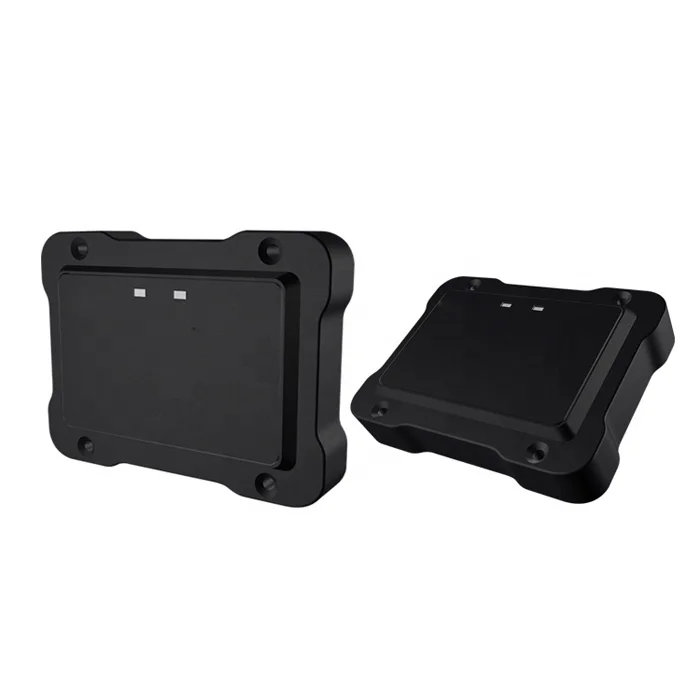

Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band. The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing on the target's reflected echoes to achieve fast target Detection.
Advantages
The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application.
The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application.
PRODUCT SPECIFICATIONS | ||||||
Center Frequency | 24GHZ | Horizontal Beam Width | 11° | |||

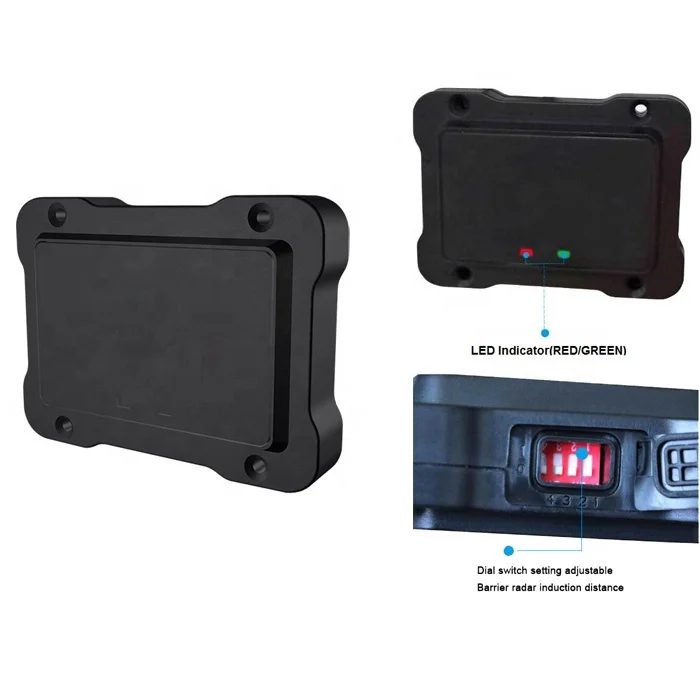

Vertical Beam Width | 43° | Distance Adjustment Range | 2.0 m～6 m (8 levels) | |||
Response Time | 100ms | Vehicle Inspection Miss Rate | 0.1% | |||
Coverage Range | 0 m～6 m | Pedestrian Detection Miss Rate | 0.1% | |||
Signal Output | switching value | False Detection Rate | 0.05% | |||
Detection Accuracy
With millimeter wave working signal, radar detector has high working frequency, directional accuracy and strong anti-interferenceand so on excellent performance. The detection rate of different types of vehicles (including cars, trucks, and aluminum vehicles) is higher than 99.9%. The detection rate of pedestrians is higher than 99.9%.
Low Cost to Install and Maintain（no need to damage the road surface）

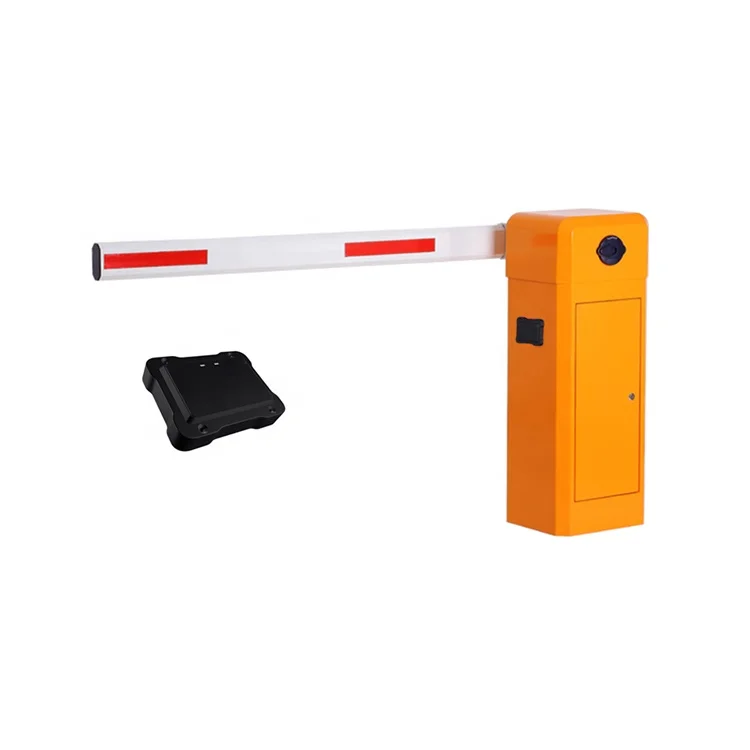

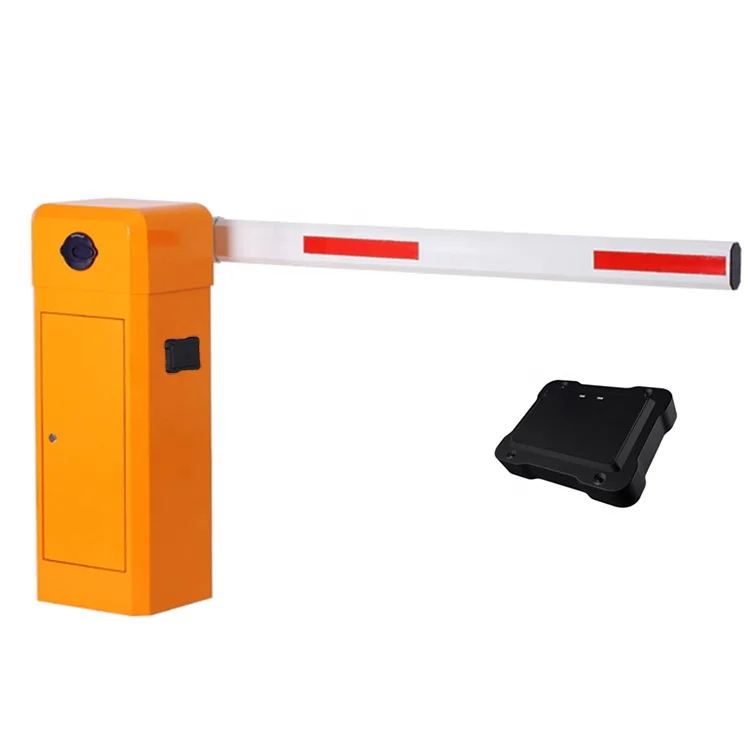

The barrier radar is easy to install, maintenance-free, highly reliable and easy to replace. It not only overcomes the problems of high construction cost and maintenance difficulties for the installation of the ground sense coil that needs to damage the road surface by personnel, but also solves the problem of barrier rod control.
All-weather Work
The working signal of the barrier radar detector is in the millimeter wave frequency band, with no need for special heat dissipation. Under the weather conditions such as rain, snow, hail, haze, etc., it has the ability to work continuously day and night. The detector shell has IP-65 waterproof requirements, there is no need to worry about rainwater entering the radar and causing radar damage.
Convenient Power Supply
The barrier radar detector adopts standard 12V DC power supply, which can adapt to the 6V~18V power supply voltage range, adapt to large voltage fluctuations, and the power supply current requirement is not large. It can be directly powered by the barrier control panel, without the need for a separate power supply device.

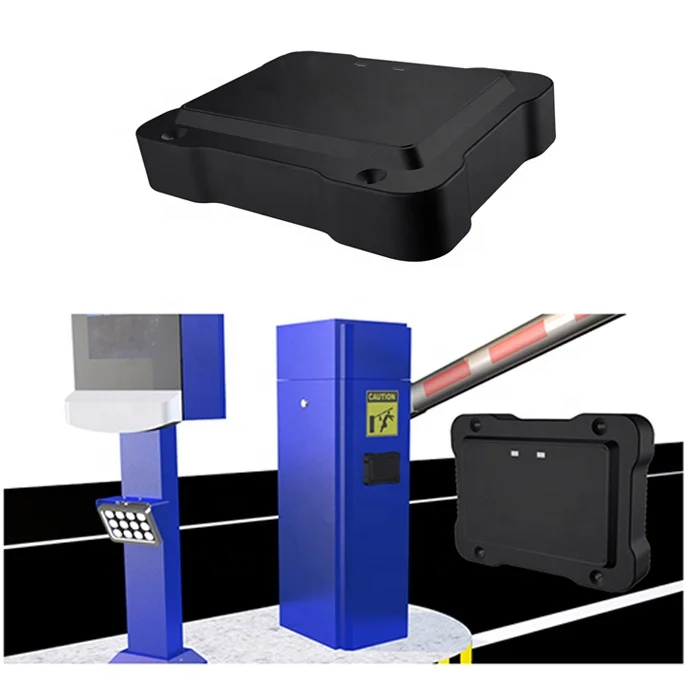

Installation Instructions
Production flow
Recommend Products
Our Company
Shenzhen Sinomatic Technology Co., Limited always focus on the manufacturing of access control turnstile and barrier for high security with the customers' encouragements and supports.
Main products includes pedestrian control turnstiles, parking barriers and parking locks, road blockers and road bollards etc.
Products has been exported to all over the world, favored by the majority of the customers. High quality and good faith for customers is our pricinple and this is also our biggest motivation.
Main products includes pedestrian control turnstiles, parking barriers and parking locks, road blockers and road bollards etc.
Products has been exported to all over the world, favored by the majority of the customers. High quality and good faith for customers is our pricinple and this is also our biggest motivation.
