Характеристики
Product Description
Product Details

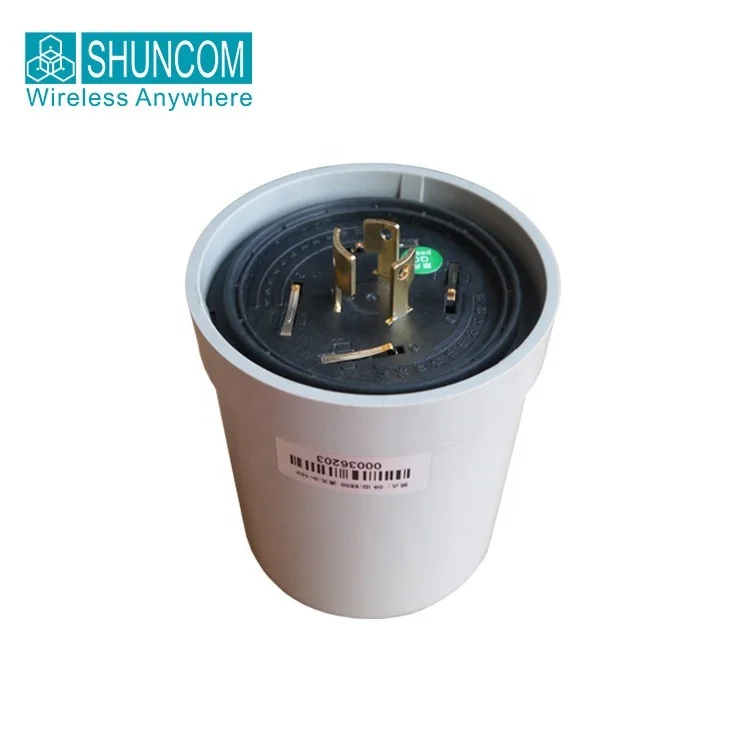

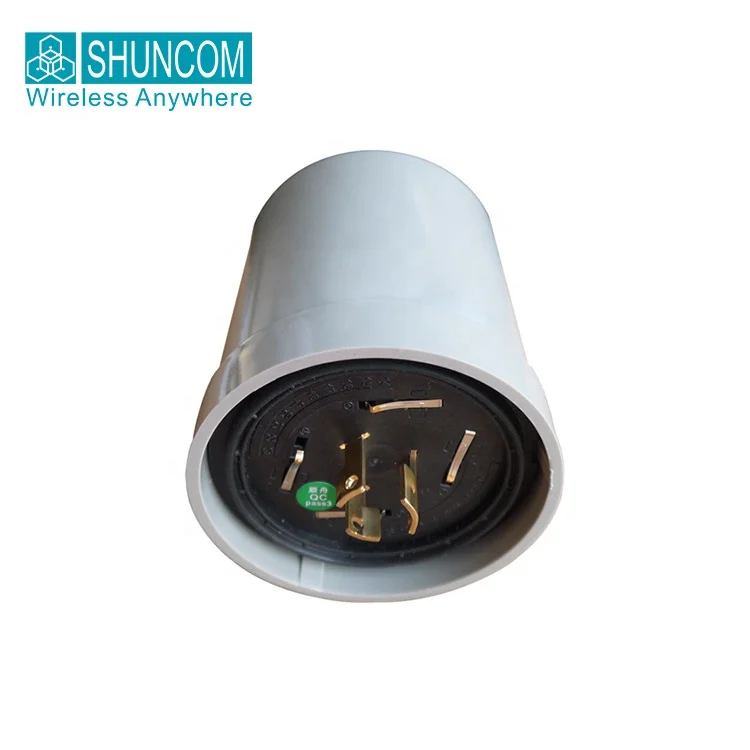

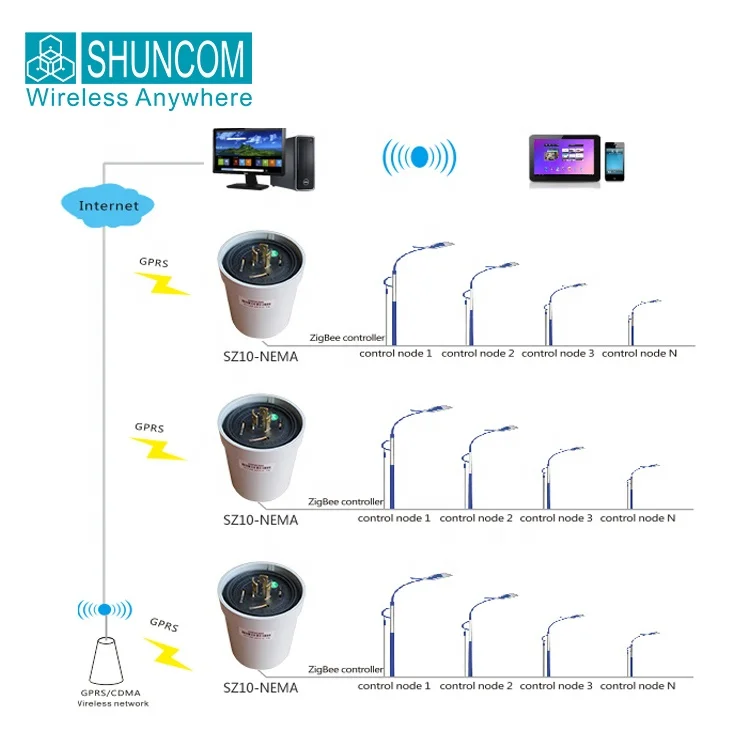

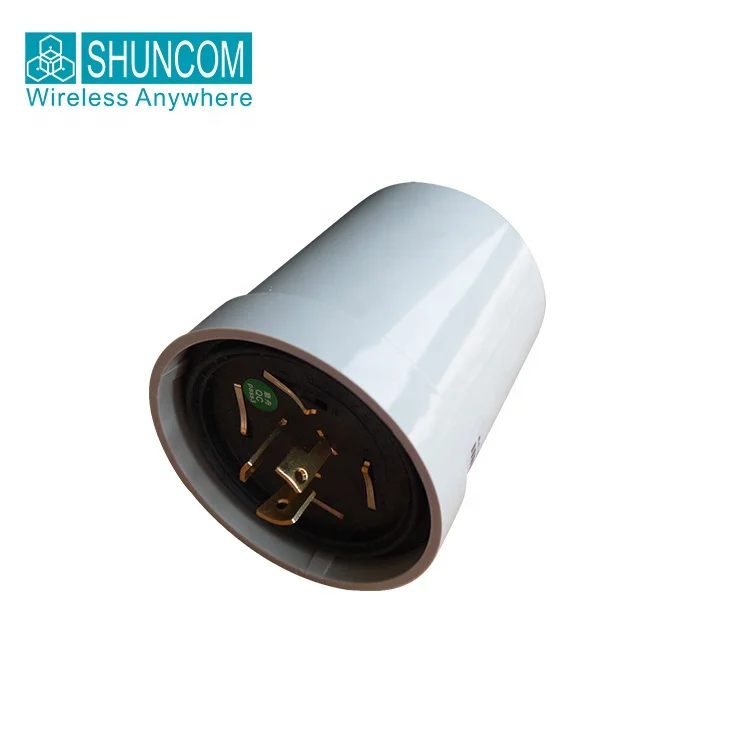

SZ10-NEMA controller conforms to IEEE802.15.4 protocol of ZIGBEE communication standard. It has the advantages of remote communication, strong anti-interference capability and flexible networking, realizing peer-to-peer and peer-to-multi peer transparent data transmission among devices, and constructing star network or mesh network topology.The interface standard is designed by TE Connectivity of ANSI C136.41-2013.
Product Details

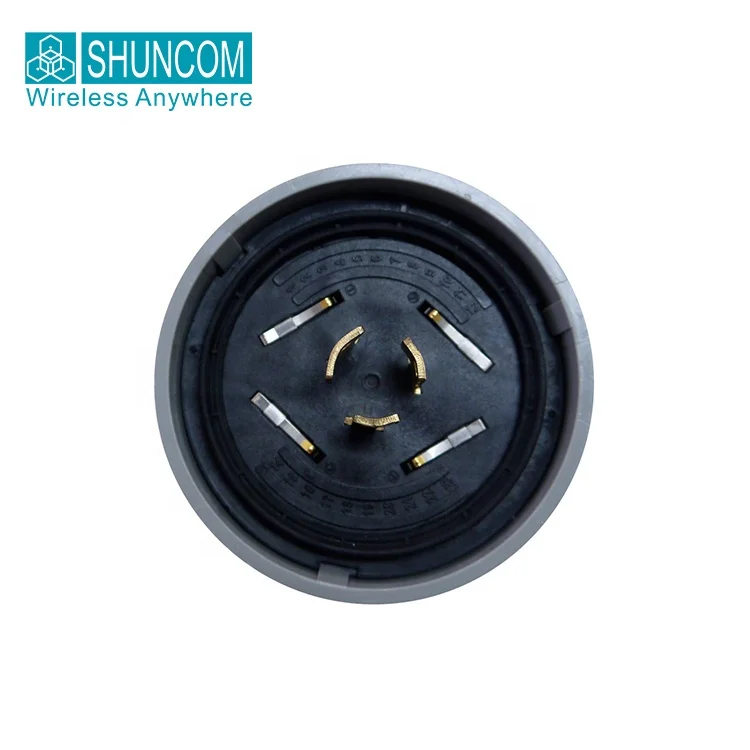

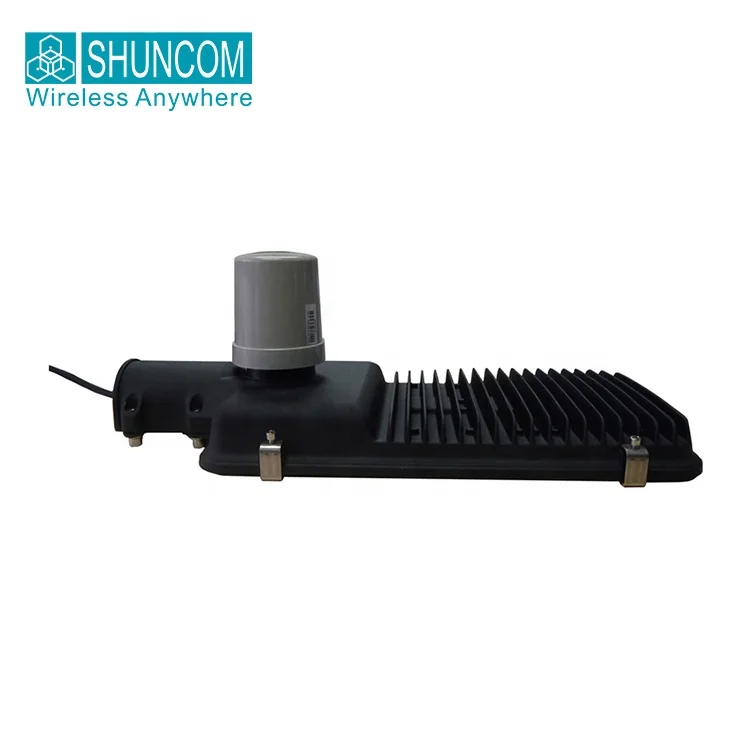

Dimmable socket and shrapnel contact are adopted to provide mechanical and electrical interconnection between light control unit and lamps using solid twist lock contacts to achieve reliable power interconnection, It is the ideal choice for outdoor business and public lighting.
Product Details
SZ10-NEMA single-lamp controller consists of a current and voltage measurement circuit, which collect real-time load performance and power consumption of single-lamp controller.It helps to largely reduce work load of street lamp management department, and improve working efficiency, therefore significantly improve energy-saving benefit of all society.
Specification
Technical Information | ||
Input Power | AC 85～265V 50/60Hz. | |
Output Power | AC 85～265V 50/60Hz | |
Antenna Type | Built-in | |
Antenna Standing Wave | ≤2.0 | |
Antenna Gain | 3DB | |
Antenna Frequency Band | 2.4G | |
Installation Process
Applications
Certifications
Company Information
Exhibition
FAQ
Q1. Can I place a sample order for the light controller?
A: Yes, we welcome sample orders from our clients to check product quality and to do testing.
Q2. Are you a trader or a manufacturer?
A: We are manufacturer, so we can guarantee quality of our products and offer the best price.
Q3. Do you have any MOQ limits for light controller orders?
A: We set low MOQ, and a sample order of 5 pcs light controllers is available.
Q4. Have you got any protocol of NEMA controllers which features DALI?
A: It is unavailable so far, but this model is under development.
Q5. If the gateway is not working or lost, can the lighting controller switch automatically?
A: Yes, our light controller can still operate normally by applying local strategies.
Q6.How many lighting controllers can a gateway usually control?
A: A gateway can control 200 lighting controllers under normal circumstances.
